Product Details | MOTOR ARMATURE
6105-00-012-6737 An armature which is a part of a motor. See also ROTOR, MOTOR.20329200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving61050018Motors, Electrical
Part Alternates: 1441714, 144-1714, 6105-00-012-6737, 00-012-6737, 6105000126737, 000126737
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1961 | 00-012-6737 | 00457 ( ARMATURE, MOTOR ) |

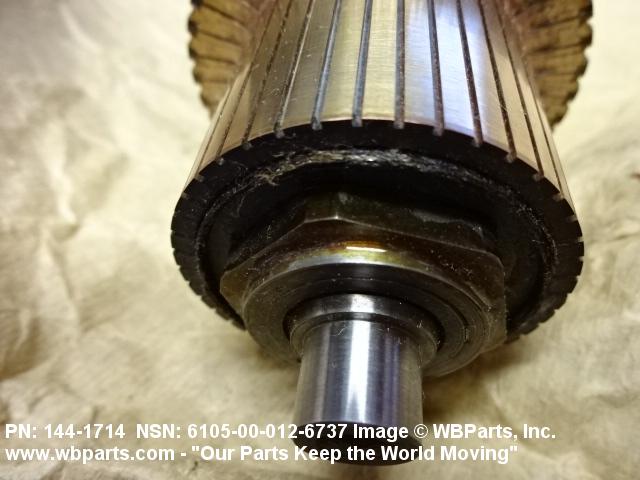

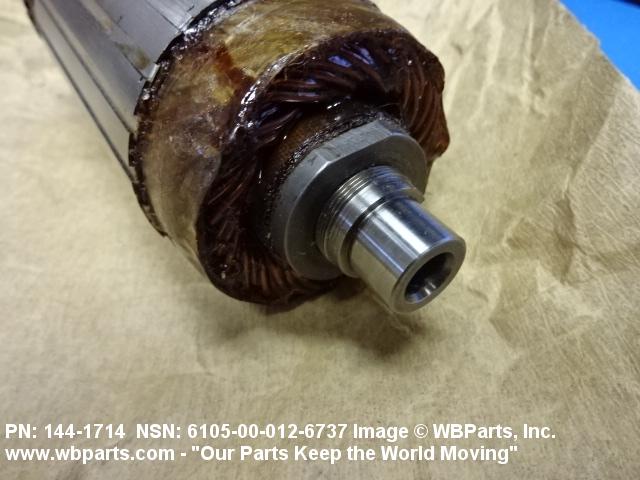

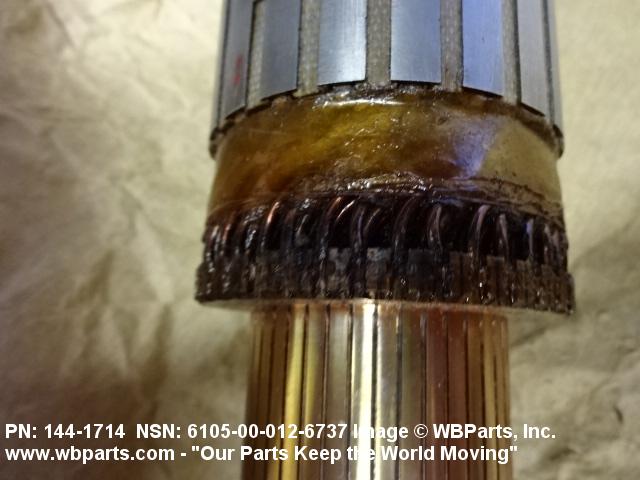

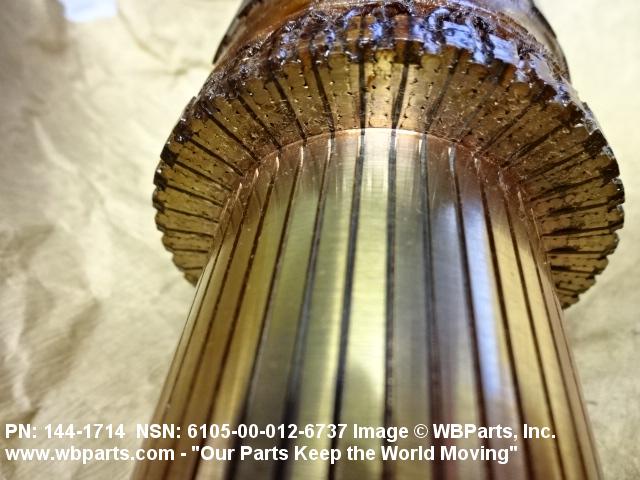

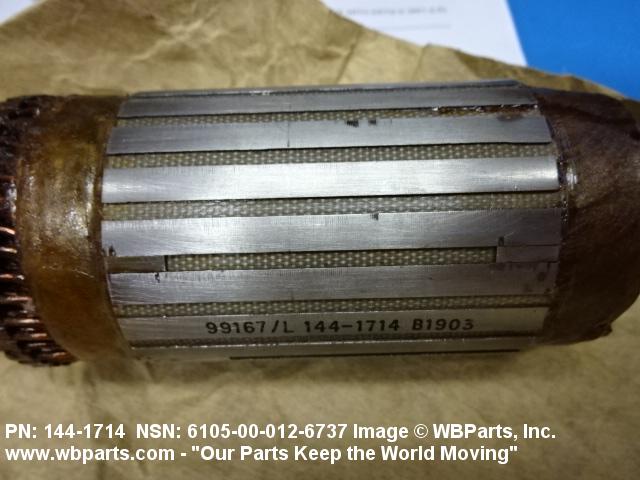

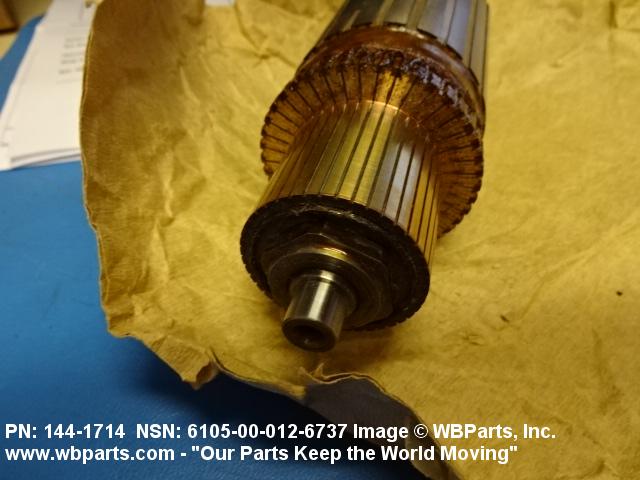

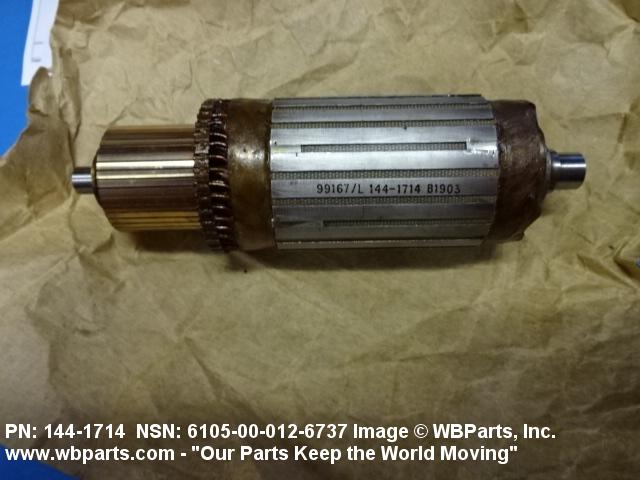

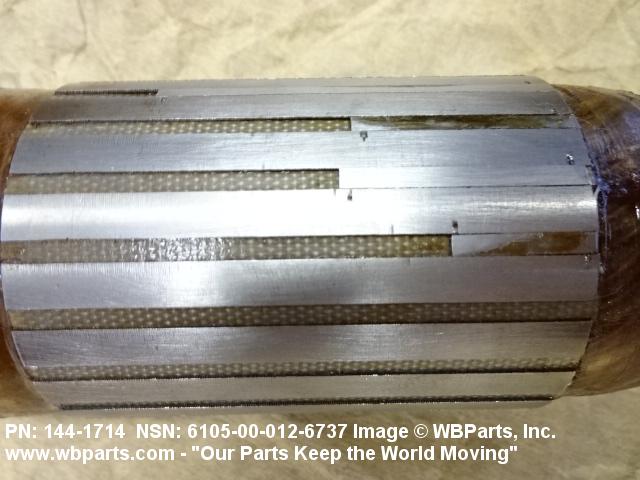

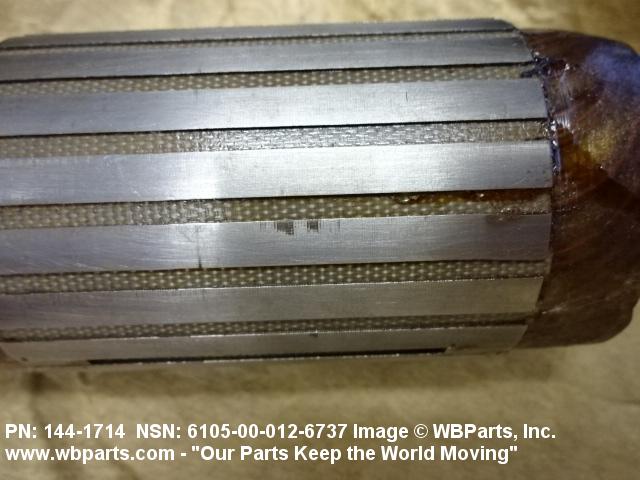

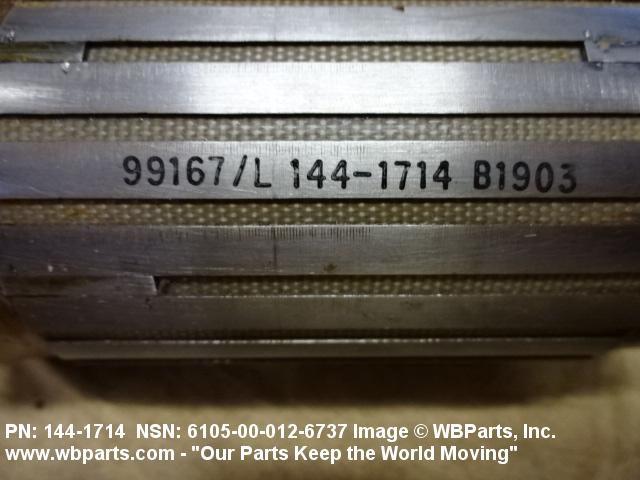

Drawings & Photos | NSN 6105-00-012-6737
Demand History | NSN 6105-00-012-6737
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-012-6737 | 2019-05-10 | 3 | United States |
| 144-1714 | 2019-04-03 | 8 | DIBBS |
| 6105-00-012-6737 | 2017-11-28 | 16 | DIBBS |
| 6105-00-012-6737 | 2017-11-19 | 16 | DIBBS |
| 6105-00-012-6737 | 2017-10-05 | 3 | United States |
| 6105-00-012-6737 | 2017-08-21 | 5 | DIBBS |
| 6105-00-012-6737 | 2017-08-13 | 5 | DIBBS |
| 6105-00-012-6737 | 2017-07-05 | 3 | DIBBS |
| 6105-00-012-6737 | 2017-03-15 | 2 | DIBBS |
| 6105-00-012-6737 | 2017-03-07 | 2 | DIBBS |
| 6105-00-012-6737 | 2016-02-22 | 2 | DIBBS |
| 6105-00-012-6737 | 2015-12-22 | 2 | DIBBS |
Cross Reference | NSN 6105-00-012-6737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 144-1714 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6105-00-012-6737
Related Products | NSN 6105-00-012-6737
6105-00-012-6796, 6105-00-012-8278, 6105-00-013-3398, 6105-00-013-6923, 6105-00-014-0419
Technical Data | NSN 6105-00-012-6737
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SLOT WOUND |
| OVERALL DIAMETER | 2.5220 INCHES MINIMUM AND 2.5250 INCHES MAXIMUM |
| FEATURES PROVIDED | SHAFT |
| SPECIAL FEATURES | INCLUDES 1 SHAFT SLEEVE,1 SHAFT NUT,1 SHAFT SPACER,1 COMMUTATOR,1 INSULATOR COMMUTATOR,21 SLOT WEDGES,21 SLOT INSULATORS,42 BRAZING SHIMS,2TAMINATION INSULATORS,AND 234 ARMATURE LAMINATIONS |
| III END ITEM IDENTIFICATION | LGM-30 MINUTEMAN |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 144-1714 |
Restrictions/Controls & Freight Information | NSN 6105-00-012-6737
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060580 | ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-012-6737
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
