6210-00-066-6394 A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items prviding illumination for map reading or general utility illumination, in addition to panel illumination, see LIGHT (1), COCKPIT, AIRCRAFT. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see LIGHT (1), INDICATOR.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: 200005101RY327, 20-0005-10-1R-Y-327, 200005171RY, 20-0005-17-1RY, 200005171RY327, 20-0005-17-1R-Y-327, 6210-00-066-6394, 00-066-6394, 6210000666394, 000666394
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-066-6394 | 00119 ( LIGHT, PANEL ) |
Drawings & Photos | NSN 6210-00-066-6394
Demand History | NSN 6210-00-066-6394
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6210-00-066-6394
6210-00-066-6473, 6210-00-066-7318, 6210-00-066-8531, 6210-00-066-9017, 6210-00-067-3361
Technical Data | NSN 6210-00-066-6394
| Characteristic | Specifications |
|---|---|

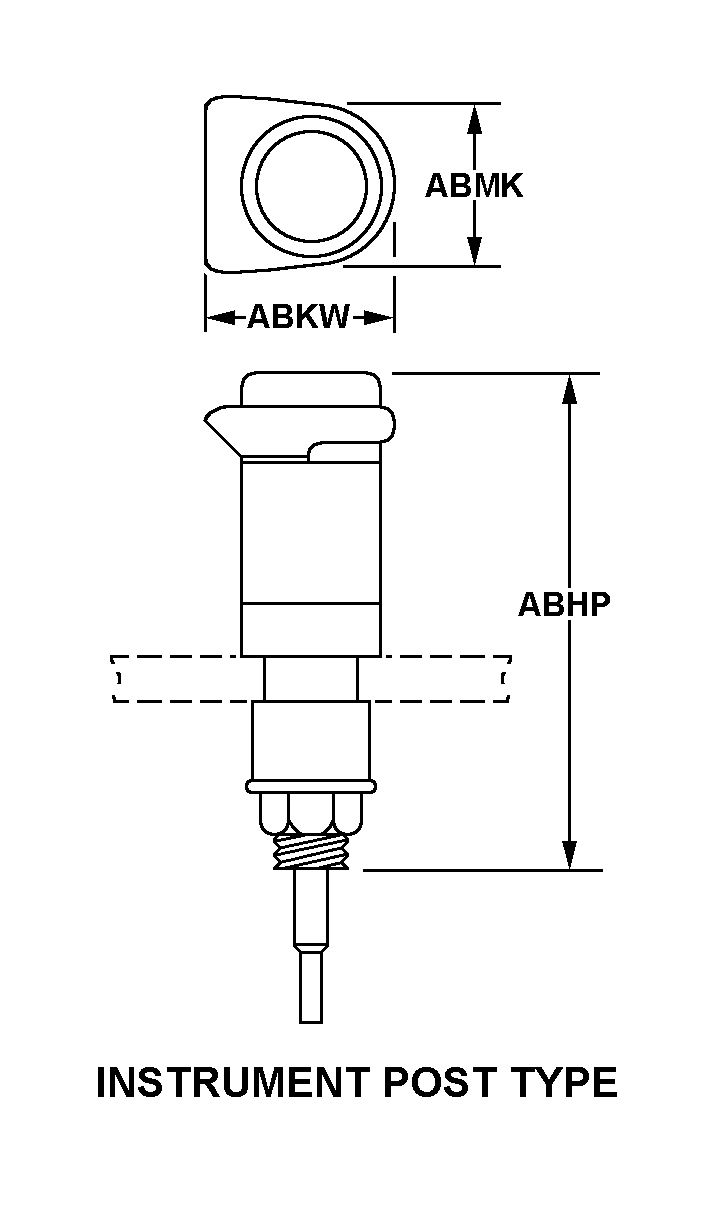

| STYLE DESIGNATOR | A5 INSTRUMENT POST TYPE |
| OVERALL LENGTH | 1.578 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 1 |
| LENS TYPE | FLAT, RECTANGULAR SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.250 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.046 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| FURNISHED ITEMS AND QUANTITY | 1 HEXAGON NUT AND 1 LOCK WASHER |
| (NON-CORE DATA) WIRING PROVISION METHOD | INDIVIDUAL WIRE |
| (NON-CORE DATA) WIRING PROVISION LENGTH | 36.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 72914 |
| DESIGN CONTROL REFERENCE | 20-0005-17-1RY |
