Product Details | LIGHT TRANSMITTING INDICATING PANEL
6220-00-498-0992 An item composed of a coated transparent or partly transparent/partly opaque materiels, engraved with letters, words and/or symbols, designed to allow light to be transmitted through the engraving(s) for indicating purposes. It may have an electrical lighting circuit either on a removable printed circuit board or embedded within the panel. The circuit may have removable or nonremovable electroluminescent and/or incandescent lamps for lighting. Dials and/or switches may be included. Excludes DISPLAY, OPTELECTRONIC. See also INDICATOR (as modified), and LIGHT (1), INDICATOR20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: MILDTL7788, MIL-DTL-7788 , 215-070-135 , 2120701351, 212-070-135-1, 6220-00-498-0992, 00-498-0992, 6220004980992, 004980992, 215070135
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 03 OCT 1969 | 00-498-0992 | 61555 ( PANEL, INDICATING, LIGHT TRANSMITTING ) |

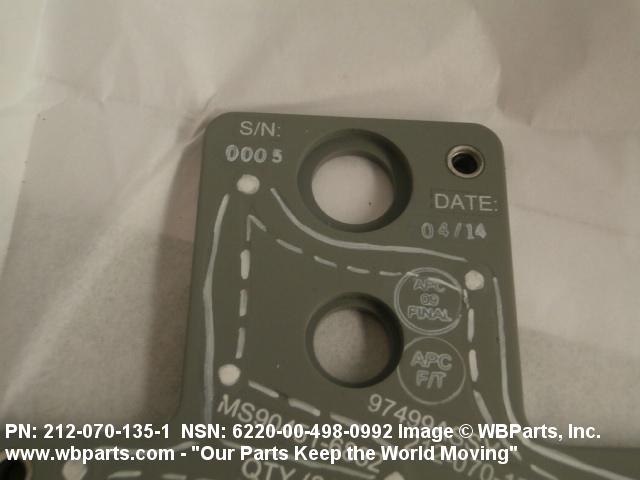

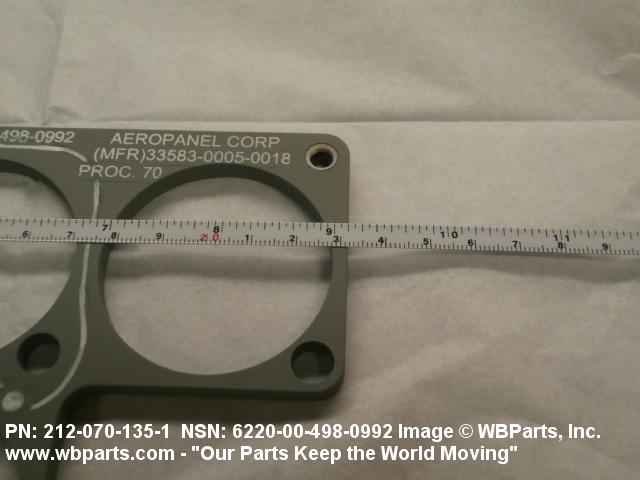

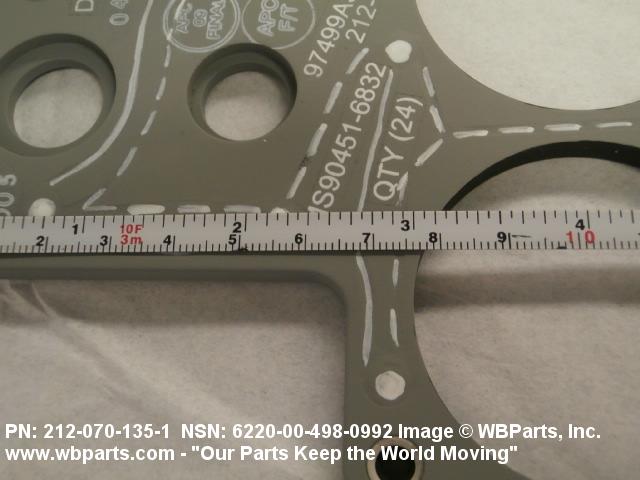

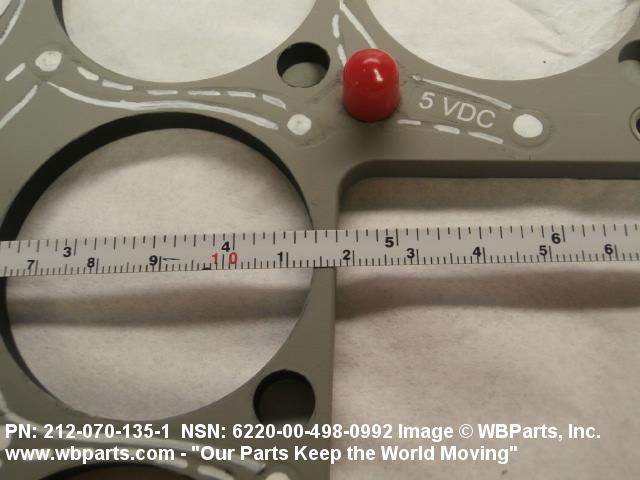

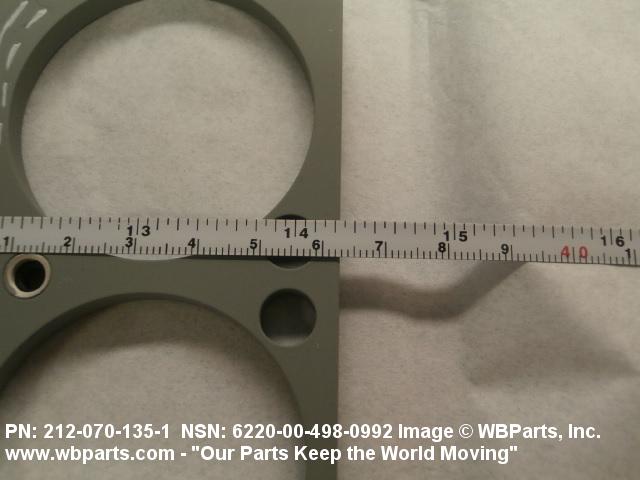

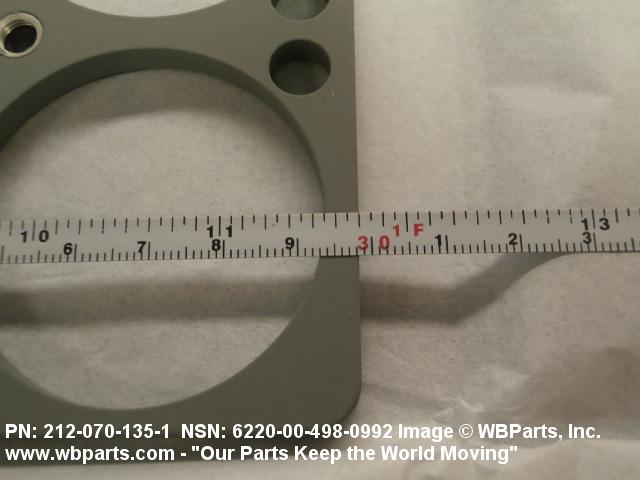

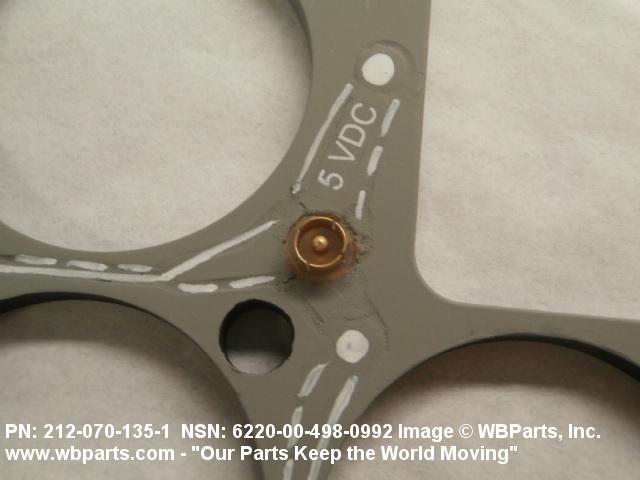

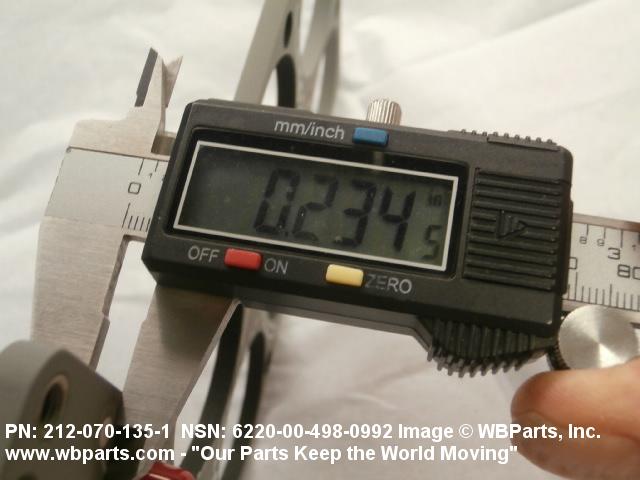

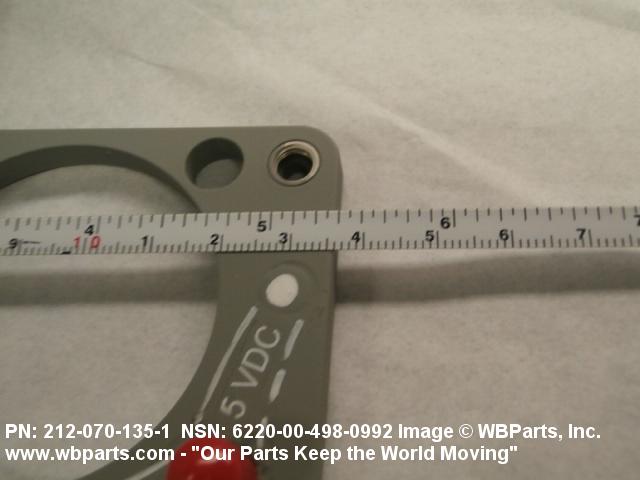

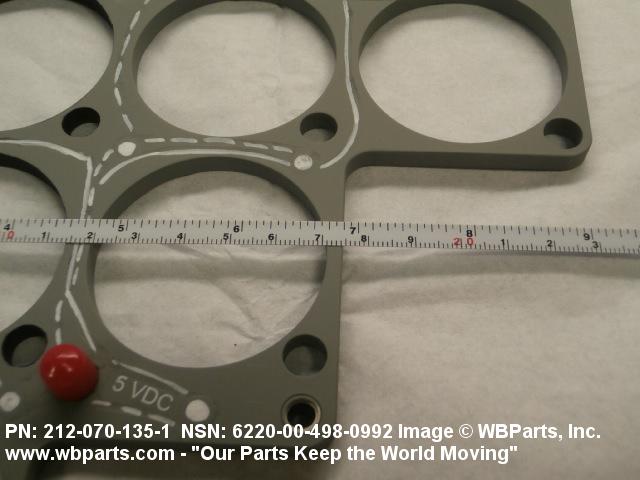

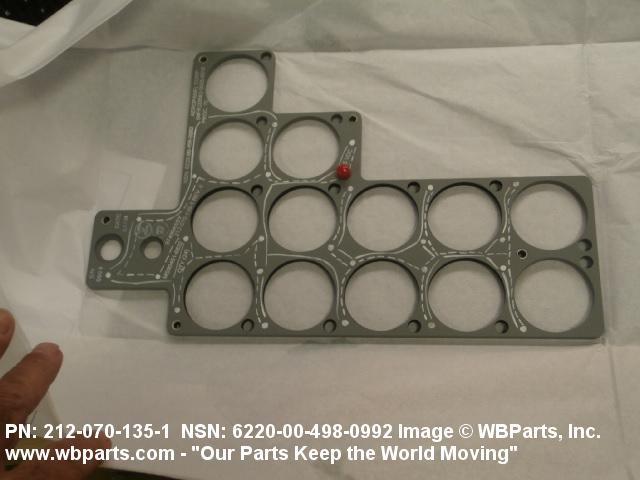

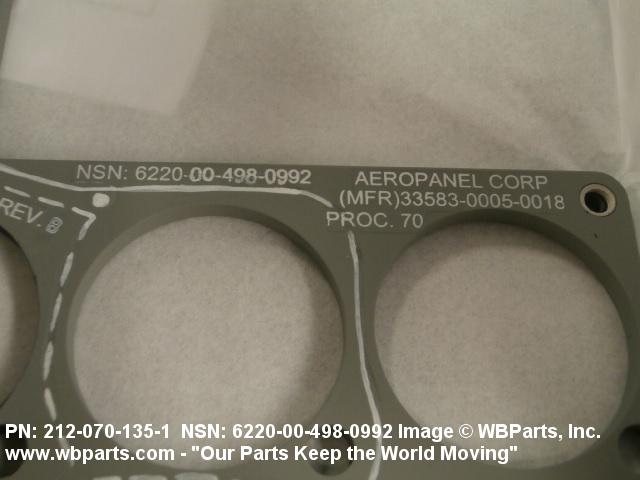

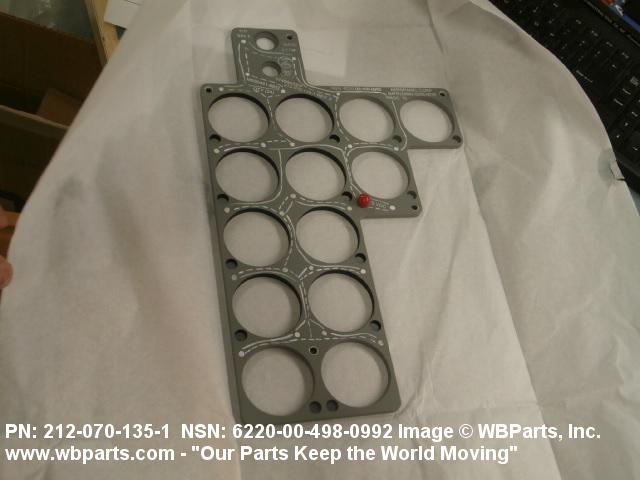

Drawings & Photos | NSN 6220-00-498-0992
Demand History | NSN 6220-00-498-0992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-498-0992 | 2016-09-11 | 12 | DIBBS |
| 6220-00-498-0992 | 2015-09-01 | 10 | DIBBS |
| 2120701351 | 2014-02-19 | 1 | United States |
| 2120701351 | 2014-02-14 | 1 | United States |
| 2120701351 | 2014-02-07 | 1 | United States |
| 2120701351 | 2013-11-26 | 1 | United States |
| 6220-00-498-0992 | 2013-10-14 | 9 | DIBBS |
| 6220-00-498-0992 | 2012-03-29 | 2 | DIBBS |
| 6220-00-498-0992 | 2011-02-23 | 3 | DIBBS |
| 6220-00-498-0992 | 2011-01-25 | 3 | DIBBS |
| 6220-00-498-0992 | 2009-10-08 | 9 | DIBBS |
| 6220-00-498-0992 | 2009-09-10 | 8 | DIBBS |
| 2120701351 | 2009-06-12 | 1 | United States |
| 6220-00-498-0992 | 2009-04-21 | 1 | DIBBS |
| 6220-00-498-0992 | 2008-06-03 | 4 | DIBBS |
| 6220-00-498-0992 | 2007-12-13 | 4 | DIBBS |
| 6220-00-498-0992 | 2007-08-13 | 10 | DIBBS |
| 6220-00-498-0992 | 2007-04-27 | 5 | DIBBS |
| 6220-00-498-0992 | 2006-07-10 | 4 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6220-00-498-0992
Related Products | NSN 6220-00-498-0992
6220-00-498-1089, 6220-00-498-1090, 6220-00-498-2424, 6220-00-498-2989, 6220-00-498-4937
Technical Data | NSN 6220-00-498-0992
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 14.214 INCHES NOMINAL |
| OVERALL WIDTH | 9.050 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | UH-1 |
Restrictions/Controls & Freight Information | NSN 6220-00-498-0992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063080 | SIGNAL BOXES NOI IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-498-0992
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
