Product Details | ELECTRIC FLOODLIGHT
6220-01-076-3695 An item which conforms to Light (1), and is designed to project a broad beam of light for relatively even illumination over a wide area. It must include reflector(s) and mounting facilities and may include accessories. Excludes items which can be adjusted to function as a SEARCHLIGHT or a SPOTLIGHT. See also SEARCHLIGHT; SPOTLIGHT and LIGHT, PHOTOGRAPHIC.2046210000062200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment67600038Photographic Equipment and Accessories
Part Alternates: L13292, 00945502, 009-45502, 11297, 650W4, 650W-4, 65D354581, 65D35458-1, 65D35458-1 24 VOLTS, 65D35458124VOLTS, 7462181, 746218-1, 945502, 9-45502, 94554502, 9-455-4502, 6220-01-076-3695, 01-076-3695, 6220010763695, 010763695
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 05 MAY 1979 | 01-076-3695 | 00520 ( FLOODLIGHT, ELECTRIC ) |

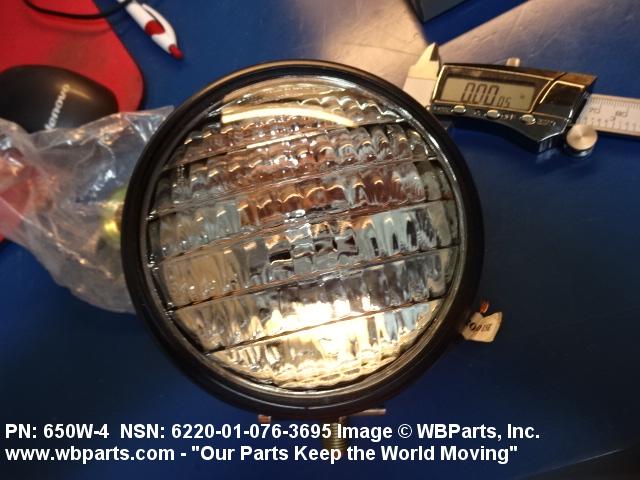

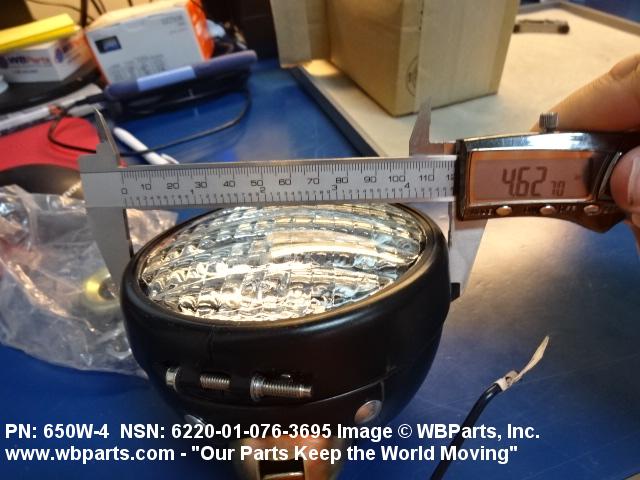

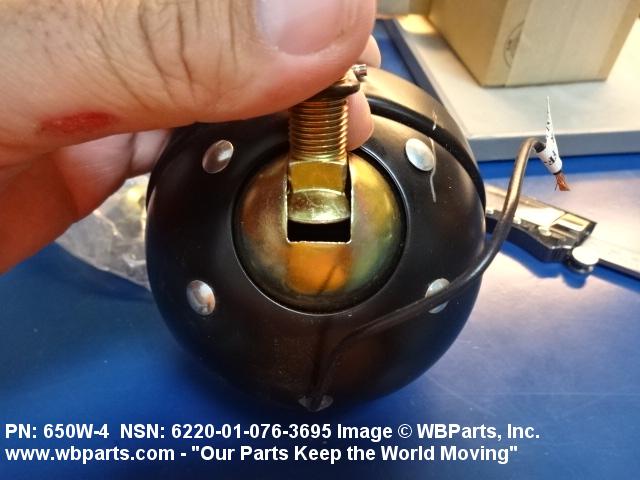

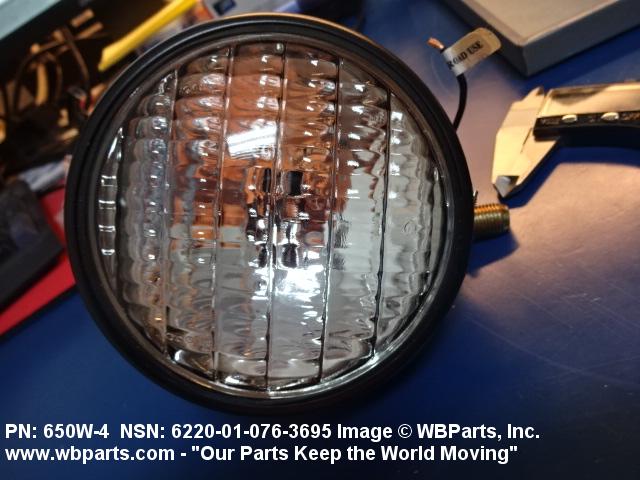

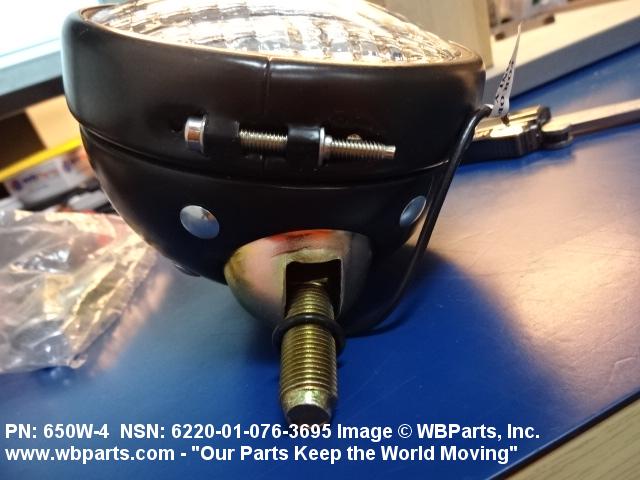

Drawings & Photos | NSN 6220-01-076-3695
Demand History | NSN 6220-01-076-3695
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-076-3695 | 2023-03-23 | 370 | DIBBS |
| 6220-01-076-3695 | 2020-02-17 | 49 | DIBBS |
| 6220-01-076-3695 | 2019-03-18 | 1 | DIBBS-RFPs |
| 94554502 | 2019-02-14 | 4 | Netherlands |
| 6220-01-076-3695 | 2018-08-07 | 142 | DIBBS |
| 6220-01-076-3695 | 2018-07-10 | 1 | DIBBS-RFPs |
| 6220-01-076-3695 | 2018-06-10 | 375 | DIBBS |
| 6220-01-076-3695 | 2018-06-07 | 208 | DIBBS |
| 6220-01-076-3695 | 2018-05-28 | 375 | DIBBS |
| 6220-01-076-3695 | 2014-03-26 | 4 | DIBBS |
| 6220-01-076-3695 | 2014-03-25 | 688 | DIBBS |
| 6220-01-076-3695 | 2014-01-14 | 8 | United States |
| 6220-01-076-3695 | 2014-01-09 | 4 | DIBBS |
| 6220-01-076-3695 | 2013-05-15 | 617 | DIBBS |
| 6220-01-076-3695 | 2012-07-19 | 895 | DIBBS |
| 6220-01-076-3695 | 2011-12-20 | 728 | DIBBS |
| 6220-01-076-3695 | 2011-02-03 | 728 | DIBBS |
| 6220-01-076-3695 | 2009-01-15 | 600 | DIBBS |
| 6220-01-076-3695 | 2008-12-12 | 30 | DIBBS |
| 6220-01-076-3695 | 2008-10-10 | 130 | DIBBS |
| 6220-01-076-3695 | 2008-04-14 | 140 | DIBBS |
| 6220-01-076-3695 | 2007-11-07 | 485 | DIBBS |
| 6220-01-076-3695 | 2007-09-24 | 109 | DIBBS |
| 6220-01-076-3695 | 2007-04-06 | 254 | DIBBS |
| 6220-01-076-3695 | 2006-06-22 | 223 | DIBBS |
| 6220-01-076-3695 | 2006-05-16 | 260 | DIBBS |
Cross Reference | NSN 6220-01-076-3695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 009-45502 | 72635 | DIETZ R E CO |
| 11297 | 74400 | HOBBS CORP |
| 650W-4 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 650W-4 | 0ZLV2 | GSE SPARES, INC. |
| 650W-4 | 13548 | TRUCK-LITE CO., INC. DBA SIGNAL STAT PRODUCT LINE |
| 65D35458-1 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
| 65D35458-1 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 65D35458-1 24 VOLTS | 0ZLV2 | GSE SPARES, INC. |
| 746218-1 | 18894 | AIR ARMAMENT CENTER/ EN |
| 9-455-4502 | 72635 | DIETZ R E CO |
| 9-45502 | 72635 | DIETZ R E CO |
| L13292 | 10988 | CNH INDUSTRIAL AMERICA LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6220-01-076-3695
Related Products | NSN 6220-01-076-3695
6220-01-076-4260, 6220-01-076-4383, 6220-01-076-5057, 6220-01-076-5344, 6220-01-076-5345
Technical Data | NSN 6220-01-076-3695
| Characteristic | Specifications |
|---|---|
| SHAPE | TAPERED |
| OVERALL DIAMETER | 4.750 INCHES NOMINAL |
| OVERALL LENGTH | 3.844 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 24.0 DC NOMINAL |
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | PAINT BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | TWO SCREW TERMINALS |
| MOUNTING METHOD | BALL SOCKET |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| WIRING PROVISION METHOD | INDIVIDUAL WIRE |
| WIRING PROVISION LENGTH | ANY ACCEPTABLE SINGLE PROVISION |
| LIGHT BEAM MOTION | FIXED |
| LIGHT ADJUSTMENT METHOD | NUT |
| LIGHT ADJUSTMENT LIMITS | ANY ACCEPTABLE HORIZONTAL ANY ACCEPTABLE VERTICAL |
| REFLECTOR SHAPE | PARABOLIC |
| REFLECTOR INCLOSURE TYPE | INCLOSED SINGULAR |
| LAMP PROTECTION DEVICE | OPEN END GUARD |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| FURNISHED ITEMS AND QUANTITY | 1 LAMP |
Restrictions/Controls & Freight Information | NSN 6220-01-076-3695
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-076-3695
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
