Product Details | EXTENSION LIGHT
6230-00-299-7698 A light specifically designed for portable use by means of a length of flexible cable, which may or may not be provided. Includes one or more of the following: lamp, handle, guard, hook, reflector, switch, connector, light filter, lens or globe. It may also include a cable reel. Excludes self-powered lights, and items such as desk lights and floor lights which are designed to be mounted or placed on or near a specified surface. See also FLOODLIGHT, ELECTRIC; LIGHT, COCKPIT, AIRCRAFT; SEARCHLIGHT; and SPOTLIGHT.
Part Alternates: M52286/3B-2, M522863B2, M-52286B/3-2, M52286B32, B94963, B9496-3, MILC52286, MIL-C-52286, 6230-00-299-7698, 00-299-7698, 6230002997698, 002997698
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-299-7698 | 00198 ( LIGHT, EXTENSION ) |

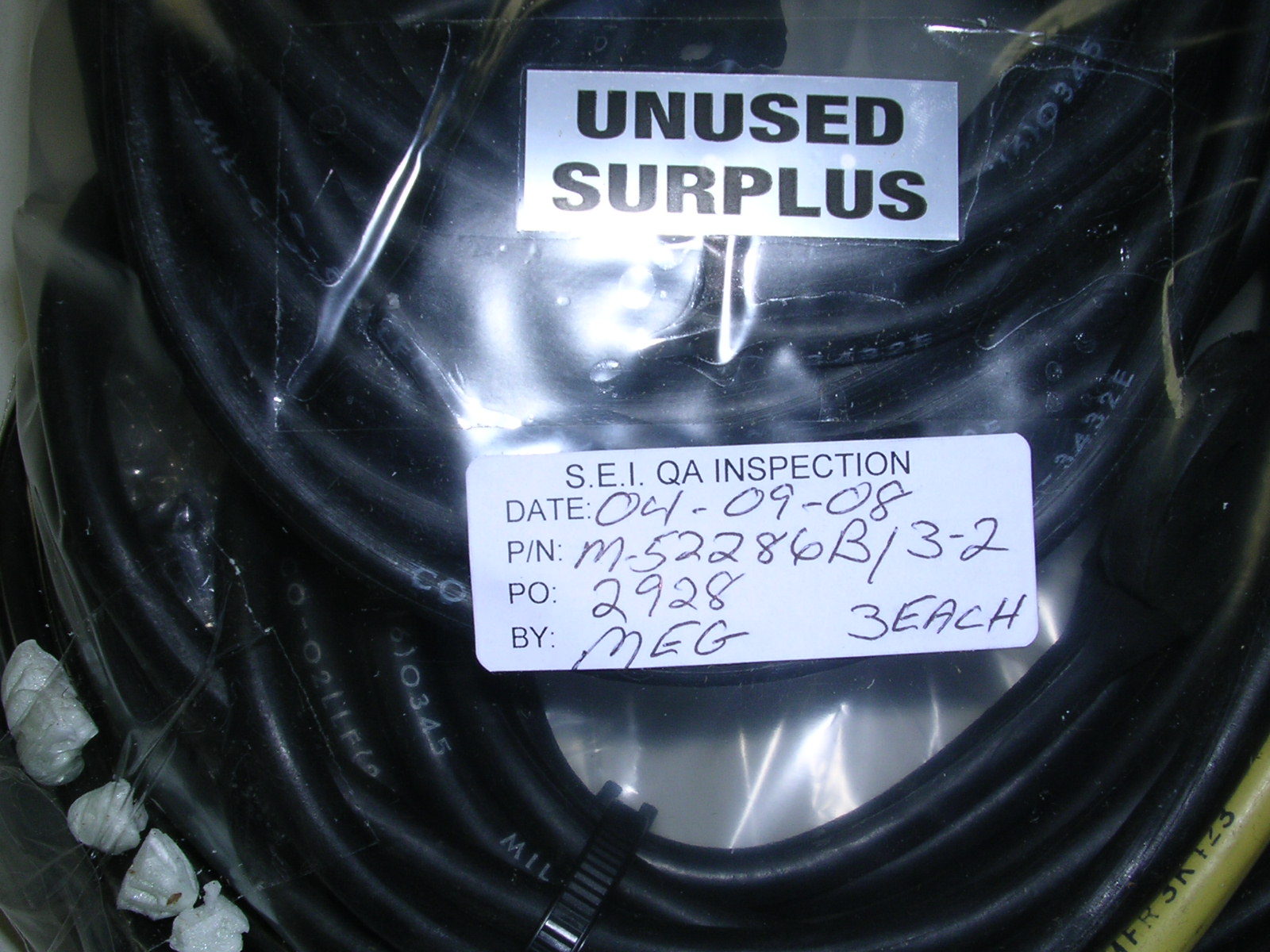

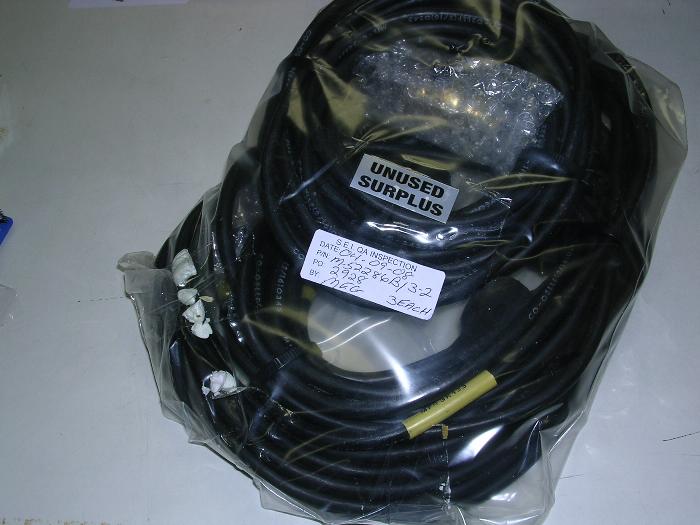

Drawings & Photos | NSN 6230-00-299-7698
Demand History | NSN 6230-00-299-7698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6230-00-299-7698 | 2010-09-30 | 10 | US |
| 6230-00-299-7698 | 2008-04-10 | 2 | United States |
| 6230-00-299-7698 | 2008-03-31 | 23 | United States |
| 6230-00-299-7698 | 2008-02-07 | 2400 | DIBBS |
| 6230-00-299-7698 | 2007-12-18 | 481 | DIBBS |
| 6230-00-299-7698 | 2007-12-12 | 471 | DIBBS |
| 6230-00-299-7698 | 2007-11-15 | 1000 | DIBBS |
| 6230-00-299-7698 | 2007-11-15 | 1353 | DIBBS |
| 6230-00-299-7698 | 2007-11-14 | 1000 | DIBBS |
| 6230-00-299-7698 | 2007-11-14 | 1353 | DIBBS |
| 6230-00-299-7698 | 2007-10-27 | 1000 | DIBBS |
| 6230-00-299-7698 | 2007-09-17 | 2 | US |
| 6230-00-299-7698 | 2007-07-09 | 1200 | DIBBS |
Cross Reference | NSN 6230-00-299-7698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B9496-3 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| M-52286B/3-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M52286/3B-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-52286 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6230-00-299-7698
Related Products | NSN 6230-00-299-7698
6230-00-299-7701, 6230-00-299-7716, 6230-00-299-7771, 6230-00-300-0103, 6230-00-300-0335
Technical Data | NSN 6230-00-299-7698
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING IN VOLTS | 600.0 AC NOMINAL |
| MATERIAL | ANY ACCEPTABLE BODY |
| LAMP BASE TYPE ACCOMMODATED | MEDIUM SCREW |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG |
| WIRING PROVISION METHOD | CABLE |
| WIRING PROVISION LENGTH | 300.0 INCHES NOMINAL SINGLE PROVISION |
| FEATURES PROVIDED | SWITCH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-52286 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M52286/3B-2 |
Restrictions/Controls & Freight Information | NSN 6230-00-299-7698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-00-299-7698
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
