Product Details | LAMP BALLAST
6250-01-346-0986 An item specifically designed for use with fluorescent or mercury vapor lamps and starters to provide a high starting voltage for striking the arc and to stabilize the operating impedance of the circuit in order to maintain the operating current at a steady value.
Part Alternates: B340T120, E340SR120, E340SR120G01, REL3S40TP, REL-3S40-TP, 6250-01-346-0986, 01-346-0986, 6250013460986, 013460986
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 27 SEP 1991 | 01-346-0986 | 05123 ( BALLAST, LAMP ) |

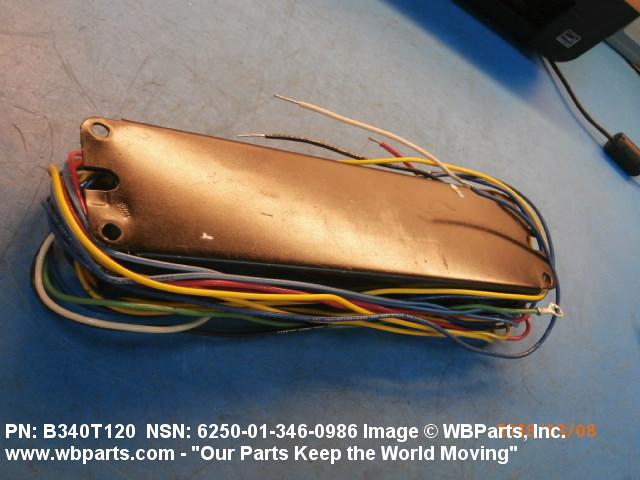

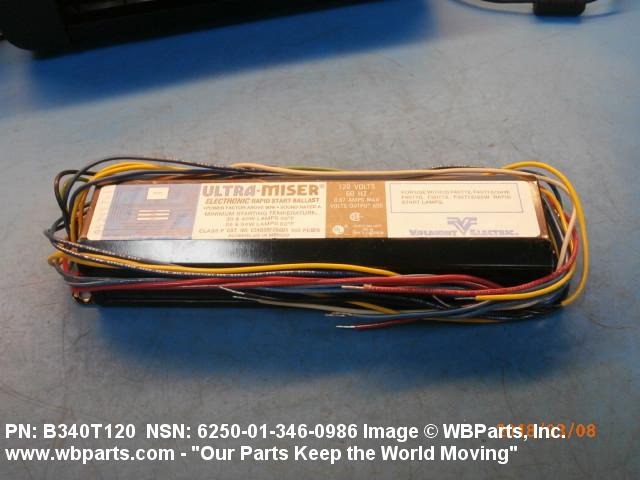

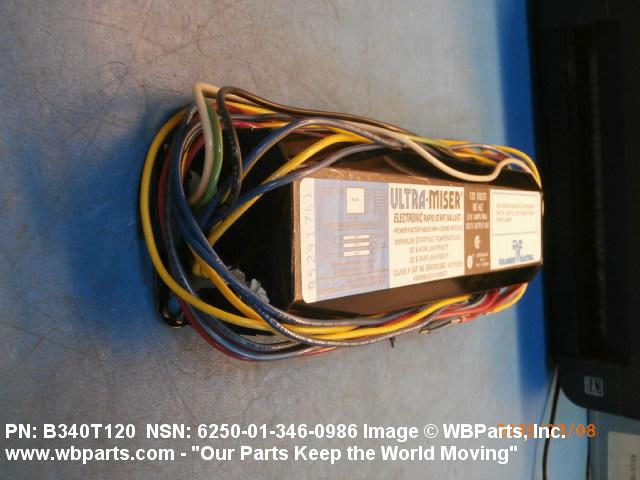

Drawings & Photos | NSN 6250-01-346-0986
Demand History | NSN 6250-01-346-0986
Cross Reference | NSN 6250-01-346-0986
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B340T120 | 04386 | MAGNETEK INC HUNTINGTON DIV |
| B340T120 | 0LG51 | MAGNETEK INC LIGHTING PRODUCTS GROUP |
| E340SR120 | 08595 | POWER LIGHTING PRODUCTS INC |
| E340SR120G01 | 08595 | POWER LIGHTING PRODUCTS INC |
| REL-3S40-TP | 98775 | PHILIPS LIGHTING ELECTRONICS COMPANY DBA ADVANCE TRANSFORMER |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6250-01-346-0986
Related Products | NSN 6250-01-346-0986
6250-01-346-1454, 6250-01-347-1857, 6250-01-347-2387, 6250-01-347-2388, 6250-01-347-2389
Technical Data | NSN 6250-01-346-0986
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 10 |
| LAMP WATTAGE RATING IN WATTS | 34.0 AND 40.0 |
| LAMP ACCOMMODATION QUANTITY | 3 |

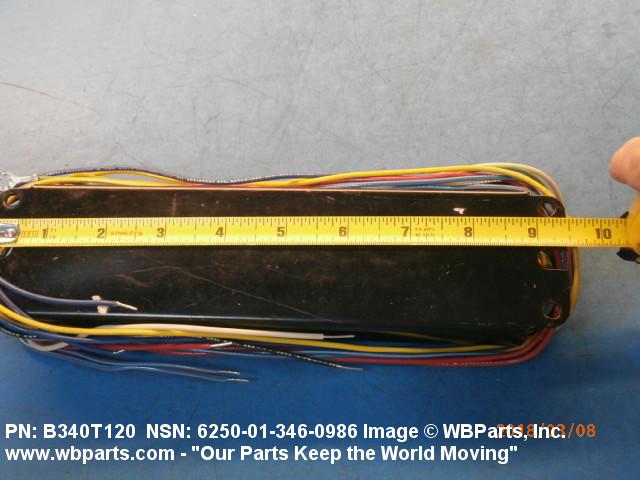

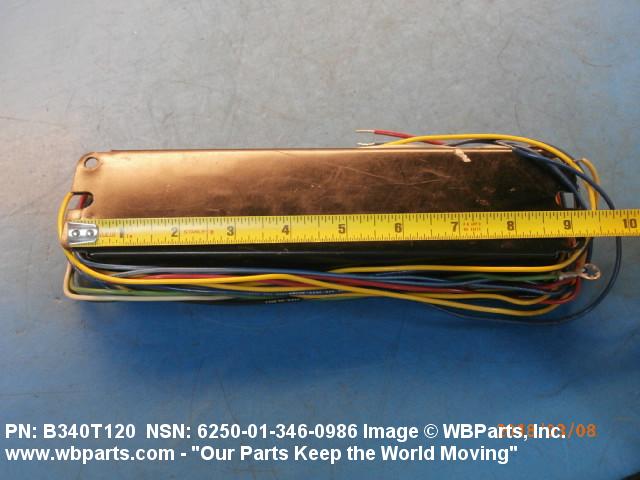

| OVERALL LENGTH | 9.500 INCHES NOMINAL |

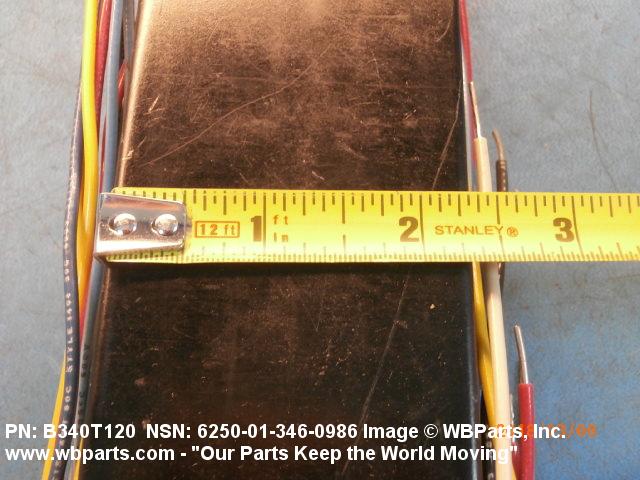

| OVERALL WIDTH | 2.375 INCHES NOMINAL |

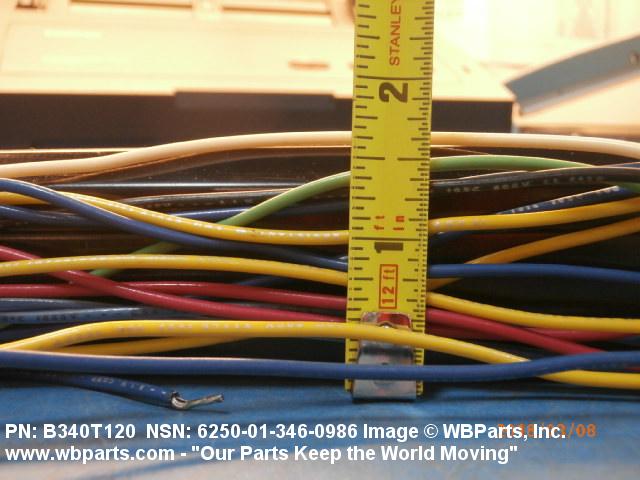

| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| CURRENT TYPE | AC |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |

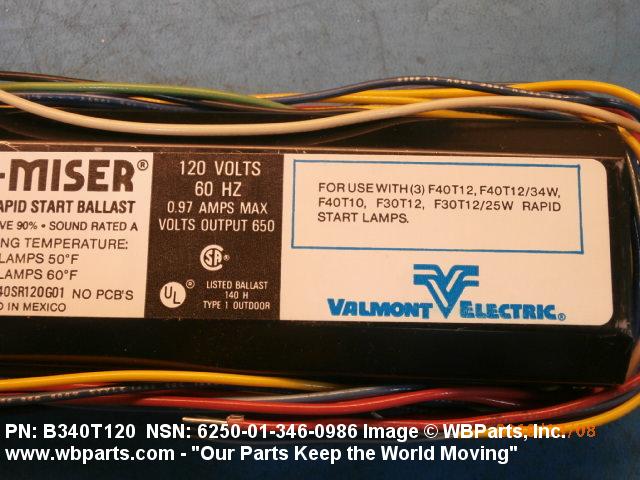

| VOLTAGE RATING | 120.0 VOLTS NOMINAL |

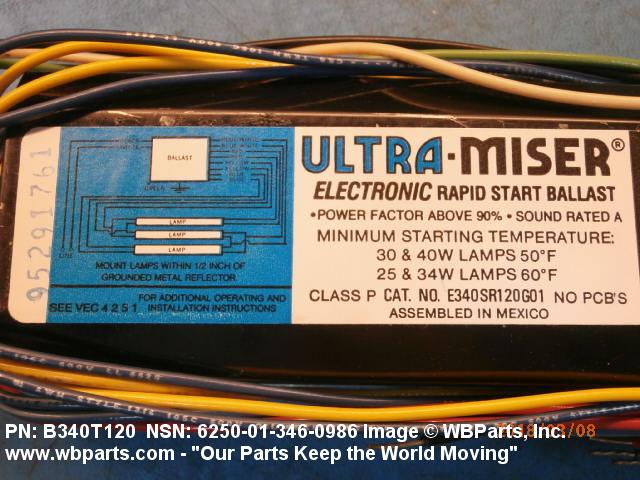

| STARTING CHARACTERISTIC | RAPID |
| STARTER | NOT REQUIRED |
| LAMP TYPE ACCOMMODATED | ENERGY EFFICIENT |
| BULB DESIGNATOR | T-12 |

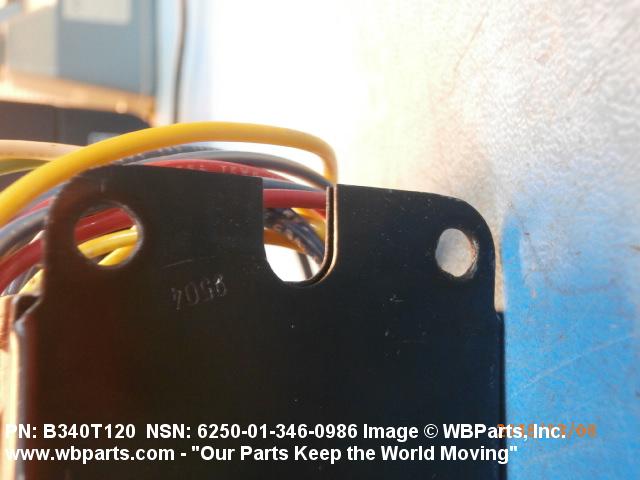

| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |

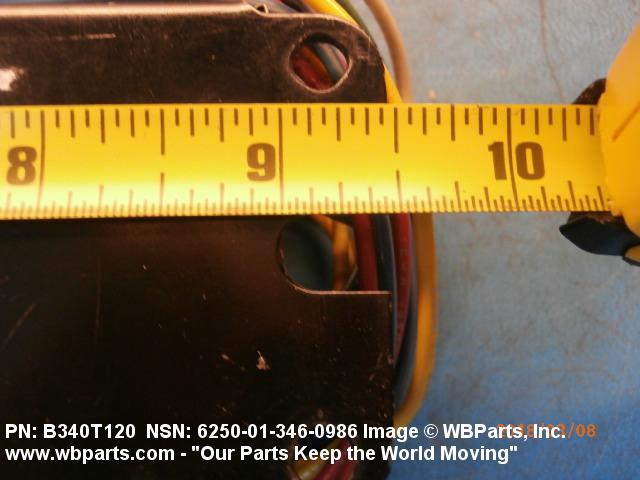

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 8.891 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.688 INCHES |
| SPECIAL FEATURES | THERMAL PROTECTION |
Restrictions/Controls & Freight Information | NSN 6250-01-346-0986
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060630 | BALLASTS LAMP |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
