Product Details | AMMETER
6625-00-135-2737 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: MR13W800DCMAR, MIL-M-10304/24, MILM1030424, MIL-PRF-10304/24, MILPRF1030424, 268467, 59.7400, 597400, 64A16A733, 6625-00-135-2737, 00-135-2737, 6625001352737, 001352737
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 JAN 1969 | 00-135-2737 | 16450 ( AMMETER ) |

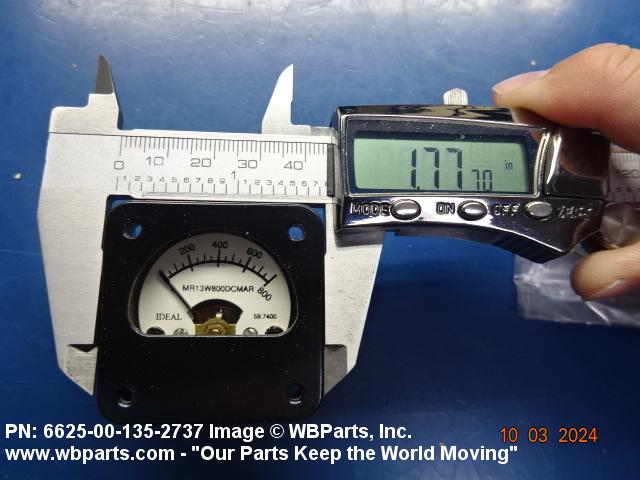

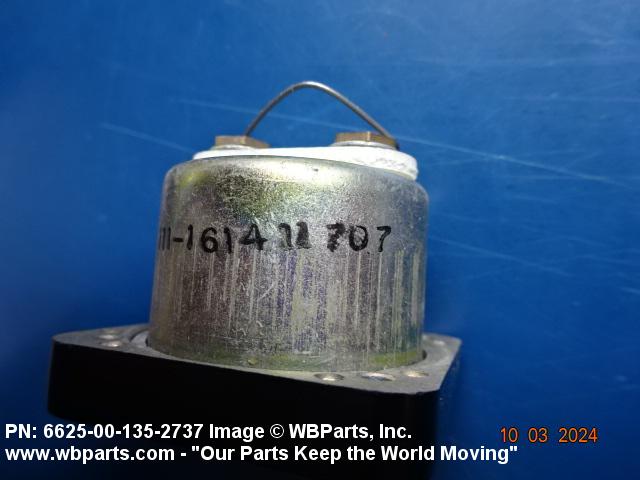

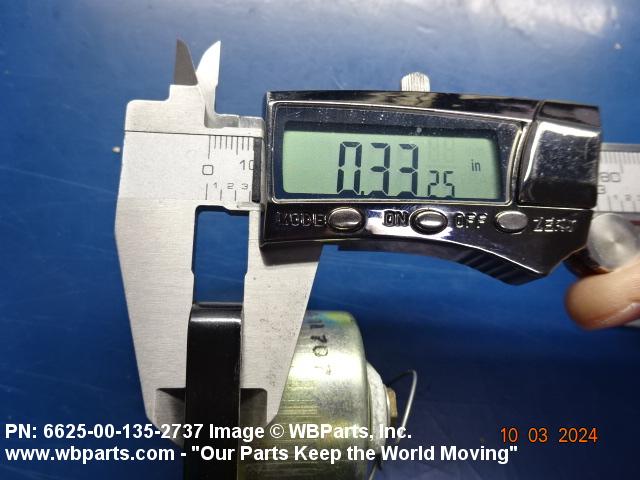

Drawings & Photos | NSN 6625-00-135-2737
Demand History | NSN 6625-00-135-2737
Cross Reference | NSN 6625-00-135-2737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 268467 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 59.7400 | 50508 | MAGNETIC COMPONENTS INC |
| 64A16A733 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 64A16A733 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
| MIL-M-10304/24 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-10304/24 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MR13W800DCMAR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-00-135-2737
Related Products | NSN 6625-00-135-2737
6625-00-135-2738, 6625-00-135-2782, 6625-00-135-2784, 6625-00-135-2917, 6625-00-135-2918
Technical Data | NSN 6625-00-135-2737
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 800.0 MILLIAMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -3.0 TO 3.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 40 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |

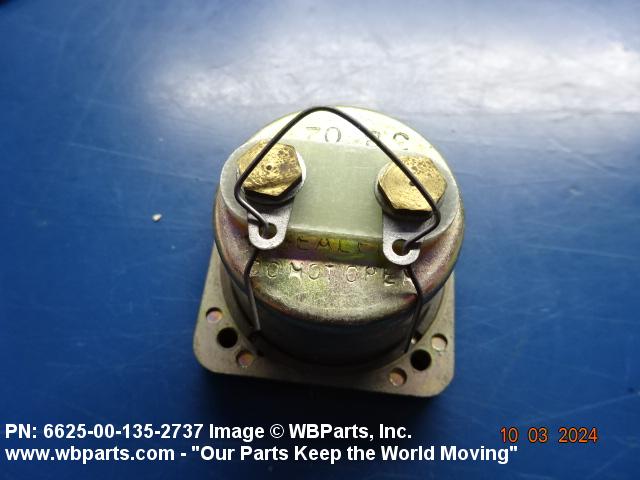

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 SOLDER STUD |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1500.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |

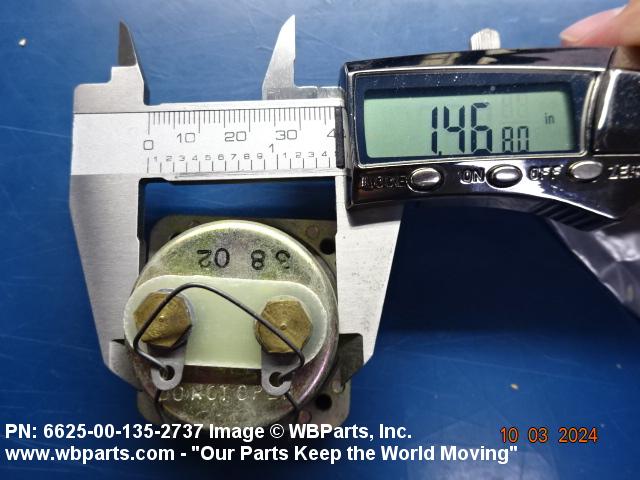

| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.510 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.810 INCHES MAXIMUM |

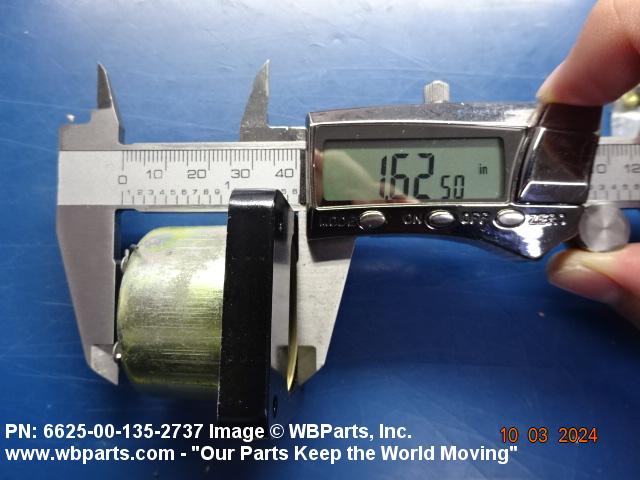

| OVERALL LENGTH | 1.625 INCHES MAXIMUM |
| OVERALL WIDTH | 1.810 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.312 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | ENAMEL SEMIGLOSS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | COLD RESISTANT AND HEAT RESISTANT AND SHOCK RESISTANT AND SUBMERSIBLE AND VIBRATION RESISTANT AND WATERTIGHT |

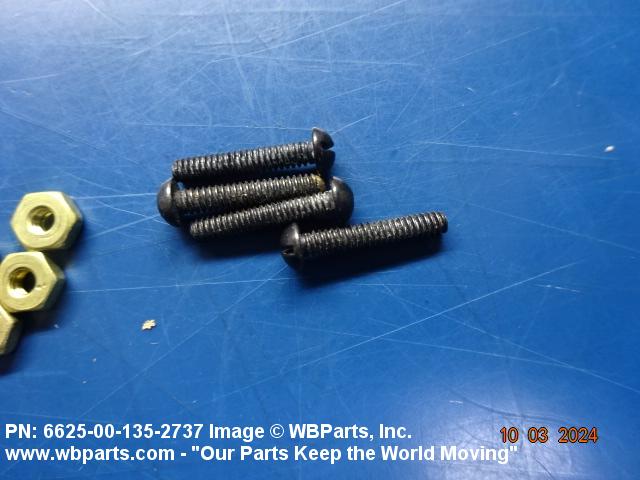

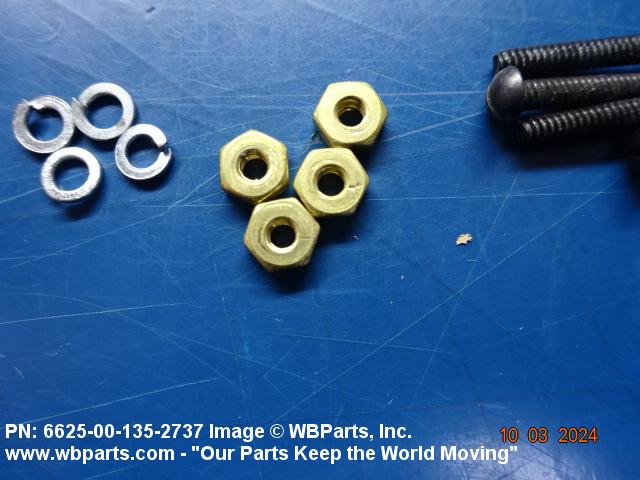

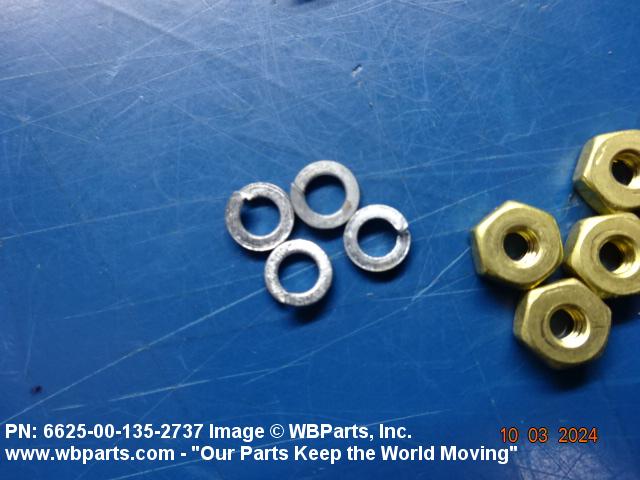

| FURNISHED ITEMS AND QUANTITY | NUT 4; LOCKWASHER 4; SEAL 1 |
| FEATURES PROVIDED | LUMINOUS SCALE MARKING AND |
