Product Details | INSTRUMENT SHUNT
6625-00-166-1013 A fixed precision resistor consisting of a bar or bars of metal specifically designed for use in parallel with a basic direct current instrument to permit determination of current values exceeding the actual range of the instrument itself.
Part Alternates: MS915872, MS91587-2, MSB201, MLB20050, MLB-200-50, MA769H200, A-A-55524/2, AA55524/2-002, AA555242, AA555242002, JHP49051, JHP49-051, MILS61, MIL-S-61, MILS61BMSB201, MILS61B-MSB201, 115486, 228C10040, 228C1-0040, 629068, 75B312613, 6625-00-166-1013, 00-166-1013, 6625001661013, 001661013, 136403105
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-166-1013 | 00122 ( SHUNT, INSTRUMENT ) |

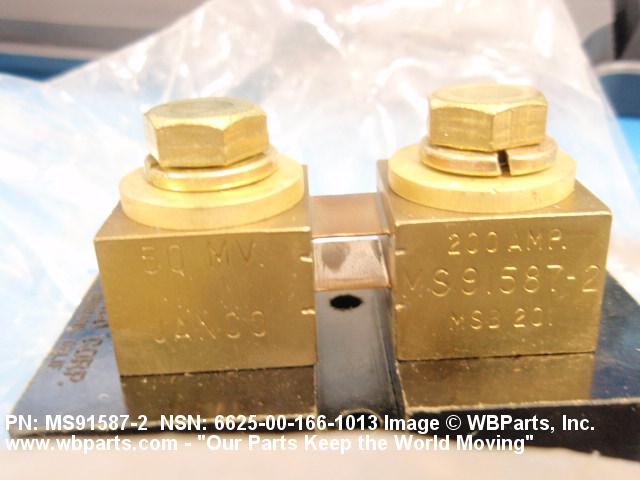

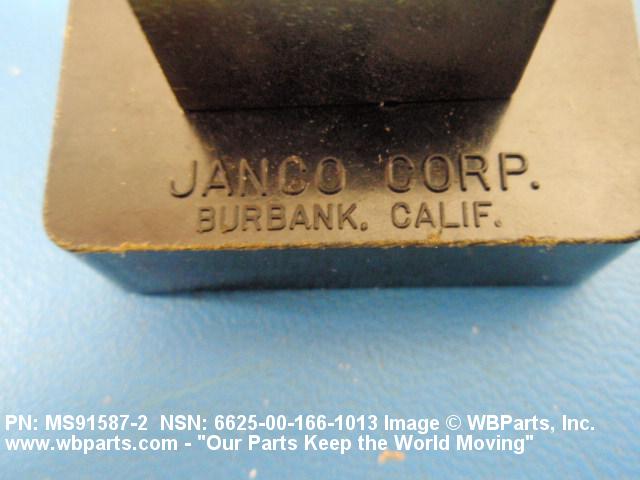

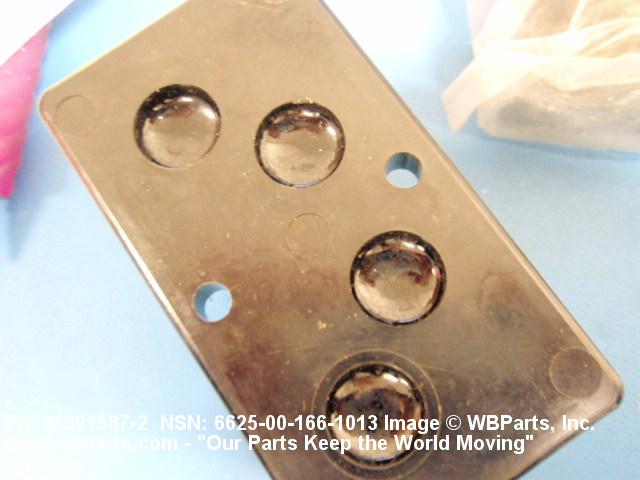

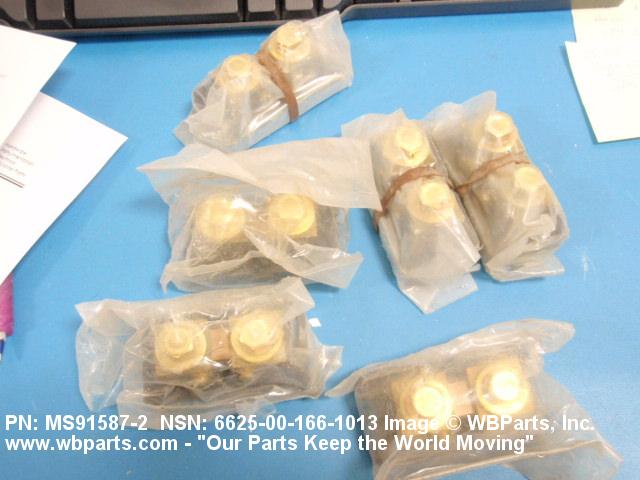

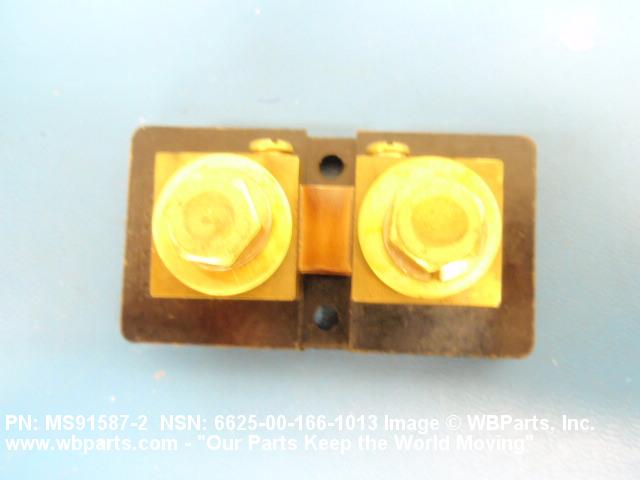

Drawings & Photos | NSN 6625-00-166-1013
Demand History | NSN 6625-00-166-1013
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-166-1013 | 2021-11-01 | 2 | US |
| 6625-00-166-1013 | 2016-11-07 | 87 | DIBBS |
| 6625-00-166-1013 | 2016-08-31 | 3 | US |
| MS91587-2 | 2016-07-29 | 1 | MX |
| AA555242002 | 2013-08-14 | 2 | US |
| AA555242002 | 2013-04-16 | 2 | Canada |
| MS91587-2 | 2011-08-18 | 15 | United Kingdom |
| MS91587-2 | 2011-08-18 | 5 | United Kingdom |
| MS91587-2 | 2011-06-29 | 4 | US |
| MA769H200 | 2010-06-09 | 1 | US |
| AA555242002 | 2010-02-17 | 6 | United States |
| 6625-00-166-1013 | 2009-11-06 | 1 | France |
| AA555242002 | 2009-05-06 | 1 | US |
| 6625-00-166-1013 | 2009-03-30 | 239 | DIBBS |
| MLB20050 | 2007-09-18 | 2 | South Korea |
Cross Reference | NSN 6625-00-166-1013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115486 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 136403105 | 31795 | EATON CORPORATION |
| 228C1-0040 | 02032 | HOLLINGSWORTH JOHN R CO |
| 629068 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 75B312613 | 60969 | GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL |
| A-A-55524/2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55524/2-002 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| JHP49-051 | 02032 | HOLLINGSWORTH JOHN R CO |
| MA769H200 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MIL-S-61 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS61B-MSB201 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MLB-200-50 | 03030 | EMPRO MANUFACTURING CO INC DIV EMPRO MANUFACTURING CO., INC. |
| MS91587-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MSB201 | 03030 | EMPRO MANUFACTURING CO INC DIV EMPRO MANUFACTURING CO., INC. |
| MSB201 | 80049 | DEPARTMENT OF THE AIR FORCE |
| MSB201 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MSB201 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-00-166-1013
Related Products | NSN 6625-00-166-1013
6625-00-166-1014, 6625-00-166-1018, 6625-00-166-1024, 6625-00-166-1027, 6625-00-166-1029
Technical Data | NSN 6625-00-166-1013
| Characteristic | Specifications |
|---|---|
| VOLTAGE DROP IN MILLIVOLTS | 50.0 NOMINAL |
| CURRENT RATING AND TYPE | 200.0 AMPERES NOMINAL DC |
| USAGE DESIGN | EXTERNAL |
| ELEMENT MATERIAL | MANGANI |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| TERMINAL LOCATION | ONE SIDE AND TOP |
| ACCURACY IN PERCENT | -0.5 TO 0.5 AT FULL SCALE |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.720 INCHES MINIMUM AND 1.780 INCHES MAXIMUM |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING PROVISION QUANTITY | 2 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.205 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.250 INCHES NOMINAL |
| FURNISHED ITEMS AND QUANTITY | PLAIN WASHER 4; BRASS WASHER 2 |
| SPECIAL MARKINGS | 50 MV,200 AMP |
| TEST DATA DOCUMENT | 58536-A-A-55524 SPECIFICATION |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIFICATION/STANDARD DATA | 58536-A-A-55524/2 GOVERNMENT SPECIFICATION |
| III CUBIC MEASURE | 10.124 CUBIC INCHES |
| III FSC APPLICATION DATA | ELECTRICAL,ELECTRONIC PROPERTIES MEASURING AND TEST INSTRUMENTS |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55524/2 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55524/2-002 |
Restrictions/Controls & Freight Information | NSN 6625-00-166-1013
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-166-1013
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TD | Test Equip |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
