Product Details | FAULT LOCATING INDICATOR
6625-00-394-0860 An electrically activated item specifically designed to indicate the occurrence of a malfunction in a component of an electronic set, central or system. It may indicate the malfunction by a pop-out button (e.g. ground fault interrupt outlets) or color change by emitted light or displayed in a window. The indicator may utilize a "push to test" button. It does not make quantitative or qualitative tests such a provided by test sets.
Part Alternates: M83287/01-23, M832870123, MIL-I-83287/1, MILI832871, MIL-PRF-83287/1, MILPRF832871, 6625-00-394-0860, 00-394-0860, 6625003940860, 003940860
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 05 APR 1974 | 00-394-0860 | 60639 ( INDICATOR, FAULT LOCATING ) |
Drawings & Photos | NSN 6625-00-394-0860
Demand History | NSN 6625-00-394-0860
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-394-0860 | 2022-09-11 | 20 | DIBBS |
| 6625-00-394-0860 | 2021-04-25 | 6 | DIBBS |
| 6625-00-394-0860 | 2020-09-22 | 21 | DIBBS |
| 6625-00-394-0860 | 2020-08-18 | 2 | DIBBS |
| 6625-00-394-0860 | 2020-07-29 | 2 | DIBBS |
| 6625-00-394-0860 | 2020-07-24 | 50 | PK |
| 6625-00-394-0860 | 2018-09-13 | 26 | DIBBS |
| M832870123 | 2018-07-19 | 1 | United Kingdom |
| M832870123 | 2018-07-19 | 2 | United Kingdom |
| M832870123 | 2018-07-19 | 4 | United Kingdom |
| 6625-00-394-0860 | 2017-12-11 | 22 | DIBBS |
| M832870123 | 2015-09-03 | 2 | United Kingdom |
| 6625-00-394-0860 | 2013-12-05 | 15 | DIBBS |
| M832870123 | 2011-02-24 | 8 | UK |
| 6625-00-394-0860 | 2009-04-10 | 23 | DIBBS |
| 6625-00-394-0860 | 2008-12-22 | 21 | DIBBS |
| 6625-00-394-0860 | 2008-08-19 | 19 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-00-394-0860
Related Products | NSN 6625-00-394-0860
6625-00-394-3646, 6625-00-394-3648, 6625-00-394-3649, 6625-00-394-3650, 6625-00-394-3651
Technical Data | NSN 6625-00-394-0860
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | ALUMINUM |
| ELECTRICAL CONNECTION QUANTITY | 2 |
| PRESENTATION TYPE | WINDOW |
| MARKING COLOR SPECIFIC USE | FAULT-NO FAULT |
| COLOR | BLACK BACKGROUND OVERALL WHITE MARKER STRIPES |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| COIL DC RESISTANCE | 750.0 OHMS NOMINAL |
| CONTACT QUANTITY | 2 |

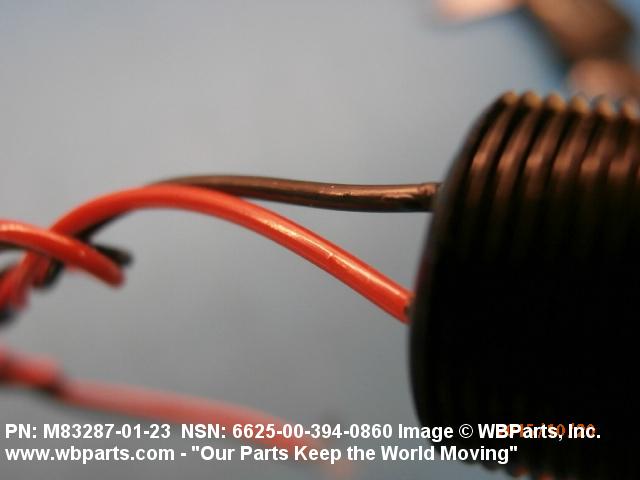

| CONTACT TYPE | WIRE LEAD |

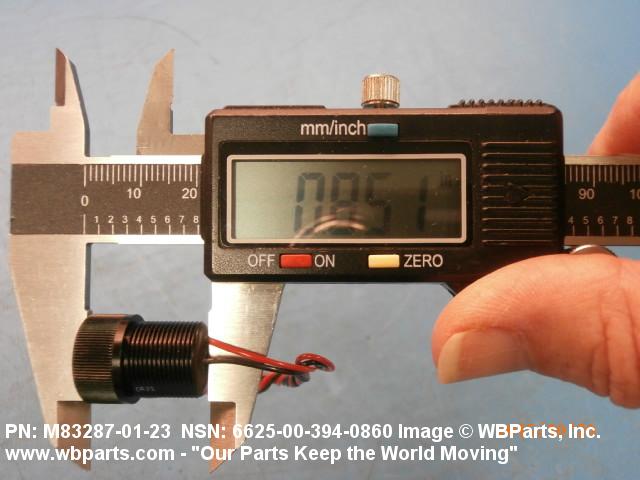

| LENGTH | 0.885 INCHES NOMINAL |

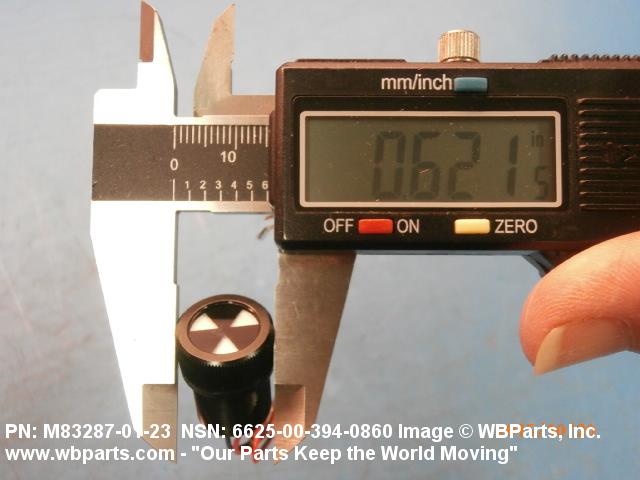

| WIDTH | 0.630 INCHES NOMINAL |
| FEATURES PROVIDED | COIL AND MOUNTING HARDWARE |
| SPECIAL FEATURES | ANTIREFLECTION COATING |
| TEST DATA DOCUMENT | 81349-MIL-PRF-83287 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-PRF-83287/1 GOVERNMENT SPECIFICATION |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-83287/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83287/01-23 |
Restrictions/Controls & Freight Information | NSN 6625-00-394-0860
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-394-0860
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
