Product Details | AMMETER
6625-00-964-9272 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: C1TZ10850A, 6625-00-964-9272, 00-964-9272, 6625009649272, 009649272
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JUN 1966 | 00-964-9272 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-00-964-9272
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-00-964-9272
Related Products | NSN 6625-00-964-9272
6625-00-964-9327, 6625-00-964-9383, 6625-00-964-9526, 6625-00-964-9680, 6625-00-964-9691
Technical Data | NSN 6625-00-964-9272
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | -2.0 TO 2.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 5 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | SILVER SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | TAUT BAND |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 1 SOLDERLESS LUG |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |

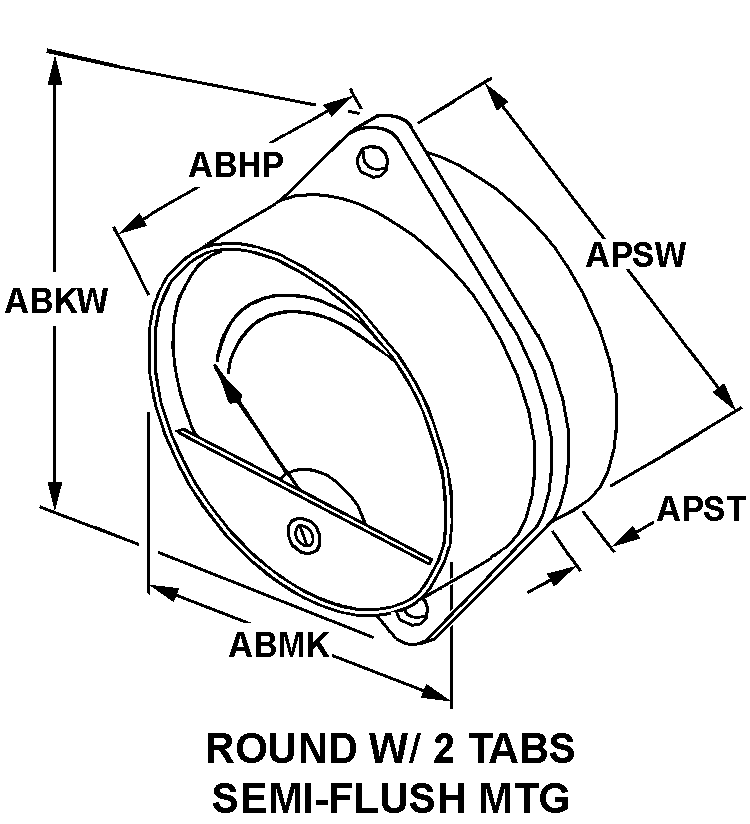

| STYLE DESIGNATOR | B2 ROUND W/2 TABS SEMI-FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.110 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 0.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.695 INCHES NOMINAL |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.510 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.135 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E1 TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.445 INCHES NOMINAL |
| MATERIAL | STEEL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III FSC APPLICATION DATA | TEST SET,ELECTRONIC EQUIPMENT |
