6625-01-067-7306 An electrically operated instrument which has a custom scale or digital readout display, but the unit of measurement given is not covered by a more specific item name. For items without a specified unit of measurement, see METER, ARBITRARY SCALE.
Part Alternates: 0352830001, 035283-0001, 2123T, 6625-01-067-7306, 01-067-7306, 6625010677306, 010677306
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 NOV 1978 | 01-067-7306 | 61955 ( METER, SPECIAL SCALE ) |
Drawings & Photos | NSN 6625-01-067-7306
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-01-067-7306
Related Products | NSN 6625-01-067-7306
6625-01-067-7538, 6625-01-067-7583, 6625-01-067-7618, 6625-01-067-7635, 6625-01-067-7684
Technical Data | NSN 6625-01-067-7306
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| INDICATOR TYPE | DIAL W/POINTER |
| SCALE MARKING | DDM; -.020; -.015; -.010; -.005; 0; .005; .010; .015; .020; PCT MOD; 0; 10; 20; 30; 40; 50 |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR ALL RANGES |
| SCALE DIVISION QUANTITY | 50 SINGLE INDICATOR 1ST RANGE 25 SINGLE INDICATOR 2ND RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR ALL RANGES |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR ALL RANGES |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR ALL RANGES |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | TAUT BAND |
| FREQUENCY RESPONSE RANGE | 90.000 TO 150.000 HERTZ |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 25.0 MICROAMPERES |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1100.0 |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |

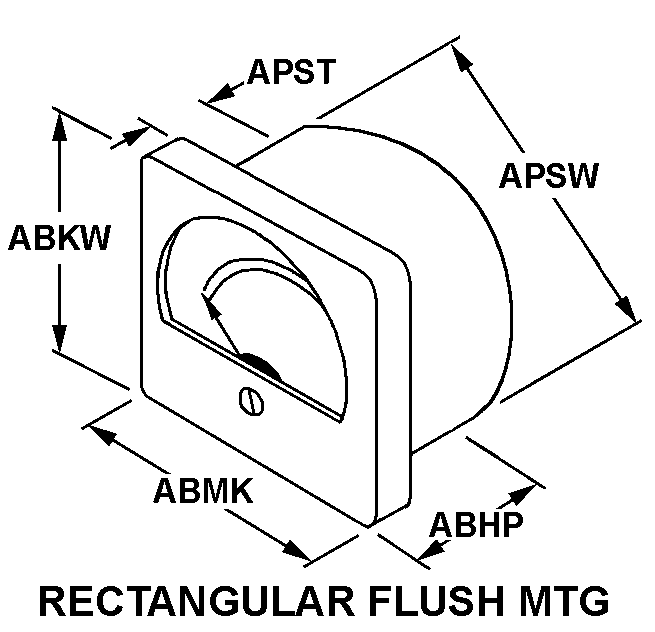

| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.800 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 2.010 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.270 INCHES MAXIMUM |
| OVERALL LENGTH | 3.260 INCHES MAXIMUM |
| OVERALL WIDTH | 3.130 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.112 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.500 INCHES NOMINAL |

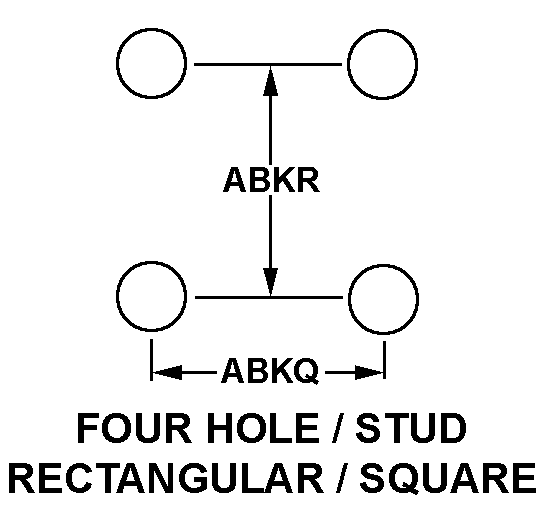

| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.250 INCHES NOMINAL |
| MATERIAL | PLASTIC OR STEEL |
| SURFACE TREATMENT | PAINT LUSTERLESS |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| FURNISHED ITEMS AND QUANTITY | TERM. HDW 2; MTG HDW 4 |
| SPECIAL MARKINGS | 90 HZ; 150 HZ |
| FEATURES PROVIDED | KNIFE EDGE POINTER AND ZERO ADJUSTER |
| SPECIAL FEATURES | SELF CONTAINED |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
