Product Details | VOLTMETER
6625-01-389-3705 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: HP3400B, 3400B, 4059388, 405-9388 , 999901600007, 6625-01-389-3705, 01-389-3705, 6625013893705, 013893705
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 APR 1994 | 01-389-3705 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-01-389-3705
Demand History | NSN 6625-01-389-3705
Cross Reference | NSN 6625-01-389-3705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3400B | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 3400B | 1MY97 | AGILENT TECHNOLOGIES, INC. DIV AGILENT TECHNOLOGIES |
| 3400B | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 999901600007 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| HP3400B | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6625-01-389-3705
Related Products | NSN 6625-01-389-3705
6625-01-389-3744, 6625-01-389-3997, 6625-01-389-4028, 6625-01-389-4029, 6625-01-389-4040
Technical Data | NSN 6625-01-389-3705
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | BENCH |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | ELECTRONIC, SOLID STATE |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 300.0 VOLTS, ROOT MEAN SQUARE SINGLE INDICATOR ALL RANGES |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| OPERATING VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |

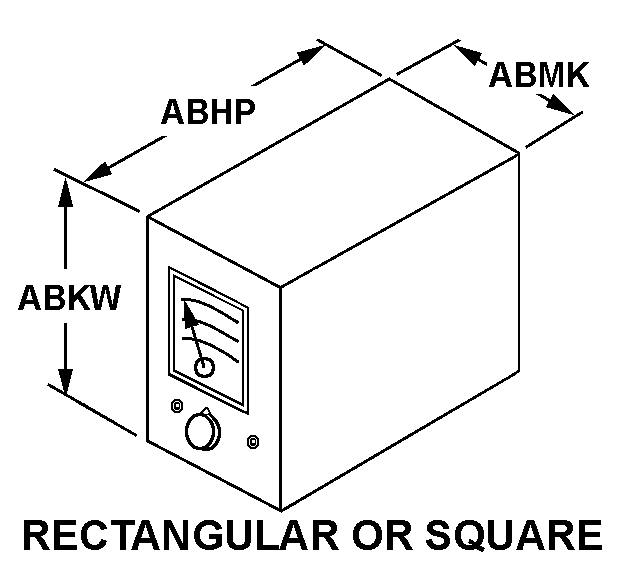

| STYLE DESIGNATOR | D1 RECTANGULAR OR SQUARE |
| OVERALL HEIGHT | 6.500 INCHES NOMINAL |
| OVERALL LENGTH | 11.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.125 INCHES NOMINAL |
| FEATURES PROVIDED | ADAPTER AND PORTABLE |
| III FUNCTIONAL DESCRIPTION | DB RANGE -72 TO +52DBM;FREQUENCY RANGE 10HZ TO 20MHZ; PLOTS OF MEASUREDDATA AND HIGHER RESOLUTION MEASUREMENTS CAN BE PRODUCED BY CONNECTING A DIGITAL MULTIMETER TO THE REAR DC OUTPUT THAT PRODUCES A LINEAR 0 TO 1 VOLT OUTPUT PROPORTIONAL TO THE METER DEFLECTION |
