Product Details | LIQUID QUANTITY TRANSMITTER
6680-01-309-7626 An instrument designed to measure and transmit information relative to the quantity of liquid contained in a tank, vessel, chamber, or the like. Excludes SWITCH, LIQUID LEVEL.
Part Alternates: XM36475352700W30BN25, XM-36475-35-2700-W-30-BN-25, 114433, 6680-01-309-7626, 01-309-7626, 6680013097626, 013097626
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01-309-7626 | 03372 ( TRANSMITTER, LIQUID QUANTITY ) |

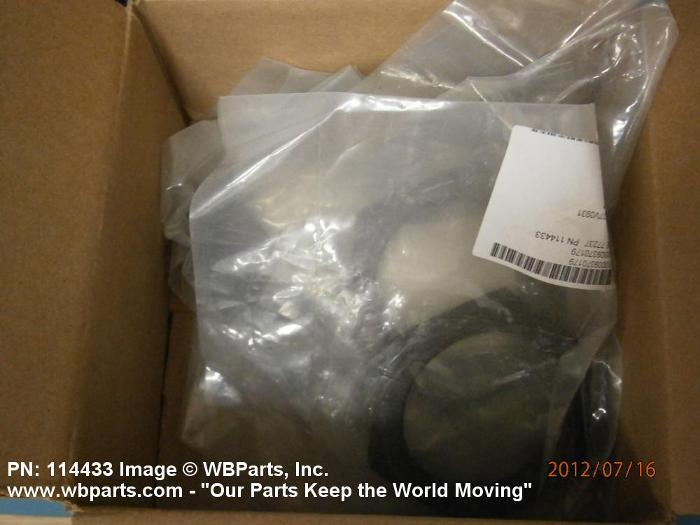

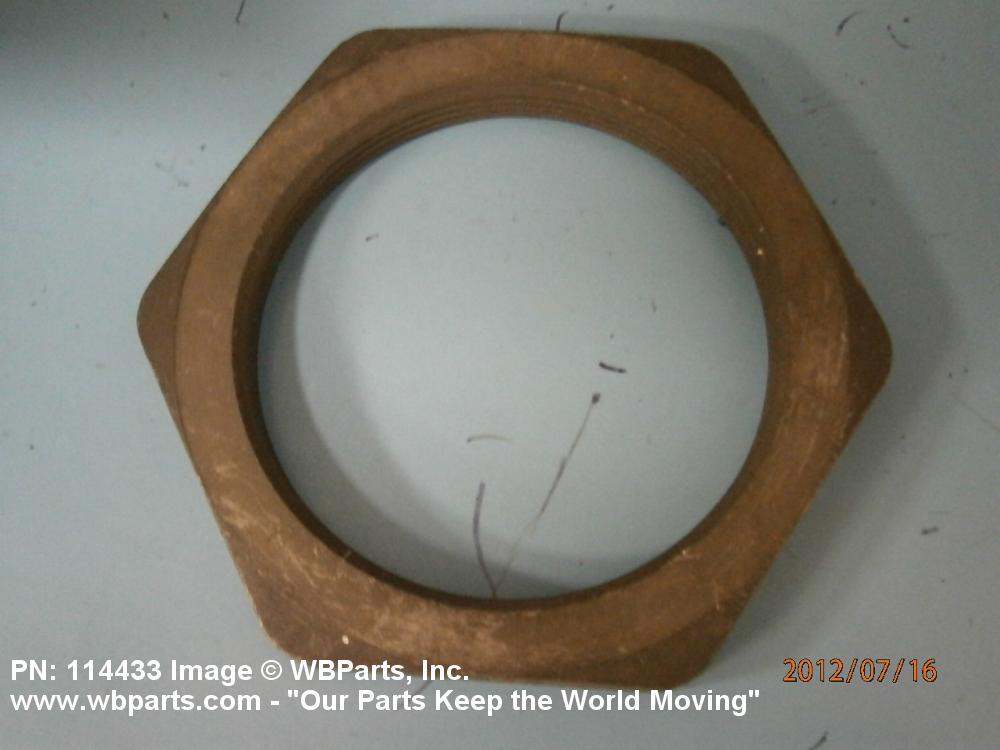

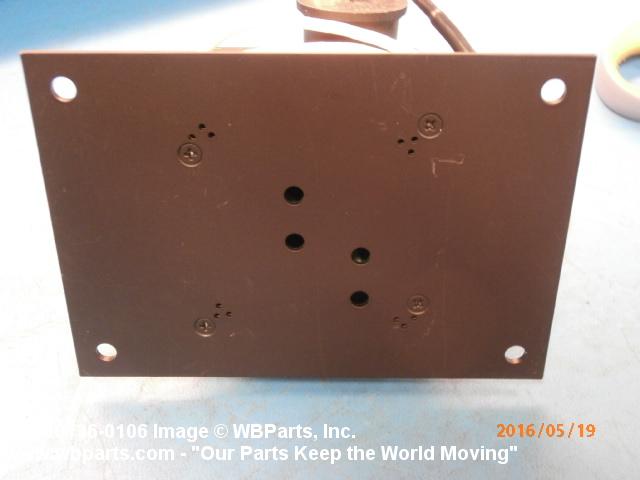

Drawings & Photos | NSN 6680-01-309-7626
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6680-01-309-7626
6680-01-309-7627, 6680-01-309-7631, 6680-01-309-7662, 6680-01-309-7872, 6680-01-309-8004
Technical Data | NSN 6680-01-309-7626
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 10.0 VOLTS MINIMUM AND 12.0 VOLTS MAXIMUM |
| RESISTANCE IN OHMS | 27.000 PER INCH OF INDICATION |
| PRESSURE RATING | 0.000 POUNDS PER SQUARE INCH MINIMUM AND 225.000 POUNDS PER SQUARE INCH MAXIMUM |
| OVERALL LENGTH | 45.625 INCHES NOMINAL |
| FLOAT MATERIAL | RUBBER, BUNA-N |
| FLOAT EFFECTIVE TRAVEL | 36.750 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | WATER |
| III END ITEM IDENTIFICATION | MISC ELECTRIC DIST GP FOR BB-64 |
| MANUFACTURERS CODE | 04034 |
| DESIGN CONTROL REFERENCE | 114433 |
