Product Details | BIMETALLIC SELF-INDICATING THERMOMETER
6685-00-782-5248 A thermometer which has a bimetallic substance, whose measurable physical properties, or one of them, change with variation in temperature and self-indicate the temperature to a division or number on a graduated scale(s).
Part Alternates: B3A4W, B3S2W, B83402, ITD35502, ITD-3-55-0-2, ITD355A2, ITD-3-55-A-2, MILI17244, MIL-I-17244, RIB3552, RI-B3552, 601445, 6-01445, 6685-00-782-5248, 00-782-5248, 6685007825248, 007825248
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-782-5248 | 07329 ( THERMOMETER, SELF-INDICATING, BIMETALLIC ) |
Drawings & Photos | NSN 6685-00-782-5248
Demand History | NSN 6685-00-782-5248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-782-5248 | 2024-01-17 | 23 | DIBBS |
| 6685-00-782-5248 | 2023-05-09 | 23 | DIBBS |
| 6685-00-782-5248 | 2022-04-11 | 13 | DIBBS |
| 6685-00-782-5248 | 2022-03-24 | 10 | DIBBS |
| 6685-00-782-5248 | 2021-03-29 | 22 | DIBBS |
| 6685-00-782-5248 | 2020-02-09 | 39 | DIBBS |
| 6685-00-782-5248 | 2019-12-09 | 1 | TW |
| 6685-00-782-5248 | 2016-07-07 | 47 | DIBBS |
| 6685-00-782-5248 | 2013-08-13 | 51 | DIBBS |
| 6685-00-782-5248 | 2011-01-07 | 4 | DIBBS |
Cross Reference | NSN 6685-00-782-5248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6-01445 | 18509 | PSG CONTROLS, INC. |
| B3A4W | 64467 | WEKSLER GLASS THERMOMETER CORP |
| B3S2W | 64467 | WEKSLER GLASS THERMOMETER CORP |
| B83402 | 78763 | H O TRERICE CO |
| ITD-3-55-0-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ITD-3-55-A-2 | 64467 | WEKSLER GLASS THERMOMETER CORP |
| MIL-I-17244 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RI-B3552 | 63564 | RHYTHM INDUSTRIES INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6685-00-782-5248
Related Products | NSN 6685-00-782-5248
6685-00-782-5249, 6685-00-782-5250, 6685-00-782-5251, 6685-00-782-5599, 6685-00-782-6006
Technical Data | NSN 6685-00-782-5248
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | 50.000 TO 550.000 DEG FAHRENHEIT |
| SCALE ADJUSTMENT VARIATION | 10 DEGREE |
| MATERIAL | STEEL CORROSION RESISTING METER CASE |
| SURFACE TREATMENT | ENAMEL METER CASE |

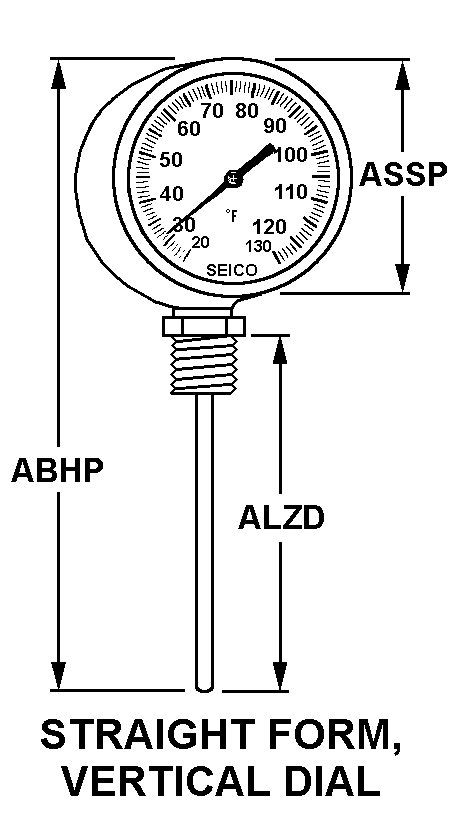

| STYLE DESIGNATOR | C3 STRAIGHT FORM, VERTICAL DIAL |
| DIAL DIAMETER | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 6.406 INCHES NOMINAL |
| STEM LENGTH | 2.000 INCHES NOMINAL |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 2.000 INCHES NOMINAL |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| III SCALE ACCURACY RATING | 1 PCT ENTIRE RANGE |
| III SCALE SMALLEST INCREMENT | 5.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ITD-3-55-0-2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-17244 |
Restrictions/Controls & Freight Information | NSN 6685-00-782-5248
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-782-5248
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
