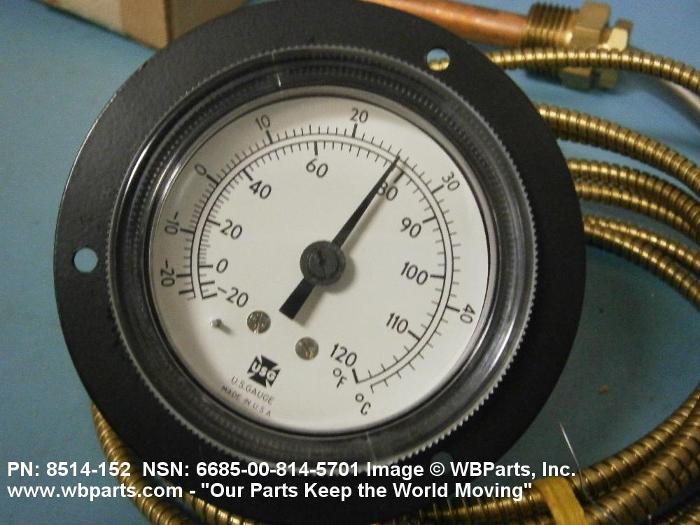

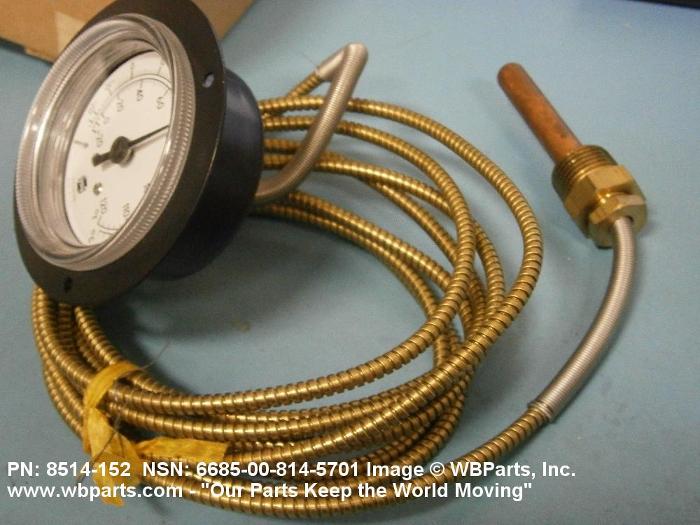

Product Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-814-5701 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Part Alternates: A32533, AA977839, AA9778-39, V25373214120, V25373214-120, 8514152, 8514-152, 906S, 6685-00-814-5701, 00-814-5701, 6685008145701, 008145701
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-814-5701 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
Drawings & Photos | NSN 6685-00-814-5701
Demand History | NSN 6685-00-814-5701
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6685-00-814-5701
Related Products | NSN 6685-00-814-5701
6685-00-814-5704, 6685-00-814-6080, 6685-00-814-8716, 6685-00-814-8718, 6685-00-814-9185
Technical Data | NSN 6685-00-814-5701
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | -20.000 TO 120.000 DEG FAHRENHEIT |
| MATERIAL | STEEL METER CASE |

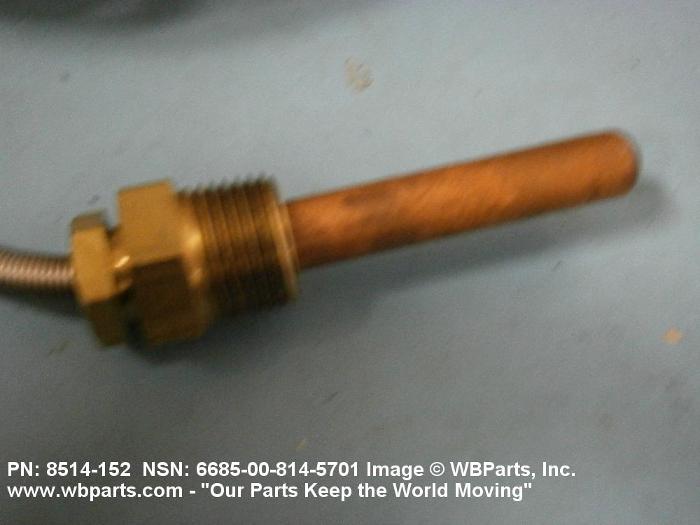

| STYLE DESIGNATOR | D3 BULB W/O SOCKET |
| BULB TIP LENGTH | 2.140 INCHES NOMINAL |
| CASE DIAMETER | 3.530 INCHES NOMINAL |
| DIAL DIAMETER | 2.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |

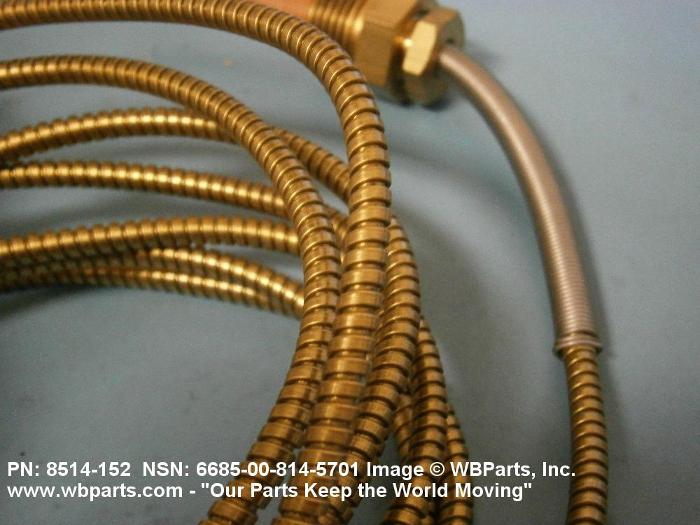

| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | BENDABLE PLAIN |
| BULB QUANTITY | 1 |
| BULB STYLE | K5 PLAIN BULB |
| ACTIVE PORTION LENGTH | 2.140 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.440 INCHES NOMINAL |
| BULB OVERALL LENGTH | 2.700 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 0.560 INCHES NOMINAL |
| BULB CONNECTION TYPE | UNION |
| ACTUATING MEDIUM | GAS |
