Product Details | DIAL INDICATING DIFFERENTIAL GAGE

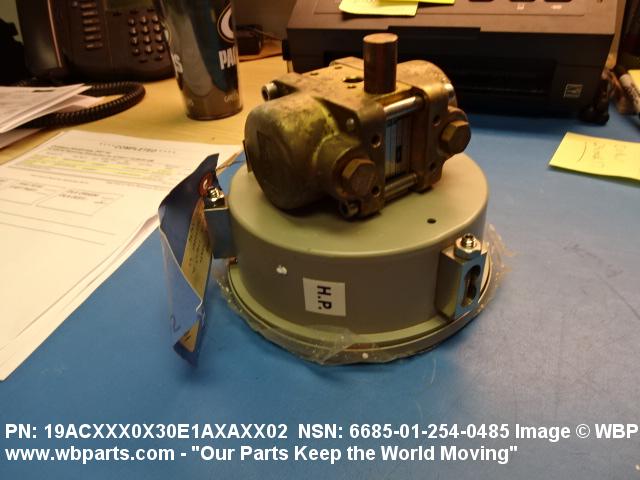

6685-01-254-0485 An instrument designed to measure air, gas, fluid, and vapor differential by means of a pressure sensitive element(s) which transmits energy, by direct linkage, to the indicating pointer of a scale calibrated to units of pressure. The scale may indicate in units of pressure, quantity, or flow.
Part Alternates: 19ACXXX0X30E1AXAXX02, 19ACXXX0X30E1AXAXX03, 6685-01-254-0485, 01-254-0485, 6685012540485, 012540485
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 APR 1987 | 01-254-0485 | 62209 ( GAGE, DIFFERENTIAL, DIAL INDICATING ) |

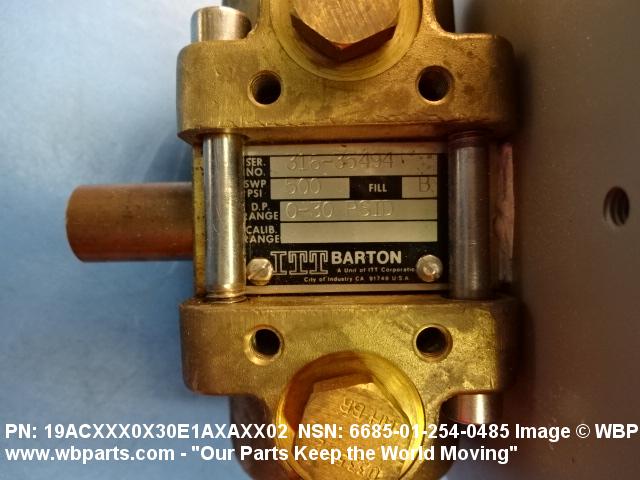

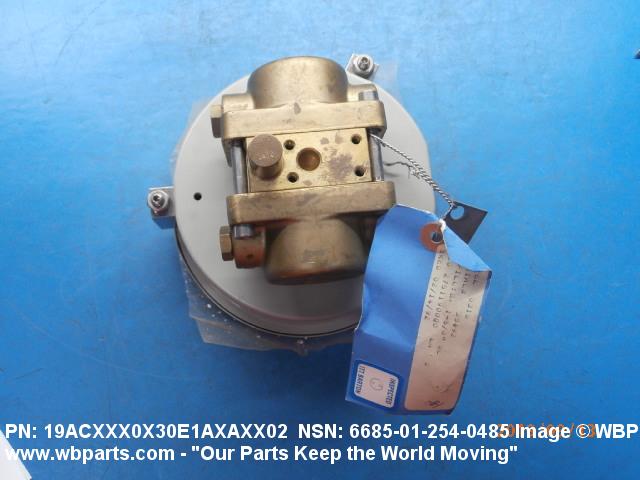

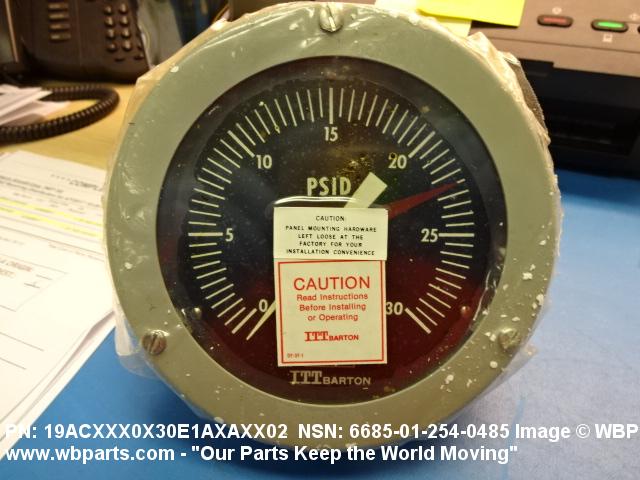

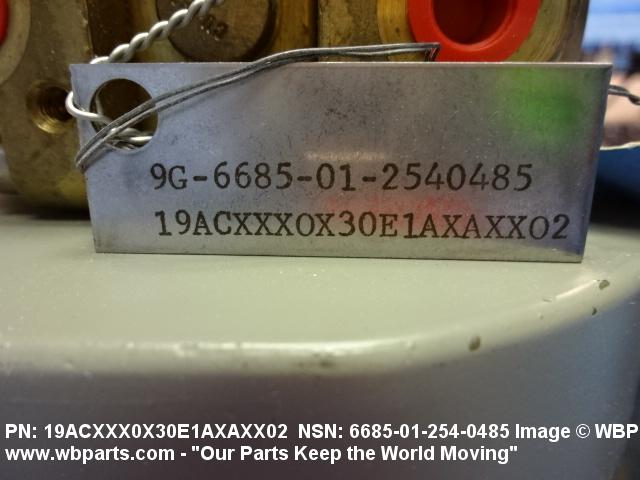

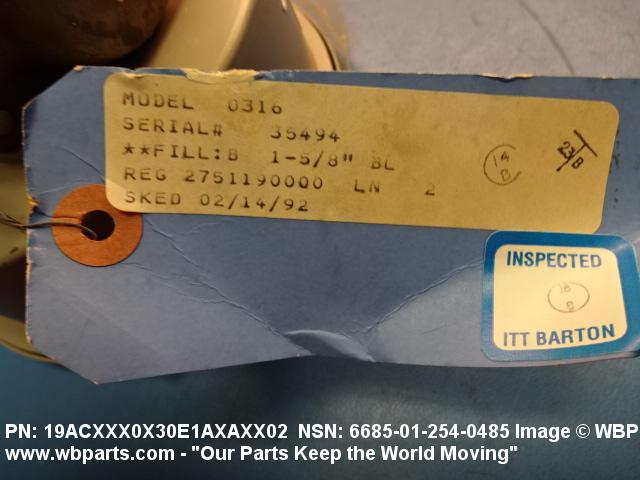

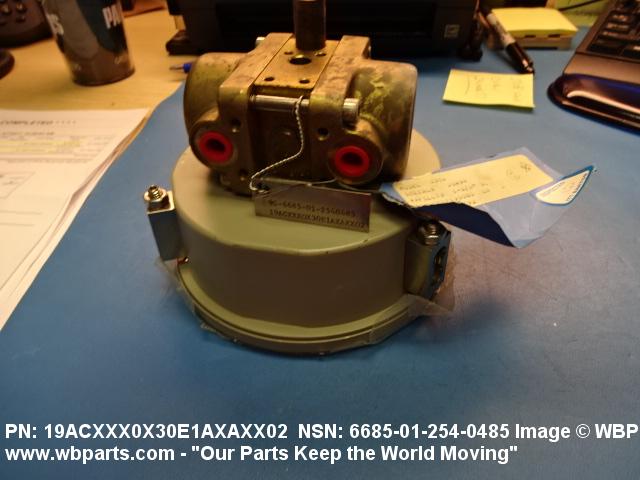

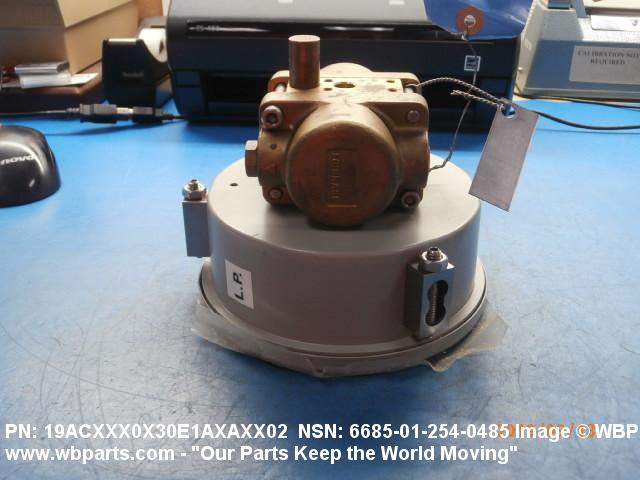

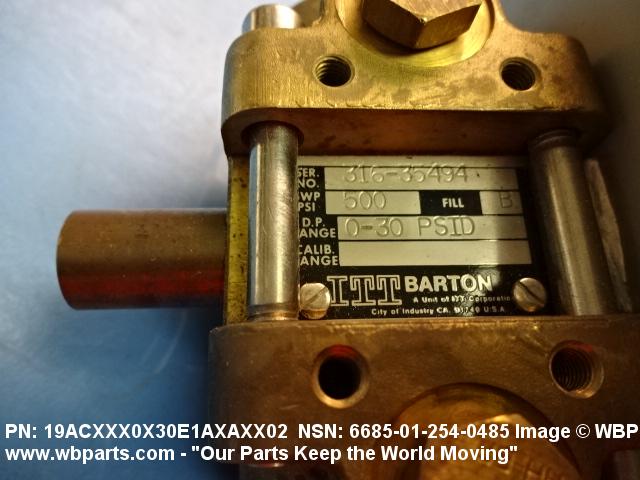

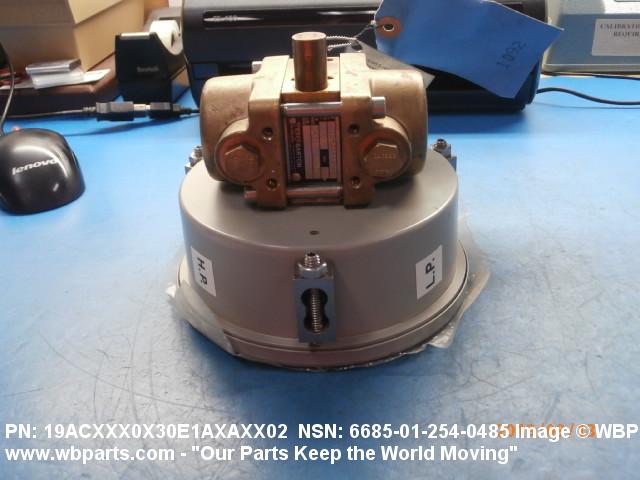

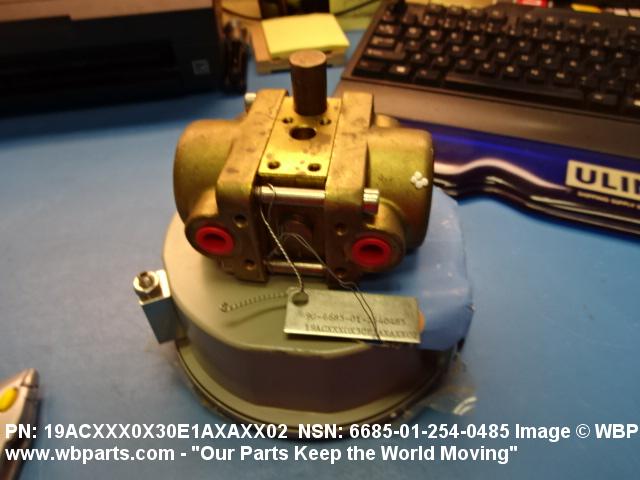

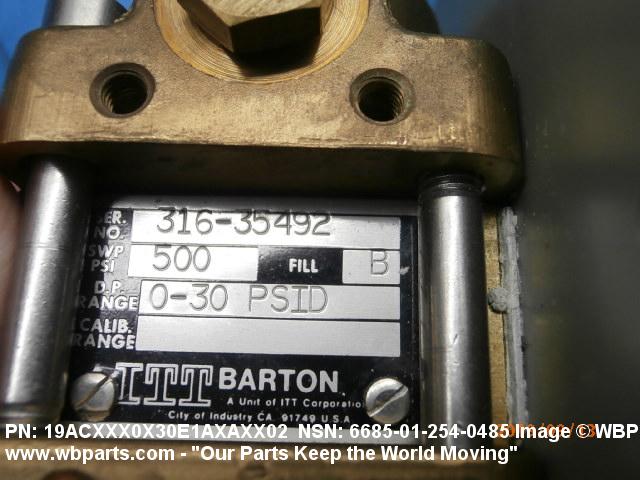

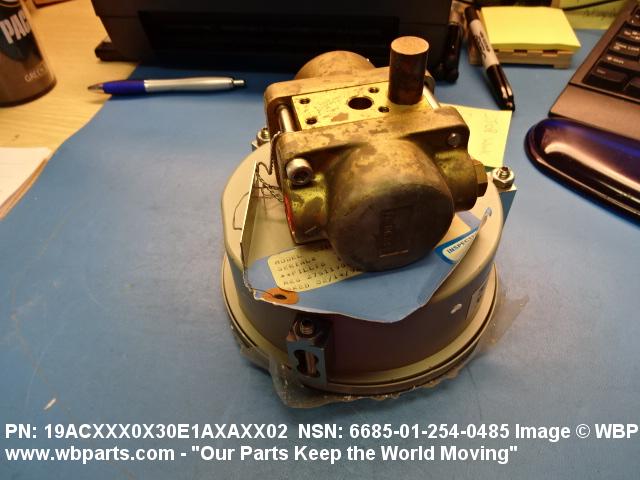

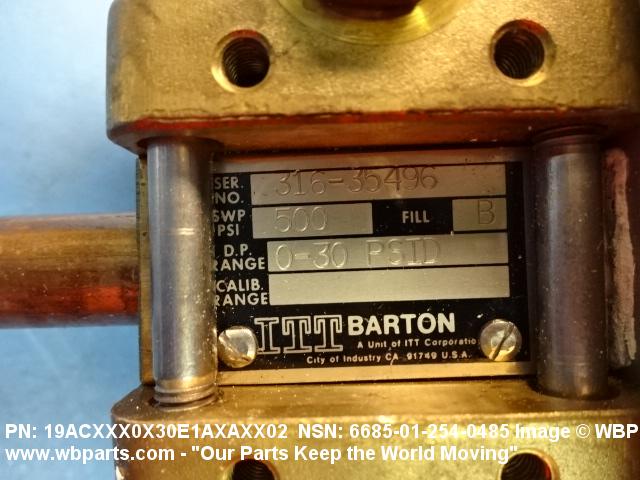

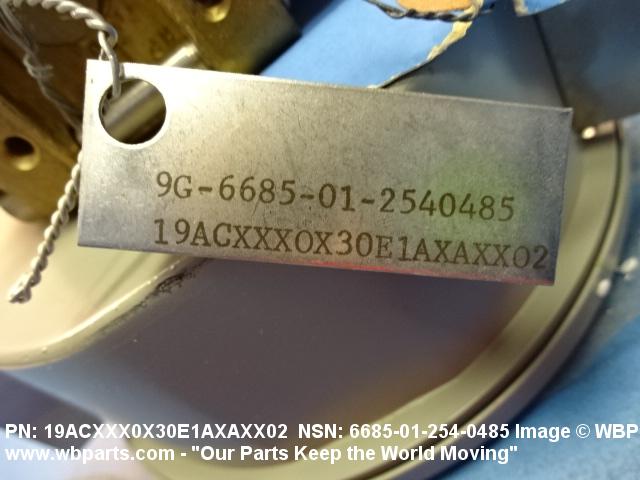

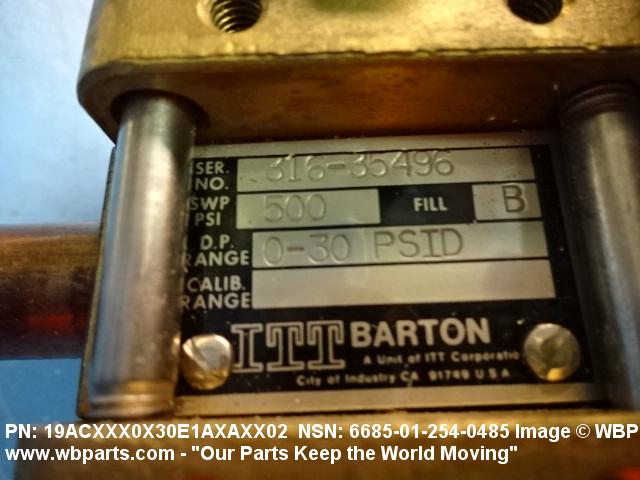

Drawings & Photos | NSN 6685-01-254-0485
Demand History | NSN 6685-01-254-0485
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 19ACXXX0X30E1AXAXX03 | 2019-08-05 | 1 | DIBBS |
| 6685-01-254-0485 | 2019-07-12 | 1 | United States |
| 6685-01-254-0485 | 2017-03-10 | 1 | United States |
| 6685-01-254-0485 | 2017-03-10 | 1 | United States |
| 6685-01-254-0485 | 2016-11-07 | 2 | DIBBS |
| 6685-01-254-0485 | 2016-08-21 | 1 | DIBBS |
| 6685-01-254-0485 | 2013-09-17 | 1 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6685-01-254-0485
6685-01-254-1138, 6685-01-254-1139, 6685-01-254-1140, 6685-01-254-3014, 6685-01-254-3058
Technical Data | NSN 6685-01-254-0485
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | BELLOWS |
| SCALE NAME | DIFFERENTIAL PRESSURE |
| SCALE RANGE | 0.0 TO 30.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKINGS ON WHITE BACKGROUND |
| DIAL SIZE | 4-1/2 IN. DIA |
| POINTER TYPE | INDICATING AND REFERENCE |
| ADJUSTABILITY | ADJUSTABLE |
| POINTER COLOR | BLACK AND RED |
| CASE MATERIAL | ALUMINUM, DIE CAST |
| PROTECTIVE CRYSTAL MATERIAL | GLASS |
| CONNECTION QUANTITY | 4 |
| CONNECTION TYPE | INTERNAL |
| CONNECTION LOCATION | BOTTOM AND TOP |
| CONNECTION SIZE | 0.438 IN. TUBE |
