Product Details | DISK DRIVE UNIT
7025-01-505-4419 An electromechanical item which accepts and systematically retains digital input data in such a manner as to facilitate the rapid recovery of stored information. The item may or may not consist of disk(s) some of which are removable, hard, removable disk packs, fixed disks, or removable flexible, each surface coated with a material susceptible to spot magnetization, integral writing, a drive motor and its mechanical linkage, and data translating heads for impressing on or removing from the disk surface data in digital form. The item is a component of an electronic computer. See also, MAGNETIC DRUM, DATA STORAGE; CORE MEMORY UNIT.

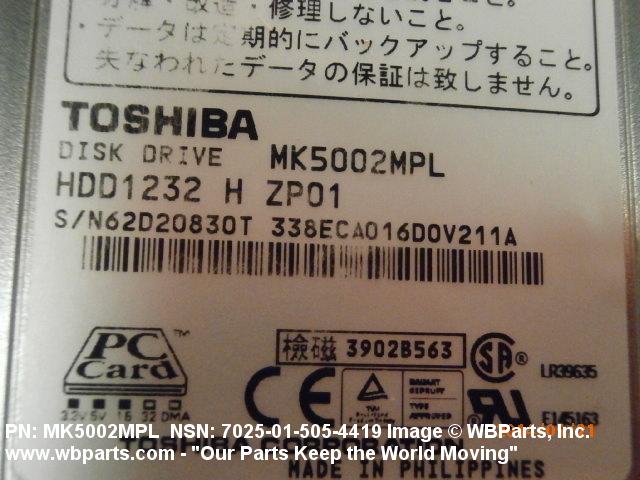

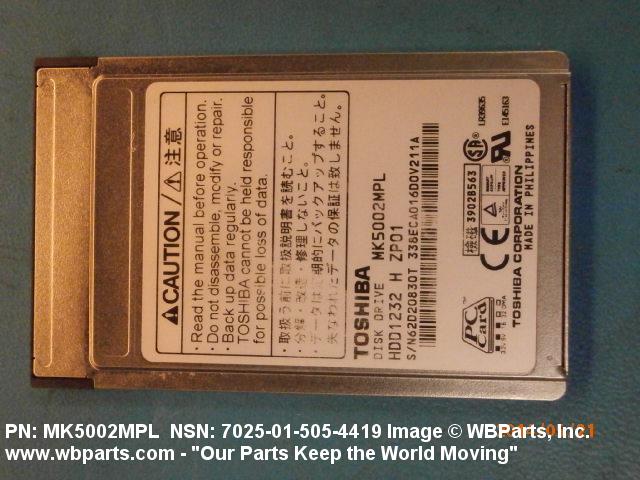

Part Alternates: MK5002MPL, N1037021, N103702-1 , 38008900391, 38008-90039-1 , 7025-01-505-4419, 01-505-4419, 7025015054419, 015054419
Automatic Data Processing Equipment (Including Firmware), Software, Supplies and Support Equipment | ADP Input/Output and Storage Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 70 | 06 MAR 2003 | 01-505-4419 | 37008 ( DISK DRIVE UNIT ) |
Drawings & Photos | NSN 7025-01-505-4419
Demand History | NSN 7025-01-505-4419
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 7025-01-505-4419
7025-01-505-4420, 7025-01-505-4550, 7025-01-505-4551, 7025-01-505-5081, 7025-01-505-5161
Technical Data | NSN 7025-01-505-4419
| Characteristic | Specifications |
|---|---|
| UNIT DESIGN | INTERNAL |
| DESIGN TYPE | HARD DISK |
| DRIVE QUANTITY | 1 |
| DATA STORAGE CAPACITY | 5.00 GIGABYTES |
| ACCESS TIME IN MILLISECONDS | 15.0 |
| TRANSFER RATE IN MEGABYTES PER SECOND | 125.0 |
| TRACKS PER INCH | 41600.0 |
| POWER SOURCE | EXTERNAL |

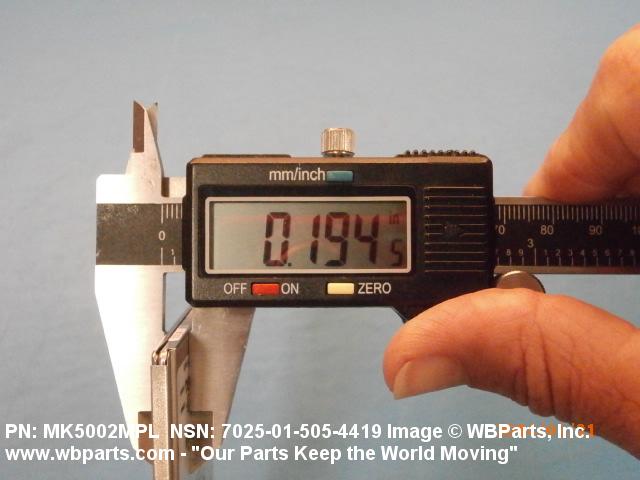

| OVERALL HEIGHT | 0.197 INCHES NOMINAL |

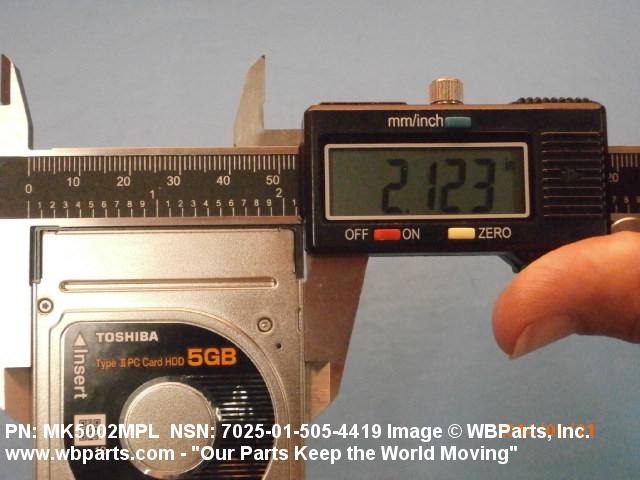

| OVERALL WIDTH | 2.130 INCHES NOMINAL |
| UNPACKAGED UNIT WEIGHT | 0.194 POUNDS |
| OPERATING TEMP RANGE | 5.0 TO 55.0 DEG CELSIUS |

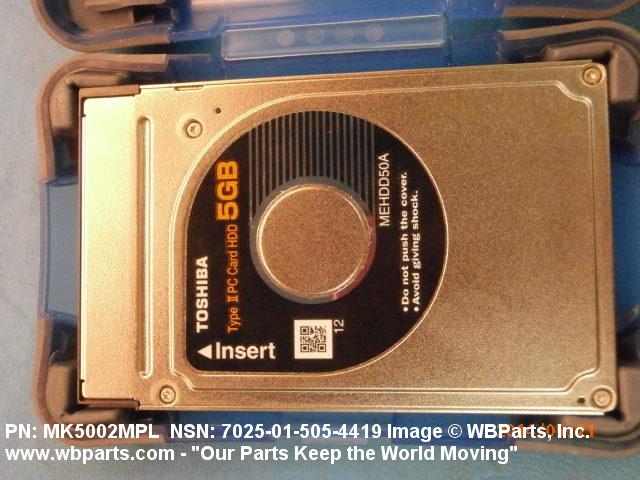

| SPECIAL FEATURES | 1.8 INCH DRIVE SIZE, INTERFACE TYPE PC CARD ATA, 68 PIN ATA |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HARD DISK DRIVE |
Restrictions/Controls & Freight Information | NSN 7025-01-505-4419
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7025-01-505-4419
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
