Product Details | DIGITAL DATA COUPLER
7025-01-590-8598 An item which provides a means of transferring digital data between two or more comparators, peripherals or the like.20358950037Miscellaneous Communication Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments70250036ADP Input/Output and Storage Devices
Part Alternates: ESI410, ESI-410, 7025-01-590-8598, 01-590-8598, 7025015908598, 015908598
Automatic Data Processing Equipment (Including Firmware), Software, Supplies and Support Equipment | ADP Input/Output and Storage Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 70 | 28 DEC 2010 | 01-590-8598 | 60322 ( COUPLER, DIGITAL DATA ) |

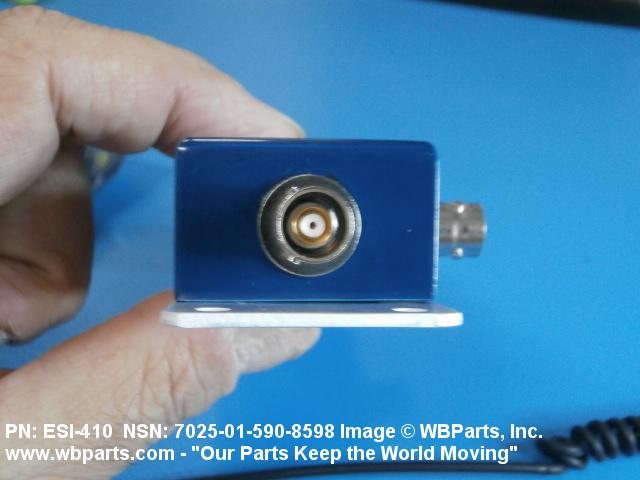

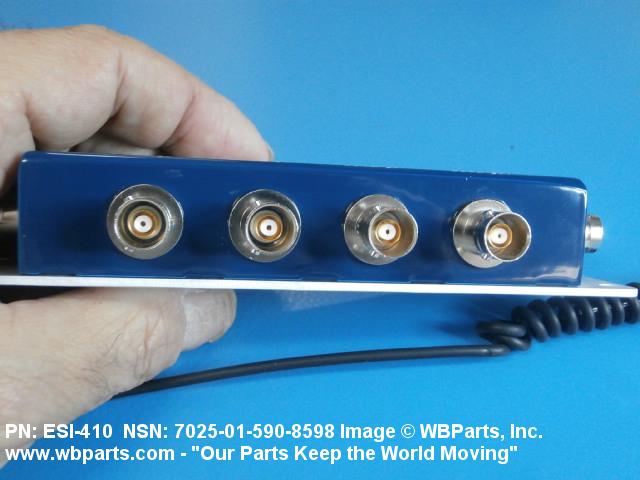

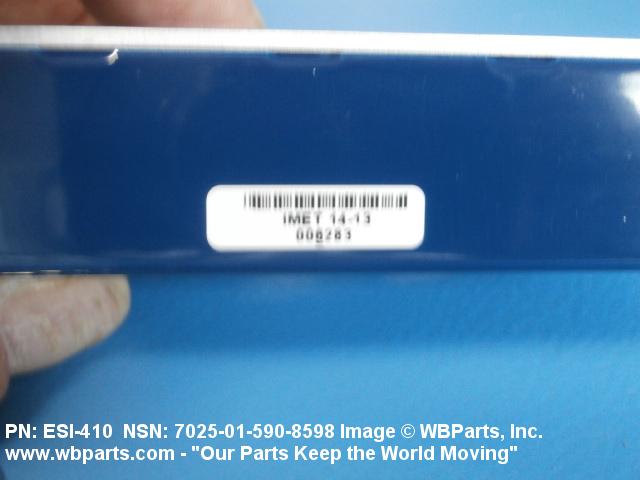

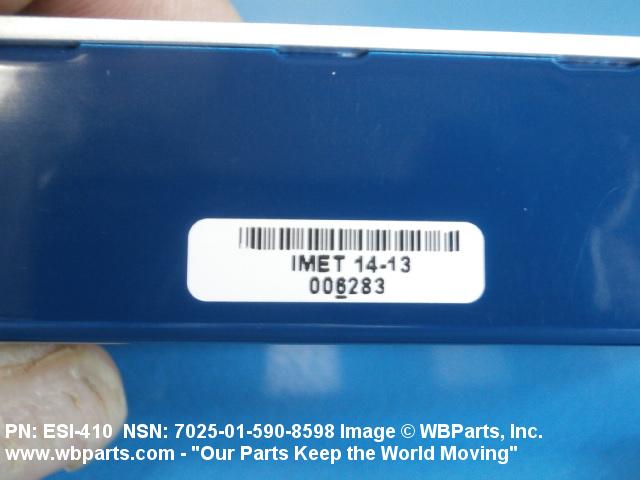

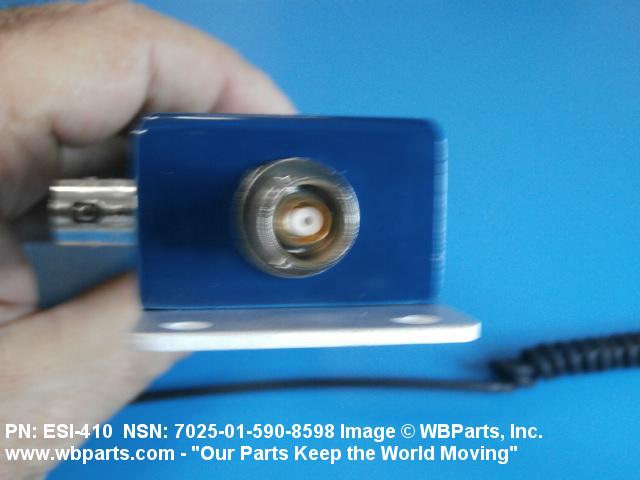

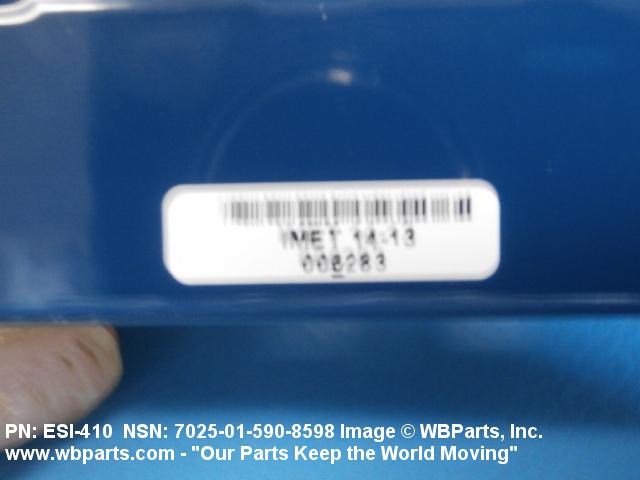

Drawings & Photos | NSN 7025-01-590-8598
Demand History | NSN 7025-01-590-8598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ESI-410 | 2022-02-09 | 3 | DIBBS |
| ESI-410 | 2021-06-17 | 3 | DIBBS |
| ESI-410 | 2021-05-20 | 4 | DIBBS |
| ESI410 | 2018-03-05 | 1 | China |
| 7025-01-590-8598 | 2017-03-29 | 6 | DIBBS |
| 7025-01-590-8598 | 2016-03-09 | 9 | DIBBS |
| 7025-01-590-8598 | 2015-11-04 | 4 | DIBBS |
| 7025-01-590-8598 | 2014-03-13 | 1 | France |
| 7025-01-590-8598 | 2014-03-10 | 1 | France |
Cross Reference | NSN 7025-01-590-8598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ESI-410 | 0DY94 | EXCALIBUR SYSTEMS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 7025-01-590-8598
Related Products | NSN 7025-01-590-8598
7025-01-591-0353, 7025-01-591-0514, 7025-01-591-0687, 7025-01-591-0992, 7025-01-591-1220
Technical Data | NSN 7025-01-590-8598
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 4 STUB BOX COUPLER-BJ77, 3 LUG CONNECTION, MEETS MIL-1553 REQUIREMENTS |
Restrictions/Controls & Freight Information | NSN 7025-01-590-8598
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZH | Republic of Korea ZJ ZK |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 7025-01-590-8598
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
