Product Details | PRIMER COATING

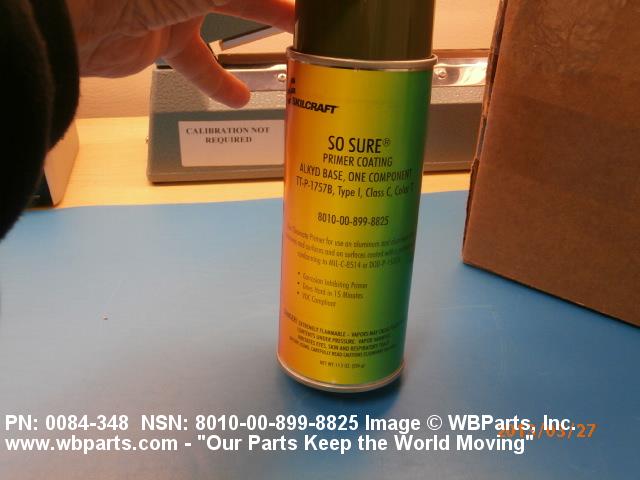

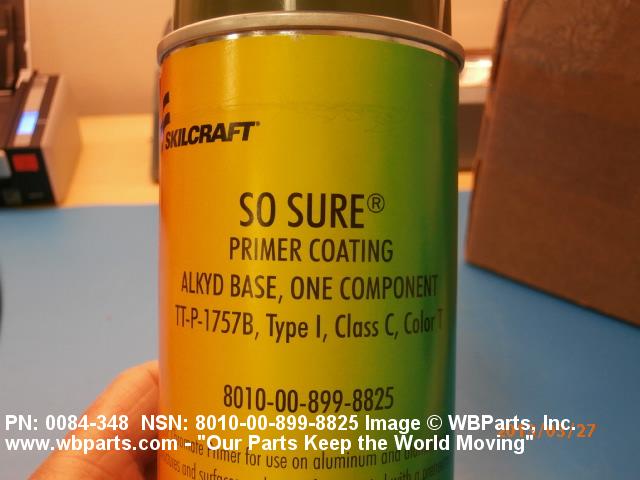

8010-00-899-8825 A coating primarily formulated to form a bond and/or protective coating between the surface and the succeeding coat of paint, enamel or lacquer. Excludes DOPE; COATING COMPOUND, METAL PRETREATMENT, RESIN-ACID; bituminous base coatings and items primarily formulated as sealers, surfacers or adhesives.
Part Alternates: TTP1757, TT-P-1757, TTP17572CG001P, TTP1757-2CG-001P, 0084348, 0084-348, 537AS6022, 537AS602-2, 8010-00-899-8825, 00-899-8825, 8010008998825, 008998825
Brushes, Paints, Sealers, and Adhesives | Paints, Dopes, Varnishes, and Related Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 80 | 01 JAN 1962 | 00-899-8825 | 15705 ( PRIMER COATING ) |
Drawings & Photos | NSN 8010-00-899-8825
Demand History | NSN 8010-00-899-8825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8010-00-899-8825 | 2023-04-19 | 6 | United States |
| TTP1757 | 2023-03-01 | 1 | US |
| 8010-00-899-8825 | 2022-10-12 | 2 | DK |
| 8010-00-899-8825 | 2022-10-03 | 3 | DK |
| 8010-00-899-8825 | 2022-06-01 | 12 | Spain |
| 8010-00-899-8825 | 2021-07-09 | 60 | PL |
| 8010-00-899-8825 | 2021-06-09 | 5 | US |
| 8010-00-899-8825 | 2021-05-20 | 1 | United States |
| TTP1757 | 2020-12-05 | 1 | US |
| 8010-00-899-8825 | 2020-09-04 | 1 | Taiwan |
| 8010-00-899-8825 | 2020-01-09 | 1 | US |
| TTP1757 | 2019-10-14 | 3 | US |
| TTP1757 | 2019-09-12 | 1 | US |
| 8010-00-899-8825 | 2019-05-02 | 12 | United States |
| 8010-00-899-8825 | 2019-05-02 | 2 | United States |
| 8010-00-899-8825 | 2019-01-09 | 24 | AE |
| 8010-00-899-8825 | 2018-07-12 | 12 | US |
| 8010-00-899-8825 | 2018-04-26 | 9 | United States |
| 8010-00-899-8825 | 2018-04-11 | 1 | us |
| TTP1757 | 2018-02-20 | 1 | DK |
| 8010-00-899-8825 | 2018-02-02 | 3 | United States |
| 8010-00-899-8825 | 2018-02-01 | 20 | TN |
| 8010-00-899-8825 | 2017-07-10 | 49 | Taiwan |
| 8010-00-899-8825 | 2017-05-03 | 4 | US |
| 8010-00-899-8825 | 2015-09-05 | 2294 | DIBBS |
| TTP1757 | 2015-05-11 | 1 | United States |
| 0084348 | 2014-04-16 | 2 | United States |
| TTP1757 | 2014-03-02 | 10 | Taiwan |
| 0084348 | 2013-06-24 | 24 | United States |
| 0084348 | 2013-03-22 | 24 | United States |
| TTP17572CG001P | 2013-03-03 | 24 | Saudi Arabia |
Cross Reference | NSN 8010-00-899-8825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0084-348 | 0FTT5 | LIGHTHOUSE FOR THE BLIND, THE DBA LHB INDUSTRIES |
| 537AS602-2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| TT-P-1757 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| TTP1757-2CG-001P | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 8010-00-899-8825
Related Products | NSN 8010-00-899-8825
8010-00-900-0737, 8010-00-900-0739, 8010-00-900-1621, 8010-00-900-1622, 8010-00-900-2182
Technical Data | NSN 8010-00-899-8825
| Characteristic | Specifications |
|---|---|
| COLOR | GREEN |
| COLOR CHIP NUMBER | 34151 |
| RATED DRYING TIME | 15.000 MINUTES MAXIMUM |
| APPLICATION METHOD | SPRAYING AS IS |
| SPECIFIC USE | CORROSION RESISTIVE PRIMER |
| QUANTITY WITHIN EACH UNIT PACKAGE | 16.000 OUNCES |
| UNIT PACKAGE TYPE | CAN, PRESSURIZED SPRAY |
| VOLATILE ORGANIC COMPOUND IN GRAMS PER LITERS | 340.0 |
| SPECIAL FEATURES | LEAD FREE; FOR USE ON ALUMINUM AND ALUMINUM ALLOY STRUCTURES AND SURFACES AND ON SURFACES PRETREATED WITH MIL-C-8514 OR DOD-P-15328 COATING |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY THE UNIT PACKAGE TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | TT-P-1757 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | TTP1757-2CG-001P |
Restrictions/Controls & Freight Information | NSN 8010-00-899-8825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 7 | 36 months |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | V3 | Aerosol, Flammable AEROSOL, FLAMMABLE |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 149980 | PAINT AND RELATED MATERIALS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 620 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | C | Chemical corps items and all other chemicals not covered in other classifications. When chemical item (as indicated by the DOT Proper Shipping Name) is sensitive as defined in Appendix A Section I of DoD 4500.32-R, Volume I, second position must be from table 85 , part 1. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | O | Flammable compressed gas, UN class 2.1(flammable gas label) |
Management | NSN 8010-00-899-8825
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months | Purchasing | QTY UOM |
1 PT : Pint |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months | Purchasing | QTY UOM |
1 PT : Pint |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Operational Test Code | 1 | Items of equipment which require the performance of special procedures and are controlled through the Mechanization of Warehousing and Shipment Processing (MOWASP) special handling suspense routine by USMC/Serial Number (excluding small arms). Normally OTC 1 items of equipment are technical items which may be unboxed, open-storage, skid mounted, rolling stock (wheel or track mounted) such as tanks, trailers, vehicles, heavy construction equipment and USMC/Serial Number controlled end items (i.e., housed radar, communications van, shop van, etc.). |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months | Purchasing | QTY UOM |
1 PT : Pint |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | F | Flammable Liquids flash point not more than 60 C (140 F) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months | Purchasing | QTY UOM |
1 PT : Pint |
