Product Details | STRUCTURAL ANGLE
9540-01-191-0634 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/8, AMSQQA2008, ASTM B221, ASTMB221, GS180A1CE, QQ-A-200/8, QQA2008, 12044, 60198, 60-198, 9540-01-191-0634, 01-191-0634, 9540011910634, 011910634
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 05 OCT 1984 | 01-191-0634 | 37017 ( ANGLE, STRUCTURAL ) |
Drawings & Photos | NSN 9540-01-191-0634
Demand History | NSN 9540-01-191-0634
Cross Reference | NSN 9540-01-191-0634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12044 | 55088 | PIMALCO INC. DIV ALCOA INC GLOBAL HARD ALLOY |
| 60-198 | 29321 | TRANSTAR METALS CORP |
| AMS-QQ-A-200/8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ASTM B221 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| GS180A1CE | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| QQ-A-200/8 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 9540-01-191-0634
Related Products | NSN 9540-01-191-0634
9540-01-191-0636, 9540-01-191-1161, 9540-01-191-1162, 9540-01-191-1163, 9540-01-191-3364
Technical Data | NSN 9540-01-191-0634
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AMS-QQ-A-200/8, ALLOY 6061 |
| FABRICATION METHOD | EXTRUDED |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED |
| LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | E2 ANGLE |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.125 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |

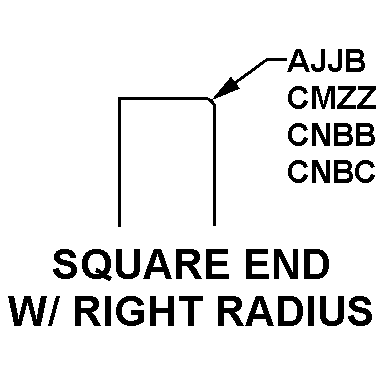

| FIRST TIP STYLE | 25 SQUARE END WITH RIGHT RADIUS |
| FIRST TIP RADIUS | 0.094 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |

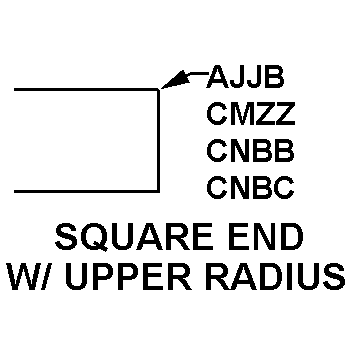

| SECOND TIP STYLE | 27 SQUARE END WITH UPPER RADIUS |
| SECOND TIP RADIUS | 0.094 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 0.210 POUNDS PER LINEAR FOOT |
| NONDEFINITIVE SPEC/STD DATA | ALLOY 7075 AND TEMPER T6 |
Restrictions/Controls & Freight Information | NSN 9540-01-191-0634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013140 | ALUMINUM ANGLES |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9540-01-191-0634
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
