Product Details | INSTRUCTION PLATE
9905-01-198-5826 An item which is rigid or semirigid, generally flat and smooth. Its thickness is small in comparison to its length and width. It has data thereon indicating method of operation, maintenance, and/or personnel protection. See also MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; PLATE, DESIGNATION; PLATE SET, INSTRUCTION; DECAL; and LABEL. For items having the combination function of a PLATE, INSTRUCTION and PLATE, IDENTIFICATION, see PLATE, IDENTIFICATION. Excludes TAG, INSTRUCTION.

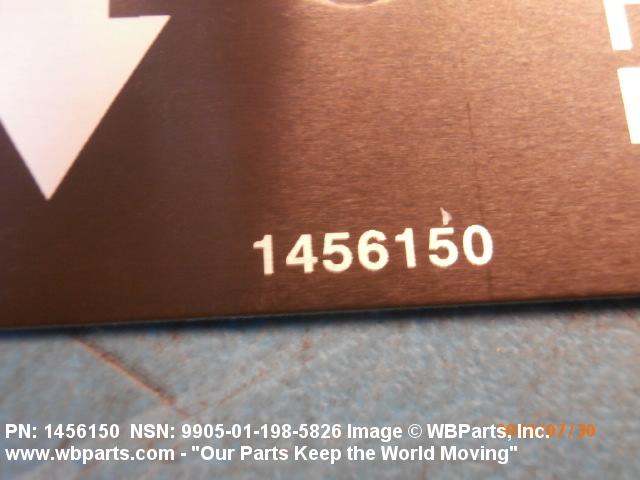

Part Alternates: 1456150, 9905-01-198-5826, 01-198-5826, 9905011985826, 011985826
Miscellaneous | Signs, Advertising Displays, and Identification Plates
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | 10 JAN 1985 | 01-198-5826 | 00156 ( PLATE, INSTRUCTION ) |

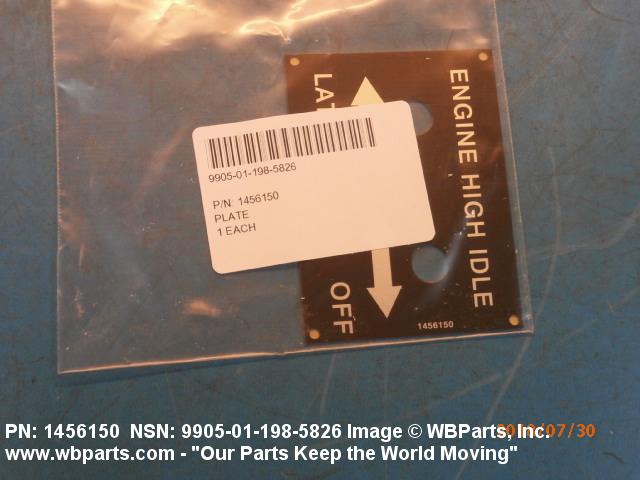

Drawings & Photos | NSN 9905-01-198-5826
Demand History | NSN 9905-01-198-5826
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 9905-01-198-5826
9905-01-198-5827, 9905-01-198-6044, 9905-01-198-6045, 9905-01-198-6046, 9905-01-198-7561
Technical Data | NSN 9905-01-198-5826
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |

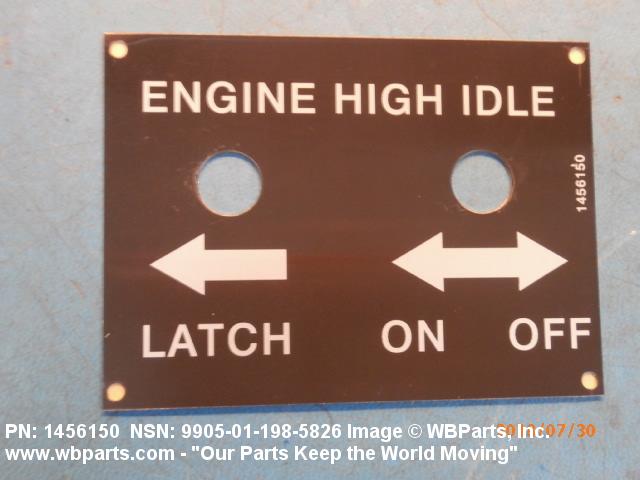

| INSCRIPTION | ENGINE HIGH IDLE LATCH ON OFF |
| MARKING DESIGNATION | LEGEND |
| COLOR | NATURAL INSCRIPTION BLACK INSCRIPTION BACKGROUND |
| ATTACHMENT METHOD | ADHESIVE AND HOLE |

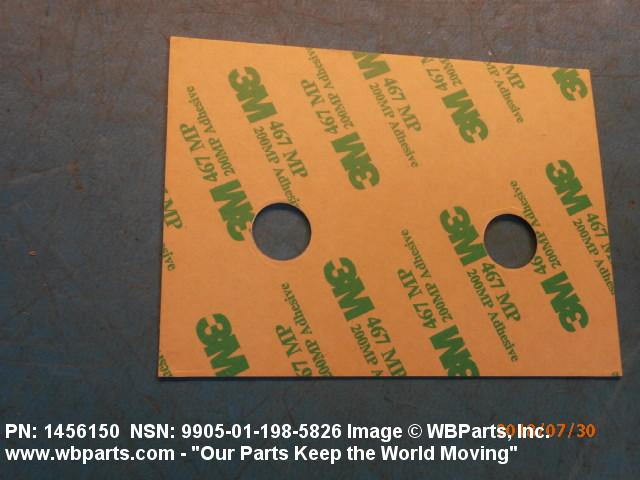

| FEATURES PROVIDED | PRESSURE SENSITIVE ADHESIVE TAPE |
| BASIC SHAPE STYLE | A2 RECTANGULAR |

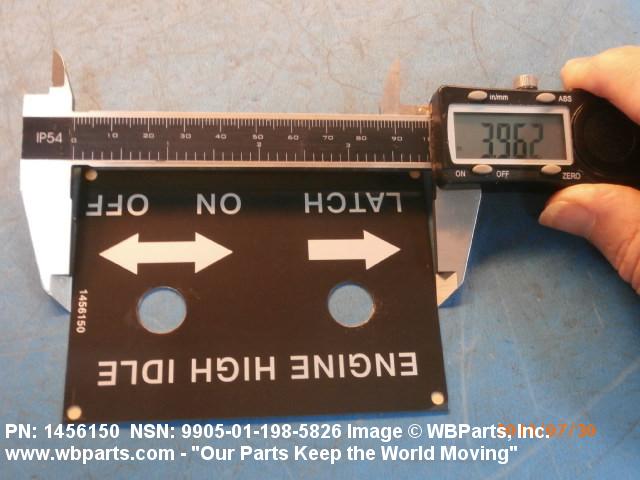

| WIDTH | 4.000 INCHES NOMINAL |

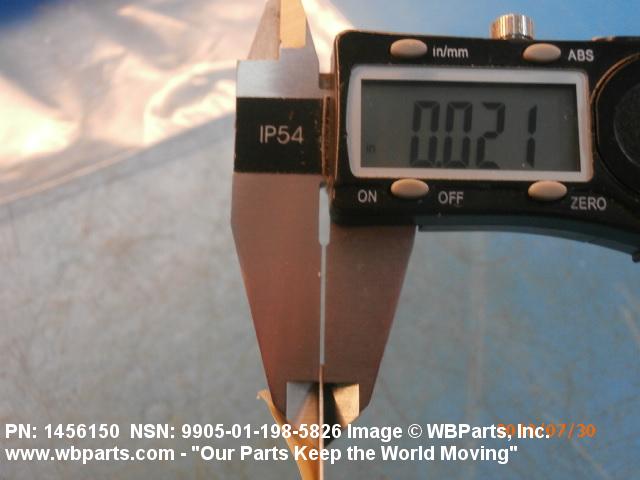

| THICKNESS | 0.020 INCHES NOMINAL |

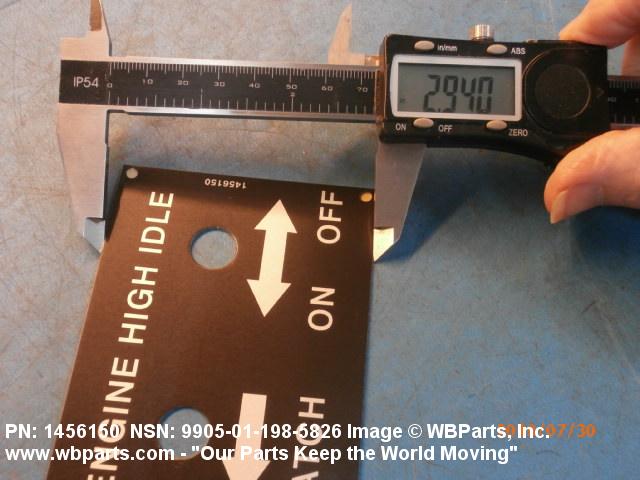

| LENGTH | 2.940 INCHES NOMINAL |
| (NON-CORE DATA) CLEARANCE HOLE QUANTITY | 2 |
| (NON-CORE DATA) REMOVABLE PROTECTIVE BACKING | INCLUDED |
Restrictions/Controls & Freight Information | NSN 9905-01-198-5826
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 9905-01-198-5826
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
