NSN 3020-00-018-2462 D4018CHN, D40-18CHN, 906765
Product Details | ROLLER CHAIN
3020-00-018-2462 A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK.
Part Alternates: D4018CHN, D40-18CHN, 906765, 008326, 3020-00-018-2462, 00-018-2462, 3020000182462, 000182462
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 MAY 1968 | 00-018-2462 | 04457 ( CHAIN, ROLLER ) |
Drawings & Photos | NSN 3020-00-018-2462
Demand History | NSN 3020-00-018-2462
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-018-2462 | 2025-06-177 | 1 | United States |
| 906765 | 2025-03-83 | 169 | DIBBS |
| 906765 | 2025-03-67 | 169 | DIBBS |
| 906765 | 2024-09-270 | 159 | DIBBS |
| 906765 | 2024-03-91 | 120 | DIBBS |
| 906765 | 2023-04-104 | 172 | DIBBS |
| 906765 | 2023-03-89 | 172 | DIBBS |
| 906765 | 2023-03-74 | 172 | DIBBS |
| 906765 | 2022-03-88 | 101 | DIBBS |
| 906765 | 2022-03-76 | 235 | DIBBS |
| 906765 | 2021-10-280 | 122 | DIBBS |
| 906765 | 2020-04-121 | 170 | DIBBS |
| 3020-00-018-2462 | 2018-07-200 | 211 | DIBBS |
| 3020-00-018-2462 | 2017-05-124 | 465 | DIBBS |
| 3020-00-018-2462 | 2016-10-298 | 177 | DIBBS |
| 3020-00-018-2462 | 2016-08-238 | 1 | DIBBS |
| 3020-00-018-2462 | 2016-06-168 | 262 | DIBBS |
| 3020-00-018-2462 | 2016-05-130 | 192 | DIBBS |
| 3020-00-018-2462 | 2016-04-119 | 192 | DIBBS |
| 3020-00-018-2462 | 2015-04-107 | 205 | DIBBS |
| 3020-00-018-2462 | 2015-04-96 | 205 | DIBBS |
| 3020-00-018-2462 | 2014-04-93 | 188 | DIBBS |
| 3020-00-018-2462 | 2013-07-204 | 143 | DIBBS |
| 3020-00-018-2462 | 2013-05-142 | 0 | DIBBS |
| 3020-00-018-2462 | 2012-12-340 | 119 | DIBBS |
| 3020-00-018-2462 | 2012-09-270 | 42 | DIBBS |
| 3020-00-018-2462 | 2011-05-136 | 266 | DIBBS |
| D4018CHN | 2010-09-250 | 185 | US |
| 3020-00-018-2462 | 2010-08-243 | 185 | DIBBS |
| 3020-00-018-2462 | 2009-02-42 | 4 | US |
| 3020-00-018-2462 | 2009-02-42 | 4 | US |
| 3020-00-018-2462 | 2008-10-301 | 1 | us |
| 3020-00-018-2462 | 2007-08-222 | 409 | DIBBS |
| 3020-00-018-2462 | 2007-06-157 | 123 | DIBBS |
| 3020-00-018-2462 | 2007-04-113 | 97 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-018-2462
Technical Data | NSN 3020-00-018-2462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK STYLE | A1 ROLLER |
| LINK PLATE NOMINAL THICKNESS | 0.0600 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.4000 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.3125 INCHES |
| LINK PLATE WIDTH | 0.452 INCHES NOMINAL |
| LINK ROW QUANTITY | 2 |

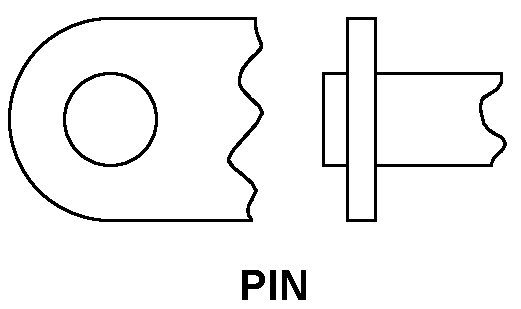

| END CONNECTION STYLE | 4 PIN |
| PIN FASTENING METHOD | ANY ACCEPTABLE |
| PIN OVERALL LENGTH | 1.2740 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3020-00-018-2462
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093940 | CHAINS BELTING/SPROCKET |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-018-2462
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
