Product Details | PUSH SWITCH
5930-01-090-8016 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: DC5164, DC-51-64 , 2667532020, 266-7532-020, 5930-01-090-8016, 01-090-8016, 5930010908016, 010908016
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 FEB 1980 | 01-090-8016 | 00406 ( SWITCH, PUSH ) |

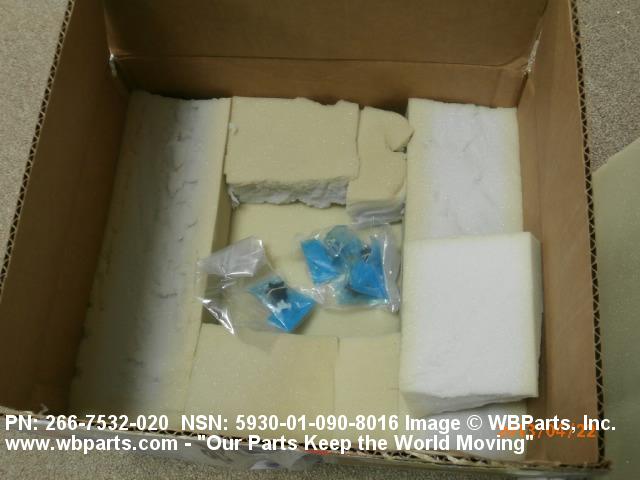

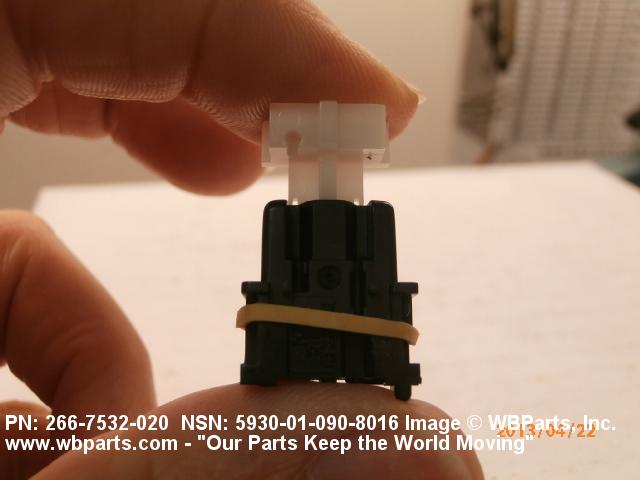

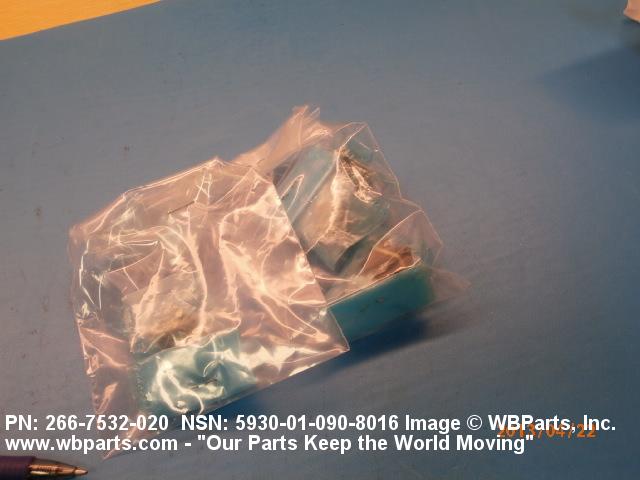

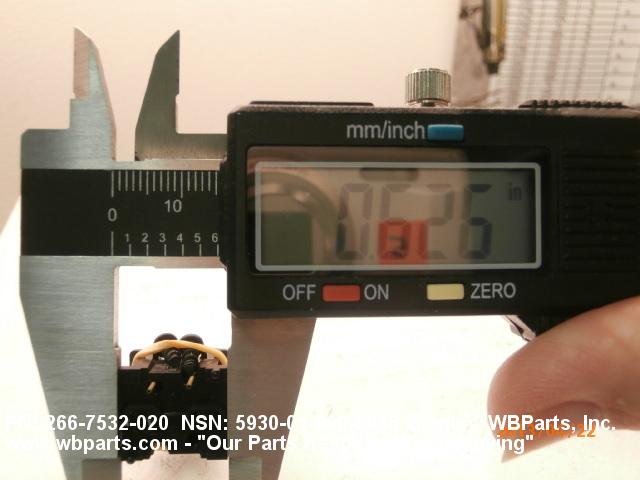

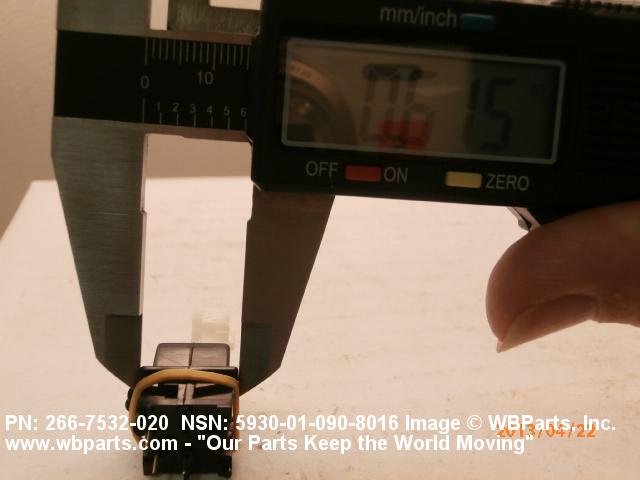

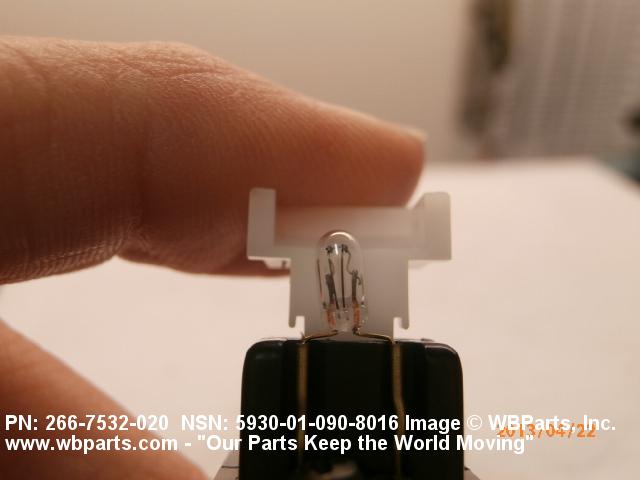

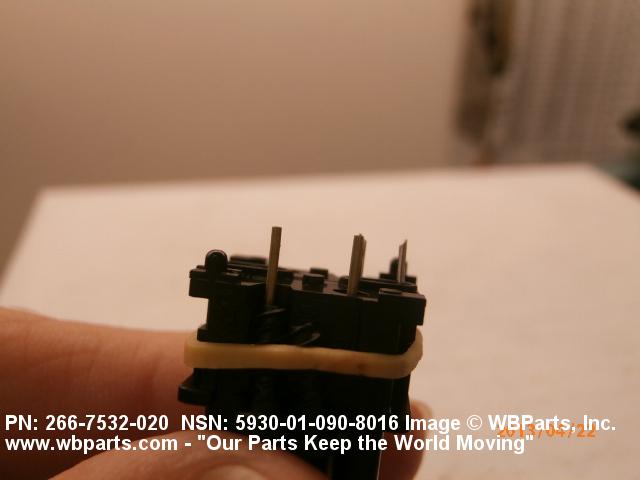

Drawings & Photos | NSN 5930-01-090-8016
Demand History | NSN 5930-01-090-8016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2667532020 | 2024-02-28 | 10 | US |
| 5930-01-090-8016 | 2023-09-29 | 1 | US |
| 5930-01-090-8016 | 2023-06-13 | 5 | Canada |
| 5930-01-090-8016 | 2023-05-16 | 500 | us |
| 5930-01-090-8016 | 2023-05-16 | 500 | United States |
| 5930-01-090-8016 | 2023-04-16 | 500 | US |
| 5930-01-090-8016 | 2023-04-14 | 20 | US |
| 5930-01-090-8016 | 2020-10-29 | 100 | DE |
| 5930-01-090-8016 | 2020-10-07 | 3 | United States |
| 5930-01-090-8016 | 2020-04-03 | 3 | CA |
| 5930-01-090-8016 | 2019-11-12 | 2 | Turkey |
| 5930-01-090-8016 | 2019-06-10 | 5 | US |
| 5930-01-090-8016 | 2019-04-01 | 1 | Turkey |
| 5930-01-090-8016 | 2015-08-14 | 100 | United States |
| 5930-01-090-8016 | 2015-07-02 | 20 | United States |
| 2667532020 | 2014-06-12 | 5 | France |
| 5930-01-090-8016 | 2014-05-14 | 20 | IL |
| 5930-01-090-8016 | 2013-04-04 | 1 | France |
| 5930-01-090-8016 | 2012-09-11 | 4 | France |
| 5930-01-090-8016 | 2012-04-25 | 1 | France |
| 5930-01-090-8016 | 2012-02-13 | 5 | US |
| 5930-01-090-8016 | 2010-02-18 | 1 | US |
| 5930-01-090-8016 | 2006-11-02 | 18 | US |
| DC5164 | 2006-01-26 | 1 | Spain |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-01-090-8016
5930-01-090-8142, 5930-01-090-8351, 5930-01-090-8685, 5930-01-090-8687, 5930-01-090-8688
Technical Data | NSN 5930-01-090-8016
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 MILLIAMPERES RESISTIVE DC |
| BODY STYLE | 30K PANEL MOUNT |
| BODY LENGTH | 0.620 INCHES NOMINAL |

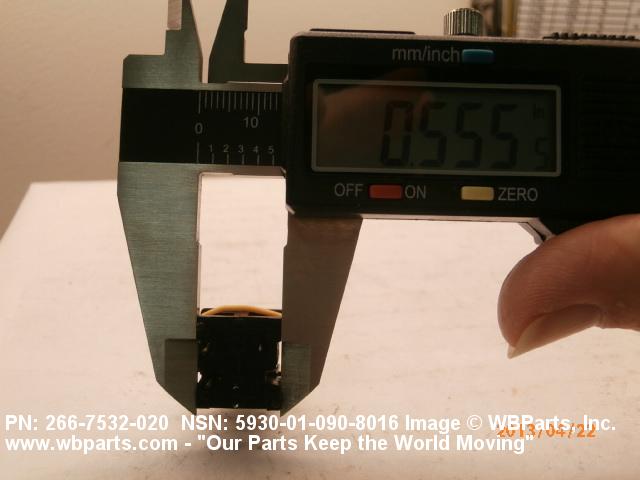

| BODY WIDTH | 0.556 INCHES NOMINAL |

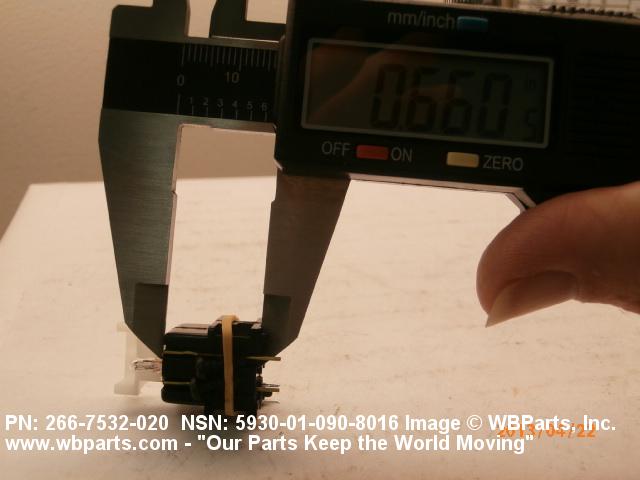

| BODY HEIGHT | 0.667 INCHES NOMINAL |
| ACTUATOR STYLE | 14 RECTANGULAR |
| ACTUATOR LENGTH | 0.522 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.378 INCHES NOMINAL |

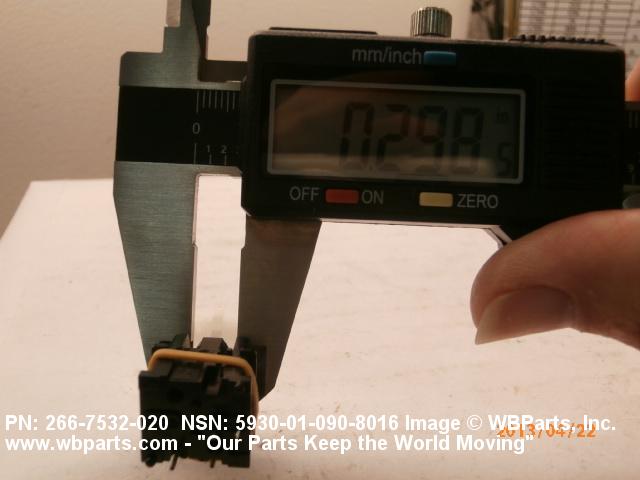

| ACTUATOR WIDTH | 0.296 INCHES NOMINAL |
| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |

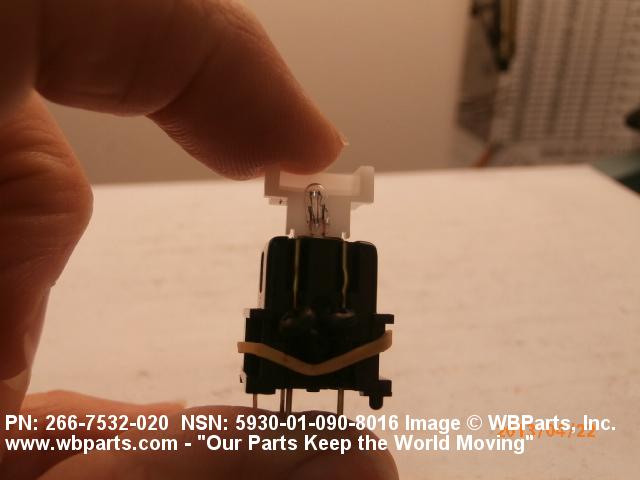

| SPECIAL FEATURES | KEY CAP; TWO TERMINALS FOR LAMPS |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.620 INCHES NOMINAL |
| III OVERALL WIDTH | 0.620 INCHES NOMINAL |

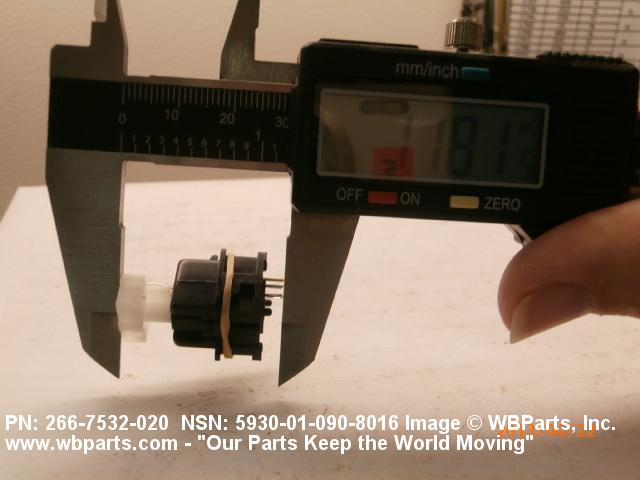

| III OVERALL HEIGHT | 1.175 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | FRM86 77777 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS AND CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5930-01-090-8016
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
