Product Details | AIRCRAFT STRUCTURAL COMPONENT BRACKET

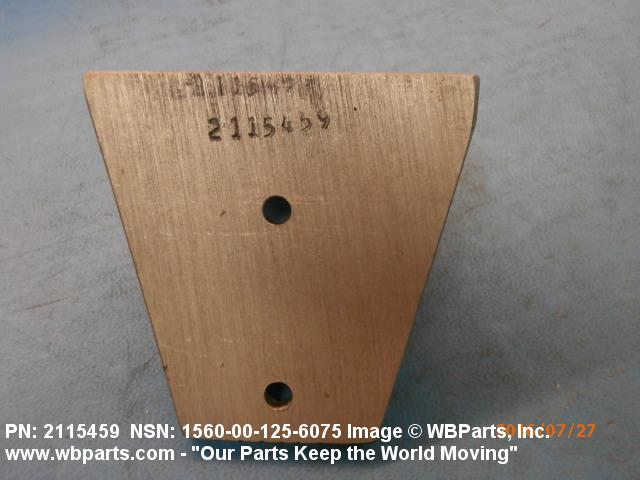

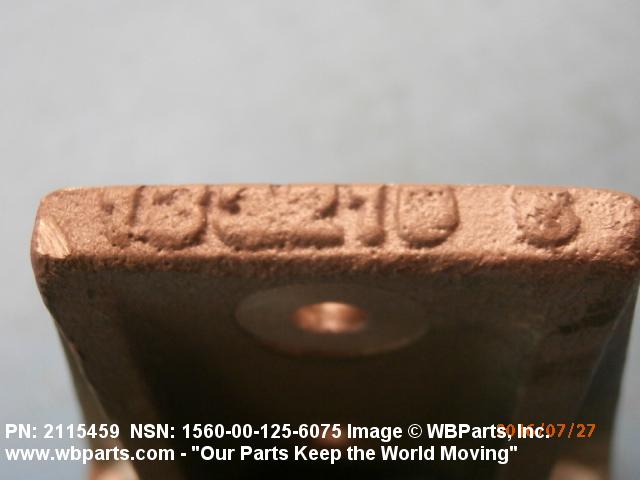

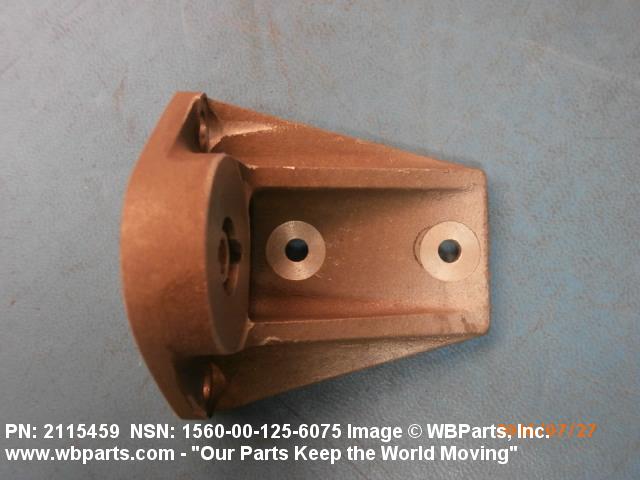

1560-00-125-6075 An item of various configuration that is an integral member of the airframe structure. It is specifically designed for the purpose of maintaining, positioning, joining, and strengthening the aircraft structure. It may include holes for mounting purposes or to form an assembly.
Part Alternates: 2115459, 1560-00-125-6075, 00-125-6075, 1560001256075, 001256075
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1963 | 00-125-6075 | 41017 ( BRACKET, STRUCTURAL COMPONENT, AIRCRAFT ) |
Drawings & Photos | NSN 1560-00-125-6075
Demand History | NSN 1560-00-125-6075
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1560-00-125-6075
1560-00-125-6092, 1560-00-125-6097, 1560-00-125-6098, 1560-00-125-6103, 1560-00-125-6132
Technical Data | NSN 1560-00-125-6075
| Characteristic | Specifications |
|---|---|
| AIRCRAFT MISSION DESIGN SERIES | C-47 |
| OVERALL LENGTH | 2.688 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | U/A: RUDDER HINGE BRACKET ASY,BRACKET INCL:2 MOUNTING HOLES 0.218 DIA, 2 MOUNTING HOLES 0.197 DIA, 1 OPENING 0.563 DIA, 1 BEARING P/N AN200K4 INCLUDED |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 2115459 |
