Product Details | AIRCRAFT STRUCTURAL COMPONENT BRACKET

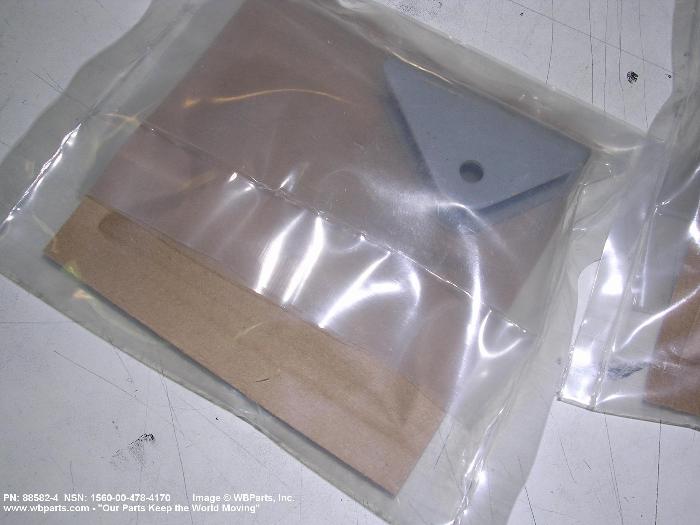

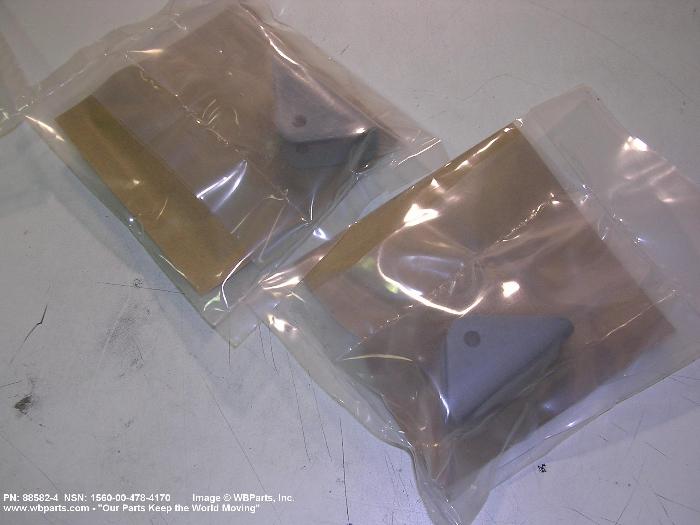

1560-00-478-4170 An item of various configuration that is an integral member of the airframe structure. It is specifically designed for the purpose of maintaining, positioning, joining, and strengthening the aircraft structure. It may include holes for mounting purposes or to form an assembly.
Part Alternates: 885824, 88582-4, 1560-00-478-4170, 00-478-4170, 1560004784170, 004784170
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1963 | 00-478-4170 | 41017 ( BRACKET, STRUCTURAL COMPONENT, AIRCRAFT ) |
Drawings & Photos | NSN 1560-00-478-4170
Demand History | NSN 1560-00-478-4170
Cross Reference | NSN 1560-00-478-4170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 88582-4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1560-00-478-4170
1560-00-478-4274, 1560-00-478-4716, 1560-00-478-4749, 1560-00-478-4785, 1560-00-478-4791
Technical Data | NSN 1560-00-478-4170
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18729 MIL SPEC SINGLE MATERIAL RESPONSE |
| AIRCRAFT LOCATION | ENGINE SECTION COWLING |
| AIRCRAFT MISSION DESIGN SERIES | HU-16 |
| MATERIAL THICKNESS | 0.095 INCHES NOMINAL |
| SPECIAL FEATURES | FINISH: CADMIUM PLATED |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 88582-4 |
