Product Details | TURNBUCKLE BODY
1640-00-067-9880 A metal loop, sleeve or solid item having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one and left hand screw threads on the other. It is a component of TURNBUCKLE. See also TIE ROD, TENSIONING, THREADED END. For items specifically designed for aviation, see TURNBUCKLE BODY, AVIATION.
Part Alternates: 000679880
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-067-9880 | 19315 ( TURNBUCKLE BODY ) |

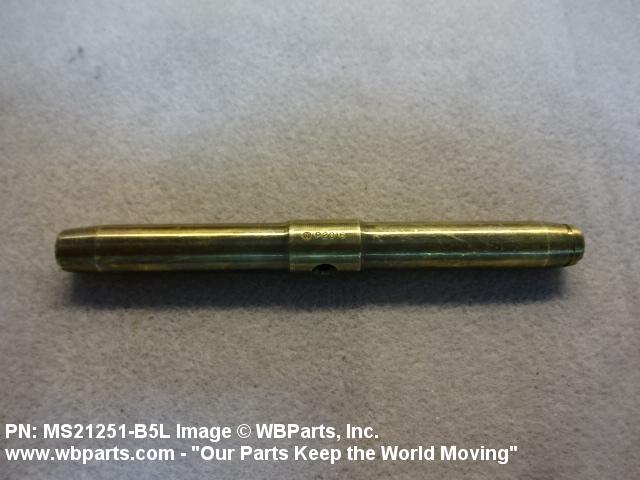

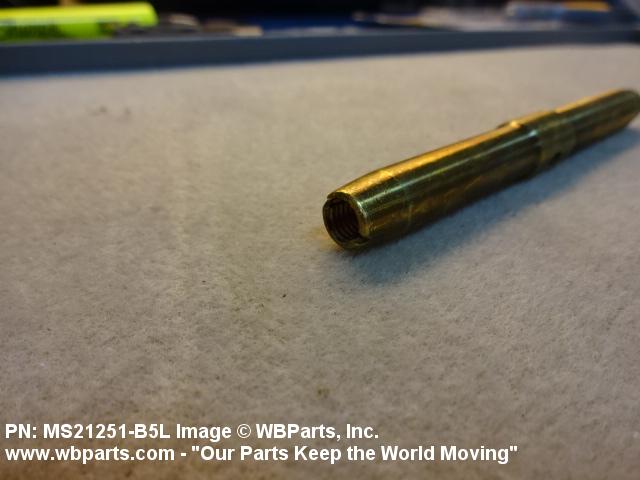

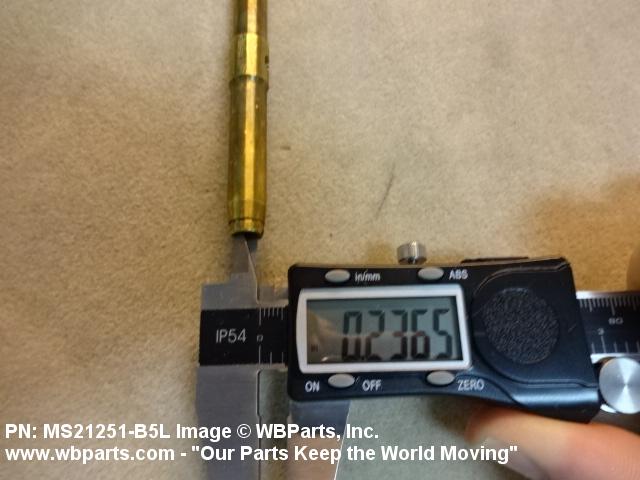

Drawings & Photos | NSN 1640-00-067-9880
Demand History | NSN 1640-00-067-9880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21251B5L | 2024-05-02 | 4 | South Africa |
| MS21251B5L | 2022-10-18 | 10 | US |
| MS21251B5L | 2022-10-18 | 25 | US |
| MS21251B5L | 2022-10-18 | 50 | US |
| MS21251B5L | 2021-09-27 | 20 | Croatia |
| MS21251B5L | 2019-06-28 | 2 | Turkey |
| MS21251B5L | 2017-07-05 | 10 | Brazil |
| MS21251B5L | 2017-04-06 | 30 | Brazil |
| MS21251B5L | 2015-02-02 | 5 | United States |
| MS21251B5L | 2015-01-27 | 6 | United States |
| 1640-00-067-9880 | 2007-10-27 | 4940 | DIBBS |
| 1640-00-067-9880 | 2007-08-30 | 7102 | DIBBS |
| 1640-00-067-9880 | 2007-08-22 | 3453 | DIBBS |
| 1640-00-067-9880 | 2007-07-20 | 1143 | DIBBS |
| 1640-00-067-9880 | 2007-03-22 | 1060 | DIBBS |
| 1640-00-067-9880 | 2007-02-26 | 1644 | DIBBS |
| 1640-00-067-9880 | 2007-02-15 | 915 | DIBBS |
| 1640-00-067-9880 | 2006-07-17 | 421 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1640-00-067-9880
1640-00-067-9882, 1640-00-067-9885, 1640-00-067-9887, 1640-00-067-9888, 1640-00-068-0525
Technical Data | NSN 1640-00-067-9880
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 482 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637,COMP 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF BODY |
| NOMINAL THREAD SIZE | 0.250 INCHES BODY |
| THREAD CLASS | 3B BODY |
| THREAD DIRECTION | RIGHT-HAND OVERALL |
| THREAD LENGTH | 2.250 INCHES NOMINAL OVERALL |

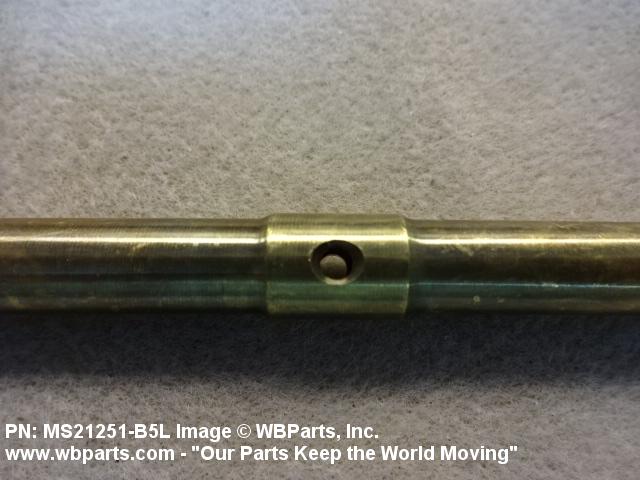

| BODY STYLE | 254 ROUND BODY W/LOCKING DEVICE |

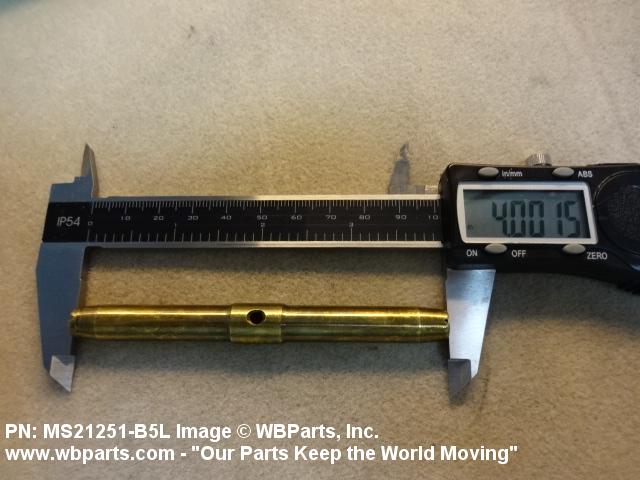

| BODY LENGTH | 3.969 INCHES MINIMUM AND 4.031 INCHES MAXIMUM |
| SPECIAL FEATURES | BODY DOES NOT COME WITH CLIP, USE MS21256-2 NSN 5340-00-010-3090 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21251B5L |
Restrictions/Controls & Freight Information | NSN 1640-00-067-9880
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
