Product Details | CYLINDER SLEEVE

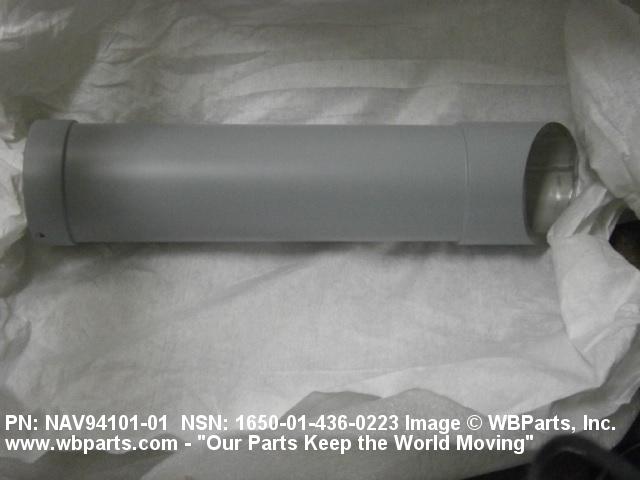

1650-01-436-0223 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: NAV94101, NAV94101 REV B, NAV9410101, NAV94101-01, NAV94101REVB, 1650-01-436-0223, 01-436-0223, 1650014360223, 014360223
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 10 SEP 1996 | 01-436-0223 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 1650-01-436-0223
Demand History | NSN 1650-01-436-0223
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-01-436-0223 | 2020-10-07 | 4 | DIBBS |
| 1650-01-436-0223 | 2020-08-18 | 2 | DIBBS |
| 1650-01-436-0223 | 2020-07-29 | 2 | DIBBS |
| 1650-01-436-0223 | 2020-03-17 | 9 | DIBBS |
| 1650-01-436-0223 | 2019-11-13 | 8 | DIBBS |
| 1650-01-436-0223 | 2019-05-08 | 9 | DIBBS |
| 1650-01-436-0223 | 2018-12-04 | 3 | DIBBS |
| 1650-01-436-0223 | 2017-03-07 | 20 | DIBBS |
| NAV9410101 | 2016-05-16 | 8 | United States |
| 1650-01-436-0223 | 2016-05-16 | 9 | DIBBS |
| 1650-01-436-0223 | 2015-10-21 | 11 | DIBBS |
| 1650-01-436-0223 | 2014-10-26 | 9 | DIBBS |
| 1650-01-436-0223 | 2013-11-20 | 9 | DIBBS |
| 1650-01-436-0223 | 2013-11-05 | 9 | DIBBS |
| 1650-01-436-0223 | 2013-02-07 | 6 | DIBBS |
| 1650-01-436-0223 | 2012-10-10 | 7 | DIBBS |
| 1650-01-436-0223 | 2012-04-03 | 5 | DIBBS |
| 1650-01-436-0223 | 2012-01-06 | 0 | United States |
| 1650-01-436-0223 | 2011-09-13 | 3 | DIBBS |
| 1650-01-436-0223 | 2006-06-26 | 2 | DIBBS |
| 1650-01-436-0223 | 2006-02-07 | 20 | DIBBS |
| 1650-01-436-0223 | 2006-01-26 | 4 | DIBBS |
| 1650-01-436-0223 | 2006-01-20 | 3 | DIBBS |
| 1650-01-436-0223 | 2005-12-09 | 4 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1650-01-436-0223
1650-01-436-1092, 1650-01-436-1093, 1650-01-436-1094, 1650-01-436-1095, 1650-01-436-1096
Technical Data | NSN 1650-01-436-0223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| METALLIC HARDNESS RATING | NOT RATED |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| DESIGN TYPE | DRY |

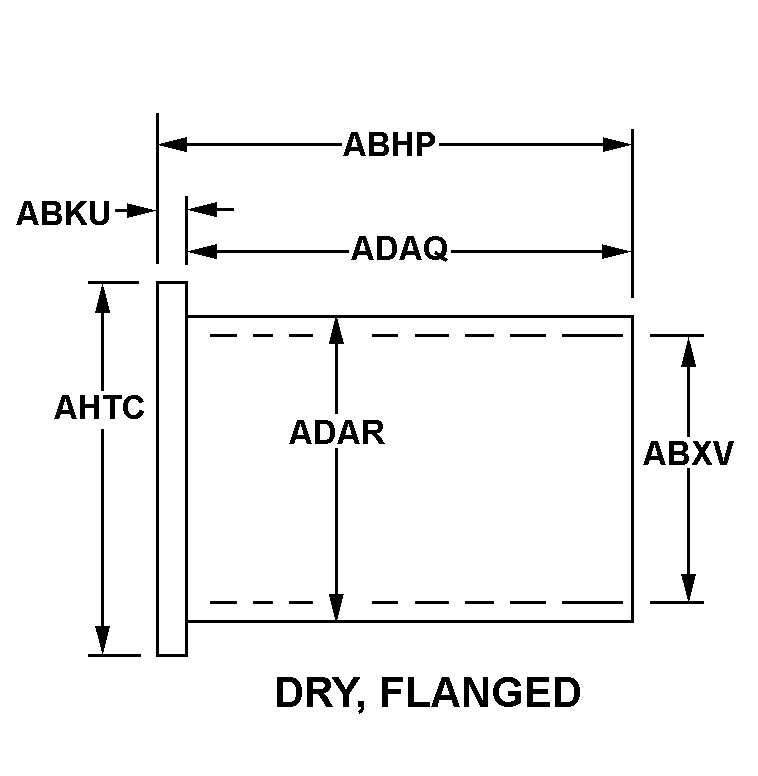

| STYLE DESIGNATOR | A20 DRY, FLANGED |
