Product Details | CYLINDER SLEEVE

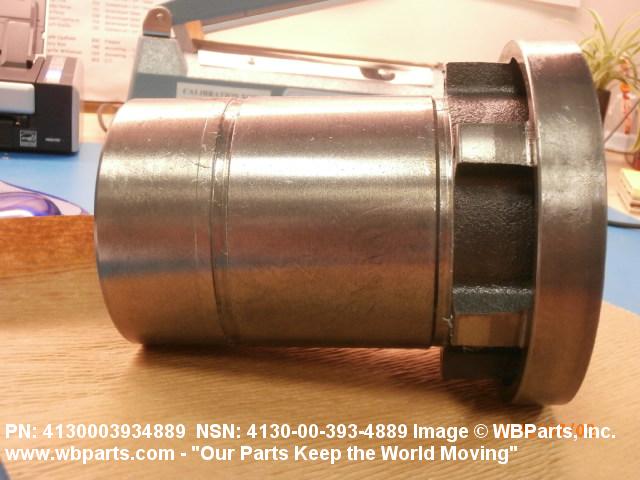

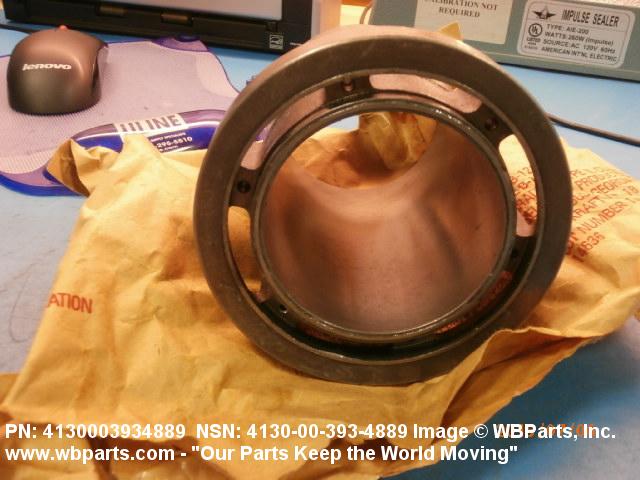

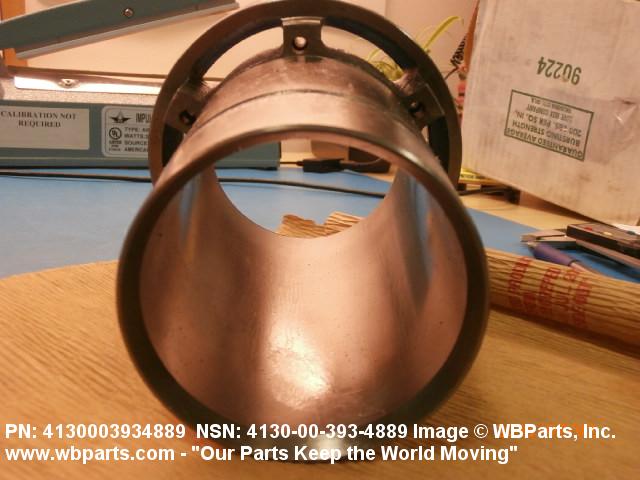

4130-00-393-4889 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: N86404ALT2PC24, N8640-4ALT2PC24, LNR0615, LNR-0615, LNR9615, LNR-9615, 514301013912, 521315901998671ALT2PC24, 52131-5901-998671ALT2PC24, 52MAD1282N18PC101SLEEVE, 52MAD1282N18PC101SLV, 57138011444715REVAPC101SLEEVE, 571-3801-1444715REVAPC101SLEEVE, 5H401003, 5H40-1003, 4130-00-393-4889, 00-393-4889, 4130003934889, 003934889
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-393-4889 | 16756 ( CYLINDER SLEEVE ) |

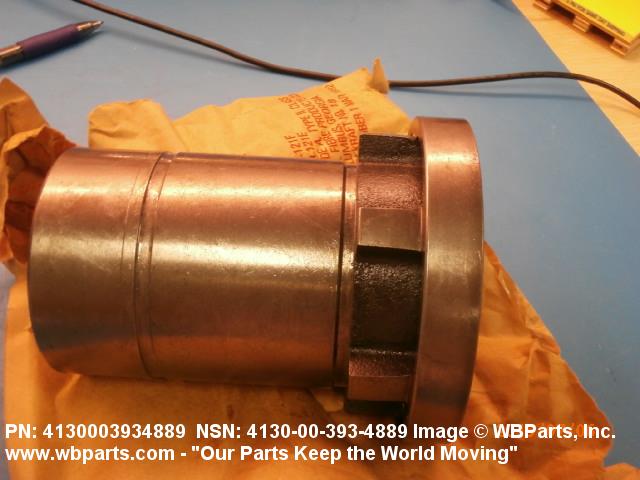

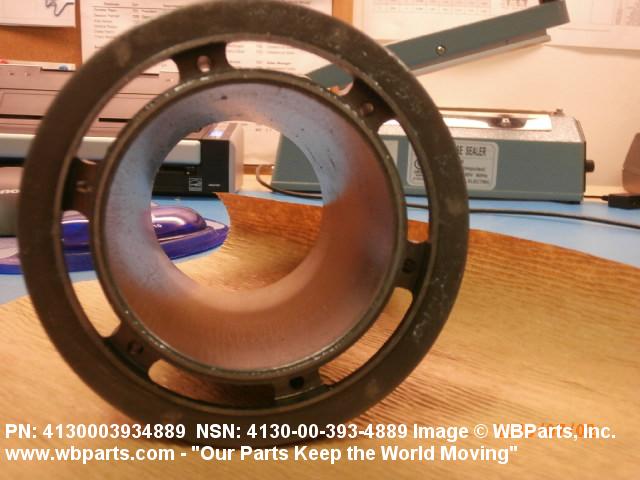

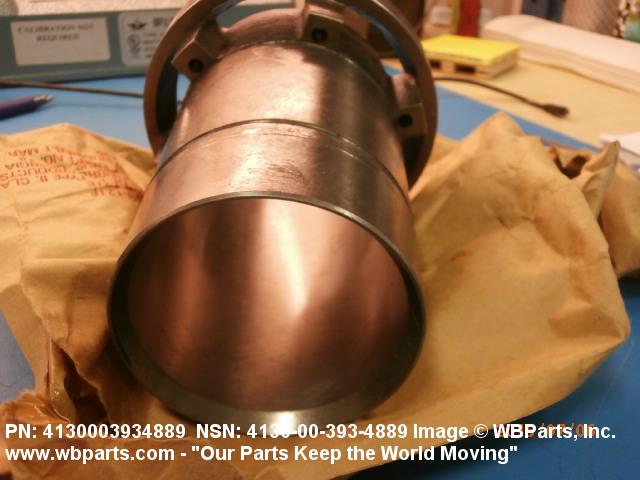

Drawings & Photos | NSN 4130-00-393-4889
Demand History | NSN 4130-00-393-4889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5H40-1003 | 2024-02-07 | 44 | DIBBS |
| 5H40-1003 | 2023-11-05 | 47 | DIBBS |
| 5H40-1003 | 2021-01-07 | 52 | DIBBS |
| 5H40-1003 | 2019-10-23 | 68 | DIBBS |
| 5H40-1003 | 2019-01-31 | 12 | DIBBS |
| 4130-00-393-4889 | 2017-04-10 | 110 | DIBBS |
| 4130-00-393-4889 | 2017-03-30 | 110 | DIBBS |
| 4130-00-393-4889 | 2015-06-23 | 6 | United States |
| 5H401003 | 2015-06-23 | 6 | United States |
| 4130-00-393-4889 | 2015-04-03 | 118 | DIBBS |
| 4130-00-393-4889 | 2015-03-23 | 118 | DIBBS |
| 4130-00-393-4889 | 2014-08-04 | 74 | DIBBS |
| 4130-00-393-4889 | 2014-07-23 | 74 | DIBBS |
| 4130-00-393-4889 | 2012-08-07 | 46 | DIBBS |
| 4130-00-393-4889 | 2009-03-13 | 43 | DIBBS |
Cross Reference | NSN 4130-00-393-4889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 514301013912 | S3934 | KOCKUMS AB |
| 52131-5901-998671ALT2PC24 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 52MAD1282N18PC101SLEEVE | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 52MAD1282N18PC101SLV | 14959 | CRANE CO DIV VALVE DIV |
| 571-3801-1444715REVAPC101SLEEVE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5H40-1003 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| LNR-0615 | 31042 | C M P CORPORATION |
| LNR-9615 | 31042 | C M P CORPORATION |
| N8640-4ALT2PC24 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4130-00-393-4889
4130-00-393-4891, 4130-00-393-4892, 4130-00-393-4894, 4130-00-393-4900, 4130-00-393-4901
Technical Data | NSN 4130-00-393-4889
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, QQ-I-652-CANCELED |
| METALLIC HARDNESS RATING | 170.0 MINIMUM BRINELL STANDARD AND 210.0 MAXIMUM BRINELL STANDARD |
| DESIGN TYPE | DRY |

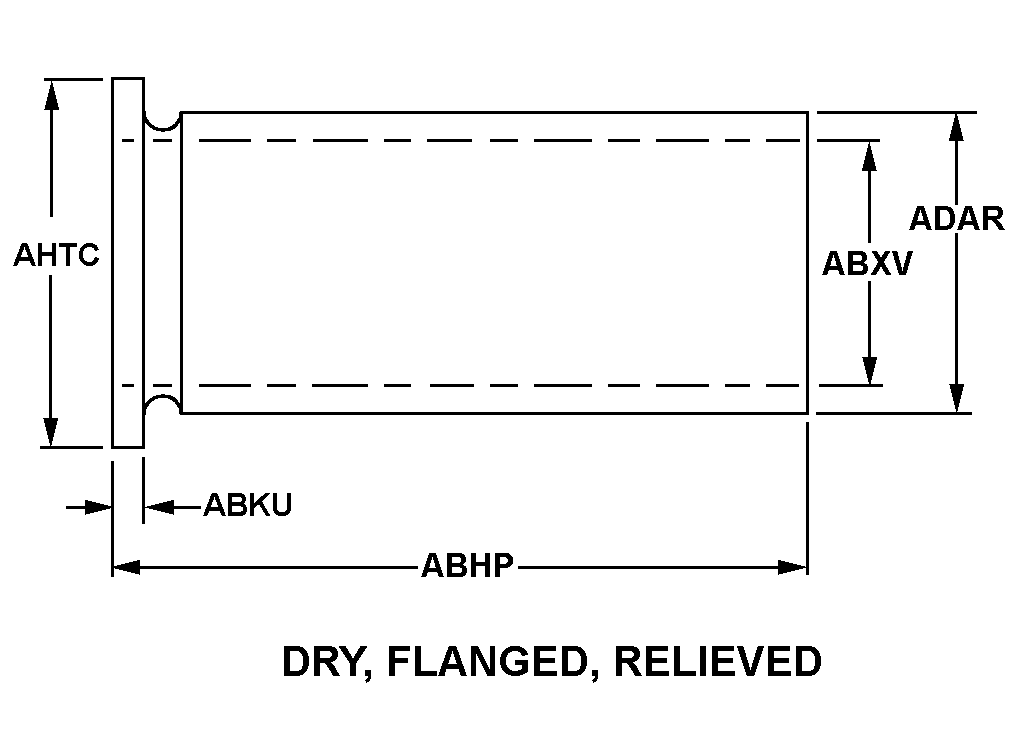

| STYLE DESIGNATOR | A5 DRY, FLANGED, RELIEVED |

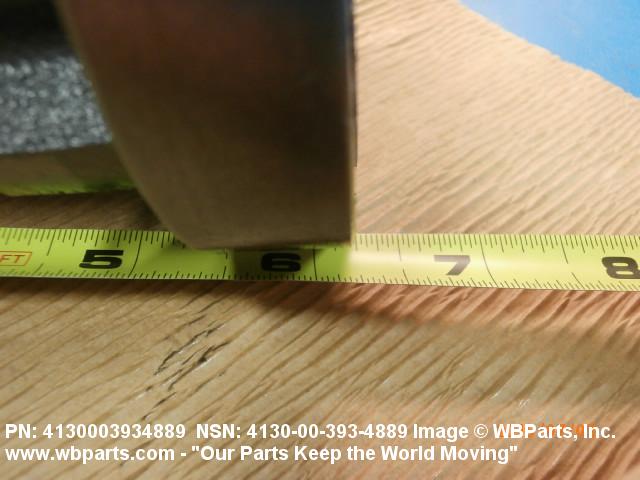

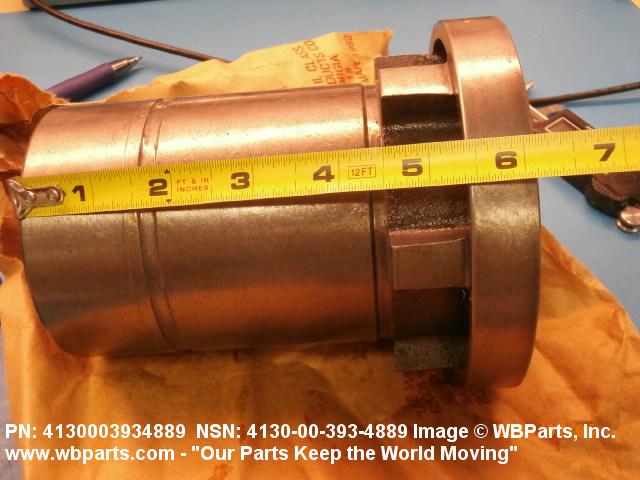

| OVERALL LENGTH | 6.141 INCHES NOMINAL |

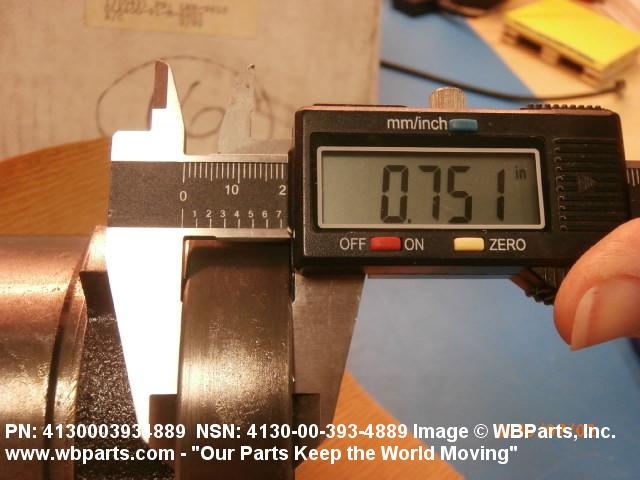

| FLANGE THICKNESS | 0.750 INCHES MINIMUM AND 0.751 INCHES MAXIMUM |

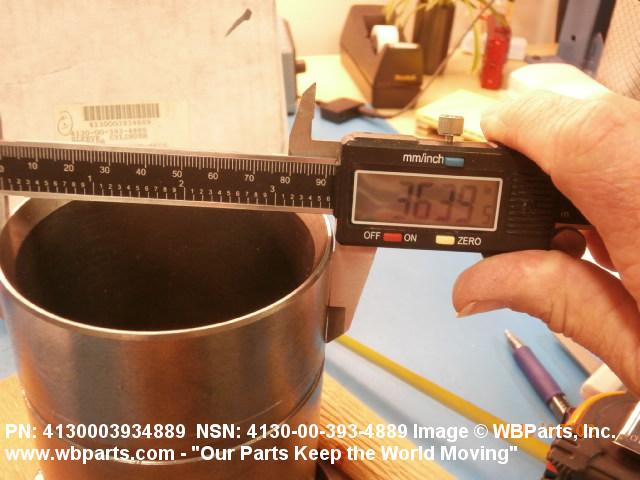

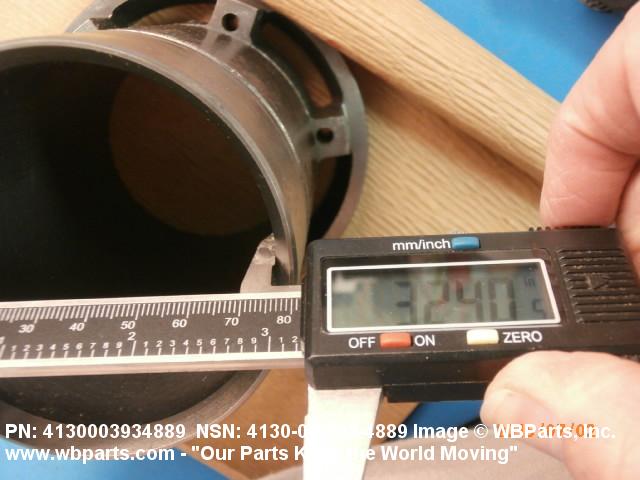

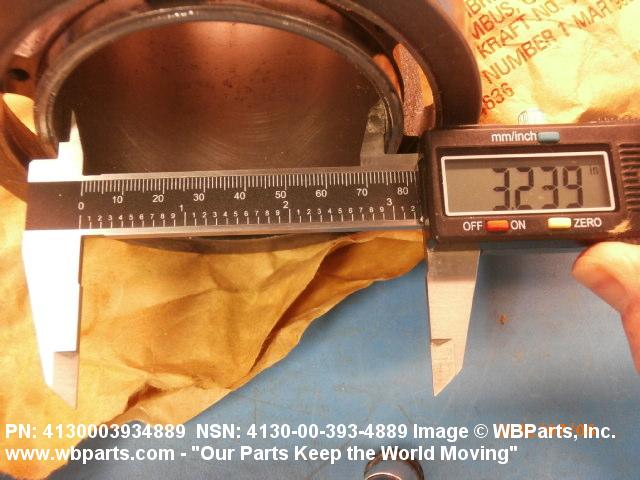

| BORE DIAMETER | 3.250 INCHES MINIMUM AND 3.2515 INCHES MAXIMUM |

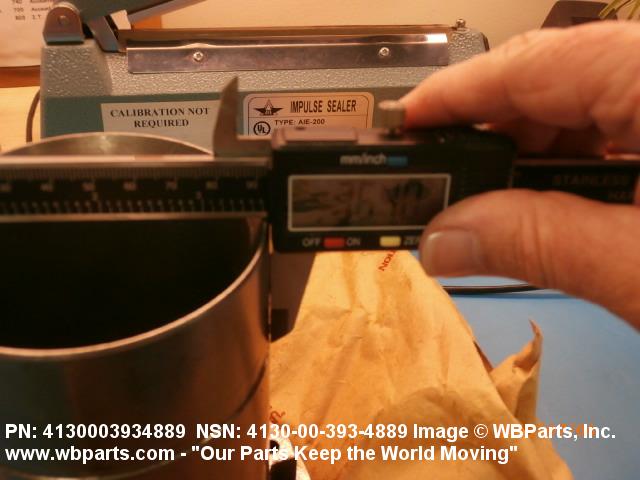

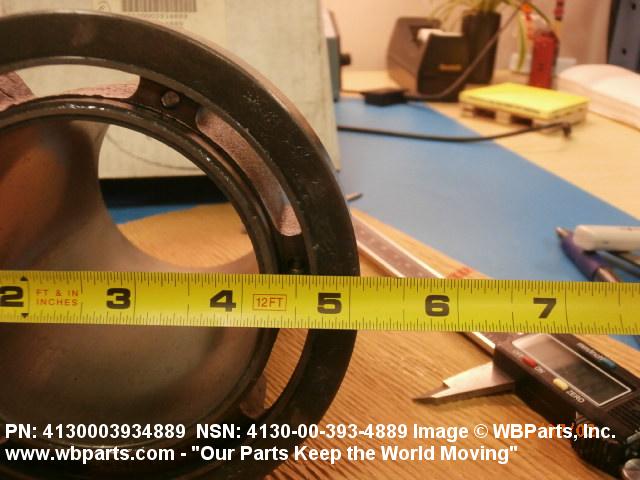

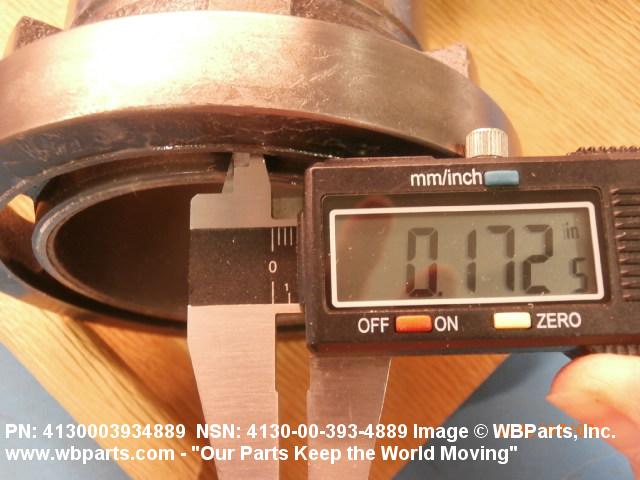

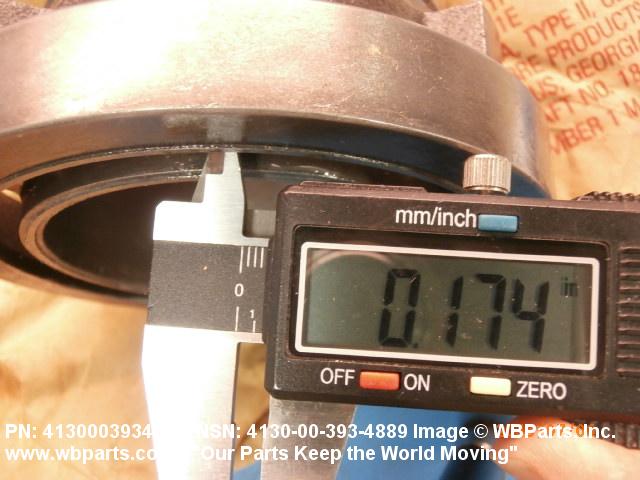

| BODY OUTSIDE DIAMETER | 3.906 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 5.1235 INCHES MINIMUM AND 5.1245 INCHES MAXIMUM |
| VALVE RECESS | INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | INCLUDED |
| BOTTOM CHAMFER LENGTH | 0.500 INCHES NOMINAL |
| BOTTOM CHAMFER ANGLE IN DEG | 30.0 |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | INCLUDED |
| ROW QUANTITY | 1 |
| HOLE QUANTITY PER ROW | 6 |
| HOLE DIAMETER | 0.171 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| DISTANCE FROM TOP TO CENTER OF FIRST ROW | 0.156 INCHES NOMINAL |
| HOLE CENTER TO CENTER DISTANCE BETWEEN ROWS | ANY ACCEPTABLE |
| SPECIAL FEATURES | SIX HOLES AROUND TOP OF FLANGE |
Restrictions/Controls & Freight Information | NSN 4130-00-393-4889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
