Product Details | SPHERICAL PLAIN BEARING
3120-00-803-5312 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 114P70303, 114P7030-3, 3120-00-803-5312, 00-803-5312, 3120008035312, 008035312
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-803-5312 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

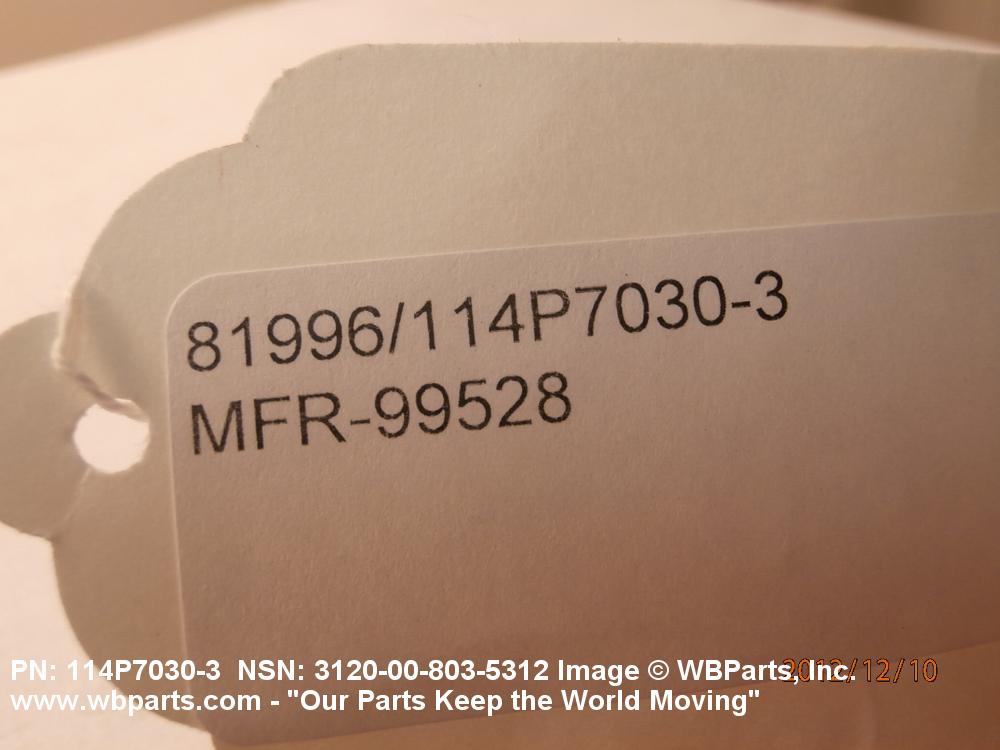

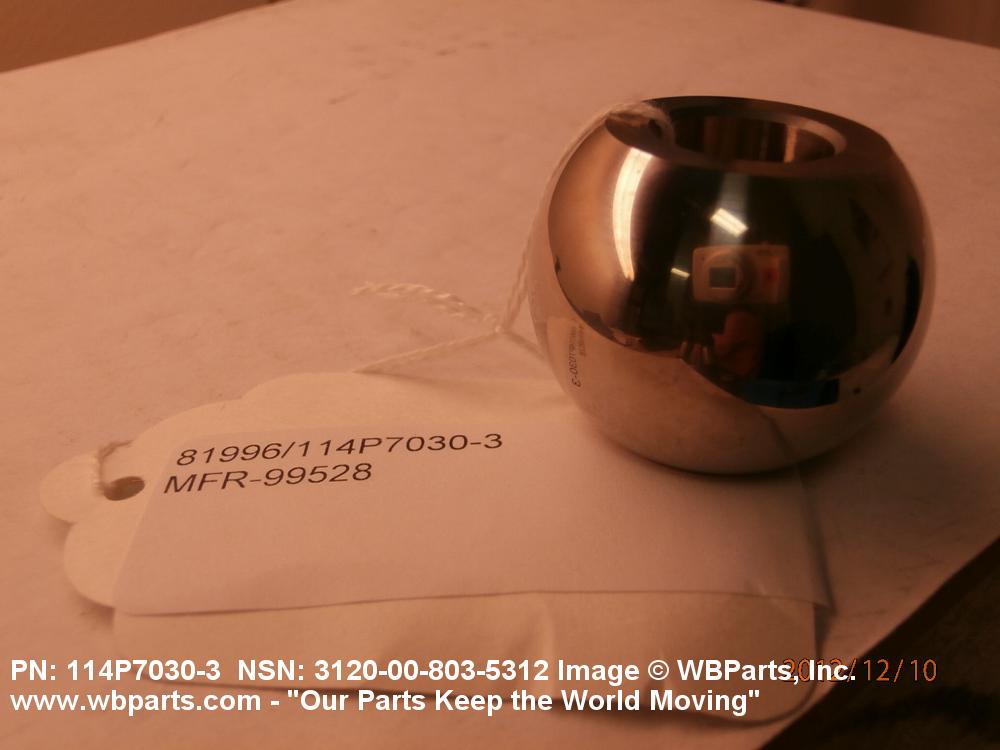

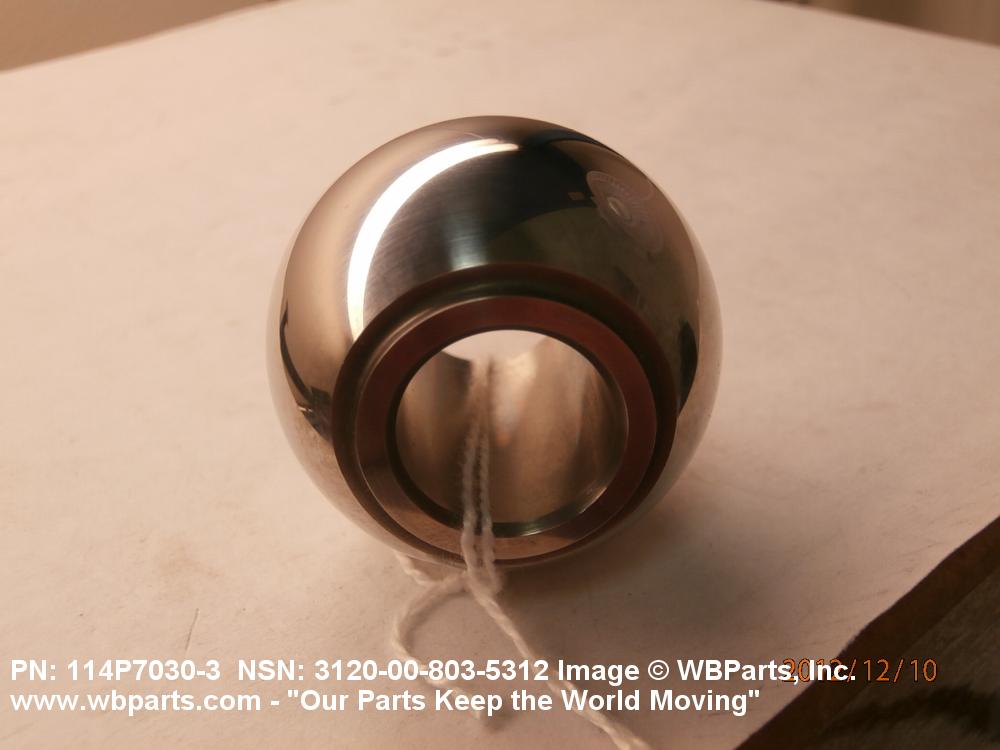

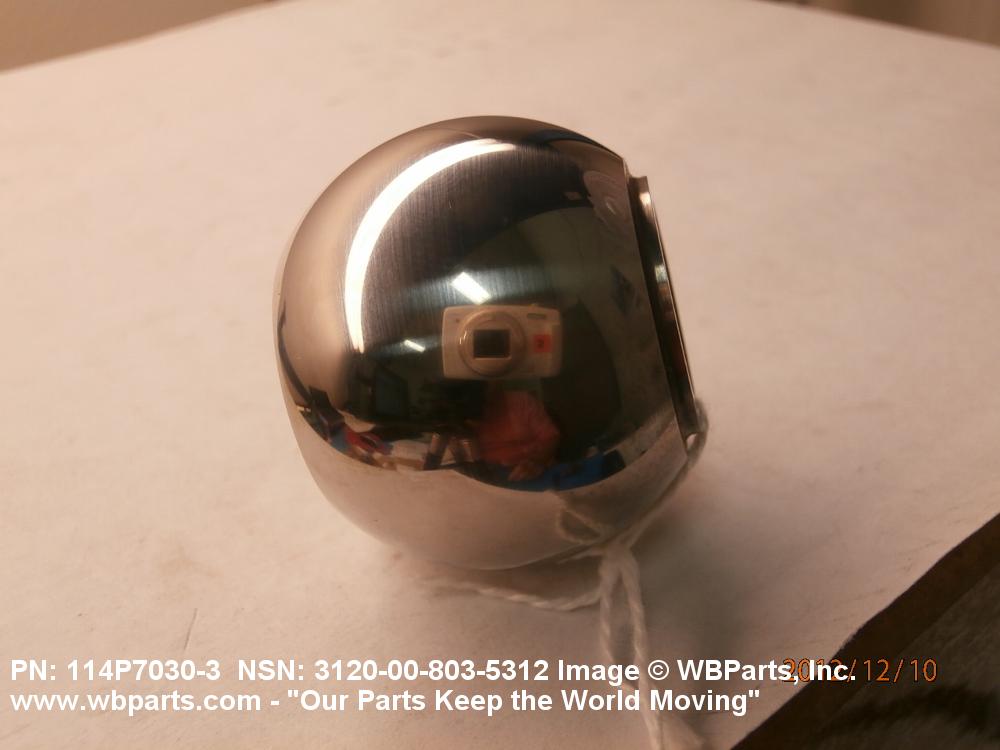

Drawings & Photos | NSN 3120-00-803-5312
Demand History | NSN 3120-00-803-5312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-803-5312 | 2024-01-17 | 608 | DIBBS |
| 3120-00-803-5312 | 2023-08-22 | 404 | DIBBS |
| 3120-00-803-5312 | 2023-05-22 | 204 | DIBBS |
| 3120-00-803-5312 | 2018-01-23 | 1 | DIBBS-RFPs |
| 3120-00-803-5312 | 2014-07-06 | 215 | DIBBS |
| 3120-00-803-5312 | 2013-03-28 | 852 | DIBBS |
| 114P70303 | 2012-12-05 | 8 | Seychelles |
| 3120-00-803-5312 | 2012-09-13 | 4 | Seychelles |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-00-803-5312
Related Products | NSN 3120-00-803-5312
3120-00-803-5484, 3120-00-803-5485, 3120-00-803-5495, 3120-00-803-6154, 3120-00-803-6162
Technical Data | NSN 3120-00-803-5312
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 15C SOLID |
| OVERALL LENGTH | 1.1700 INCHES MINIMUM AND 1.1900 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.6250 INCHES MINIMUM AND 0.6260 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 1.4995 INCHES MINIMUM AND 1.5005 INCHES MAXIMUM |
| CORNER SHAPE | CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114P7030-3 |
