3120-01-289-6651 - SPHERICAL PLAIN BEARING, 10333609 , 174485, 01-289-6651

Product Details | SPHERICAL PLAIN BEARING

3120-01-289-6651 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: 10333609 , 174485, 3120-01-289-6651, 01-289-6651, 3120012896651, 012896651

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	28 NOV 1988	01-289-6651	13204 ( BEARING, PLAIN, SPHERICAL )

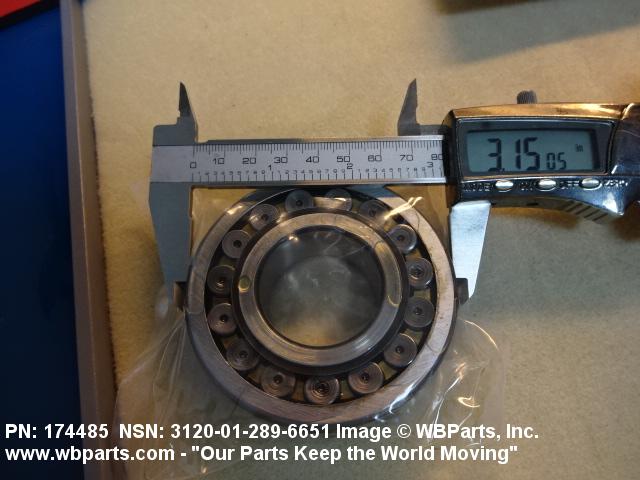

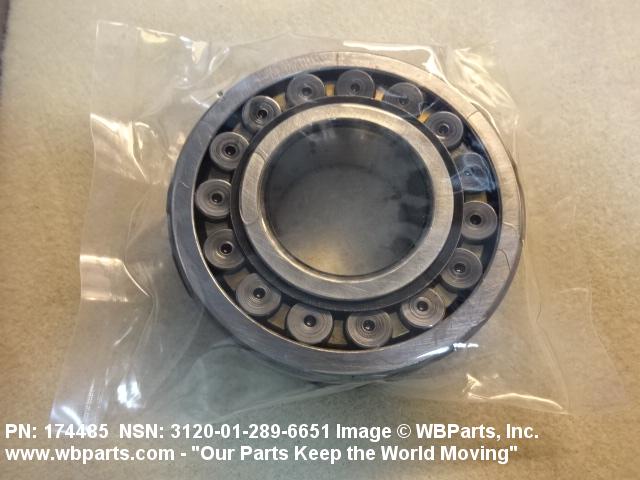

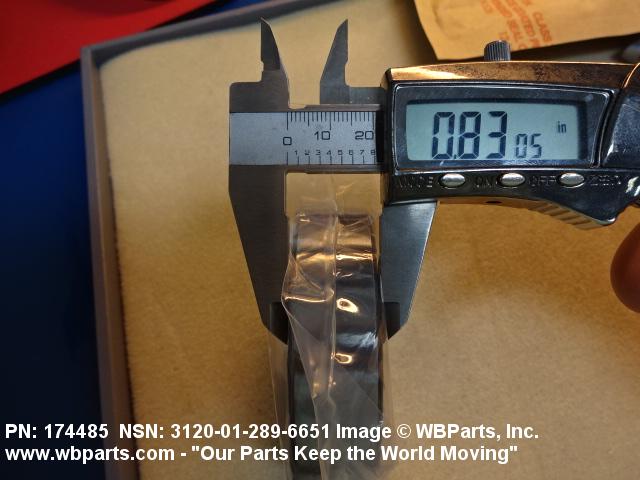

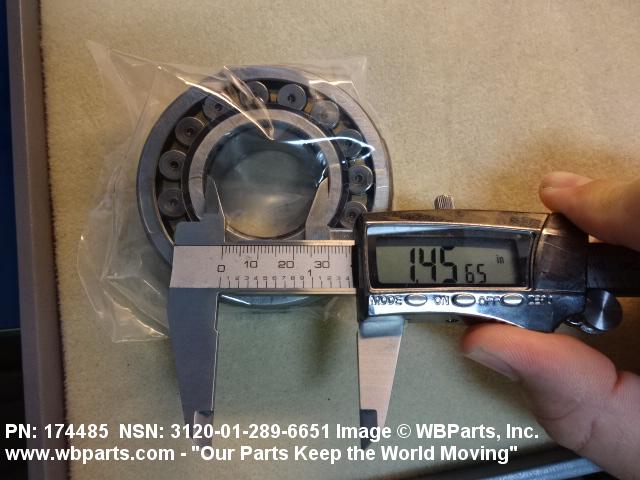

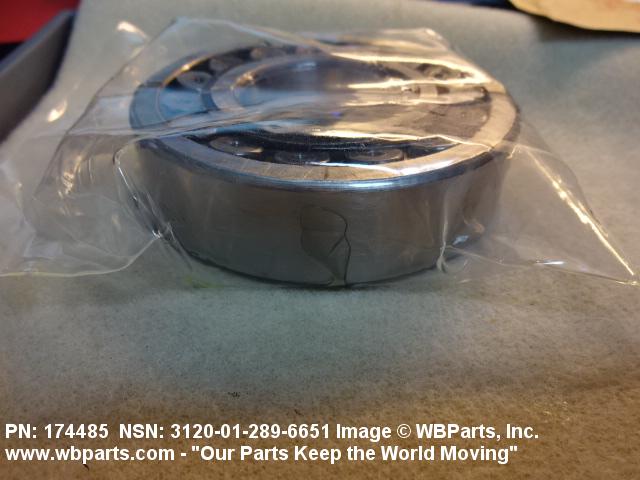

Drawings & Photos | NSN 3120-01-289-6651

Part Number	Request Date	QTY	Origin
3120-01-289-6651	2017-08-10	25	Canada
3120-01-289-6651	2014-10-10	1	Germany
3120-01-289-6651	2009-10-22	50	Turkey
3120-01-289-6651	2009-06-12	50	Turkey
3120-01-289-6651	2009-06-09	5	Turkey
3120-01-289-6651	2009-06-08	5	Turkey
3120-01-289-6651	2009-06-04	50	Turkey

Cross Reference | NSN 3120-01-289-6651

Part Number	Cage Code	Manufacturer
174485	62983	EATON AEROSPACE LLC
174485	C2178	EATON GERMANY GMBH
174485	D0083	VICKERS SYSTEMS ZWEIGNIEDERLASSUNG DER AEROQUIP-VICKERS INTERNATIONAL G

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3120-01-289-6651

Compare

Related Products | NSN 3120-01-289-6651

3120-01-289-6652, 3120-01-289-6653, 3120-01-289-6655, 3120-01-289-6659, 3120-01-289-6660

Restrictions/Controls & Freight Information | NSN 3120-01-289-6651

Restictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:	U	Precious metal type is unknown

Category	Code	Description
No Freight Information
