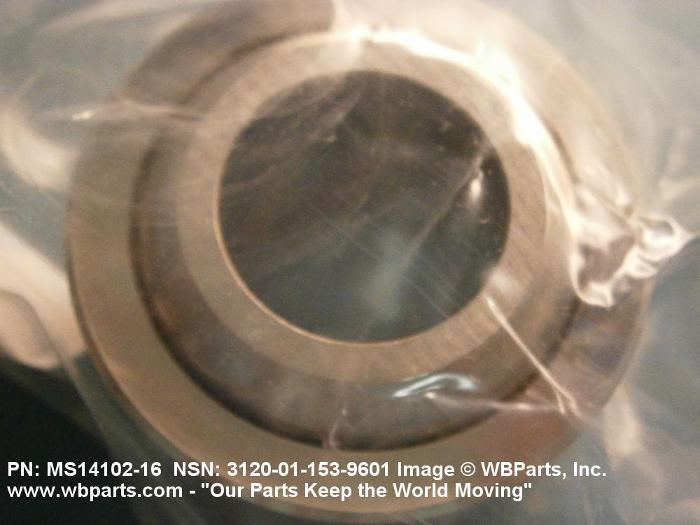

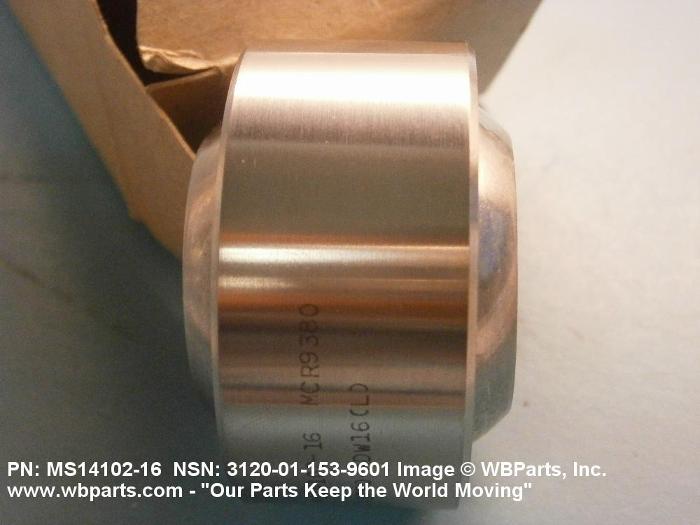

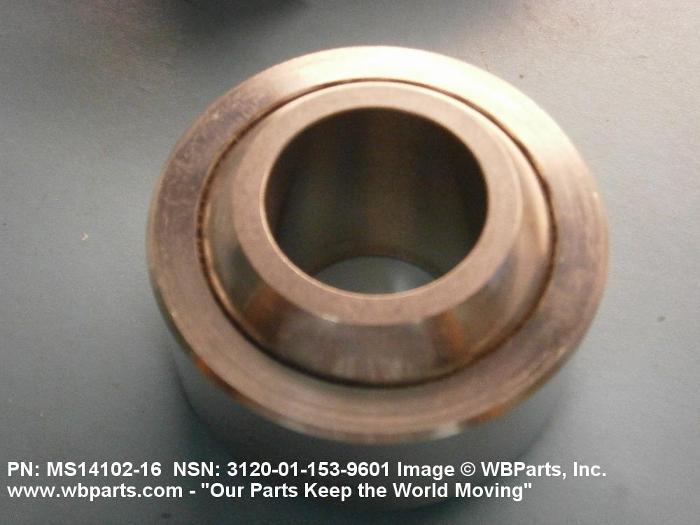

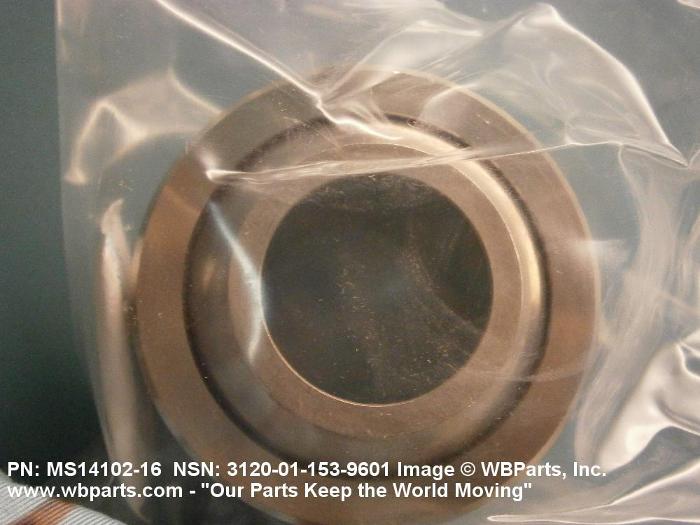

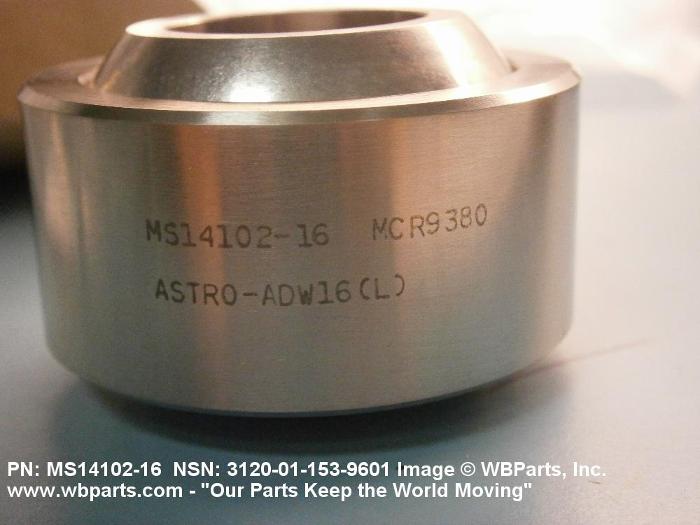

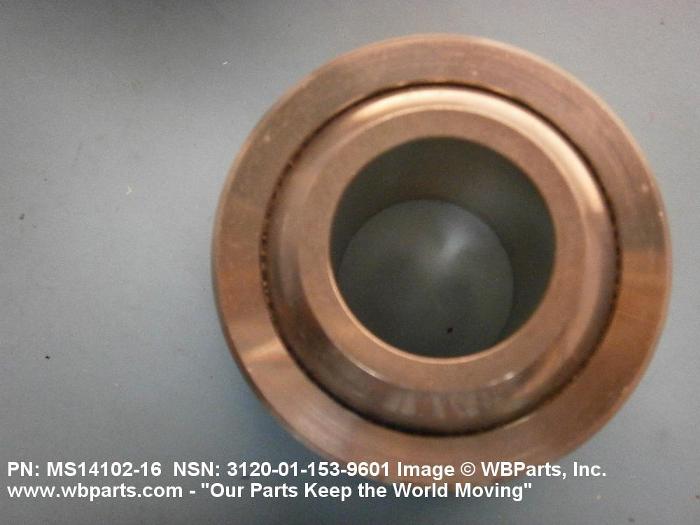

Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-153-9601 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS1410216, MS14102-16, MS2123116, MS21231-16, AS14102, AS81820, SWKR16401, SWKR-16-401, WHT16, WHT16L1, KR16CWB, KR16-CWB, KWDB1636, KWDB16-36, 0382416, 03-824-16, 04A07316, 04A073-16, 3120-01-153-9601, 01-153-9601, 3120011539601, 011539601
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 MAY 1983 | 01-153-9601 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-01-153-9601
Demand History | NSN 3120-01-153-9601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-153-9601 | 2022-07-28 | 30 | US |
| MS1410216 | 2021-03-24 | 1 | KR |
| 3120-01-153-9601 | 2020-02-26 | 700 | United States |
| 3120-01-153-9601 | 2020-01-24 | 700 | United States |
| 3120-01-153-9601 | 2020-01-22 | 700 | United States |
| MS1410216 | 2019-06-05 | 1 | US |
| MS1410216 | 2018-12-14 | 3 | United States |
| MS1410216 | 2018-11-16 | 16 | US |
| MS1410216 | 2018-09-05 | 6 | United States |
| 3120-01-153-9601 | 2017-07-11 | 4 | US |
| 3120-01-153-9601 | 2016-02-12 | 2 | US |
| 3120-01-153-9601 | 2015-10-22 | 462 | DIBBS |
| 3120-01-153-9601 | 2015-10-14 | 462 | DIBBS |
| MS1410216 | 2015-07-24 | 1 | US |
| MS1410216 | 2015-05-21 | 1 | United States |
| 3120-01-153-9601 | 2015-05-15 | 376 | DIBBS |
| 3120-01-153-9601 | 2015-04-13 | 52 | DIBBS |
| 3120-01-153-9601 | 2014-09-25 | 2 | US |
| 3120-01-153-9601 | 2013-07-02 | 2 | US |
| 04A07316 | 2012-12-10 | 16 | United States |
| 3120-01-153-9601 | 2012-05-18 | 2 | United States |
| 3120-01-153-9601 | 2012-05-18 | 4 | United States |
| 3120-01-153-9601 | 2012-05-17 | 4 | United States |
| 3120-01-153-9601 | 2011-08-29 | 24 | US |
| MS1410216 | 2011-08-29 | 4 | US |
| 3120-01-153-9601 | 2009-12-16 | 3 | United States |
| AS14102 | 2008-04-22 | 5000 | US |
Cross Reference | NSN 3120-01-153-9601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03-824-16 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A073-16 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| AS14102 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81820 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KR16-CWB | 50632 | KAMATICS CORPORATION |
| KWDB16-36 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| MS14102-16 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14102-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21231-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SWKR-16-401 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
| WHT16 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| WHT16(L1) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
