Product Details | BALL BEARING UNIT
3130-00-227-4052 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: 15, 901026, ST39, 3130-00-227-4052, 00-227-4052, 3130002274052, 002274052
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-4052 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-227-4052
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3130-00-227-4052
Related Products | NSN 3130-00-227-4052
3130-00-227-4053, 3130-00-227-4054, 3130-00-227-4055, 3130-00-227-4056, 3130-00-227-4063
Technical Data | NSN 3130-00-227-4052
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 2.4375 INCHES NOMINAL |
| MATERIAL | IRON CAST HOUSING STEEL AND WOOL SEAL |

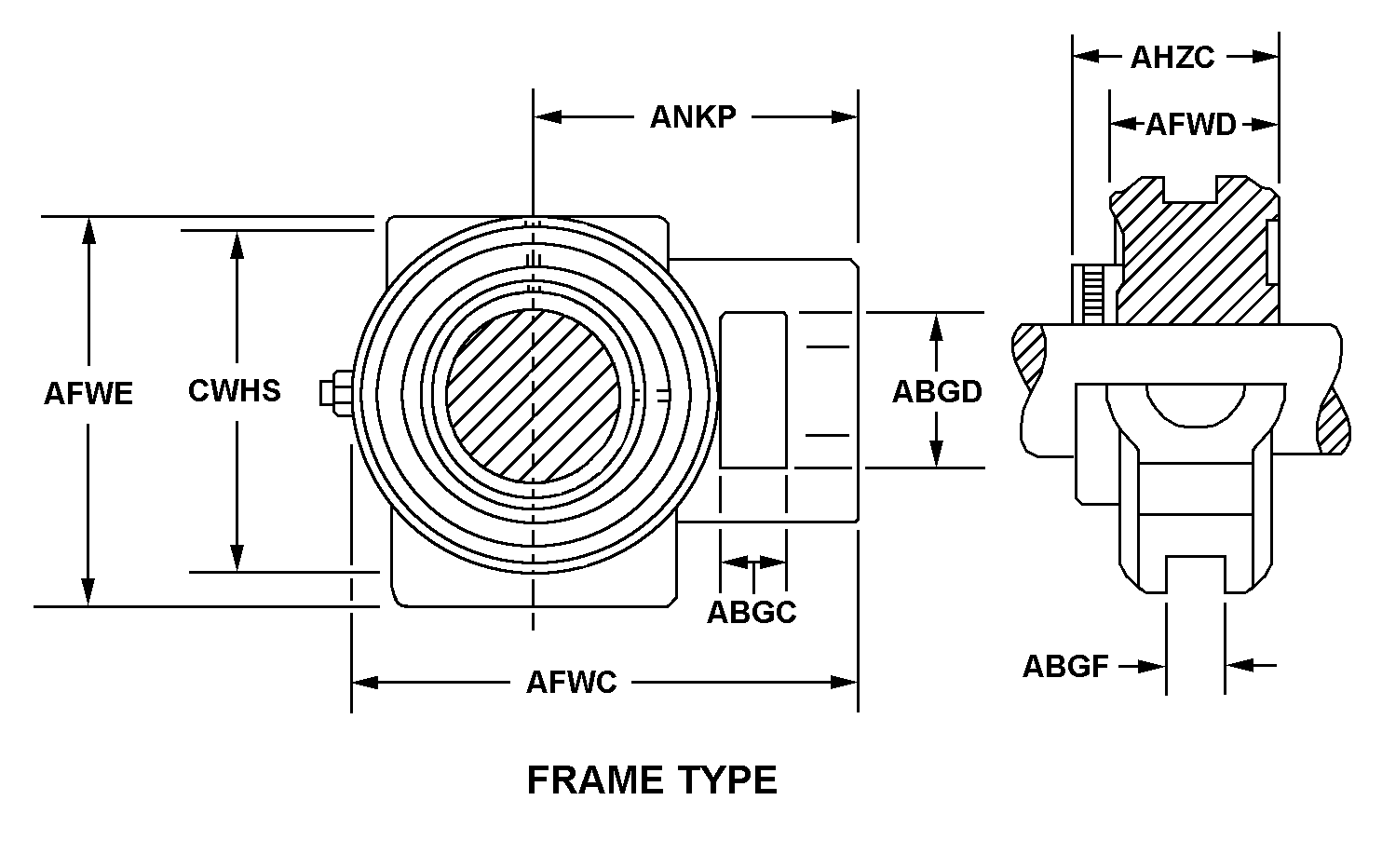

| STYLE DESIGNATOR | A65 FRAME TYPE |
| GROOVE WIDTH | 1.0625 INCHES NOMINAL |
| HOUSING HEIGHT | 7.6250 INCHES NOMINAL |
| HOUSING LENGTH | 2.5625 INCHES NOMINAL |
| HOUSING WIDTH | 5.7500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 2.5625 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 4.6875 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION FITTING TYPE | HYDRAULIC |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 30.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | DIRECT |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-227-4052
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
