Product Details | BALL BEARING UNIT
3130-00-830-9756 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: AK2124, C0B045, 772, 204011443001, 204-011-443-001, 2040114431, 204-011-443-1, 204011443117, 204-011-443-1-17, 204011443117772, 204-011-443-1-17772, 3130-00-830-9756, 00-830-9756, 3130008309756, 008309756
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-830-9756 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-830-9756
Demand History | NSN 3130-00-830-9756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-00-830-9756 | 2024-04-11 | 99 | DIBBS |
| 204-011-443-001 | 2023-05-31 | 10 | Philippines |
| 3130-00-830-9756 | 2023-05-23 | 99 | DIBBS |
| 3130-00-830-9756 | 2022-07-06 | 95 | DIBBS |
| 3130-00-830-9756 | 2022-05-30 | 150 | DIBBS |
| 3130-00-830-9756 | 2022-04-11 | 150 | DIBBS |
| 3130-00-830-9756 | 2021-12-13 | 150 | DIBBS |
| 3130-00-830-9756 | 2021-12-07 | 21 | DIBBS |
| 3130-00-830-9756 | 2021-10-26 | 14 | DIBBS |
| 3130-00-830-9756 | 2021-07-08 | 100 | DIBBS |
| 3130-00-830-9756 | 2021-02-22 | 32 | DIBBS |
| 3130-00-830-9756 | 2020-10-30 | 1 | DIBBS-RFPs |
| 3130-00-830-9756 | 2020-10-03 | 6 | AE |
| 3130-00-830-9756 | 2018-06-07 | 6 | Georgia |
| 3130-00-830-9756 | 2016-01-11 | 1 | DIBBS-RFPs |
| 3130-00-830-9756 | 2015-10-06 | 38 | DIBBS |
| 3130-00-830-9756 | 2015-08-30 | 22 | DIBBS |
| 2040114431 | 2013-02-07 | 2 | United States |
| 204011443001 | 2012-10-14 | 3 | MY |
| 204011443001 | 2009-09-22 | 10 | United States |
| 3130-00-830-9756 | 2009-08-25 | 351 | DIBBS |
| 772 | 2009-02-09 | 112 | US |
| 3130-00-830-9756 | 2009-02-05 | 10 | Philippines |
| 204011443001 | 2008-12-29 | 5 | us |
| 3130-00-830-9756 | 2008-12-29 | 45 | DIBBS |
| 3130-00-830-9756 | 2008-12-23 | 44 | DIBBS |
| 3130-00-830-9756 | 2008-12-16 | 55 | DIBBS |
| 3130-00-830-9756 | 2008-10-03 | 99 | DIBBS |
| 3130-00-830-9756 | 2008-09-30 | 99 | DIBBS |
| 3130-00-830-9756 | 2008-09-10 | 36 | DIBBS |
| 3130-00-830-9756 | 2008-08-12 | 19 | DIBBS |
| 2040114431 | 2007-08-16 | 10 | Saudi Arabia |
| 3130-00-830-9756 | 2007-02-23 | 79 | DIBBS |
| 204011443001 | 2006-07-05 | 2 | US |
| 2040114431 | 2006-07-05 | 2 | US |
| 204011443001 | 2006-07-05 | 2 | US |
| 2040114431 | 2006-07-05 | 2 | US |
Cross Reference | NSN 3130-00-830-9756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-011-443-001 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-011-443-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-011-443-1 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| 204-011-443-1-17 | 17772 | AERO ENGINEERING & MANUFACTURING COMPANY OF CALIFORNIA |
| 204-011-443-1-17772 | 17772 | AERO ENGINEERING & MANUFACTURING COMPANY OF CALIFORNIA |
| 772 | 17772 | AERO ENGINEERING & MANUFACTURING COMPANY OF CALIFORNIA |
| AK2124 | 16410 | A AND K MFG CO INC |
| C0B045 | 97606 | COBAK TOOL & MANUFACTURING CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3130-00-830-9756
Related Products | NSN 3130-00-830-9756
3130-00-832-6017, 3130-00-832-7877, 3130-00-832-9096, 3130-00-832-9800, 3130-00-834-3723
Technical Data | NSN 3130-00-830-9756
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 0.6250 INCHES NOMINAL |

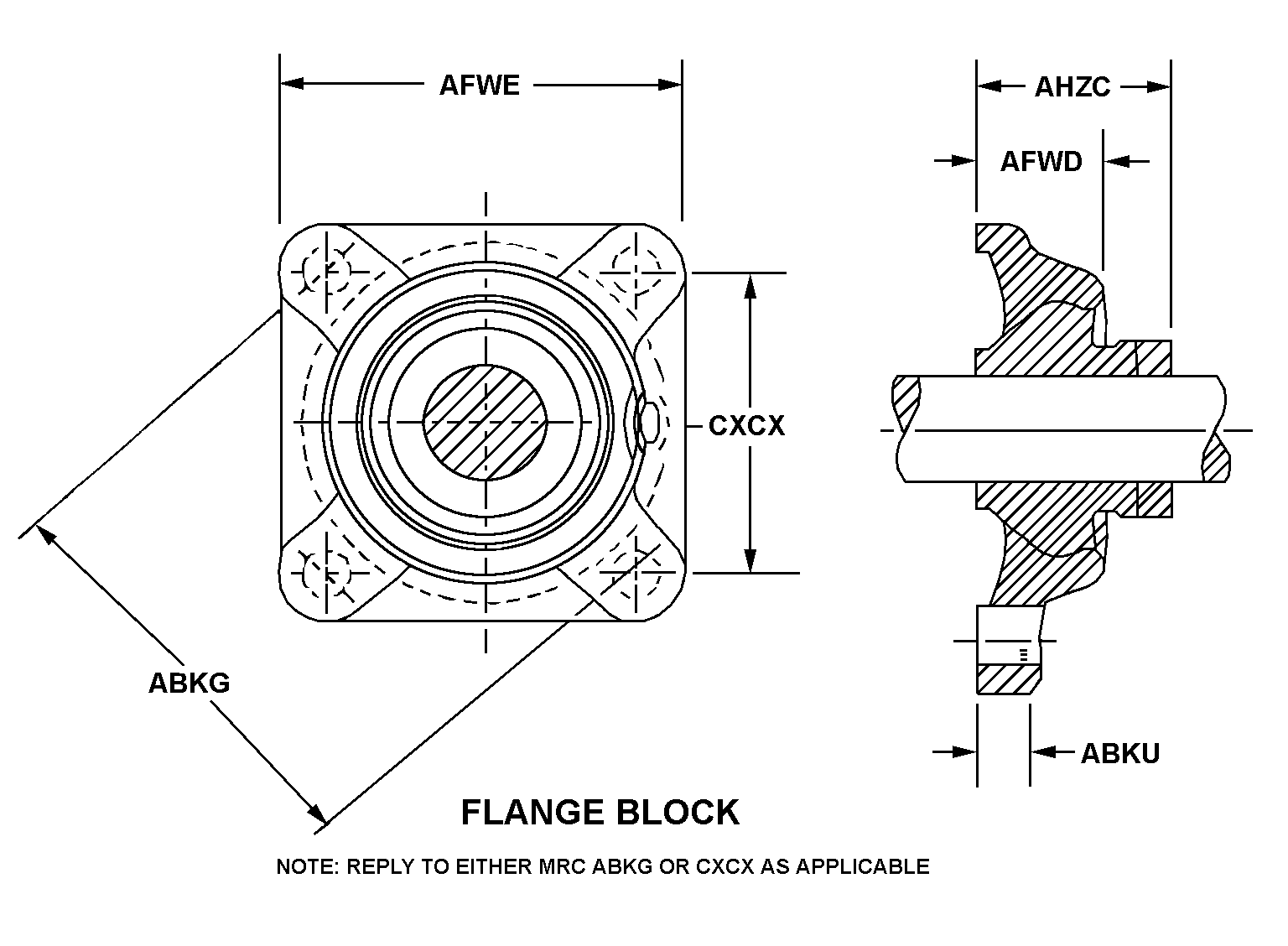

| STYLE DESIGNATOR | A34 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 2.0508 INCHES NOMINAL |
| FLANGE THICKNESS | 0.1120 INCHES NOMINAL |
| HOUSING LENGTH | 0.3230 INCHES NOMINAL |
| HOUSING WIDTH | 0.2000 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 0.4660 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.2120 INCHES MINIMUM AND 0.2180 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| LUBRICATION FITTING TYPE | SELF LUBRICATED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | RIGID |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | STRAIGHT SLEEVE |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-011-443-1 |
Restrictions/Controls & Freight Information | NSN 3130-00-830-9756
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-830-9756
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
