4320-00-484-2708 - ROTARY PUMP, H2102RF21Q1C, H2102R-F21-Q1C, 10221

Product Details | ROTARY PUMP

4320-00-484-2708 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.

Part Alternates: H2102RF21Q1C, H2102R-F21-Q1C, 10221, 102-21, 2102RF21Q1C, 2102R-F21-Q1C, 4320-00-484-2708, 00-484-2708, 4320004842708, 004842708

Pumps and Compressors | Power and Hand Pumps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	28 MAY 1969	00-484-2708	30410 ( PUMP, ROTARY )

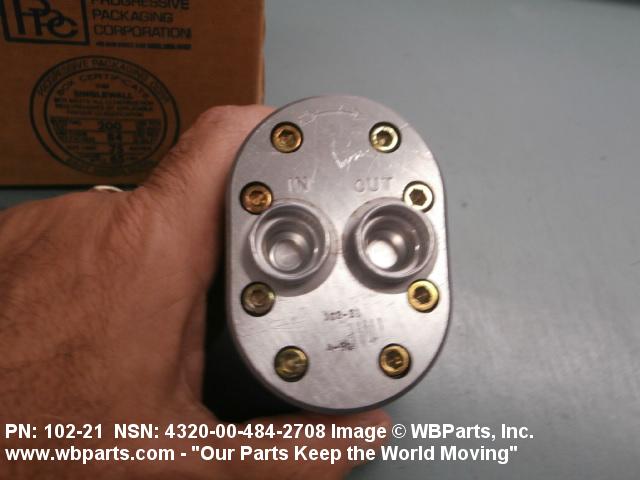

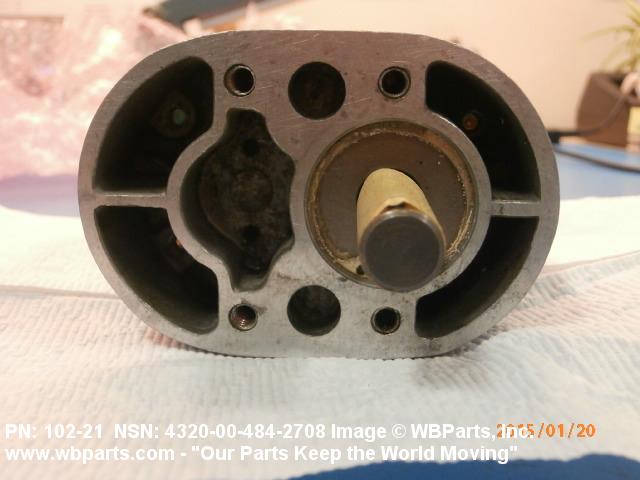

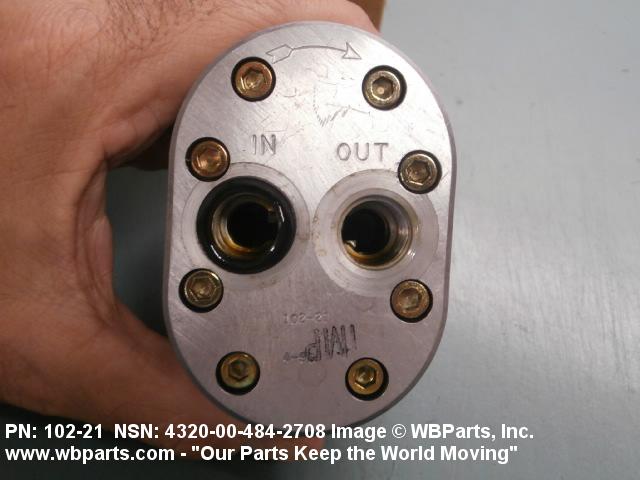

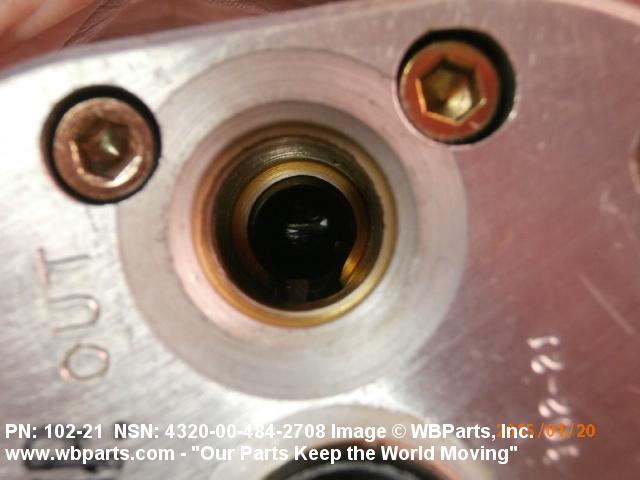

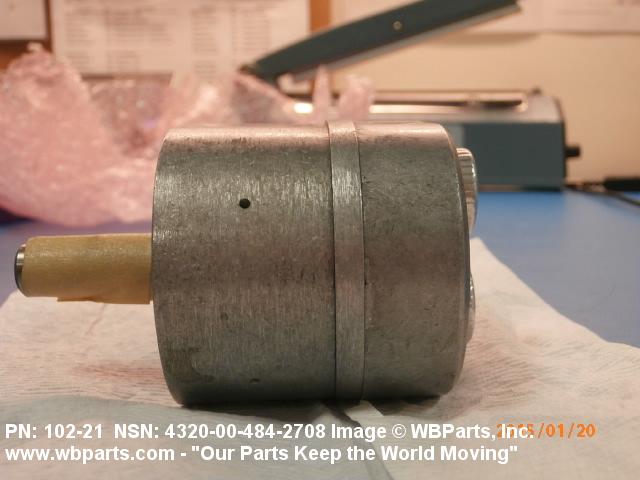

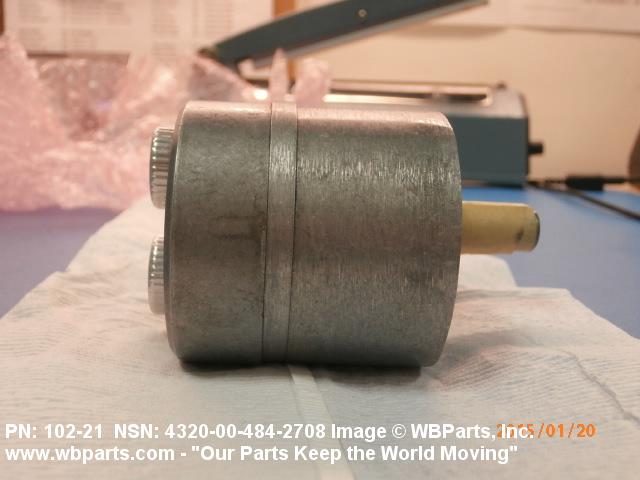

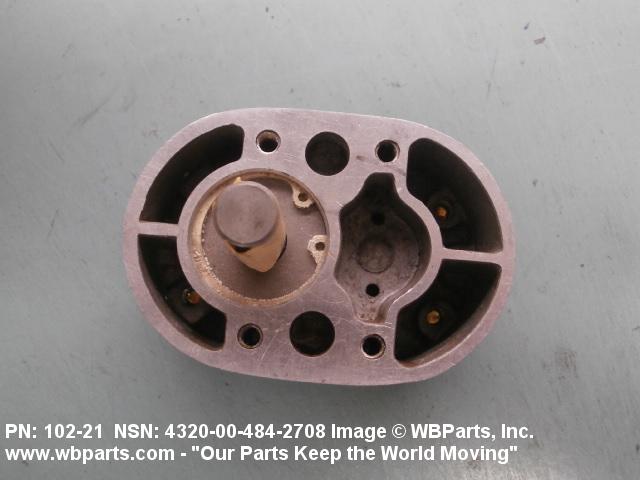

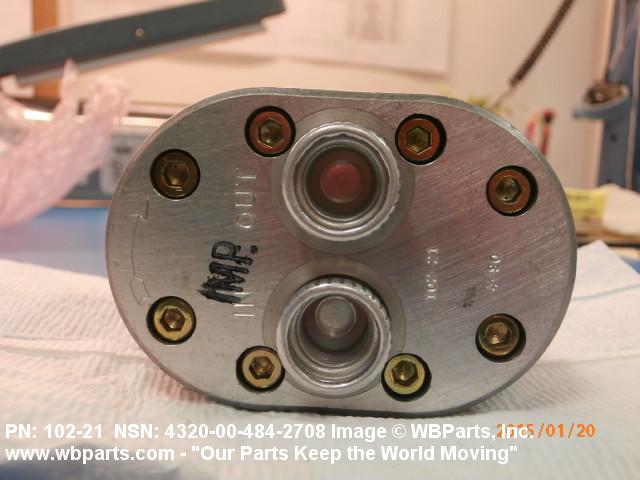

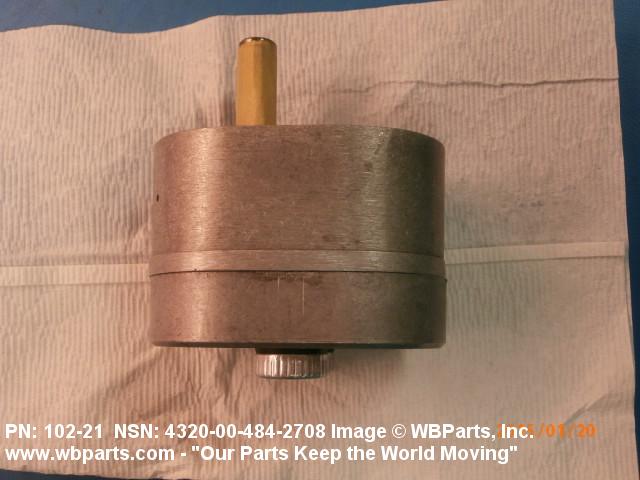

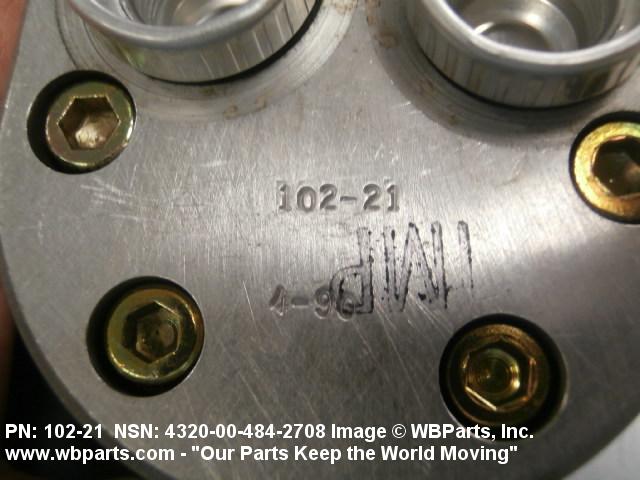

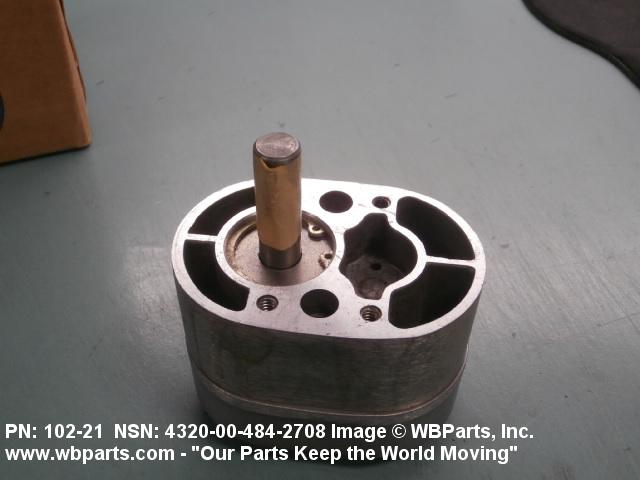

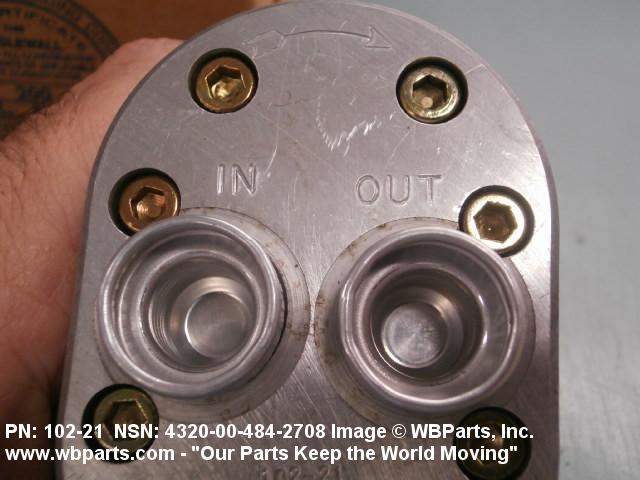

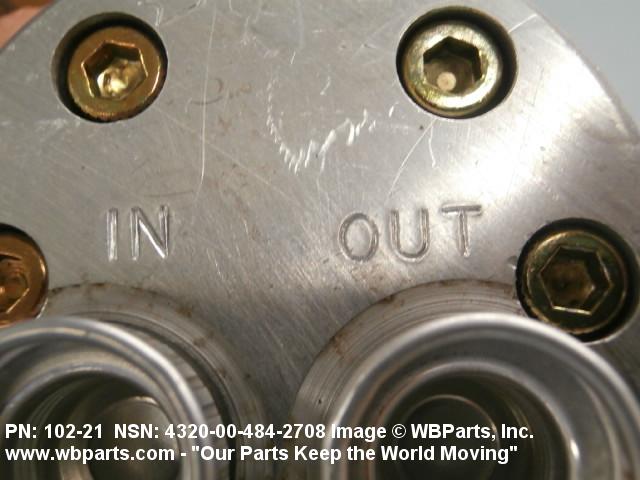

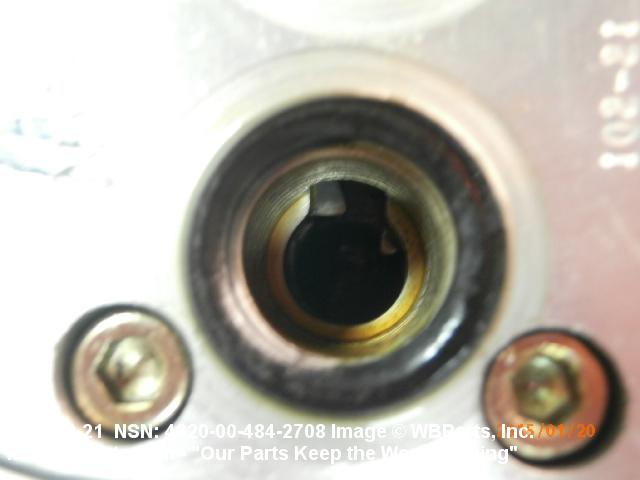

Drawings & Photos | NSN 4320-00-484-2708

Part Number	Request Date	QTY	Origin
4320-00-484-2708	2021-10-25	1	RU
4320-00-484-2708	2021-10-18	1	RU
4320-00-484-2708	2021-10-11	1	RU
4320-00-484-2708	2021-09-22	1	LT
4320-00-484-2708	2021-09-15	1	CY
4320-00-484-2708	2021-09-02	1	CY
10221	2021-09-01	1	LT
4320-00-484-2708	2021-07-26	1	United States
4320-00-484-2708	2014-12-08	1	Germany
4320-00-484-2708	2014-11-28	1	TH
4320-00-484-2708	2014-04-02	1	Germany
H2102RF21Q1C	2014-04-02	1	Germany
4320-00-484-2708	2014-03-03	1	US
10221	2012-09-17	200	United States
10221	2012-03-15	2	ID

Cross Reference | NSN 4320-00-484-2708

Part Number	Cage Code	Manufacturer
102-21	33654	HOWDEN FLUID SYSTEMS
2102R-F21-Q1C	33654	HOWDEN FLUID SYSTEMS
2102R-F21-Q1C	58163	MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS
H2102R-F21-Q1C	58163	MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4320-00-484-2708

Compare

Related Products | NSN 4320-00-484-2708

4320-00-484-2856, 4320-00-484-4049, 4320-00-484-4050, 4320-00-484-4053, 4320-00-484-4054

Technical Data | NSN 4320-00-484-2708

Characteristic	Specifications
MAXIMUM DISCHARGE FLOW RATE	0.500 GALLONS PER MINUTE
DISCHARGE PRESSURE	300.0 POUNDS PER SQUARE INCH GAGE
OPERATING SPEED AT RATED CAPACITY	1800.0 REVOLUTIONS PER MINUTE
MEDIA FOR WHICH DESIGNED	HYDROCARBON FUELS AND OILS
PUMP ROTATION DIRECTION	COUNTERCLOCKWISE
ROTARY PUMP DESIGN	GEAR
OPERATION METHOD	POWERED
INTAKE CONNECTION QUANTITY	1
INTAKE CONNECTION TYPE	THREADED INTERNAL
INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.562-18 UNF
DISCHARGE CONNECTION QUANTITY	1
DISCHARGE CONNECTION TYPE	THREADED INTERNAL
DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR	0.562-18 UNF
DRIVE CONNECTION TYPE	CLOSE COUPLED
DRIVE SHAFT TYPE	WOODRUFF KEYWAY

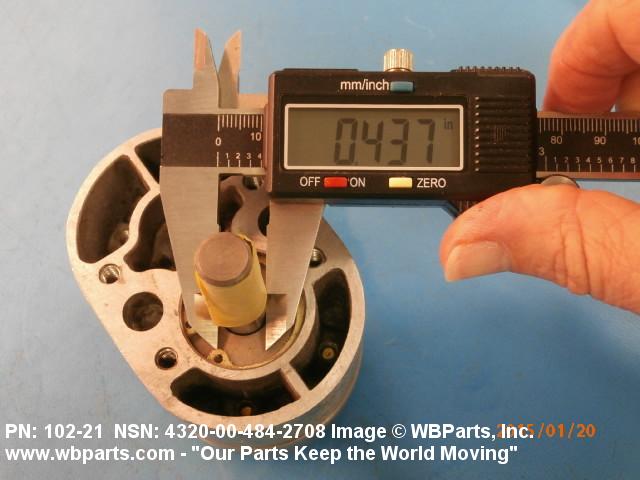

DRIVE SHAFT END DIAMETER	0.437 INCHES NOMINAL
DRIVE SHAFT LENGTH	1.281 INCHES NOMINAL
MOUNTING TYPE	BASE
MANUFACTURERS CODE	58163
DESIGN CONTROL REFERENCE	H2102R-F21-Q1C

Restrictions/Controls & Freight Information | NSN 4320-00-484-2708

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	128000	PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	594	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4320-00-484-2708

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	KU	TG:NON-AUTOMATIC AVIONICS TEST EQUIPMENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
