Product Details | ROTARY PUMP
4320-00-734-0680 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: H2104RF21Q1C, H2104R-F21-Q1C, 10532, 105-32, 2104RF21Q1C, 2104R-F21-Q1C, 2105RF21Q1C, 2105R-F21-Q1C, 4320-00-734-0680, 00-734-0680, 4320007340680, 007340680
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-734-0680 | 30410 ( PUMP, ROTARY ) |

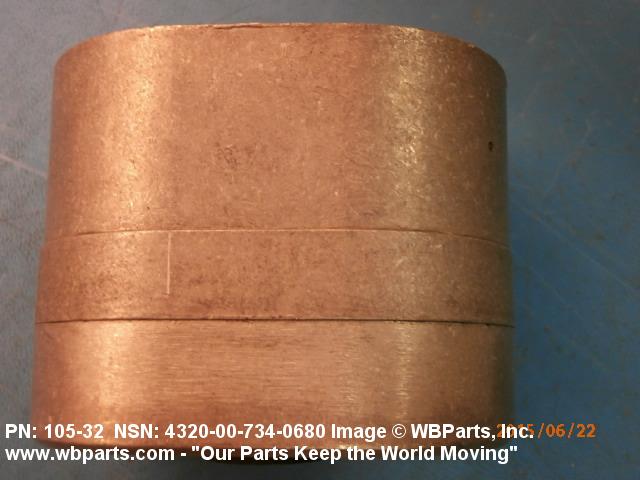

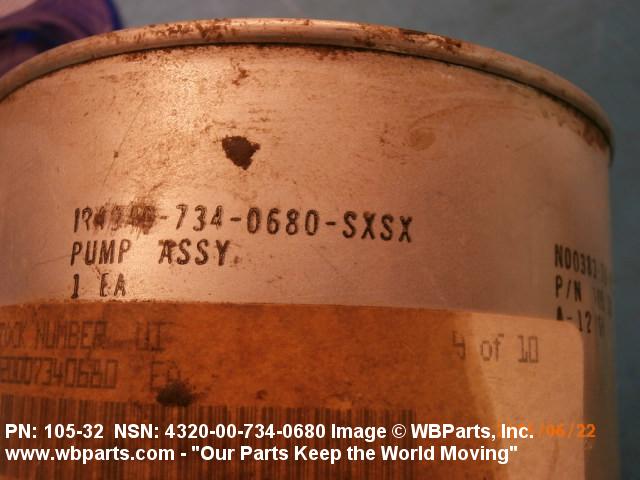

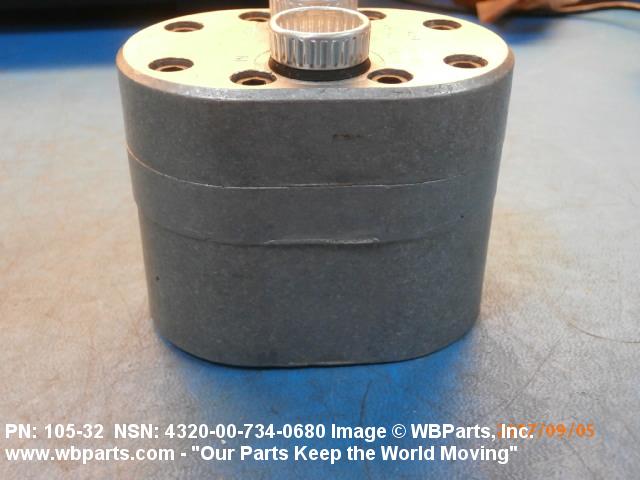

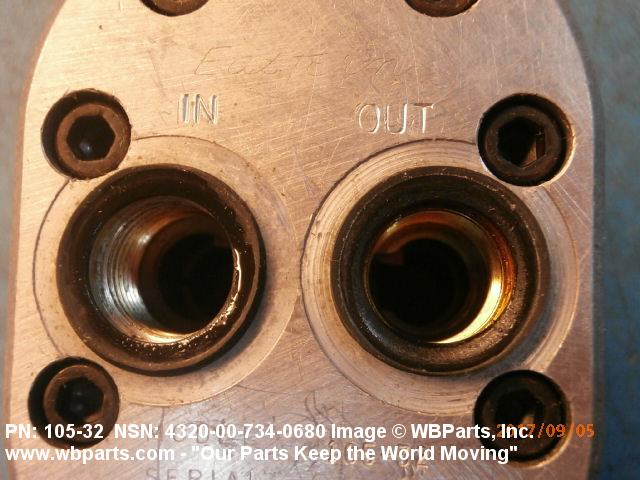

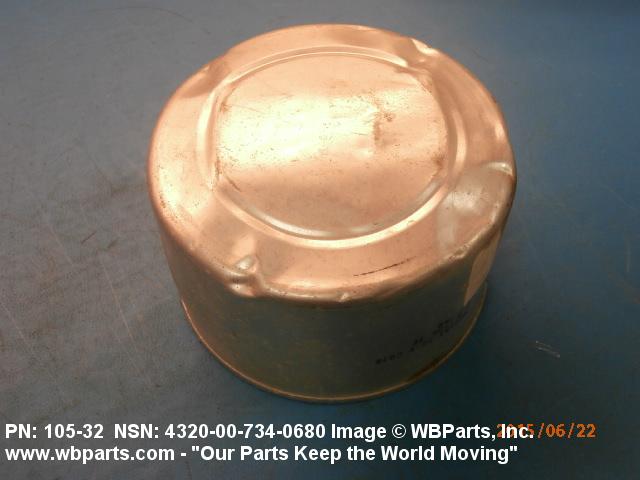

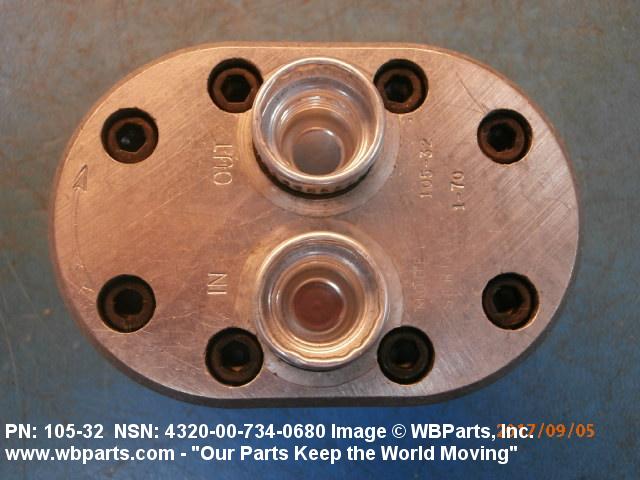

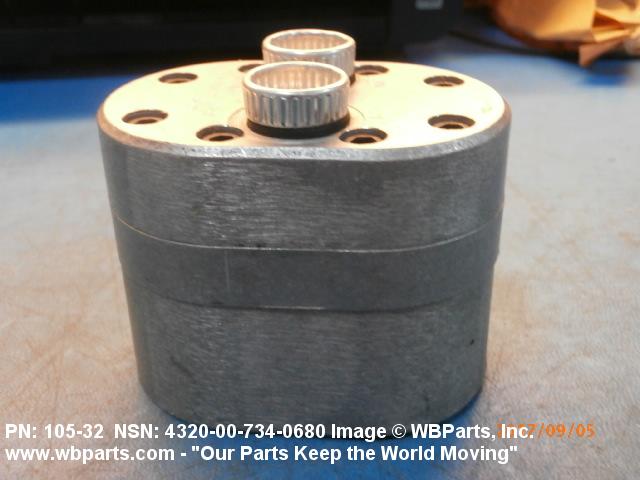

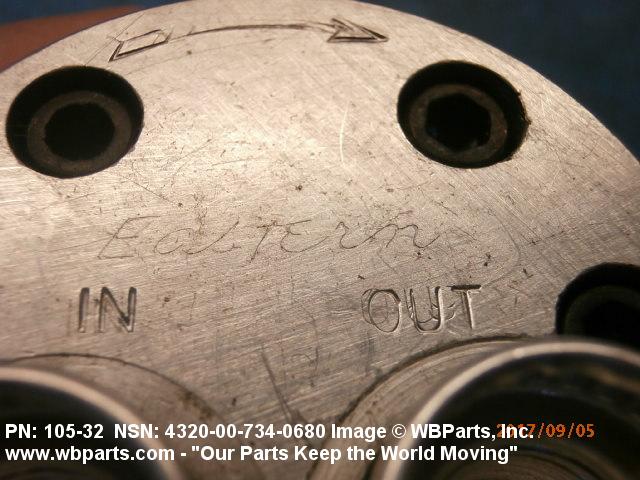

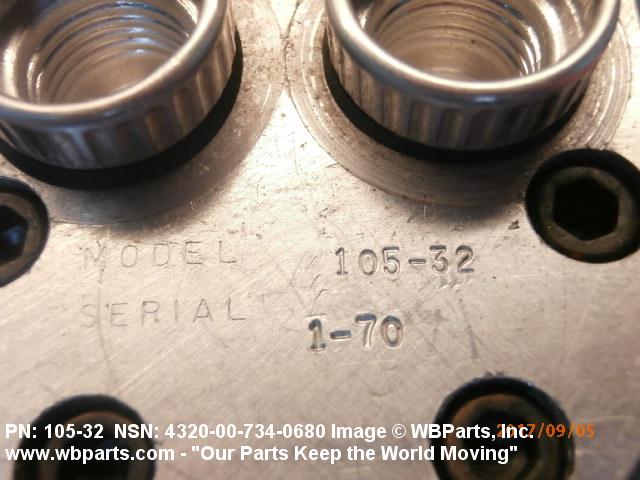

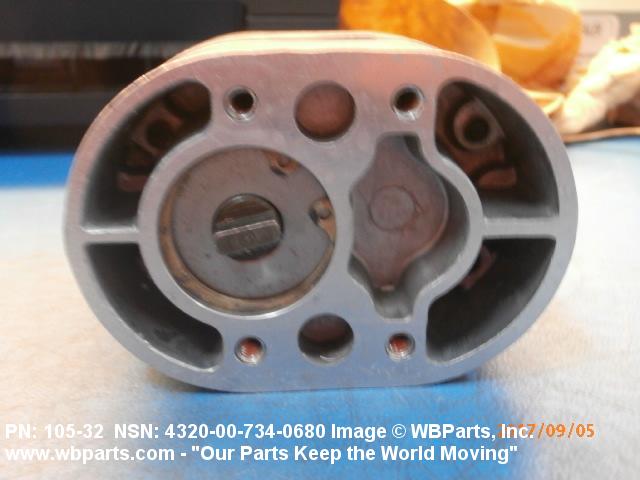

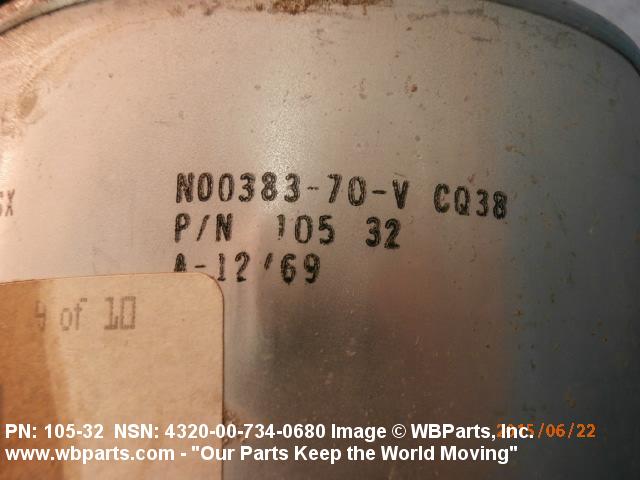

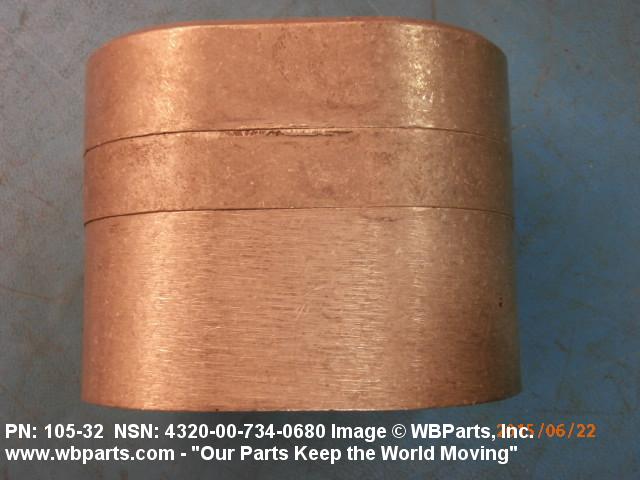

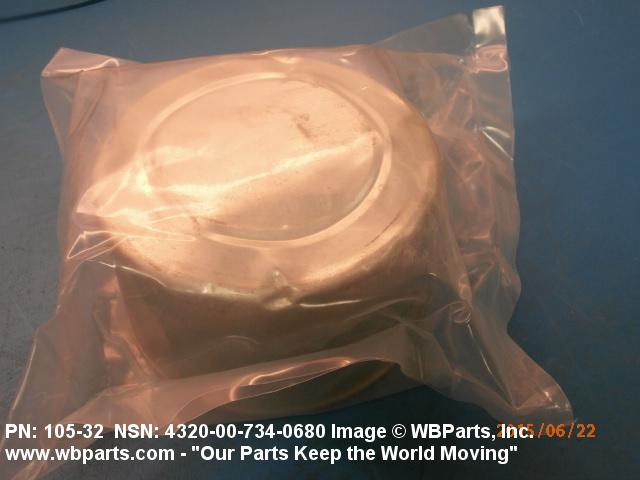

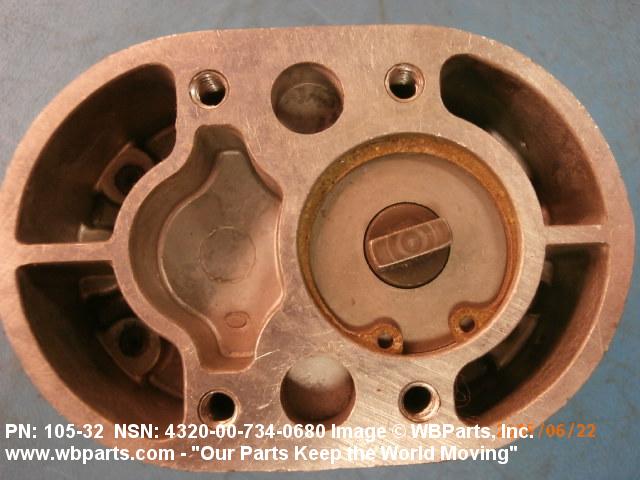

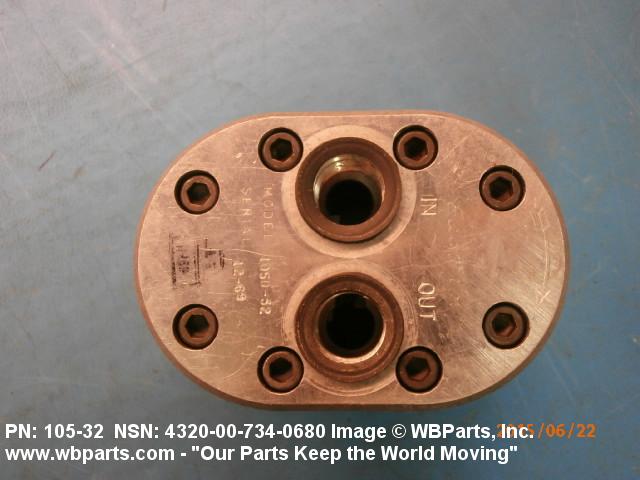

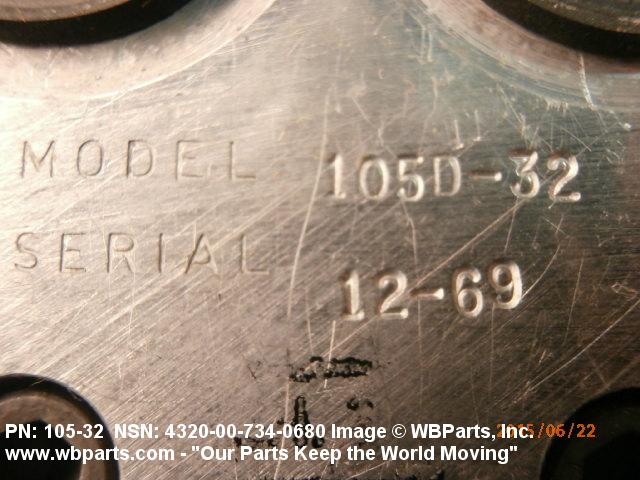

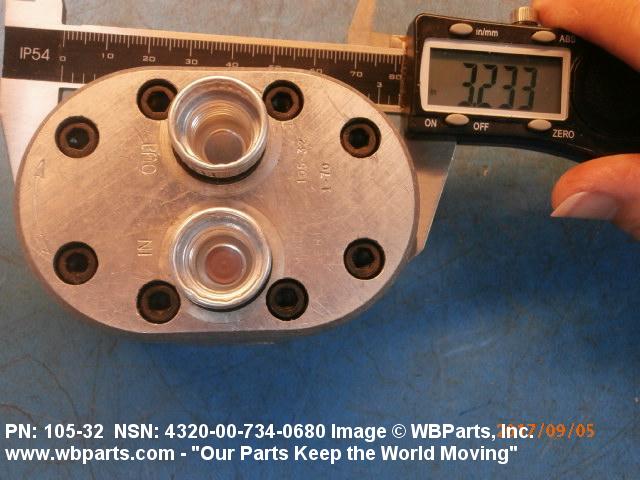

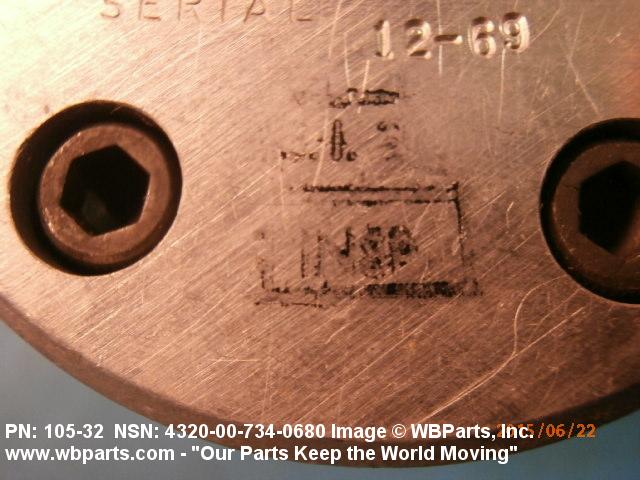

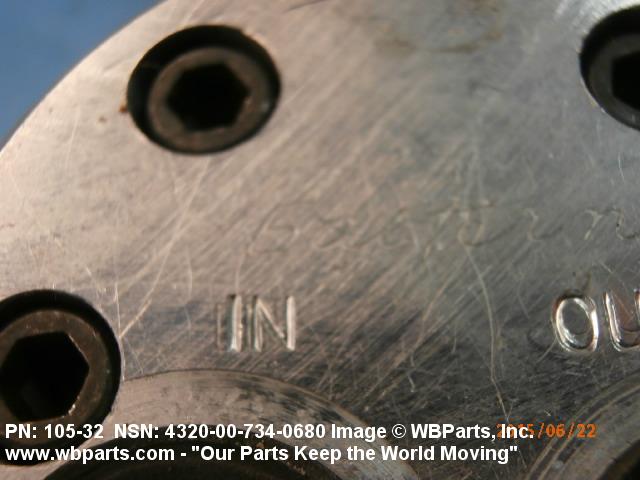

Drawings & Photos | NSN 4320-00-734-0680
Demand History | NSN 4320-00-734-0680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-734-0680 | 2019-09-23 | 1 | US |
| 4320-00-734-0680 | 2017-08-22 | 6 | United States |
| 4320-00-734-0680 | 2015-06-15 | 1 | United States |
| H2104RF21Q1C | 2013-03-01 | 1 | US |
| 4320-00-734-0680 | 2012-06-29 | 6 | US |
| H2104RF21Q1C | 2012-01-25 | 1 | United States |
| H2104RF21Q1C | 2012-01-04 | 1 | United States |
| 4320-00-734-0680 | 2011-12-16 | 1 | US |
| 4320-00-734-0680 | 2011-09-22 | 1 | United States |
| 4320-00-734-0680 | 2009-08-06 | 1 | United Kingdom |
| H2104RF21Q1C | 2009-08-06 | 1 | United Kingdom |
Cross Reference | NSN 4320-00-734-0680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105-32 | 33654 | HOWDEN FLUID SYSTEMS |
| 2104R-F21-Q1C | 33654 | HOWDEN FLUID SYSTEMS |
| 2104R-F21-Q1C | 58163 | MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS |
| 2105R-F21-Q1C | 33654 | HOWDEN FLUID SYSTEMS |
| H2104R-F21-Q1C | 58163 | MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4320-00-734-0680
Related Products | NSN 4320-00-734-0680
4320-00-734-3091, 4320-00-734-5471, 4320-00-734-5939, 4320-00-734-6951, 4320-00-734-7133
Technical Data | NSN 4320-00-734-0680
| Characteristic | Specifications |
|---|---|
| OPERATING SPEED AT RATED CAPACITY | 5400.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMP ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| ROTARY PUMP DESIGN | GEAR |
Restrictions/Controls & Freight Information | NSN 4320-00-734-0680
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-734-0680
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
