Product Details | BOSS NIPPLE
4730-00-102-2676 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: AN8155C, AN815-5C, AN8155J, AN815-5J, AS5174, AS5174J0505, 3042T40, 3042T40P01, 5LHTXSS, 4730-00-102-2676, 00-102-2676, 4730001022676, 001022676
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 JUN 1968 | 00-102-2676 | 26952 ( NIPPLE, BOSS ) |

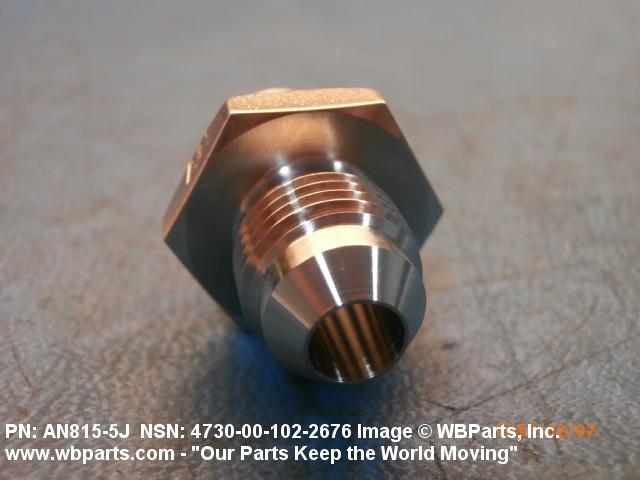

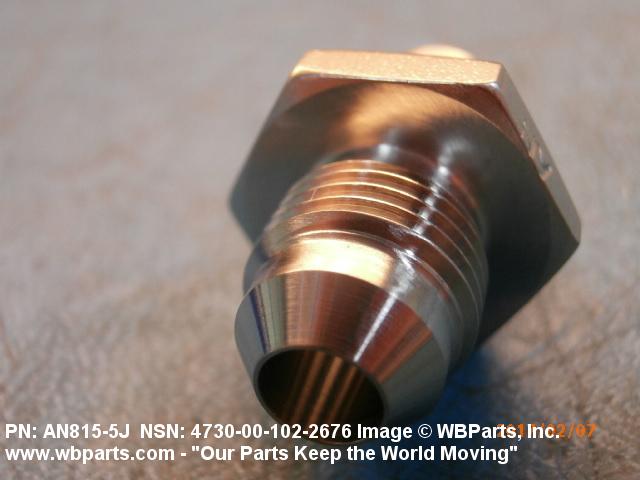

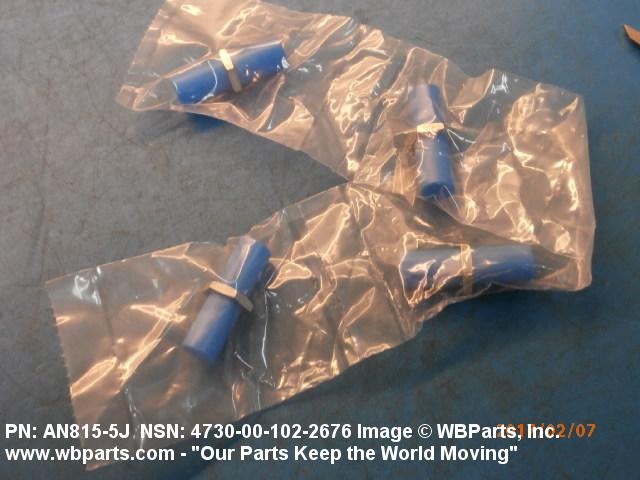

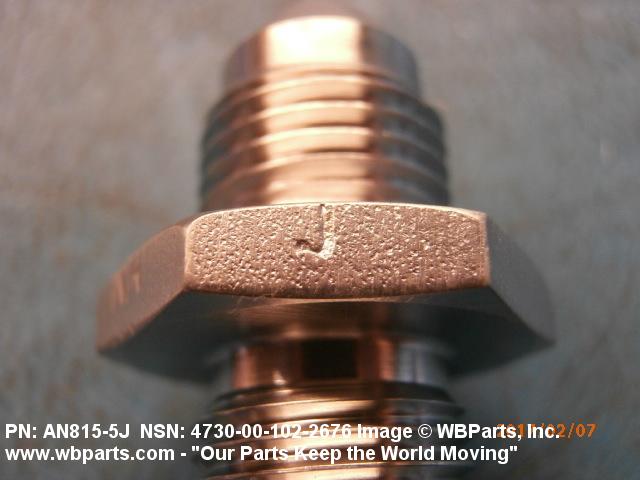

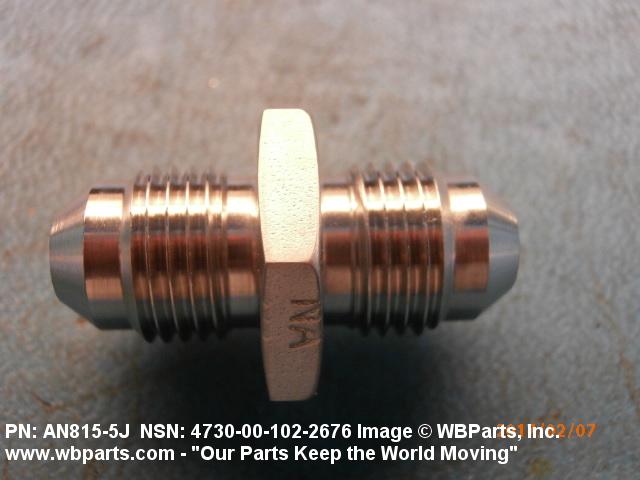

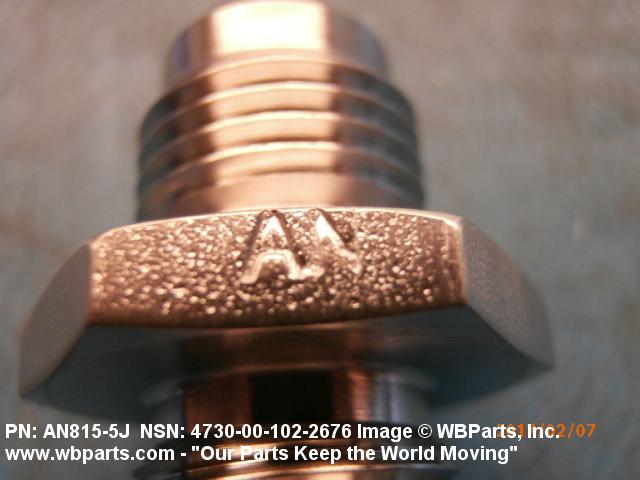

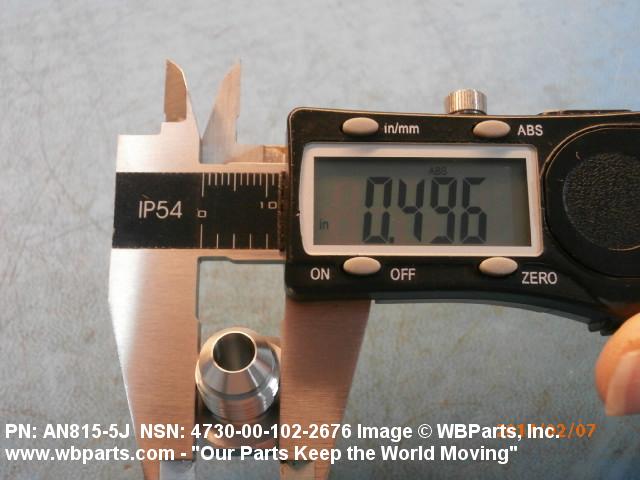

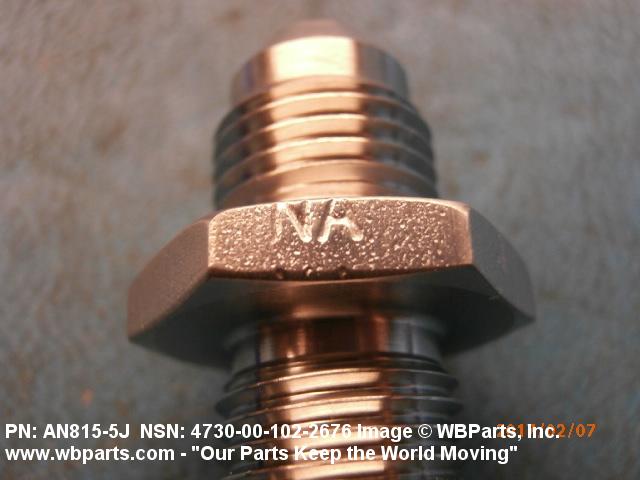

Drawings & Photos | NSN 4730-00-102-2676
Demand History | NSN 4730-00-102-2676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-102-2676 | 2023-02-06 | 165 | DIBBS |
| AN8155J | 2023-01-03 | 2 | United States |
| 4730-00-102-2676 | 2018-03-14 | 1 | US |
| AN8155J | 2016-12-02 | 4 | Pakistan |
| 4730-00-102-2676 | 2016-10-03 | 545 | DIBBS |
| AN8155J | 2016-08-09 | 10 | United States |
| AN8155J | 2016-06-21 | 4 | Pakistan |
| 4730-00-102-2676 | 2014-06-12 | 114 | DIBBS |
| AS5174 | 2013-11-06 | 6 | US |
| AN815-5C | 2011-11-09 | 12 | US |
| 4730-00-102-2676 | 2011-08-26 | 270 | DIBBS |
| 4730-00-102-2676 | 2010-10-13 | 3 | US |
| 4730-00-102-2676 | 2009-09-02 | 25 | DIBBS |
Cross Reference | NSN 4730-00-102-2676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3042T40 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 3042T40P01 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 5LHTXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 5LHTXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| AN815-5C | 03958 | MINDECO CORP |
| AN815-5C | 22995 | CROWN FITTING CO INC |
| AN815-5C | 32382 | ARLINGTON AIR PARTS INC |
| AN815-5C | 71563 | COLLINS ENGINEERING CORP |
| AN815-5C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-5J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN815-5J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN815-5J | 14397 | FABER ENTERPRISES, INC. |
| AN815-5J | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN815-5J | 71563 | COLLINS ENGINEERING CORP |
| AN815-5J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-5J | R1120 | SATAIR A/S |
| AS5174 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174J0505 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-102-2676
Related Products | NSN 4730-00-102-2676
4730-00-102-2701, 4730-00-102-2702, 4730-00-102-2707, 4730-00-102-2717, 4730-00-102-2721
Technical Data | NSN 4730-00-102-2676
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.250 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 88044-AN815 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-102-2676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
