NSN 4730-00-684-6916 MS24392D6, AN8156D, AN815-6D
Product Details | BOSS NIPPLE
4730-00-684-6916 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: MS24392D6, AN8156D, AN815-6D, AS4841, AS5174, AS5174D0606, GU10C6D, MILF5509, MIL-F-5509, 6026910112L, 6026-9101-12L, 6026910113R, 6026-9101-13R, 7243896, 724389-6, 8059010, 82108, 8B73000313, 8B730003-13, 9006406D, 900640-6D, 946.20.65.205, 9462065205, 2137300037, 213-730003-7, 3116741, 4730-00-684-6916, 00-684-6916, 4730006846916, 006846916
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-684-6916 | 26952 ( NIPPLE, BOSS ) |

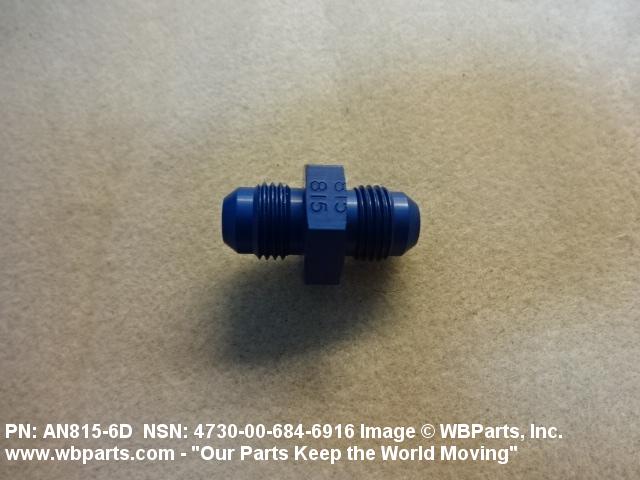

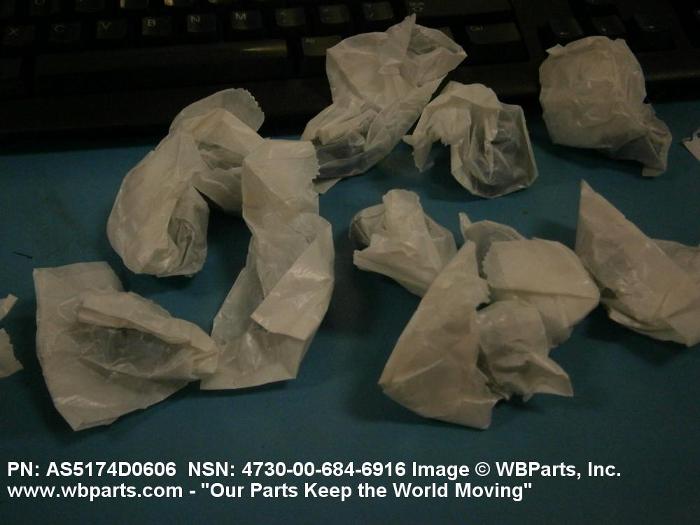

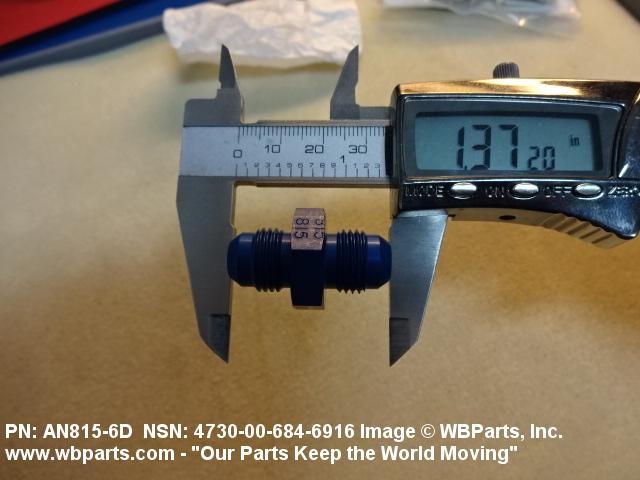

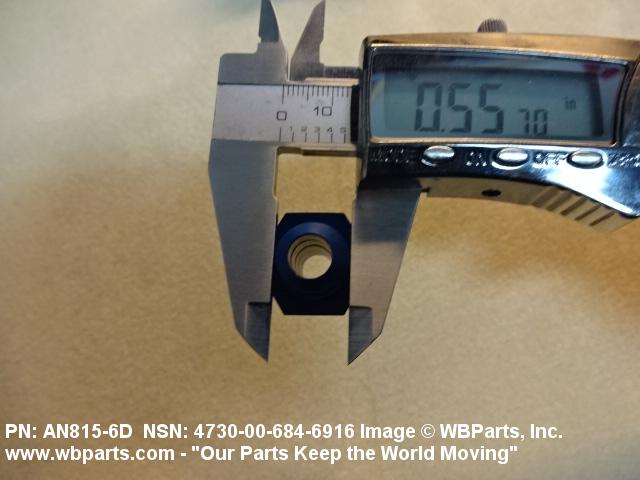

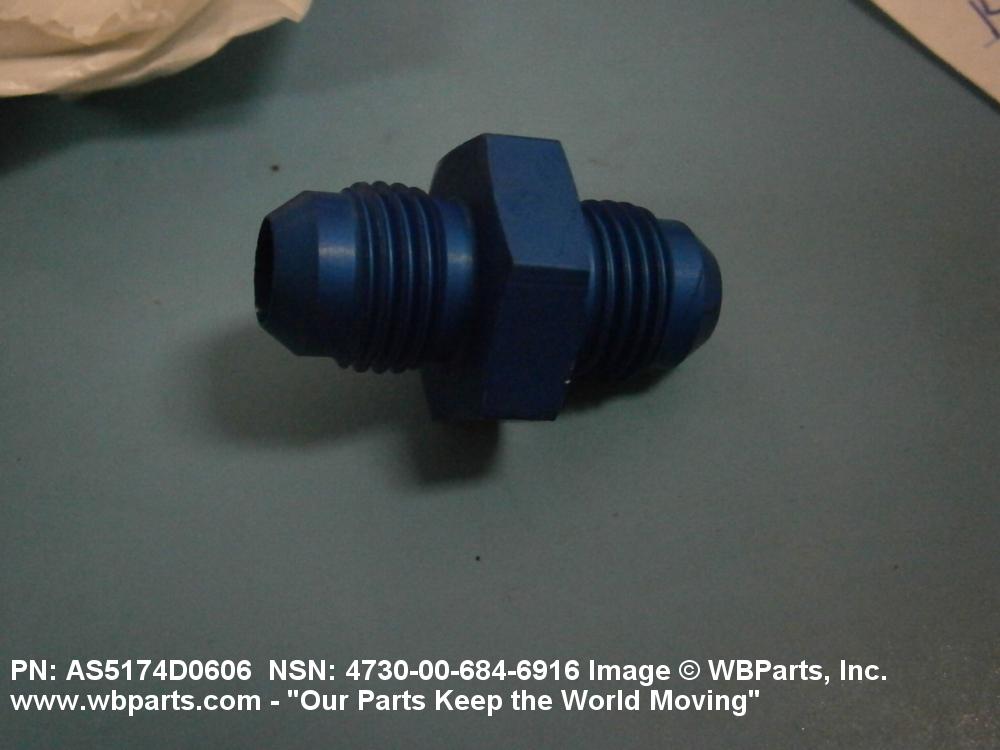

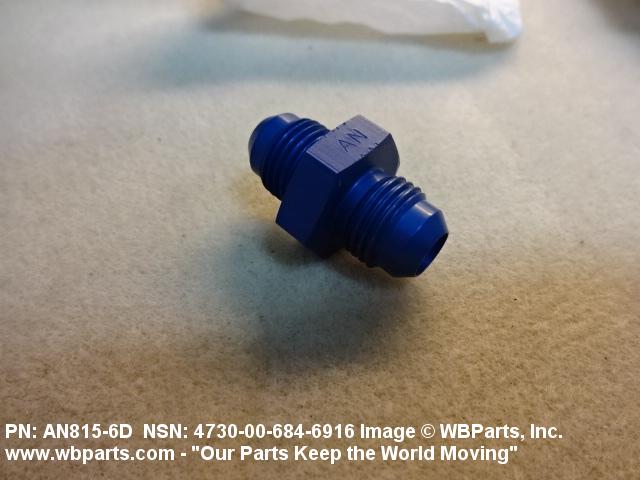

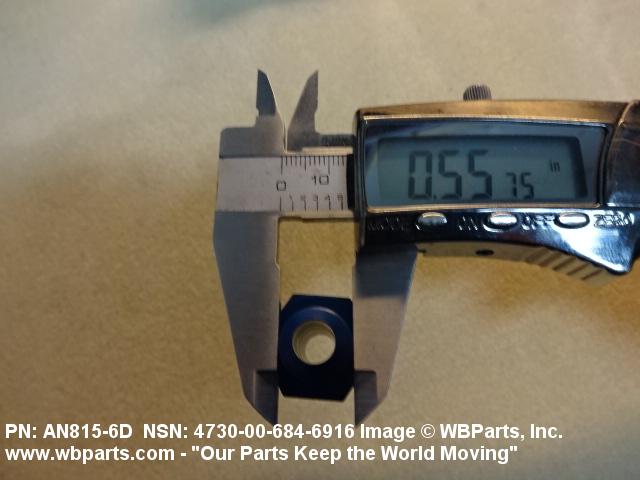

Drawings & Photos | NSN 4730-00-684-6916
Demand History | NSN 4730-00-684-6916
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS5174D0606 | 2022-09-259 | 136 | United States |
| 4730-00-684-6916 | 2022-04-118 | 1967 | DIBBS |
| AN8156D | 2022-04-108 | 20 | United States |
| AN8156D | 2019-05-148 | 10 | United States |
| 4730-00-684-6916 | 2019-05-134 | 3156 | DIBBS |
| 4730-00-684-6916 | 2018-08-239 | 3380 | DIBBS |
| 4730-00-684-6916 | 2018-08-219 | 100 | SA |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN8156D | 2018-02-50 | 10 | us |
| 4730-00-684-6916 | 2018-01-02 | 24 | US |
| 4730-00-684-6916 | 2017-11-317 | 3800 | DIBBS |
| AN8156D | 2017-10-277 | 16 | BD |
| 4730-00-684-6916 | 2017-10-275 | 3800 | DIBBS |
| 4730-00-684-6916 | 2016-12-364 | 2600 | DIBBS |
| AS5174D0606 | 2016-02-33 | 11 | United States |
| AN8156D | 2015-11-309 | 55 | US |
| 4730-00-684-6916 | 2015-05-133 | 15 | United States |
| AN815-6D | 2015-03-85 | 3 | US |
| AN815-6D | 2015-03-69 | 500 | US |
| MS24392D6 | 2014-11-314 | 10 | IN |
| AS5174 | 2013-11-310 | 6 | US |
| AS5174D0606 | 2013-07-197 | 15 | United States |
| 4730-00-684-6916 | 2013-05-137 | 2 | VE |
| AN8156D | 2013-02-49 | 3 | Sri Lanka |
| AN815-6D | 2012-11-310 | 50 | |
| 4730-00-684-6916 | 2012-09-272 | 1 | RO |
| AN8156D | 2012-07-185 | 50 | United States |
| AN815-6D | 2012-07-184 | 1 | United States |
| AS5174D0606 | 2012-05-142 | 1 | US |
| AN8156D | 2012-05-122 | 20 | ID |
| AN815-6D | 2012-04-115 | 10 | IN |
| AN8156D | 2011-12-340 | 10 | United Kingdom |
| AS5174D0606 | 2011-12-340 | 10 | United Kingdom |
| 4730-00-684-6916 | 2011-09-273 | 843 | DIBBS |
| AN8156D | 2011-03-89 | 4 | UM |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-684-6916 | 2010-10-288 | 45 | US |
| 4730-00-684-6916 | 2010-08-220 | 1 | US |
| 4730-00-684-6916 | 2010-02-36 | 1975 | DIBBS |
| 4730-00-684-6916 | 2009-12-355 | 1795 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-684-6916 | 2009-09-267 | 3045 | DIBBS |
| 4730-00-684-6916 | 2009-04-93 | 100 | Turkey |
| MILF5509 | 2009-02-55 | 100 | US |
| MS24392D6 | 2008-01-15 | 1 | South Africa |
Cross Reference | NSN 4730-00-684-6916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 213-730003-7 | 1DC28 | HELICOPTER PARTS SERVICE INC |
| 213-730003-7 | 89446 | HILLER AIRCRAFT CORPORATION |
| 3116741 | 001JK | EMBRAER S/A |
| 3116741 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 4730006846916 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6026-9101-12L | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-9101-13R | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 724389-6 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8059010 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 82108 | 62983 | EATON AEROSPACE LLC |
| 8B730003-13 | 1DC28 | HELICOPTER PARTS SERVICE INC |
| 8B730003-13 | 89446 | HILLER AIRCRAFT CORPORATION |
| 900640-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 946.20.65.205 | S4080 | PILATUS AIRCRAFT LTD |
| AN815-6D | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| AN815-6D | 14397 | FABER ENTERPRISES, INC. |
| AN815-6D | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| AN815-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-6D | 95764 | AIR ASSOCIATES INC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174D0606 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| GU10C6D | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24392D6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS24392D6 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24392D6 | 22995 | CROWN FITTING CO INC |
| MS24392D6 | 26616 | PACIFIC HI-TEMP HARDWARE CO., INC. |
| MS24392D6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24392D6 | 97576 | LENZ INC DBA THE LENZ COMPANY |
| MS24392D6 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-684-6916
Related Products | NSN 4730-00-684-6916
Technical Data | NSN 4730-00-684-6916
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T6 OR T851 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/9,T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE FLUID 2ND RESPONSE WATER-OIL-GAS 3RD RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 96906-MS24392 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-5509 |
Restrictions/Controls & Freight Information | NSN 4730-00-684-6916
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106140 | PLATE/SHEET NOI I/S GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 571 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
