Product Details | TUBE FITTING FLARED SLEEVE
4730-01-334-4136 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS322010, AS3220-10, 4730-01-334-4136, 01-334-4136, 4730013344136, 013344136
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 FEB 1991 | 01-334-4136 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

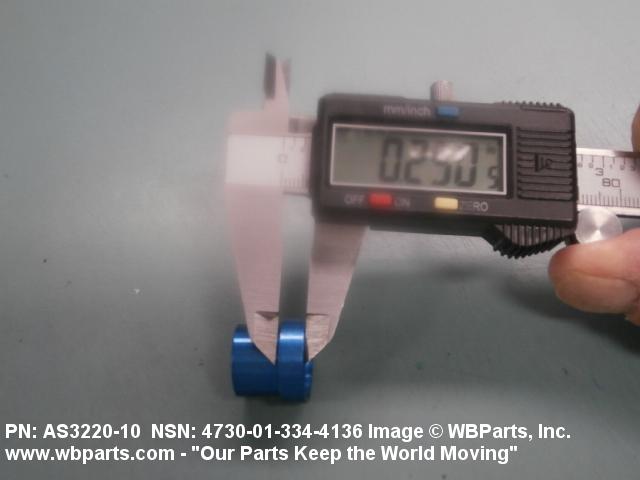

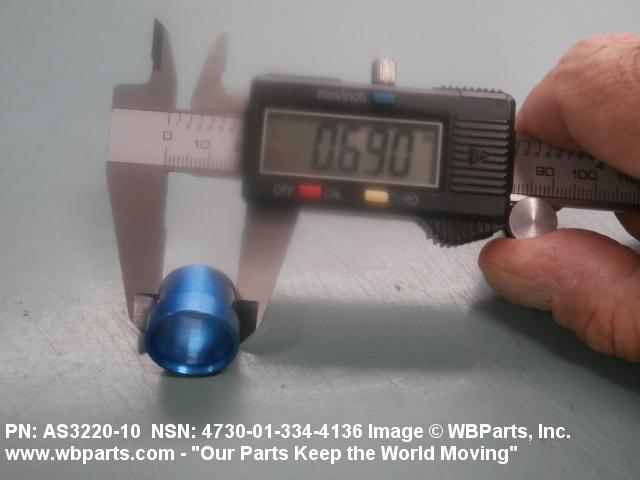

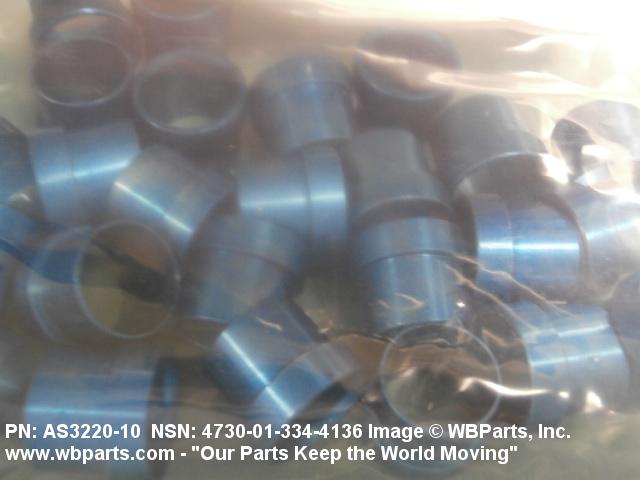

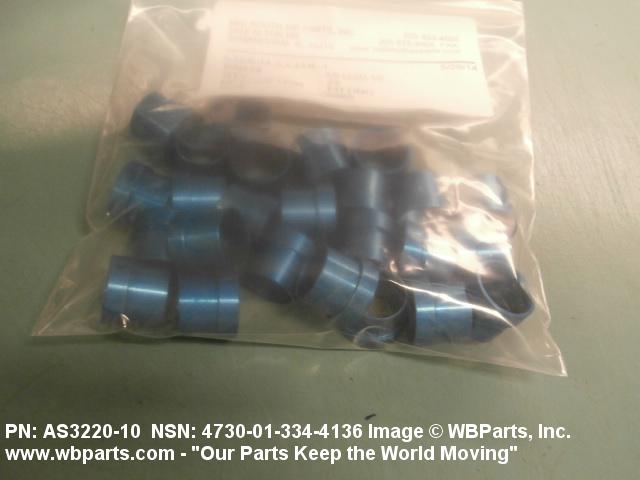

Drawings & Photos | NSN 4730-01-334-4136
Demand History | NSN 4730-01-334-4136
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-334-4136 | 2023-05-04 | 8 | US |
| 4730-01-334-4136 | 2023-03-27 | 8 | US |
| 4730-01-334-4136 | 2023-02-27 | 8 | US |
| 4730-01-334-4136 | 2019-11-21 | 4 | US |
| 4730-01-334-4136 | 2017-02-01 | 4 | Poland |
| 4730-01-334-4136 | 2017-02-01 | 10 | PL |
| 4730-01-334-4136 | 2017-01-30 | 10 | US |
| AS322010 | 2014-08-06 | 80 | US |
| 4730-01-334-4136 | 2014-05-22 | 3 | United States |
Cross Reference | NSN 4730-01-334-4136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS3220-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-334-4136
4730-01-334-4137, 4730-01-334-4288, 4730-01-334-4297, 4730-01-334-4298, 4730-01-334-4299
Technical Data | NSN 4730-01-334-4136
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/9, ALLOY 7075, T73 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.625 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |
| OVERALL LENGTH | 0.672 INCHES NOMINAL |
| FLANGE WIDTH | 0.250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.800 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.690 INCHES NOMINAL |
| MANUFACTURERS CODE | 81343 |
| DESIGN CONTROL REFERENCE | AS3220-10 |
Restrictions/Controls & Freight Information | NSN 4730-01-334-4136
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TD | Aerospace Integration Corp 5555 John Givens Rd. Crestview, FL 32539-7019 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
