Product Details | TUBE FITTING FLARED SLEEVE
4730-01-590-0262 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS3220, AS3220W16, AS4841, 4730-01-590-0262, 01-590-0262, 4730015900262, 015900262
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 NOV 2010 | 01-590-0262 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

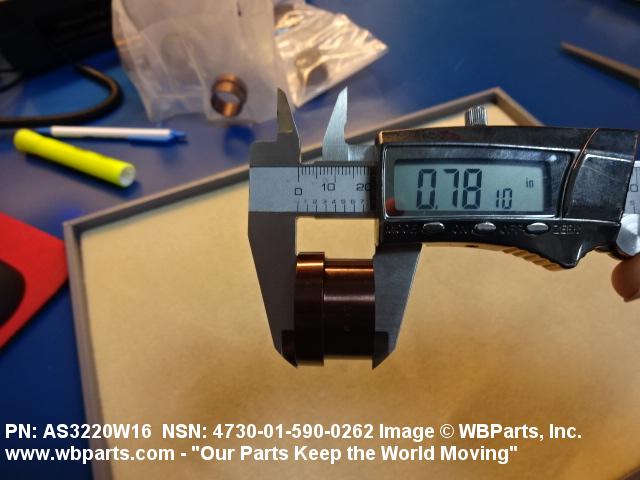

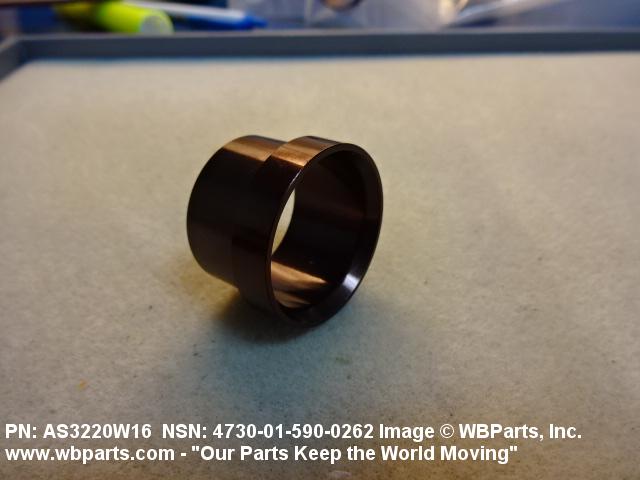

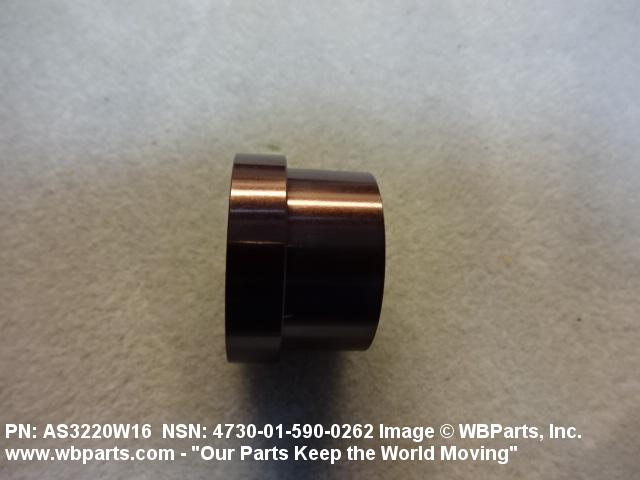

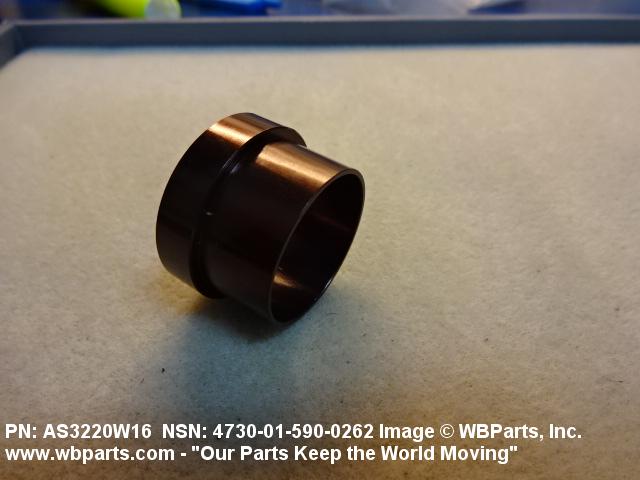

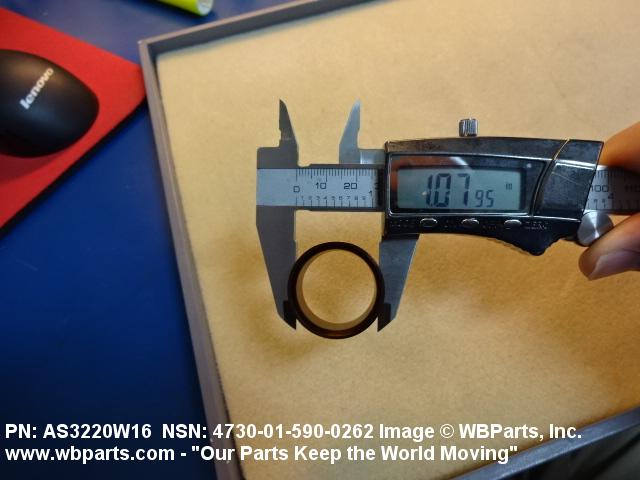

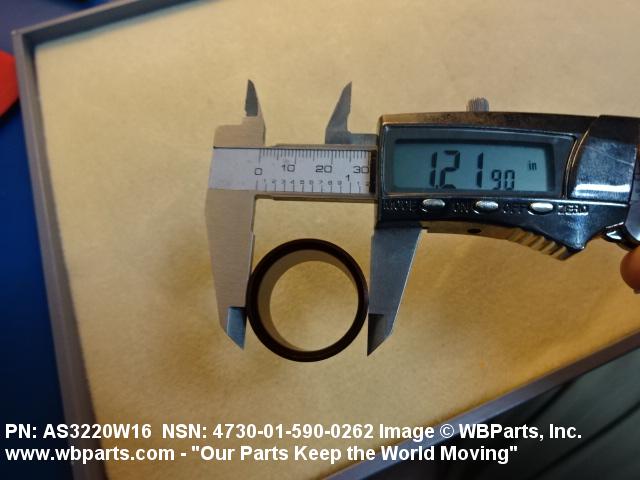

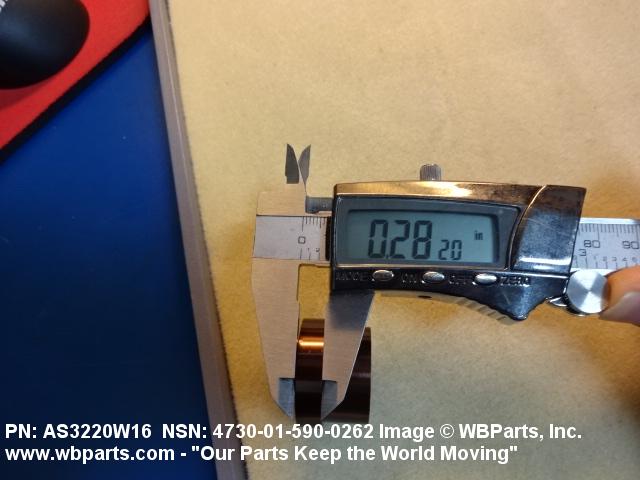

Drawings & Photos | NSN 4730-01-590-0262
Demand History | NSN 4730-01-590-0262
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-590-0262 | 2024-01-02 | 91 | DIBBS |
| 4730-01-590-0262 | 2023-12-21 | 91 | DIBBS |
| AS3220W16 | 2022-03-30 | 10 | United States |
| 4730-01-590-0262 | 2021-05-23 | 26 | DIBBS |
| 4730-01-590-0262 | 2021-02-21 | 98 | DIBBS |
| AS3220W16 | 2019-05-10 | 20 | United States |
| AS3220W16 | 2017-08-01 | 8 | United States |
| 4730-01-590-0262 | 2012-04-18 | 9 | DIBBS |
| AS4841 | 2011-03-10 | 8 |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-590-0262
4730-01-590-0871, 4730-01-590-1595, 4730-01-590-4779, 4730-01-590-4896, 4730-01-590-6156
Technical Data | NSN 4730-01-590-0262
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| MATERIAL | ALUMINUM ALLOY, AMS 4121 OR ALUMINUM ALLOY, AMS 4117 |
| OVERALL LENGTH | 0.765 INCHES MINIMUM |
Restrictions/Controls & Freight Information | NSN 4730-01-590-0262
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-590-0262
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
