Product Details | HEXAGON HEAD CAP SCREW
5305-01-377-1033 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: DIN961M8X1X35-10.9, DIN961M8X1X35109, 12417958008, 12417958-008, 5305-01-377-1033, 01-377-1033, 5305013771033, 013771033
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JUL 1993 | 01-377-1033 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

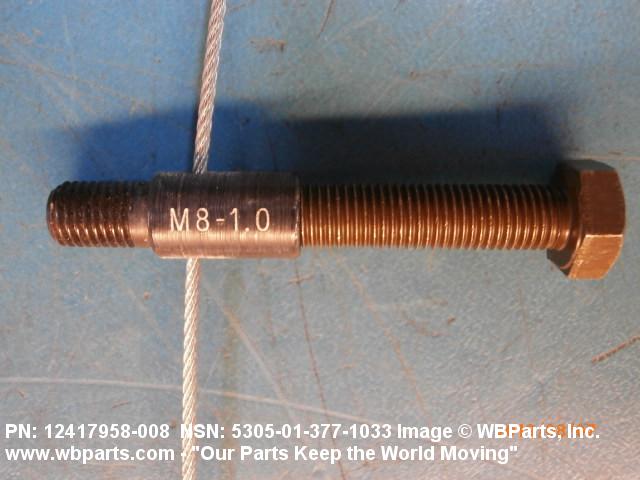

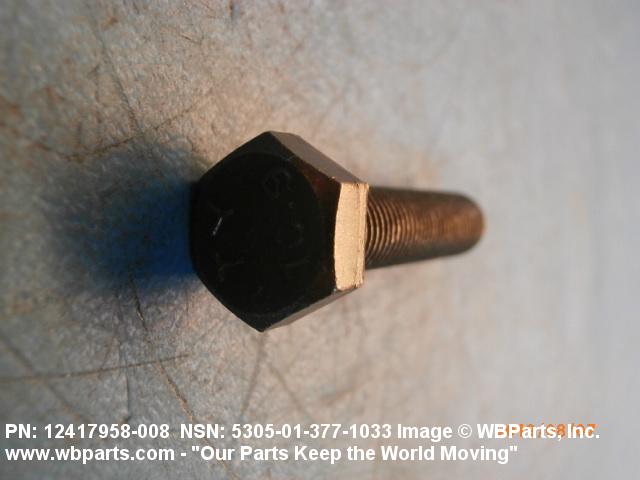

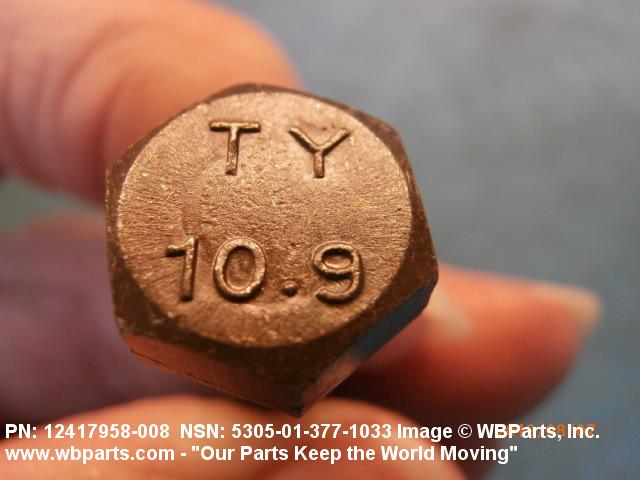

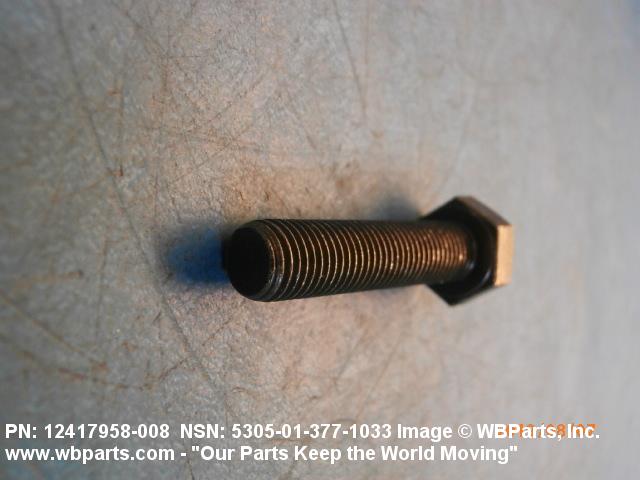

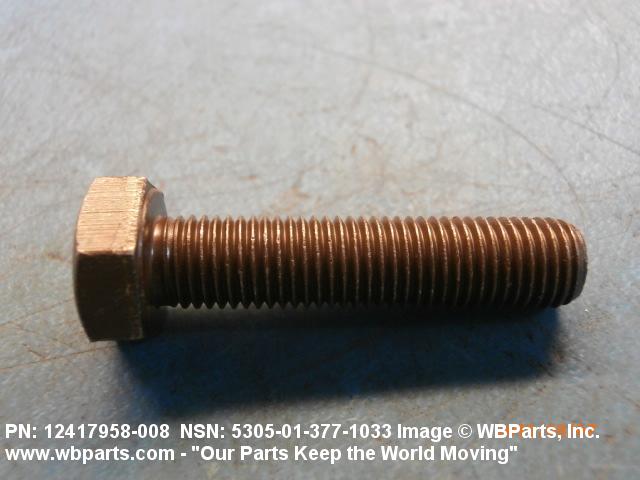

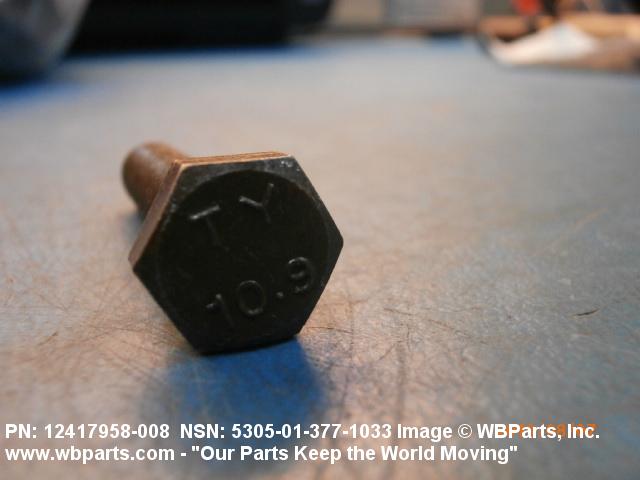

Drawings & Photos | NSN 5305-01-377-1033
Demand History | NSN 5305-01-377-1033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-377-1033 | 2022-05-10 | 60 | MANUAL |
| 5305-01-377-1033 | 2020-11-04 | 782 | DIBBS |
| 5305-01-377-1033 | 2020-06-30 | 60 | MANUAL |
| 5305-01-377-1033 | 2020-01-07 | 352 | DIBBS |
| 5305-01-377-1033 | 2019-07-11 | 230 | United States |
| 5305-01-377-1033 | 2019-06-19 | 504 | DIBBS |
| 5305-01-377-1033 | 2018-10-08 | 306 | DIBBS |
| 5305-01-377-1033 | 2016-10-30 | 427 | DIBBS |
| 5305-01-377-1033 | 2016-07-31 | 427 | DIBBS |
| 5305-01-377-1033 | 2016-05-08 | 391 | DIBBS |
| 5305-01-377-1033 | 2013-02-15 | 332 | DIBBS |
| 5305-01-377-1033 | 2012-11-18 | 66 | DIBBS |
| 5305-01-377-1033 | 2012-10-05 | 13 | DIBBS |
| 5305-01-377-1033 | 2012-10-05 | 42 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-01-377-1033
5305-01-377-1046, 5305-01-377-1057, 5305-01-377-1069, 5305-01-377-1100, 5305-01-377-1104
Technical Data | NSN 5305-01-377-1033
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |
| NOMINAL THREAD DIAMETER | 8.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.0 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |

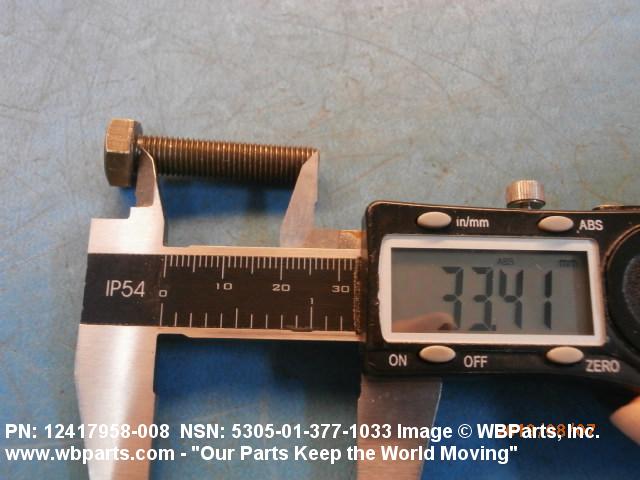

| THREAD LENGTH | 33.0 MILLIMETERS MINIMUM AND 35.0 MILLIMETERS MAXIMUM |

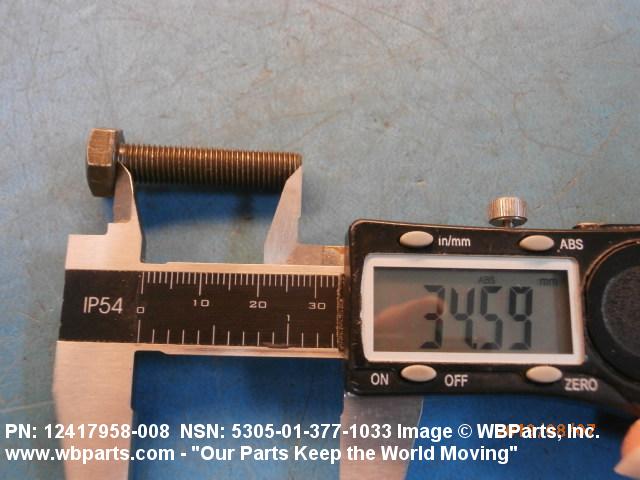

| FASTENER LENGTH | 35.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL PROPERTY CLASS 10.9 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 961 NATIONAL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |

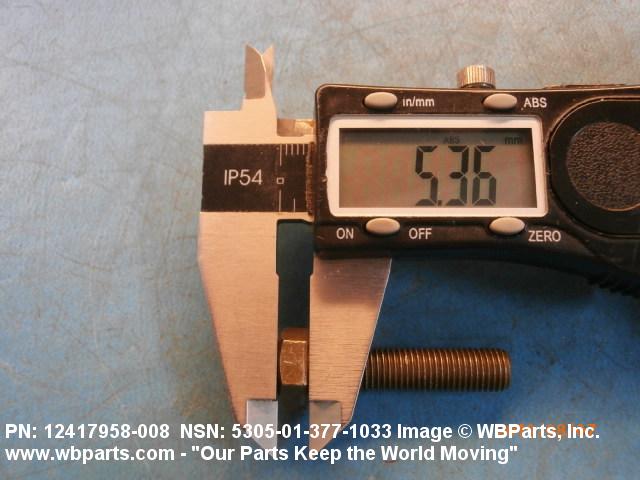

| HEAD HEIGHT | 5.5 MILLIMETERS NOMINAL |

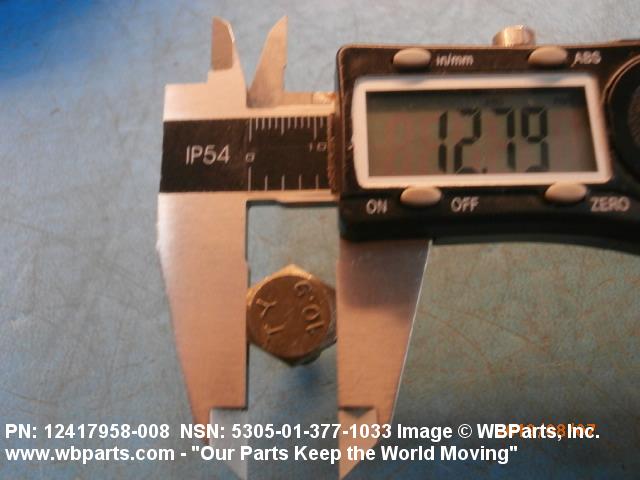

| WIDTH BETWEEN FLATS | 13.0 MILLIMETERS NOMINAL |
