Product Details | PANEL SCREW ASSEMBLY

5305-01-377-1104 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: FRB7500P12F5, FRB7500P-12-F-5, 5305-01-377-1104, 01-377-1104, 5305013771104, 013771104

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 02 JUL 1993 01-377-1104

Drawings & Photos | NSN 5305-01-377-1104


Cross Reference | NSN 5305-01-377-1104

Part Number Cage Code Manufacturer
FRB7500P-12-F-5 0HDW7 HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FRB7500P-12-F-5 97928 HUCK INTL INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-377-1104

Technical Data | NSN 5305-01-377-1104

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
FASTENER LENGTH 1.230 INCHES MINIMUM AND 1.260 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 SECONDARY WASHER STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL CORROSION RESISTING FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SECONDARY WASHER MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-W-423, COND B FED SPEC SINGLE MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493, 300 SERIES ASSN STD ALL MATERIAL RESPONSES FASTENER
SURFACE TREATMENT ANODIZE HEAD PASSIVATE SECONDARY WASHER PASSIVATE PRIMARY WASHER PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-S-8625, TYPE 1, CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SECONDARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING MIL-A-8625, TYPE 1, CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HEAD STYLE C49 FLAT CHAMFER
HEAD DIAMETER 0.531 INCHES NOMINAL
HEAD HEIGHT 0.530 INCHES NOMINAL

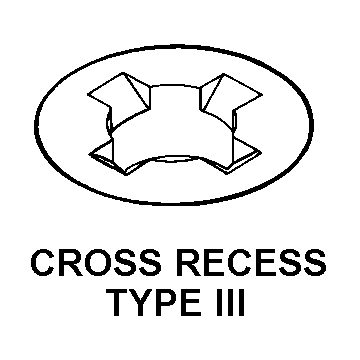

INTERNAL DRIVE STYLE D3 CROSS RECESS TYPE 111
MATERIAL ACCOMMODATED THICKNESS 0.280 INCHES MINIMUM AND 0.341 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-01-377-1104

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 096640 SCREWS, IRON OR STEEL
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-01-377-1104

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
