Product Details | CAP PLAIN NUT
5310-00-199-7639 An item internally threaded from one end, and completely inclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, or dodecagonal and taper to a cone or dome shape on the closed end. For like items which are stamped or formed from sheet stock, see NUT (1), STAMPED. For similar items which are flat on top and bottom see NUT (1), SLEEVE or POST, ELECTRICAL-MECHANICAL EQUIPMENT.
Part Alternates: MS2467925, MS24679-25, AA55629, A-A-55629, AA5562925, A-A-55629-25 , AA55629-25, FFN836, FF-N-836, 17701187, 177011-87, 177011PC87, 33075733, 330757-33, 5921668 FIND NO, 5921668FINDNO, 6014265 FIND NO, 6014265FINDNO, 8721517, 87215171, 8721517-1, 91855A029, 5310-00-199-7639, 00-199-7639, 5310001997639, 001997639
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-199-7639 | 01855 ( NUT, PLAIN, CAP ) |

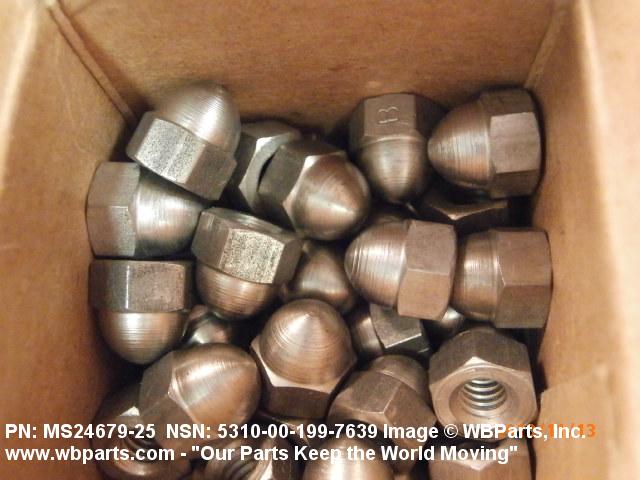

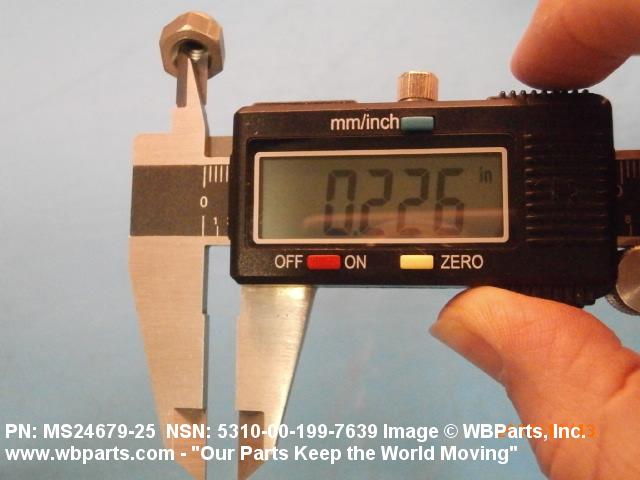

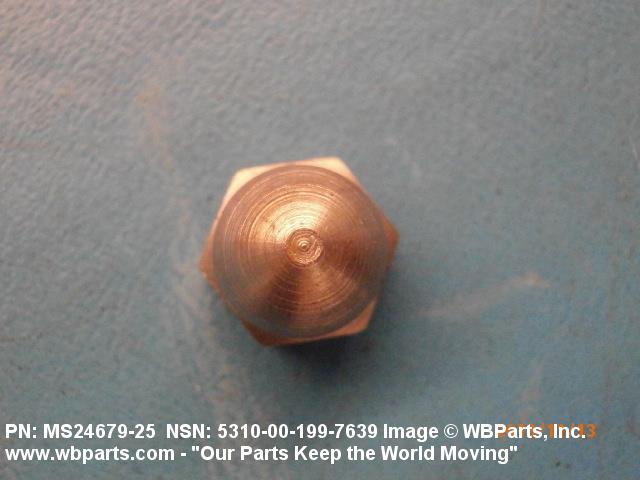

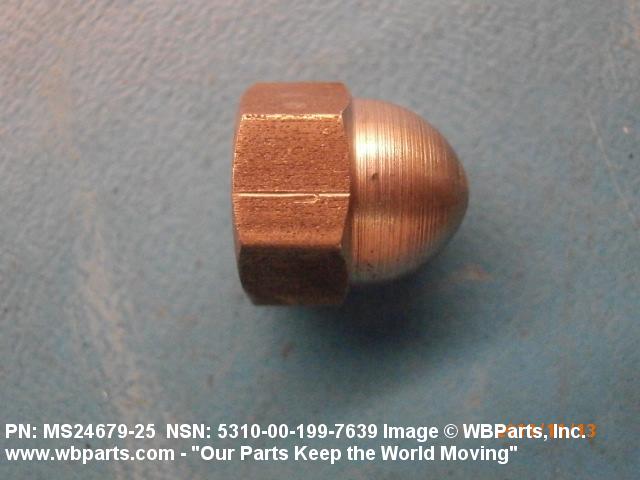

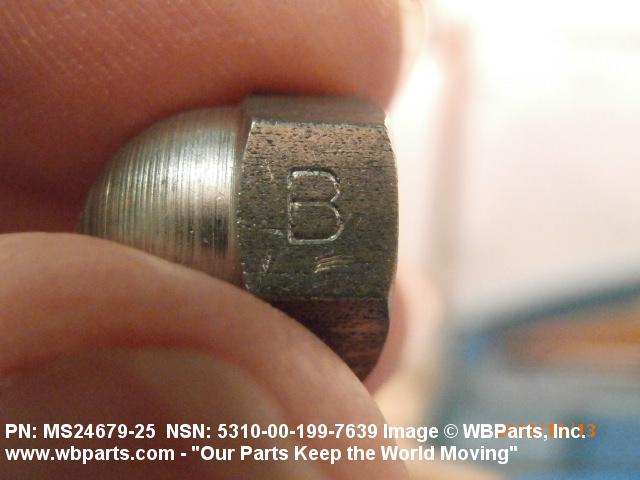

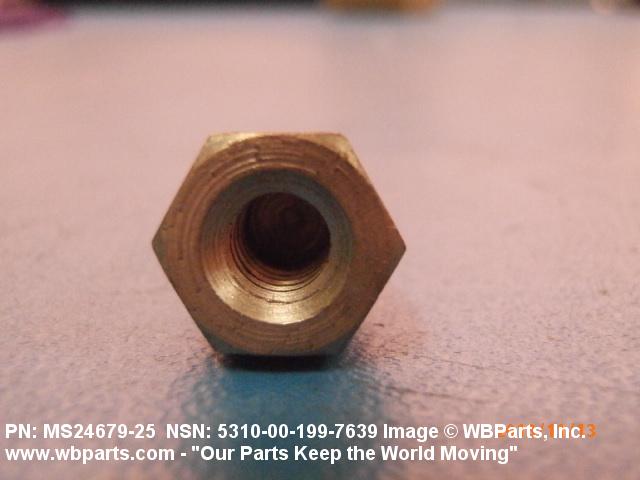

Drawings & Photos | NSN 5310-00-199-7639
Demand History | NSN 5310-00-199-7639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN836 | 2023-09-15 | 100 | TR |
| FFN836 | 2021-11-03 | 200 | United States |
| FFN836 | 2021-08-16 | 100 | United States |
| AA5562925 | 2020-03-30 | 1 | US |
| FFN836 | 2019-02-13 | 288 | US |
| MS2467925 | 2018-06-05 | 150 | United States |
| FFN836 | 2018-02-01 | 2 | US |
| FFN836 | 2017-05-03 | 25 | United States |
| FF-N-836 | 2016-05-24 | 48 | Spain |
| 5310-00-199-7639 | 2013-11-05 | 85 | United States |
| 5310-00-199-7639 | 2013-11-01 | 85 | United States |
| 5310-00-199-7639 | 2013-10-14 | 88 | United States |
| FFN836 | 2012-12-06 | 1 | US |
| 5310-00-199-7639 | 2012-08-24 | 16 | United States |
| AA5562925 | 2012-05-01 | 5 | US |
| FFN836 | 2010-11-18 | 100 | United Kingdom |
| FFN836 | 2010-08-06 | 1 | US |
| FFN836 | 2010-08-06 | 1 | US |
| FFN836 | 2010-08-06 | 1 | US |
| FFN836 | 2010-08-06 | 1 | US |
| AA5562925 | 2010-06-02 | 12 | United States |
| FFN836 | 2010-03-31 | 4 | us |
| FFN836 | 2010-03-22 | 50 | United States |
| FFN836 | 2010-02-15 | 50 | United States |
| FFN836 | 2009-07-02 | 1000 | US |
| FFN836 | 2009-05-21 | 580 | US |
| FFN836 | 2008-07-13 | 20 | US |
| FFN836 | 2008-06-19 | 200 | US |
| FFN836 | 2008-02-08 | 1 | US |
| FFN836 | 2007-10-25 | 100 | US |
Cross Reference | NSN 5310-00-199-7639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 177011-87 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 177011PC87 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 330757-33 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5921668 FIND NO | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6014265 FIND NO | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 8721517 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8721517-1 | 57615 | SEAMAN CORP SEAMAN BUILDING SYSTEMS DIV |
| 91855A029 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| A-A-55629 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-55629-25 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FF-N-836 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24679-25 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-199-7639
Related Products | NSN 5310-00-199-7639
5310-00-199-7640, 5310-00-199-7641, 5310-00-199-7642, 5310-00-199-7643, 5310-00-199-7645
Technical Data | NSN 5310-00-199-7639
| Characteristic | Specifications |
|---|---|

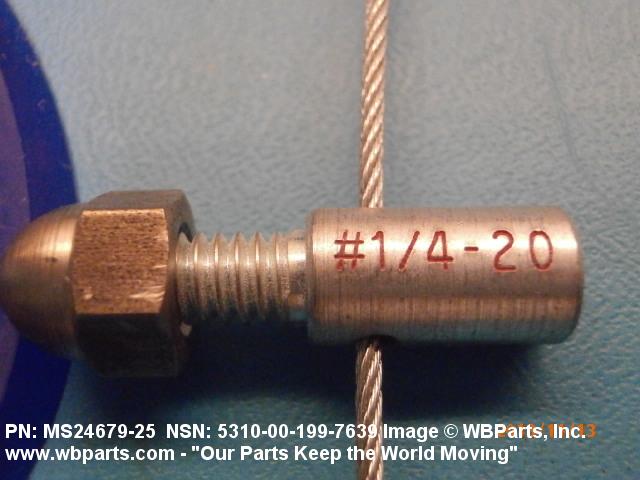

| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |

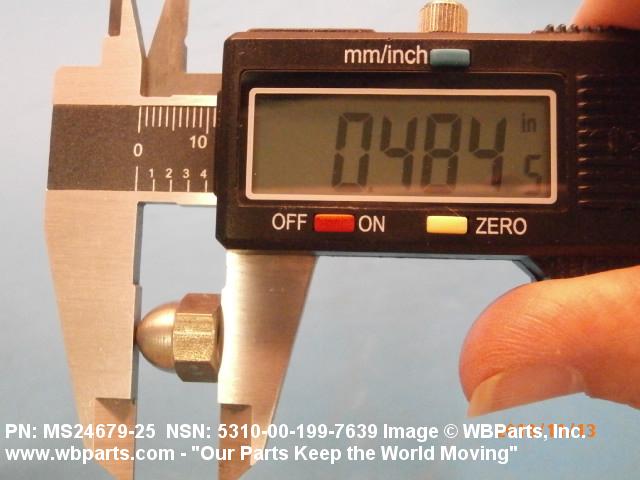

| NUT HEIGHT | 0.470 INCHES NOMINAL |

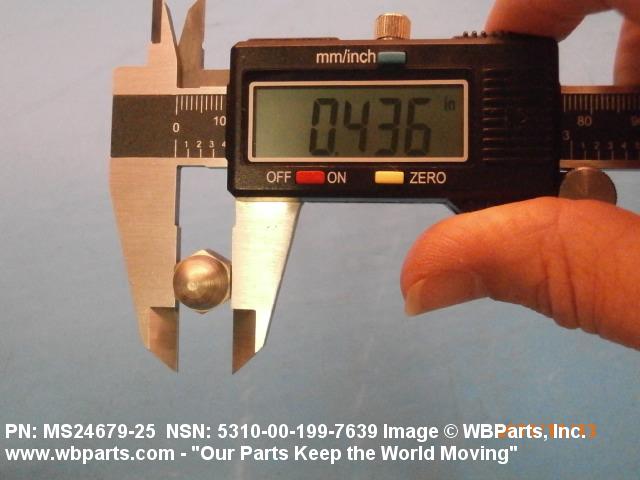

| WIDTH ACROSS FLATS | 0.428 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 15 STYLE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55629 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55629-25 |
Restrictions/Controls & Freight Information | NSN 5310-00-199-7639
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-199-7639
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
