Product Details | CAP PLAIN NUT
5310-01-248-0458 An item internally threaded from one end, and completely inclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, or dodecagonal and taper to a cone or dome shape on the closed end. For like items which are stamped or formed from sheet stock, see NUT (1), STAMPED. For similar items which are flat on top and bottom see NUT (1), SLEEVE or POST, ELECTRICAL-MECHANICAL EQUIPMENT.
Part Alternates: 57732036, 5773203-6, 5310-01-248-0458, 01-248-0458, 5310012480458, 012480458
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1987 | 01-248-0458 | 01855 ( NUT, PLAIN, CAP ) |

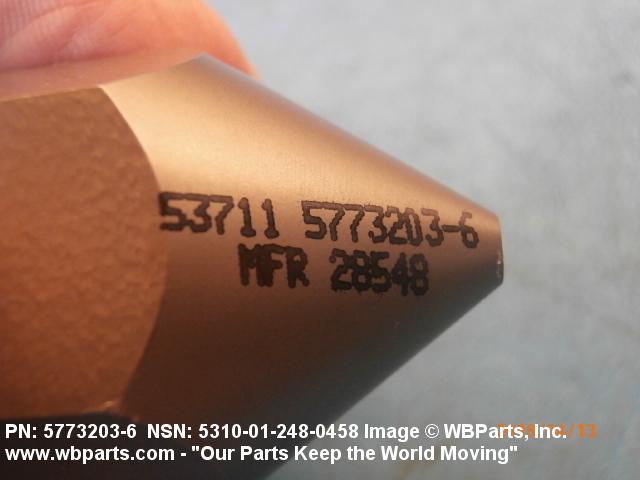

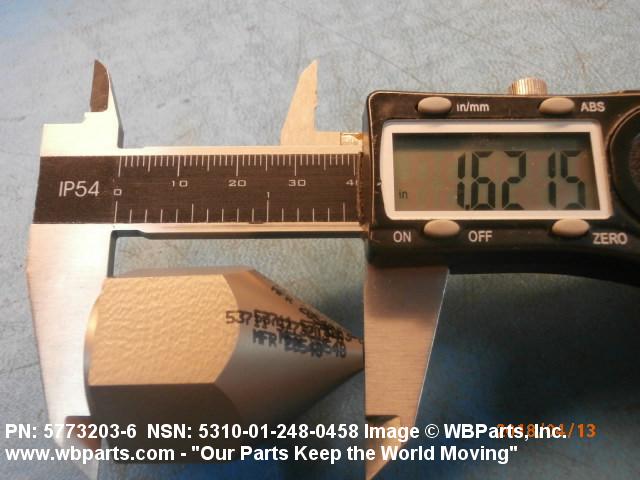

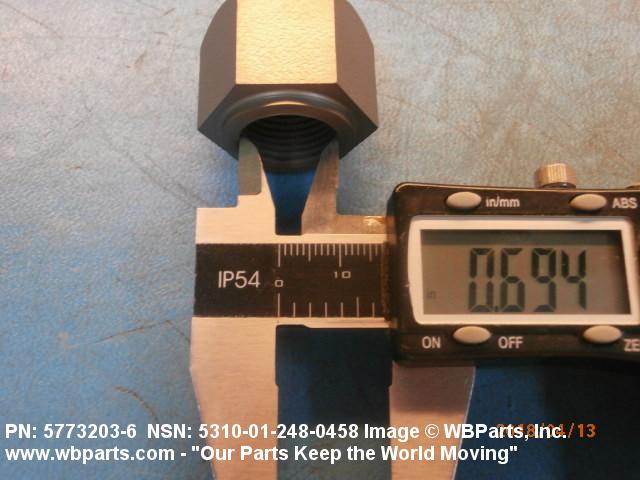

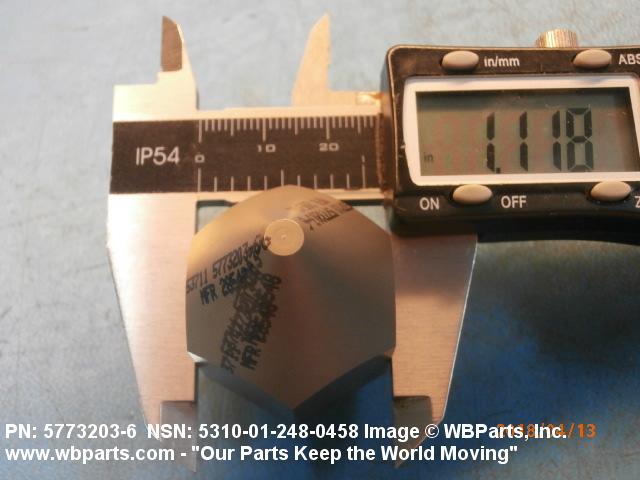

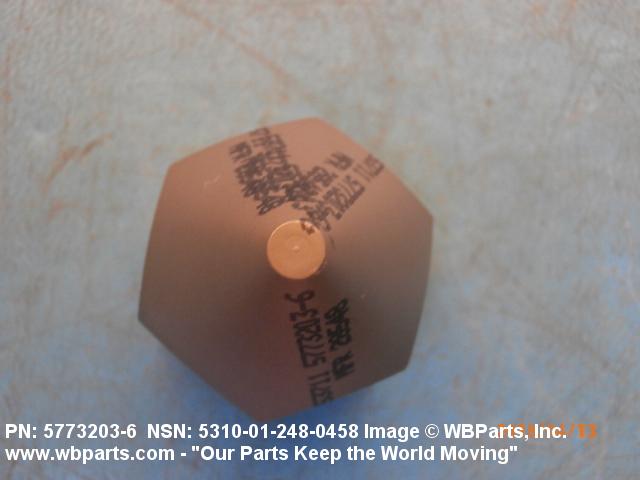

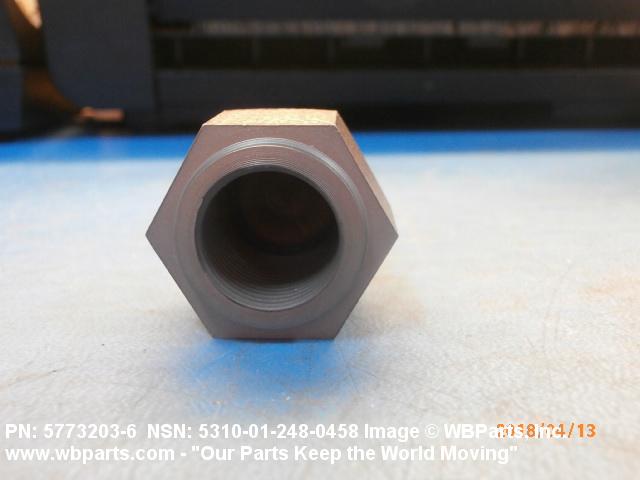

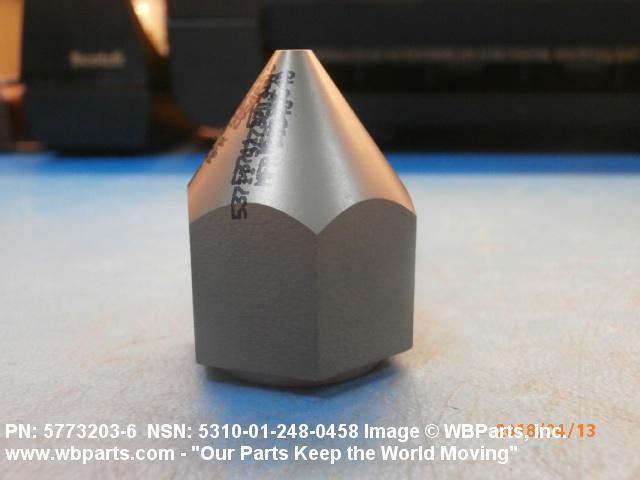

Drawings & Photos | NSN 5310-01-248-0458
Demand History | NSN 5310-01-248-0458
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-248-0458 | 2018-05-10 | 1 | DIBBS-RFPs |
| 5310-01-248-0458 | 2018-05-08 | 88 | DIBBS |
| 5310-01-248-0458 | 2018-04-05 | 4 | United States |
| 5310-01-248-0458 | 2018-03-29 | 81 | DIBBS |
| 5310-01-248-0458 | 2018-01-09 | 1 | us |
| 5310-01-248-0458 | 2016-12-01 | 104 | DIBBS |
| 5310-01-248-0458 | 2015-05-17 | 112 | DIBBS |
| 5310-01-248-0458 | 2012-10-22 | 243 | DIBBS |
| 5310-01-248-0458 | 2009-05-31 | 143 | DIBBS |
| 5310-01-248-0458 | 2006-09-15 | 4 | Malaysia |
Cross Reference | NSN 5310-01-248-0458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5773203-6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-248-0458
5310-01-248-0459, 5310-01-248-0460, 5310-01-248-0855, 5310-01-248-1076, 5310-01-248-1082
Technical Data | NSN 5310-01-248-0458
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B348 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN; VIGINIA CLASS CGN (41); FORRESTAL CLASS CV; WASP CLASS LHD |
Restrictions/Controls & Freight Information | NSN 5310-01-248-0458
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-248-0458
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
