Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-811-6419 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS 21042-04 , MS2104204, MS21042-04, MS2104204C, MS21042-04C, MS21042C04, H14L04CW, T98S440CPC, F52LH332440, F52LH3324-40, FN1240, FN12-40, FN12A40, FN12A-40, 723009731500, 80552, 1491440C, 1491-440C, 2 0040-323 , 20040323, 22MM40, 380021, 38-0021, 41380021, 4138-0021, 4180842, 418084-2, 4575583, 457-5583 , 5310-00-811-6419, 00-811-6419, 5310008116419 , 008116419
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-811-6419 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

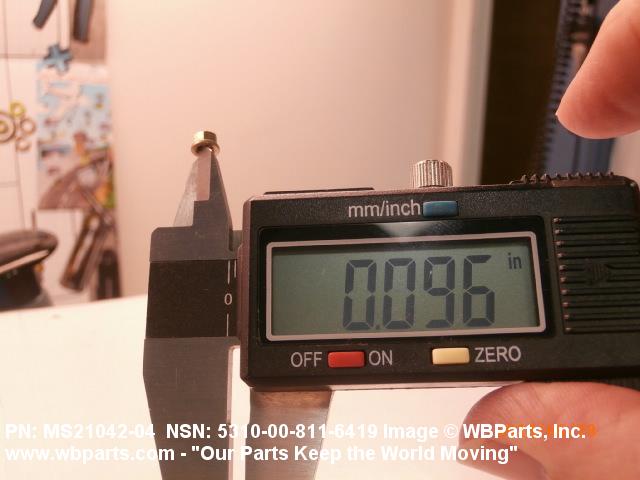

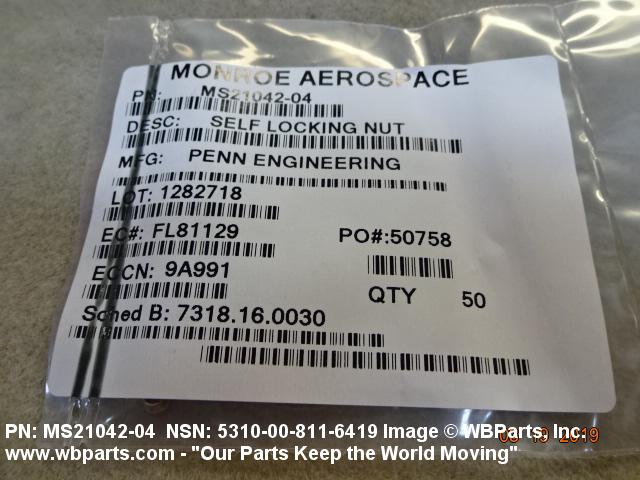

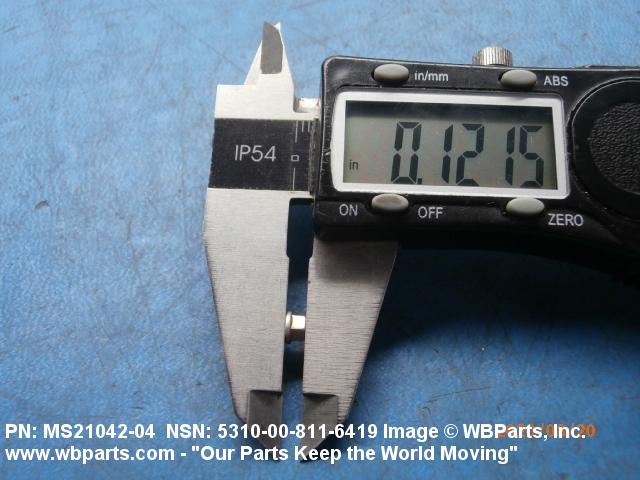

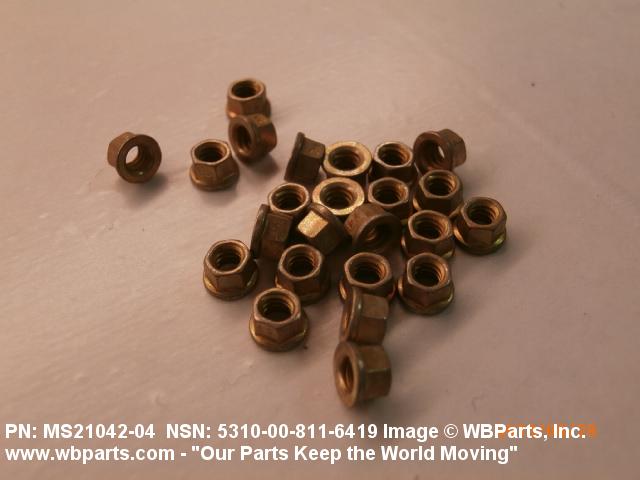

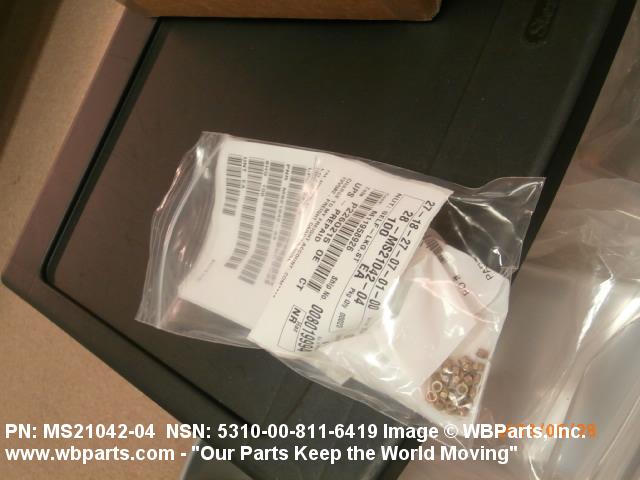

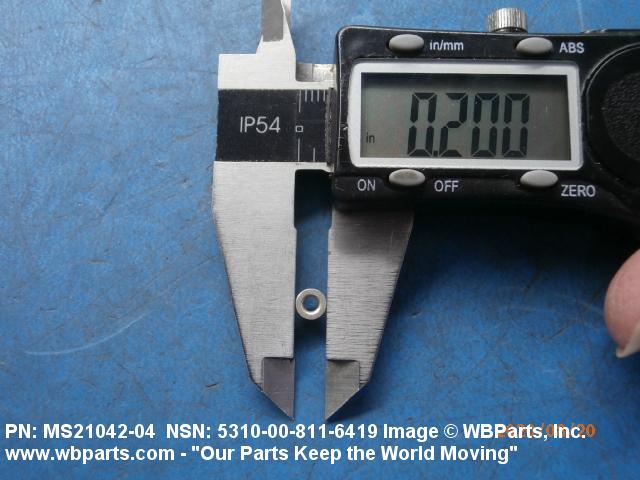

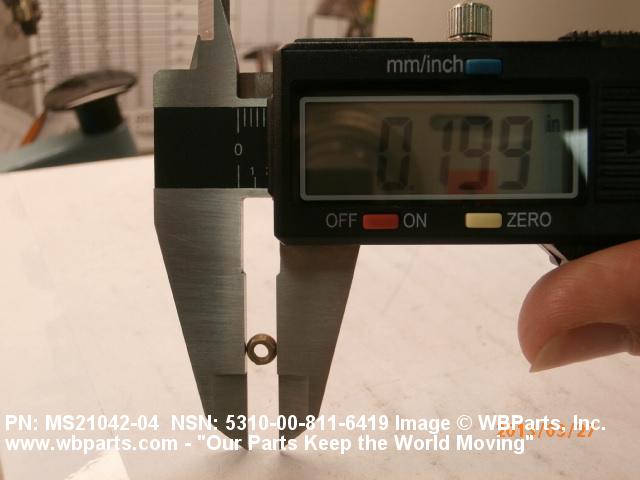

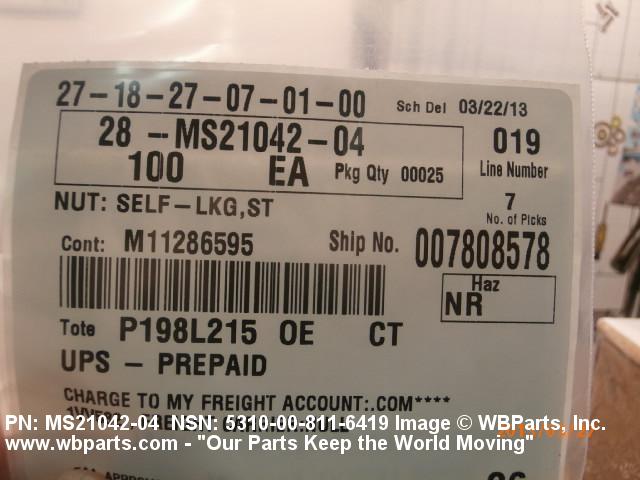

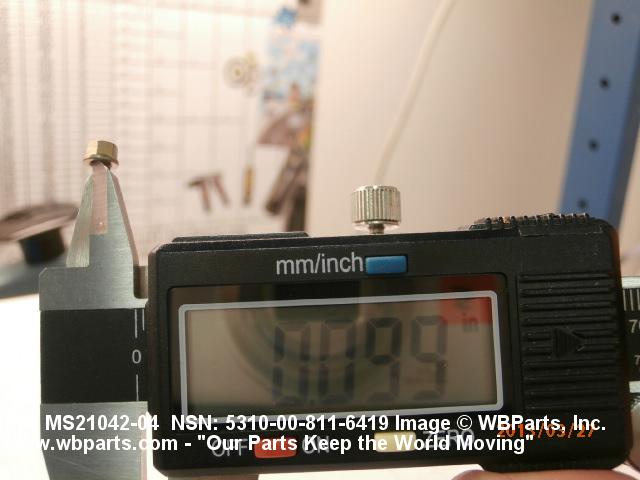

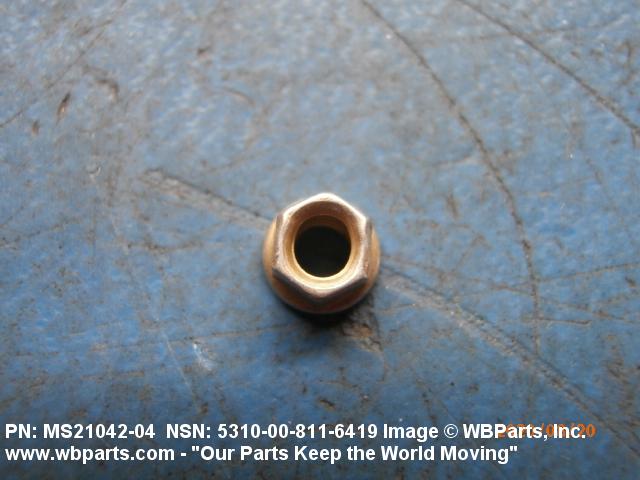

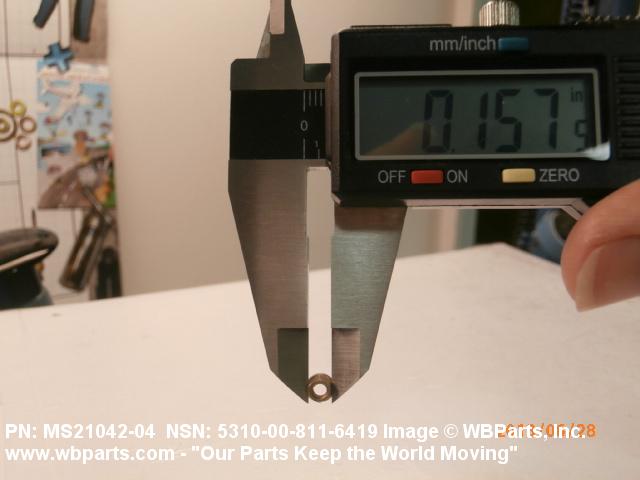

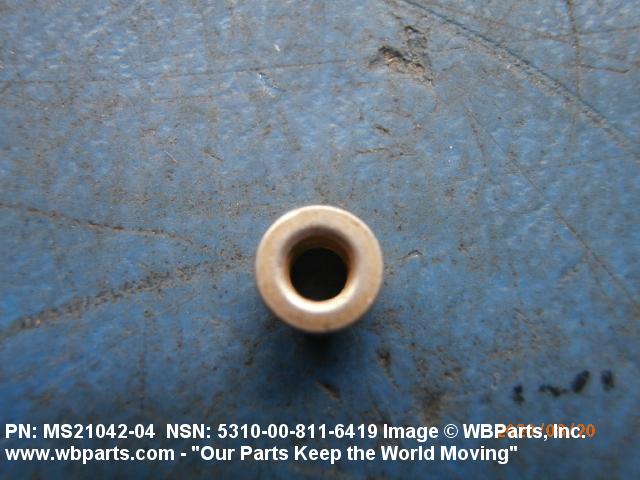

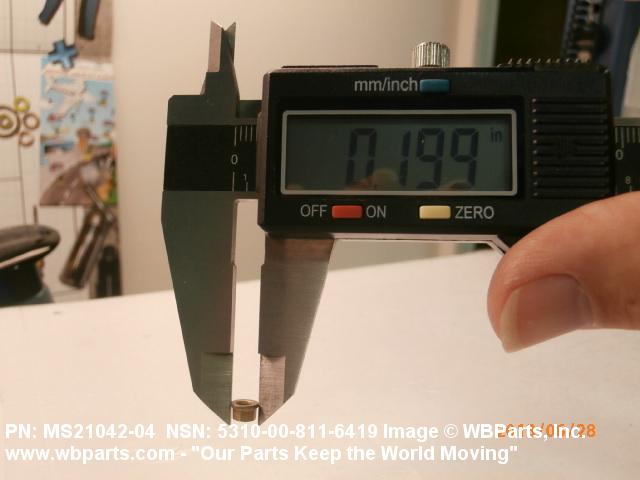

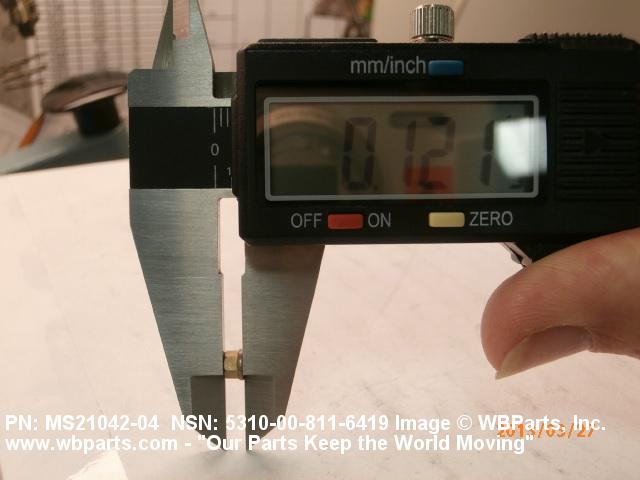

Drawings & Photos | NSN 5310-00-811-6419
Demand History | NSN 5310-00-811-6419
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2104204 | 2023-10-30 | 280 | Singapore |
| MS2104204 | 2021-06-16 | 150 | US |
| 5310-00-811-6419 | 2021-05-21 | 5 | US |
| MS2104204 | 2020-08-07 | 50 | United States |
| 5310-00-811-6419 | 2020-07-02 | 60 | US |
| 5310-00-811-6419 | 2020-06-30 | 6 | MANUAL |
| MS2104204 | 2020-03-24 | 1250 | US |
| MS2104204 | 2019-11-07 | 10 | Canada |
| MS2104204 | 2019-09-04 | 200 | IT |
| 5310-00-811-6419 | 2019-07-31 | 1679 | DIBBS |
| MS2104204 | 2019-03-04 | 50 | China |
| MS2104204 | 2019-03-04 | 50 | China |
| MS2104204 | 2018-05-22 | 30 | United States |
| 5310-00-811-6419 | 2017-10-03 | 4 | US |
| MS2104204 | 2017-08-07 | 50 | US |
| MS2104204 | 2017-03-30 | 50 | Korea |
| MS2104204 | 2017-01-23 | 8 | United States |
| MS2104204 | 2017-01-06 | 1 | TR |
| MS2104204 | 2016-06-07 | 1 | United States |
| MS2104204 | 2016-04-05 | 25 | CA |
| MS2104204 | 2015-09-16 | 12 | United States |
| MS2104204 | 2015-08-18 | 5 | US |
| MS21042-04 | 2015-08-05 | 32 | United States |
| MS2104204 | 2015-07-15 | 9 | us |
| MS2104204 | 2015-05-08 | 160 | US |
| MS2104204 | 2015-05-08 | 1600 | US |
| MS2104204 | 2015-05-08 | 1 | US |
| MS2104204 | 2015-03-26 | 20 | us |
| MS2104204 | 2015-03-26 | 100 | us |
| MS21042-04 | 2015-03-26 | 3 | US |
| MS21042-04 | 2015-03-10 | 500 | US |
| MS2104204 | 2015-02-11 | 1000 | United States |
| MS2104204 | 2014-12-29 | 12 | Singapore |
| MS2104204 | 2014-08-04 | 50 | US |
| MS2104204 | 2014-07-14 | 1 | US |
| MS2104204 | 2014-06-05 | 25 | United States |
| MS21042-04 | 2014-05-07 | 40 | United States |
| MS2104204 | 2013-08-13 | 6 | US |
| MS2104204 | 2013-08-01 | 20 | US |
| MS2104204 | 2013-06-24 | 100 | United States |
| F52LH332440 | 2013-05-22 | 1000 | US |
| MS21042-04 | 2013-05-14 | 50 | CZ |
| MS2104204 | 2013-03-22 | 100 | United States |
| MS21042-04 | 2013-01-07 | 10 | Indonesia |
| MS2104204 | 2012-03-08 | 4 | United States |
| MS2104204 | 2011-10-26 | 1000 | United States |
| MS2104204 | 2011-10-26 | 2000 | United States |
| MS2104204 | 2011-10-17 | 5000 | US |
| MS2104204 | 2011-09-21 | 23 | United Kingdom |
| 5310-00-811-6419 | 2011-01-25 | 5 | US |
| 5310-00-811-6419 | 2011-01-25 | 150 | US |
| MS2104204 | 2011-01-17 | 50 | US |
| MS2104204 | 2010-10-05 | 32 | Saudi Arabia |
| MS2104204 | 2010-10-05 | 32 | Saudi Arabia |
| 5310-00-811-6419 | 2010-07-28 | 236 | DIBBS |
| MS2104204 | 2010-07-01 | 100 | United States |
| MS2104204 | 2010-06-30 | 4 | us |
| MS2104204 | 2010-06-30 | 8 | us |
| MS21042C04 | 2010-06-25 | 210 | US |
| 5310-00-811-6419 | 2010-06-08 | 60 | United States |
| 5310-00-811-6419 | 2010-03-29 | 1040 | DIBBS |
| 5310-00-811-6419 | 2010-02-11 | 30 | US |
| 5310-00-811-6419 | 2009-11-23 | 6 | US |
| MS2104204 | 2009-06-23 | 800 | DE |
| 5310-00-811-6419 | 2009-06-09 | 50 | US |
| 5310-00-811-6419 | 2009-04-07 | 3000 | DIBBS |
| 5310-00-811-6419 | 2009-03-19 | 3000 | DIBBS |
| 5310-00-811-6419 | 2008-12-02 | 4150 | DIBBS |
| MS2104204 | 2008-11-25 | 140 | Italy |
| 5310-00-811-6419 | 2008-10-17 | 3100 | DIBBS |
| 5310-00-811-6419 | 2008-09-15 | 3100 | DIBBS |
| 5310-00-811-6419 | 2008-07-09 | 40 | AT |
| 5310-00-811-6419 | 2008-05-18 | 1000 | Pakistan |
| 5310-00-811-6419 | 2007-10-18 | 1000 | US |
Cross Reference | NSN 5310-00-811-6419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1491-440C | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 2 0040-323 | S3465 | BAE SYSTEMS HAGGLUNDS AB |
| 22MM40 | 13257 | AMERACE LTD |
| 38-0021 | 39741 | MERILLAT ROAD SUPPLY CO |
| 4138-0021 | 13467 | ASSOCIATED INDUSTRIES A DIV OF ARNOLD A SEMLER INC |
| 4138-0021 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 418084-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5310008116419 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 723009731500 | A1140 | OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA |
| 80552 | 59501 | UNISON INDUSTRIES, LLC |
| 80552 | 83311 | UNISON INDUSTRIES, LLC |
| F52LH3324-40 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52LH3324-40 | 72962 | HARVARD INDUSTRIES INC |
| FN12-40 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| FN12A-40 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H14L04CW | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H14L04CW | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| H14L04CW | F6033 | TECNOTEC SARL |
| H14L04CW | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| H14L04CW | R1120 | SATAIR A/S |
| MS 21042-04 | 0291H | ROSOMAK S.A |
| MS21042-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21042-04 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21042-04 | K0407 | BAE SYSTEMS LAND SYSTEMS (WEAPONS & VEHICLES) LTD |
| MS21042-04C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21042C04 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| T98S440CPC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-811-6419
Related Products | NSN 5310-00-811-6419
5310-00-811-6428, 5310-00-811-6484, 5310-00-811-6617, 5310-00-811-6891, 5310-00-811-6892
Technical Data | NSN 5310-00-811-6419
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.206 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.103 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| WASHER THICKNESS | 0.010 INCHES MINIMUM |
| WIDTH ACROSS FLATS | 0.150 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-811-6419
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-811-6419
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
