Product Details | FINISHING WASHER
5310-01-025-0815 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: 60310, 603-10, 5310-01-025-0815, 01-025-0815, 5310010250815, 010250815
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUL 1976 | 01-025-0815 | 15932 ( WASHER, FINISHING ) |

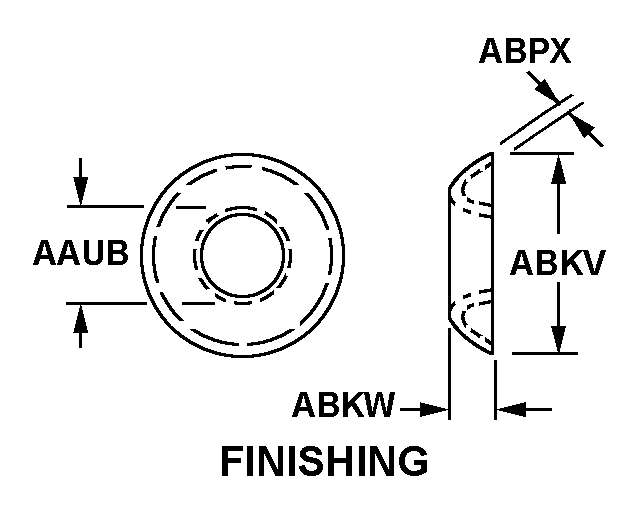

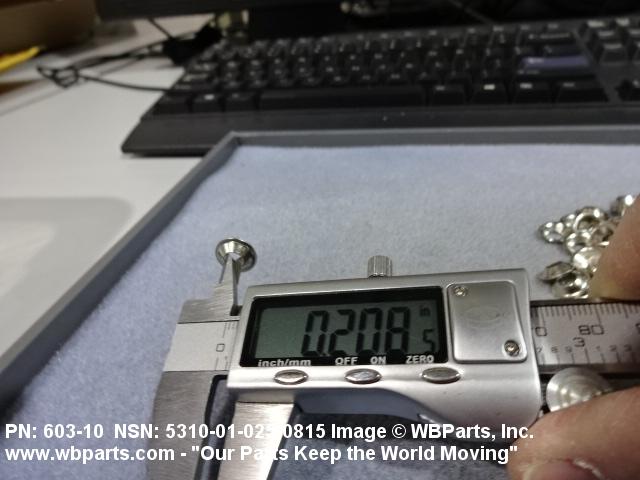

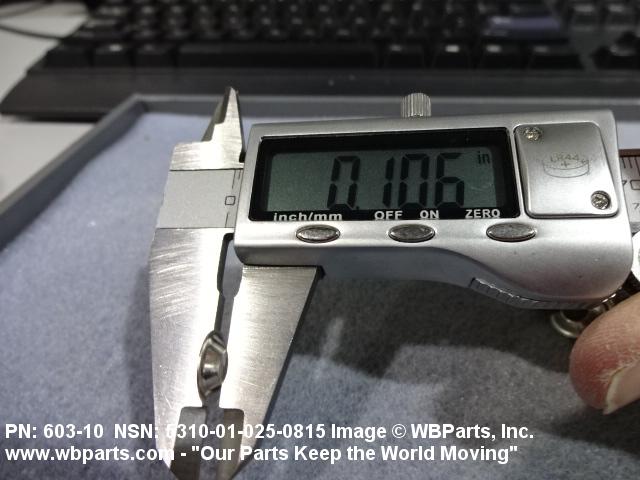

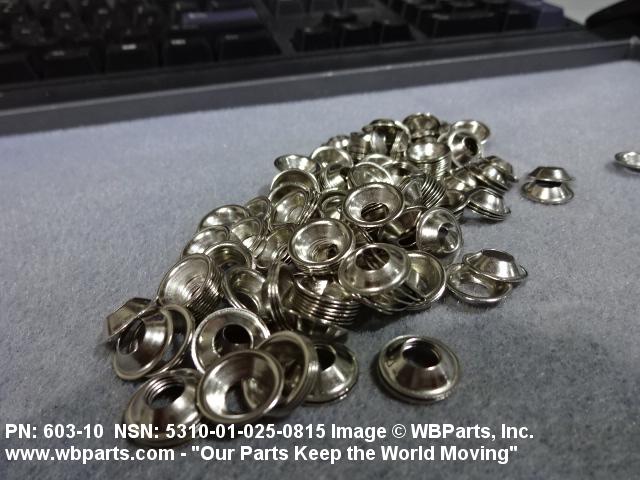

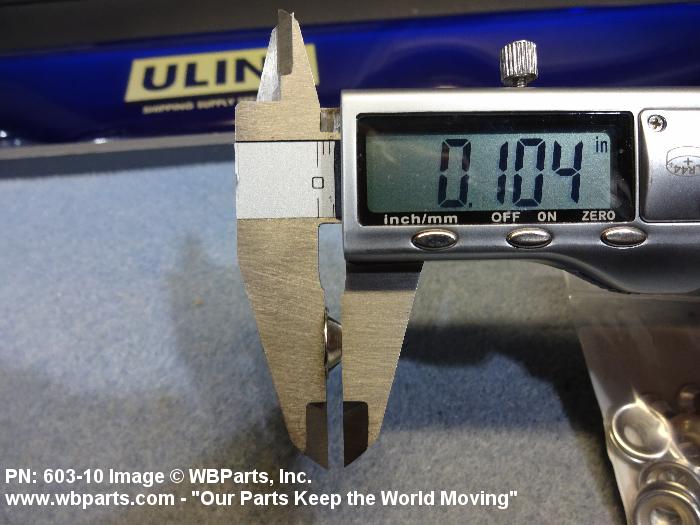

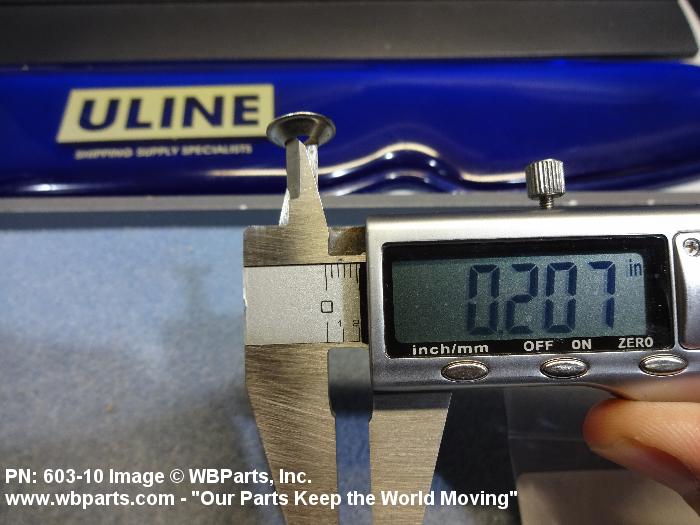

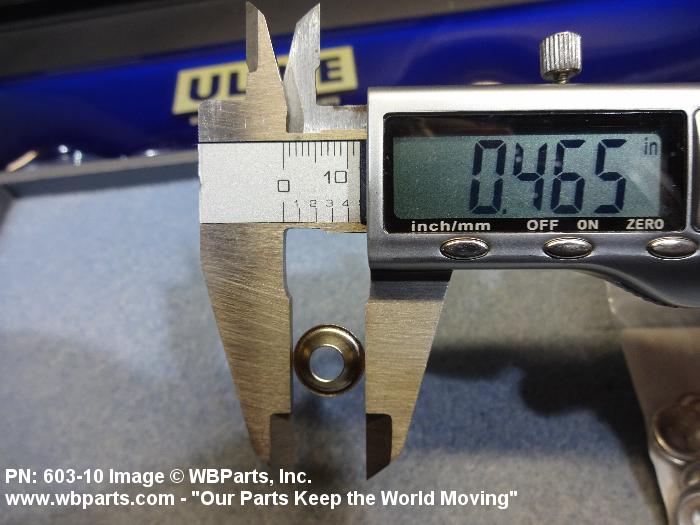

Drawings & Photos | NSN 5310-01-025-0815
Cross Reference | NSN 5310-01-025-0815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 603-10 | 00357 | VAN DUSEN AIRCRAFT SUPPLIES DIV OF VAN DUSEN AIR INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-025-0815
5310-01-025-0816, 5310-01-025-1177, 5310-01-025-1211, 5310-01-025-1283, 5310-01-025-1287
Technical Data | NSN 5310-01-025-0815
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| STYLE DESIGNATOR | 4 FINISHING |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.094 INCHES NOMINAL |
| MANUFACTURERS CODE | 00357 |
| DESIGN CONTROL REFERENCE | 603-10 |
Restrictions/Controls & Freight Information | NSN 5310-01-025-0815
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
