Product Details | FINISHING WASHER
5310-01-320-5918 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Part Alternates: 356AS148, 5310-01-320-5918, 01-320-5918, 5310013205918, 013205918
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1990 | 01-320-5918 | 15932 ( WASHER, FINISHING ) |

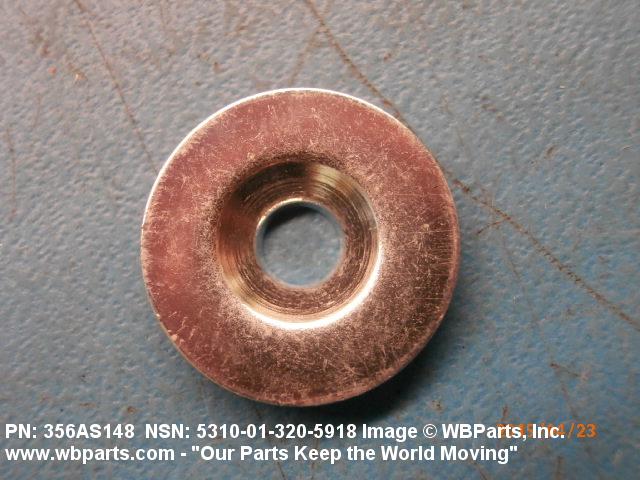

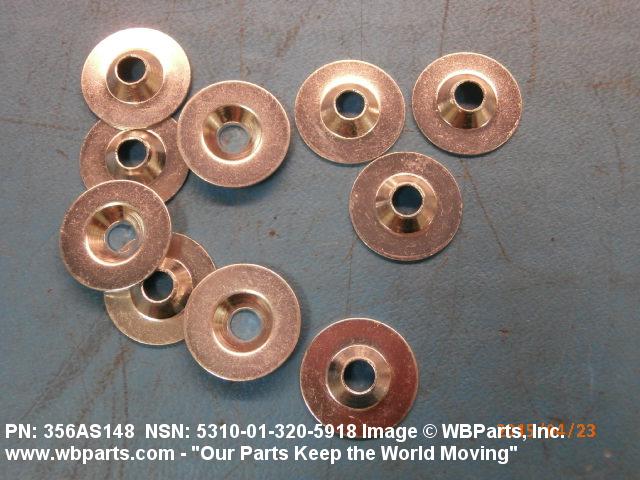

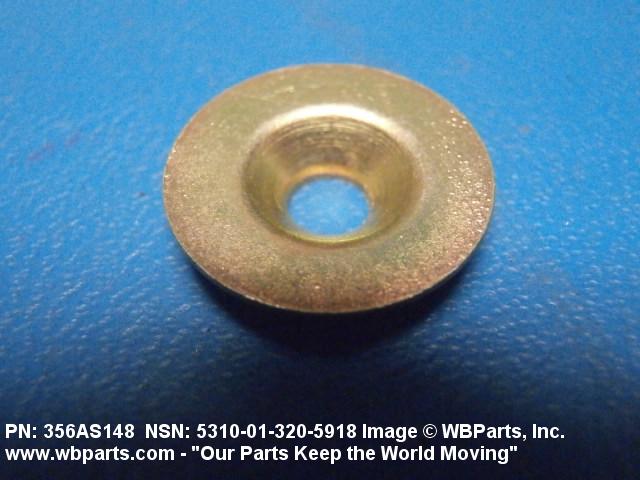

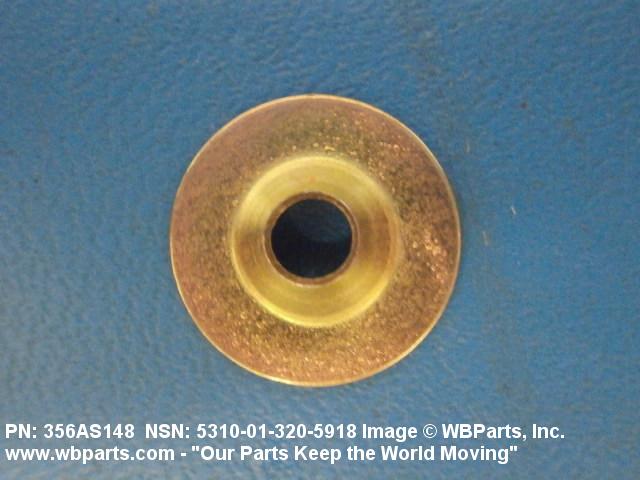

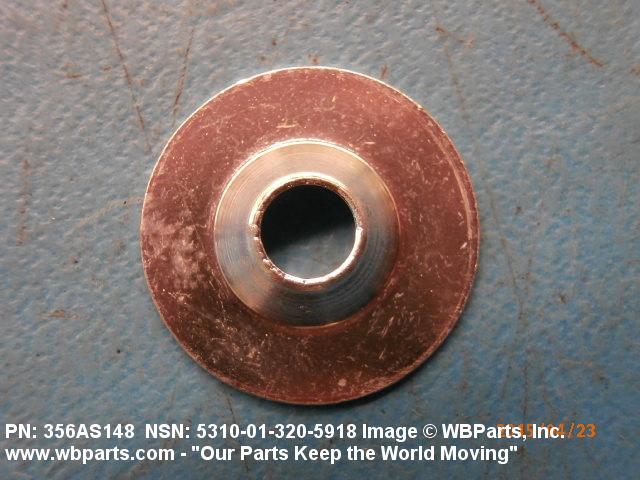

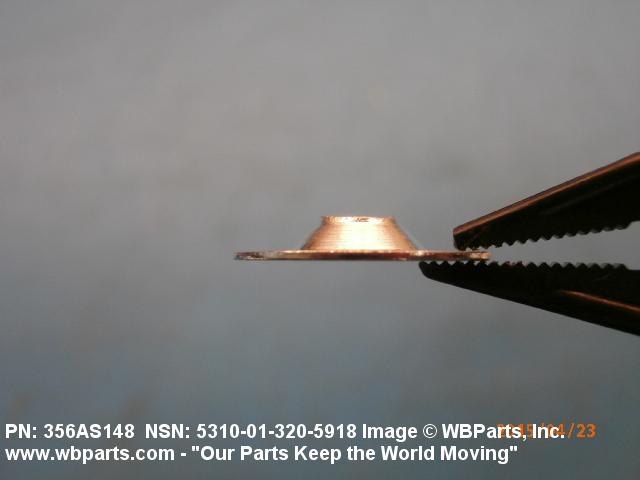

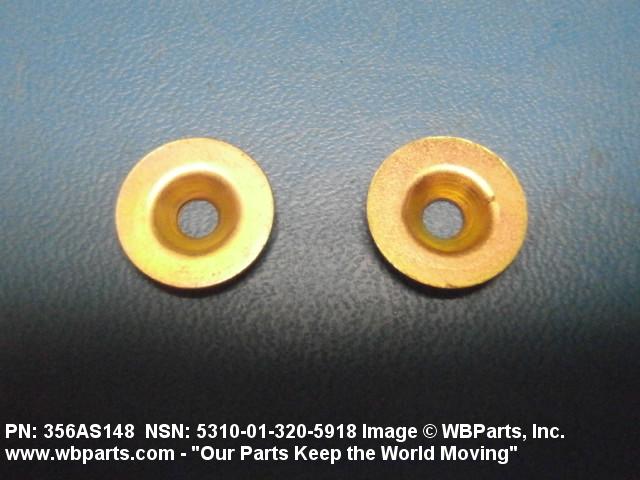

Drawings & Photos | NSN 5310-01-320-5918
Demand History | NSN 5310-01-320-5918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-320-5918 | 2021-08-30 | 75 | DIBBS |
| 5310-01-320-5918 | 2021-08-17 | 75 | DIBBS |
| 5310-01-320-5918 | 2021-08-09 | 51 | DIBBS |
| 5310-01-320-5918 | 2021-08-08 | 75 | DIBBS |
| 5310-01-320-5918 | 2021-06-17 | 61 | DIBBS |
| 5310-01-320-5918 | 2021-05-18 | 6 | DIBBS |
| 5310-01-320-5918 | 2021-04-27 | 6 | DIBBS |
| 5310-01-320-5918 | 2021-02-25 | 6 | DIBBS |
| 5310-01-320-5918 | 2020-09-20 | 4 | DIBBS |
| 5310-01-320-5918 | 2020-04-28 | 6 | DIBBS |
| 5310-01-320-5918 | 2020-04-12 | 6 | DIBBS |
| 5310-01-320-5918 | 2019-08-20 | 100 | DIBBS |
| 5310-01-320-5918 | 2019-05-29 | 8 | DIBBS |
| 5310-01-320-5918 | 2019-04-10 | 1 | DIBBS |
| 5310-01-320-5918 | 2017-11-28 | 15 | DIBBS |
| 5310-01-320-5918 | 2016-11-15 | 12 | DIBBS |
| 5310-01-320-5918 | 2015-12-01 | 1500 | DIBBS |
| 5310-01-320-5918 | 2015-05-04 | 100 | DIBBS |
| 5310-01-320-5918 | 2015-04-21 | 100 | DIBBS |
| 5310-01-320-5918 | 2015-04-13 | 500 | United States |
Cross Reference | NSN 5310-01-320-5918
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 356AS148 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-320-5918
Related Products | NSN 5310-01-320-5918
5310-01-320-5919, 5310-01-320-5920, 5310-01-320-5921, 5310-01-320-5922, 5310-01-320-5923
Technical Data | NSN 5310-01-320-5918
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3,GR 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

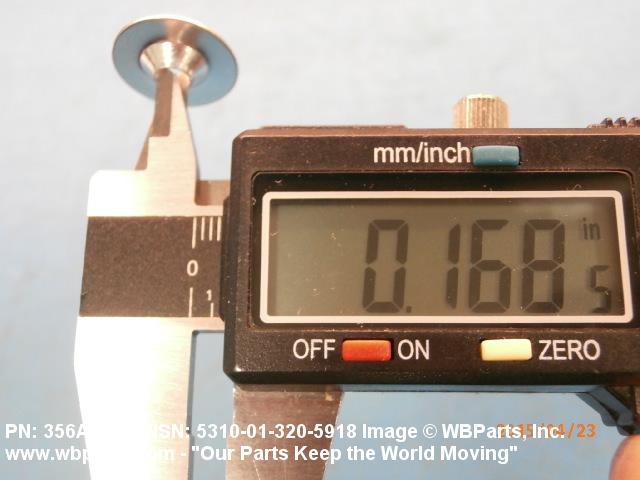

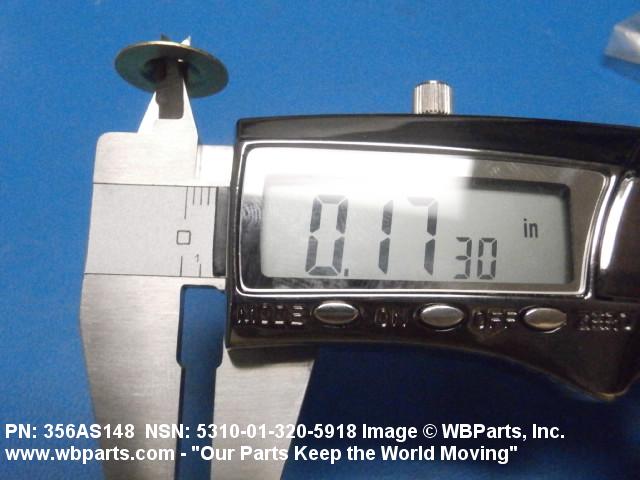

| HOLE DIAMETER | 0.173 INCHES NOMINAL |

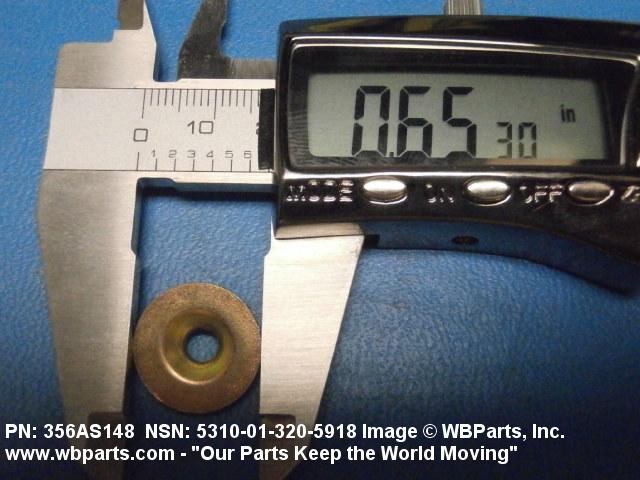

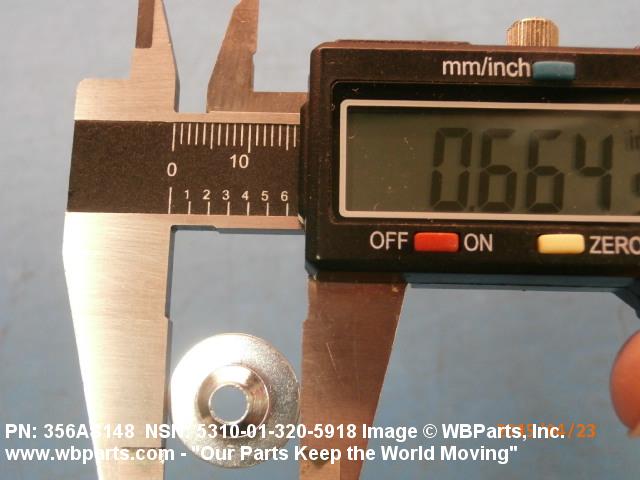

| OUTSIDE DIAMETER | 0.650 INCHES NOMINAL |

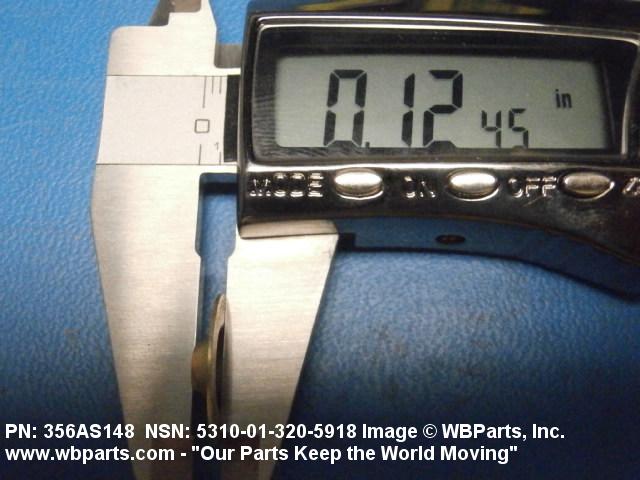

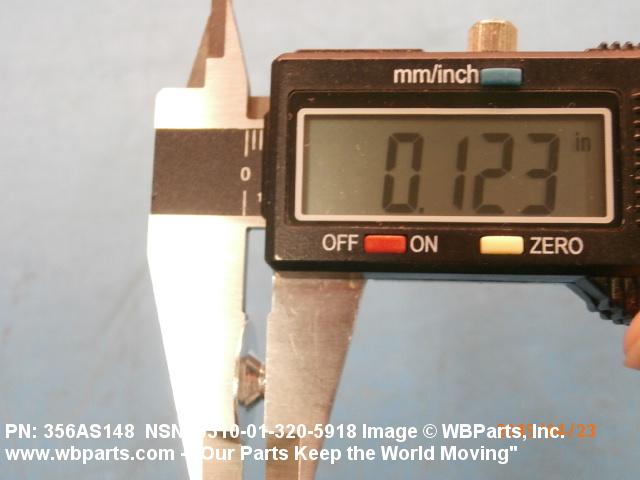

| OVERALL HEIGHT | 0.120 INCHES NOMINAL |

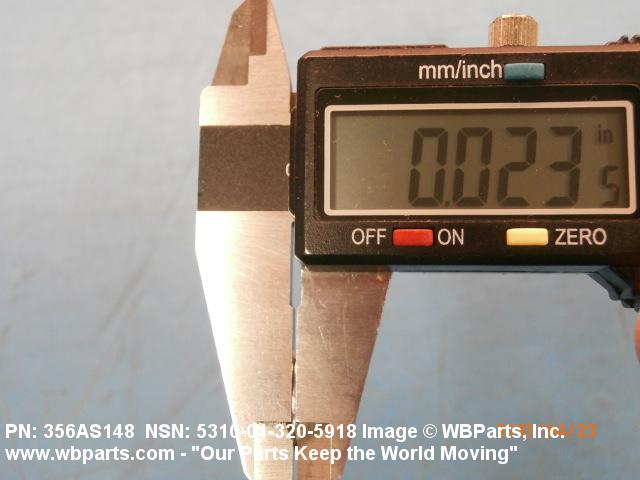

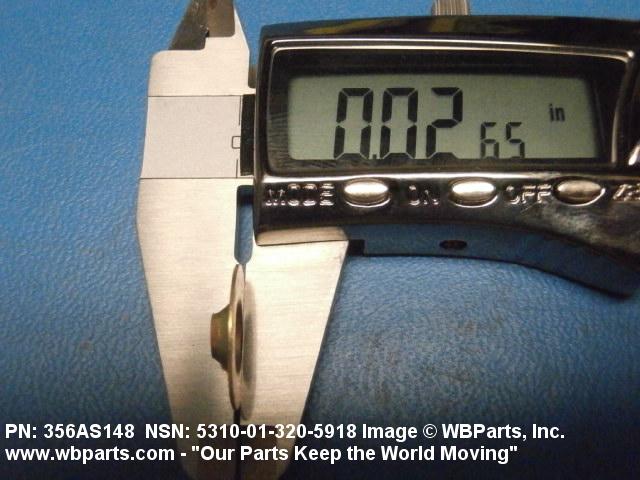

| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-320-5918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-320-5918
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
