Product Details | COTTER PIN
5315-00-018-9799 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: 12Z48PC813, 189799, 42P6485270, 42P6485-270, 5315-00-018-9799, 00-018-9799, 5315000189799, 000189799
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-018-9799 | 02381 ( PIN, COTTER ) |

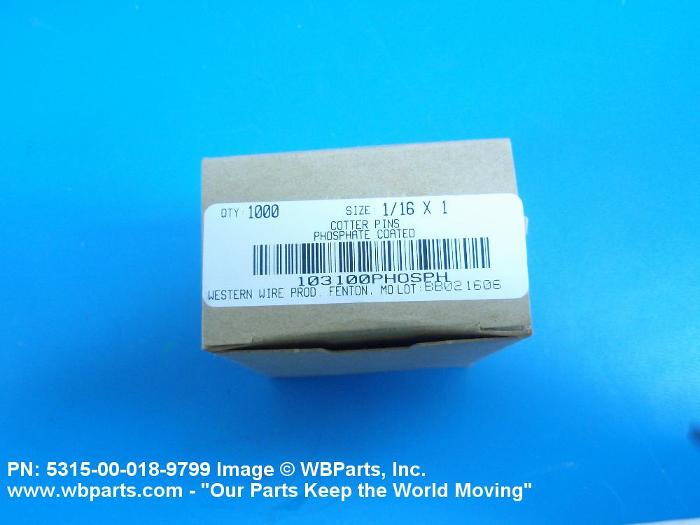

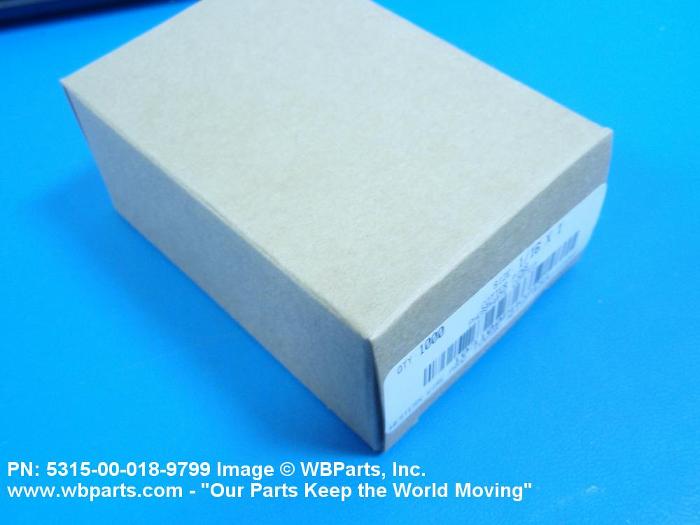

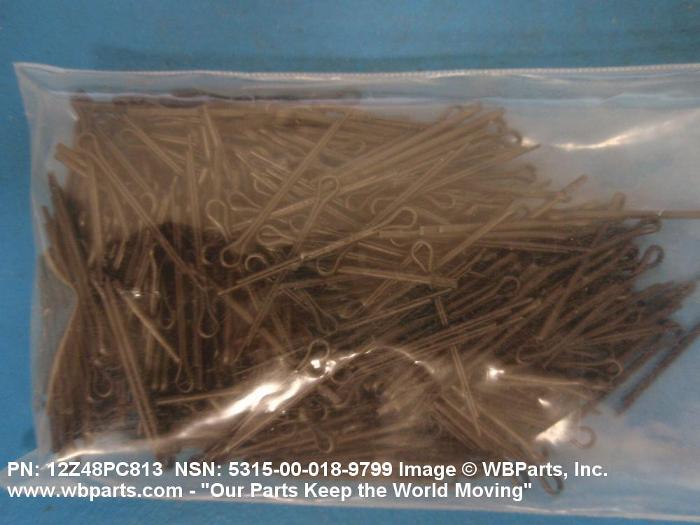

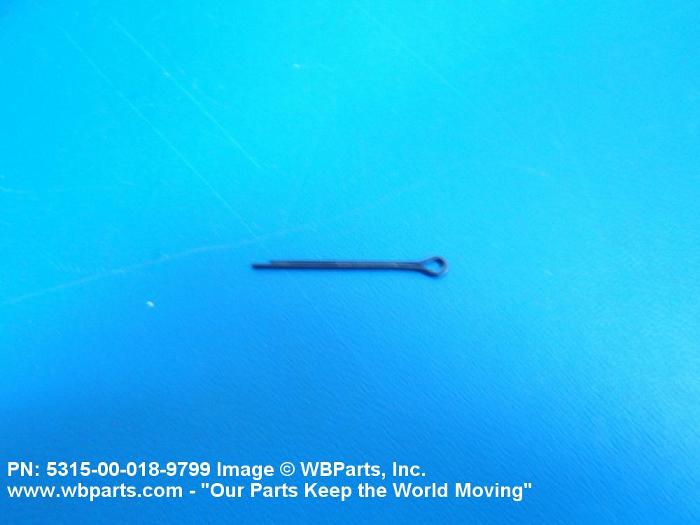

Drawings & Photos | NSN 5315-00-018-9799
Demand History | NSN 5315-00-018-9799
Cross Reference | NSN 5315-00-018-9799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z48PC813 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 189799 | 24617 | GENERAL MOTORS CORP |
| 189799 | 31007 | NAVISTAR INTL CORP |
| 189799 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 42P6485-270 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5315-00-018-9799
5315-00-019-0016, 5315-00-019-0381, 5315-00-019-0432, 5315-00-019-0436, 5315-00-019-0591
Technical Data | NSN 5315-00-018-9799
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |
| DIAMETER | 0.062 INCHES NOMINAL |
| UNDERLOOP LENGTH | 1.000 INCHES NOMINAL |
| POINT TYPE | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5315-00-018-9799
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
