Product Details | COTTER PIN
5315-00-839-2326 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: MS24665281, MS24665-281, AN38032, AN380-3-2, S15X7, S2197, S3627, X8-25, X415, X825, CP8, CP-8, M96X, 103372, 10805, 11X256, 13207E6400FN2, 1G, 3B4607, 5354, 72004S, 901219, 9X104332, 9X1043-32, 5315-00-839-2326, 00-839-2326, 5315008392326, 008392326
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-839-2326 | 02381 ( PIN, COTTER ) |

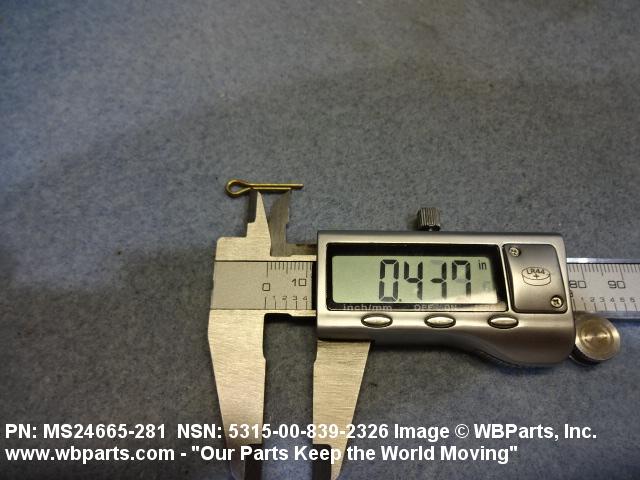

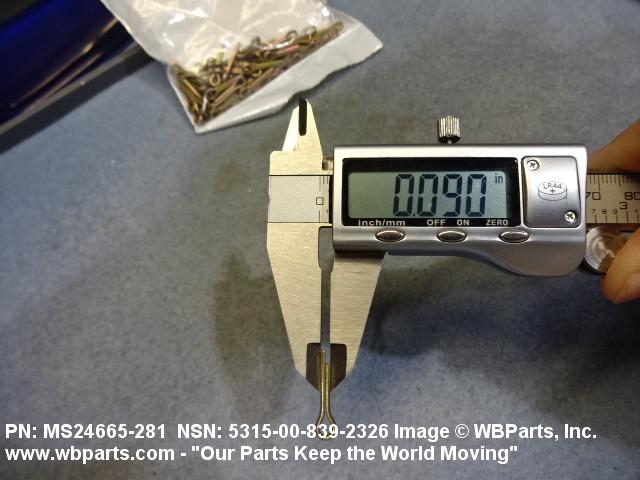

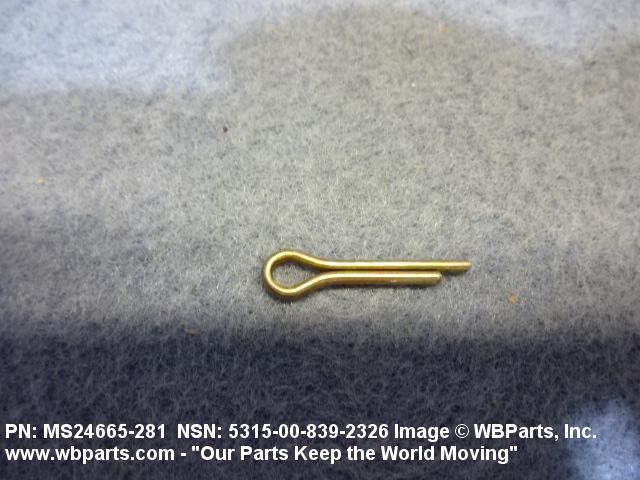

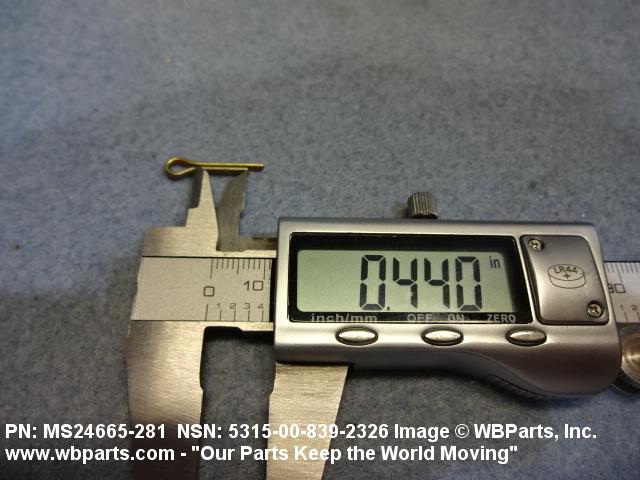

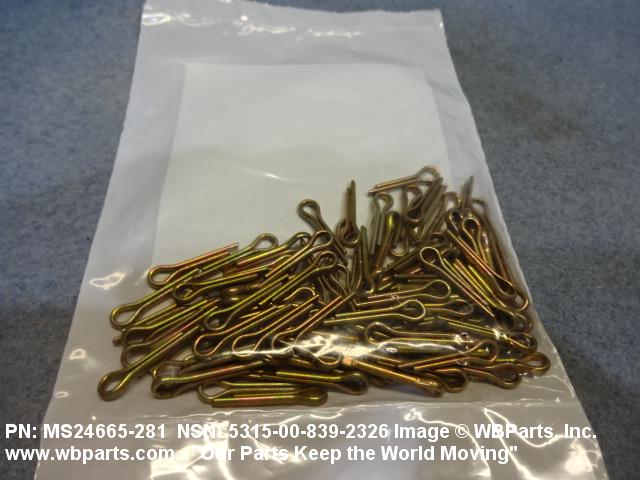

Drawings & Photos | NSN 5315-00-839-2326
Demand History | NSN 5315-00-839-2326
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24665281 | 2023-11-29 | 2 | us |
| 5315-00-839-2326 | 2023-03-15 | 710 | DIBBS |
| 5315-00-839-2326 | 2023-03-07 | 710 | DIBBS |
| MS24665281 | 2020-10-22 | 1 | United States |
| MS24665-281 | 2020-05-26 | 1000 | US |
| 5315-00-839-2326 | 2019-08-20 | 142 | DIBBS |
| 1G | 2019-03-28 | 10 | us |
| 5315-00-839-2326 | 2019-02-18 | 565 | DIBBS |
| 5315-00-839-2326 | 2017-09-20 | 143 | DIBBS |
| 5315-00-839-2326 | 2017-08-31 | 411 | DIBBS |
| 5315-00-839-2326 | 2017-07-30 | 143 | DIBBS |
| 5315-00-839-2326 | 2017-06-29 | 489 | DIBBS |
| 5315-00-839-2326 | 2017-06-29 | 334 | DIBBS |
| 5315-00-839-2326 | 2017-06-21 | 489 | DIBBS |
| 5315-00-839-2326 | 2016-08-15 | 489 | DIBBS |
| MS24665281 | 2016-02-04 | 20 | Thailand |
| MS24665-281 | 2012-11-05 | 50 | |
| MS24665281 | 2011-05-13 | 20 | Spain |
| 5315-00-839-2326 | 2008-03-23 | 5 | us |
Cross Reference | NSN 5315-00-839-2326
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103372 | 12204 | DAIMLER CHRYSLER |
| 103372 | 24617 | GENERAL MOTORS CORP |
| 103372 | 56442 | DIAMOND REO TRUCK CO |
| 103372 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 10805 | 82423 | KLEINSCHMIDT INC |
| 11X256 | 95201 | NAPCO INTERNATIONAL LLC |
| 13207E6400FN2 | 97403 | CECOM LR CENTER |
| 1G | 95019 | DANA CORP SPICER TRANSMISSION DIV |
| 3B4607 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 5315008392326 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5354 | 34623 | AM GENERAL, LLC |
| 72004S | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 72004S | 57526 | FORD MOTOR CO |
| 901219 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 901219 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 9X1043-32 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
| AN380-3-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| CP-8 | 94223 | SPAENAUR INC DBA SPAENAUR INC. |
| M96X | 79575 | WICO-PRESTOLITE CO THE DIV OF ELTRA CORP |
| MS24665-281 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-281 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S15X7 | 66289 | WISCONSIN MOTORS LLC |
| S2197 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| S3627 | 64161 | WEAVER DIV OF DURA CORP |
| X415 | 76040 | MACK TRUCKS INC PARTS OPN |
| X415 | 77260 | PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP |
| X8-25 | 15586 | CUSHMAN INC A RANSOM CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-839-2326
Related Products | NSN 5315-00-839-2326
5315-00-839-2327, 5315-00-839-2594, 5315-00-839-2682, 5315-00-839-2713, 5315-00-839-2755
Restrictions/Controls & Freight Information | NSN 5315-00-839-2326
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5315-00-839-2326
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | BM | RECONNAISSANCEAIRCRAFT(M34) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
