Product Details | BAND PASS FILTER
5915-01-157-9797 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).
Part Alternates: FX5000319, FX5000-319, KW8032375PW, KW803-237-5PW, 100230, 7330011, 733001-1, 5915-01-157-9797, 01-157-9797, 5915011579797, 011579797
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUL 1983 | 01-157-9797 | 00209 ( FILTER, BAND PASS ) |
Drawings & Photos | NSN 5915-01-157-9797
Cross Reference | NSN 5915-01-157-9797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100230 | 56216 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
| 733001-1 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| FX5000-319 | 56216 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
| KW803-237-5PW | 56216 | TELEDYNE WIRELESS, LLC DBA TELEDYNE MICROWAVE SOLUTIONS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5915-01-157-9797
5915-01-157-9798, 5915-01-157-9799, 5915-01-157-9970, 5915-01-157-9989, 5915-01-157-9990
Technical Data | NSN 5915-01-157-9797
| Characteristic | Specifications |
|---|---|
| REFERENCE FREQUENCY PER FUNCTION | 803.0 MEGAHERTZ BLANK |
| INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS | 1.5 BLANK |
| FREQUENCY BAND WIDTH PER FUNCTION | 684.00 MEGAHERTZ BLANK AND 921.00 MEGAHERTZ BLANK |
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| VOLTAGE STANDING WAVE RATIO PER FUNCTION | 2.5 BLANK |
| VOLTAGE STANDING WAVE RATIO FREQUENCY LIMITS PER FUNCTION | 684.0 MEGAHERTZ BLANK AND 921.0 MEGAHERTZ BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 PIN INPUT 1 CONNECTOR, RECEPTACLE OUTPUT 1 PIN GROUND |

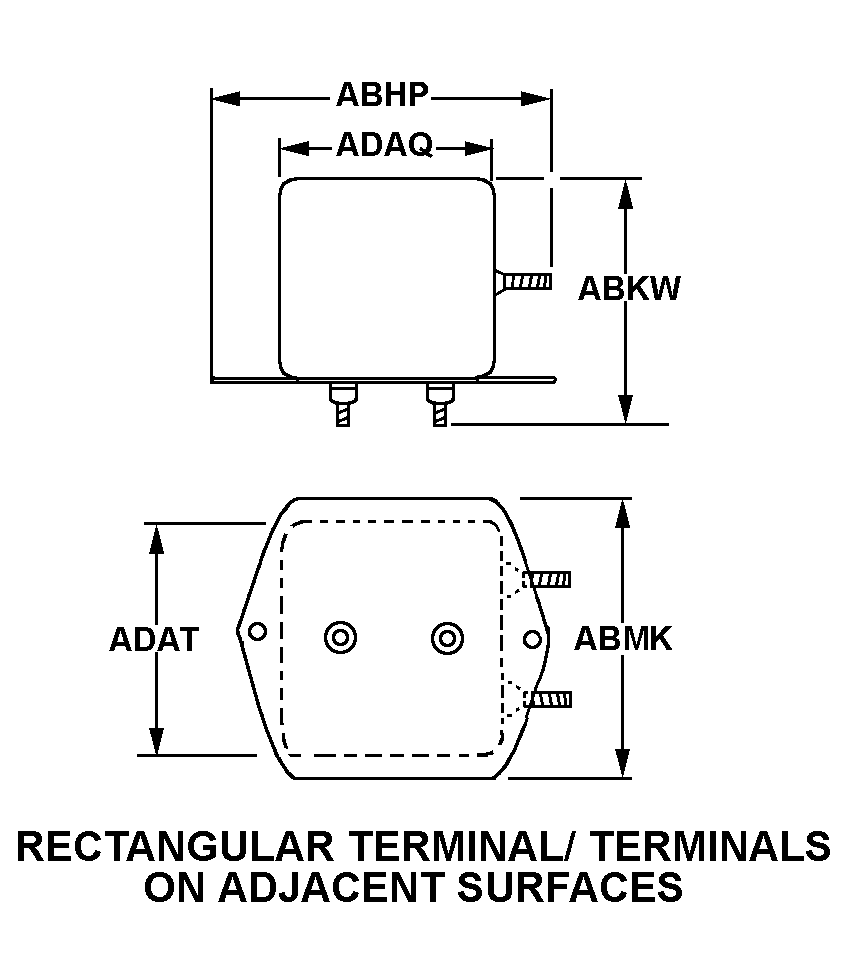

| STYLE DESIGNATOR | 15 RECTANGULAR TERMINAL/TERMINALS ON ADJACENT SURFACES |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.730 INCHES MAXIMUM |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY WIDTH | 0.400 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.100 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.500 INCHES NOMINAL |
| III SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTION | 460.00 MEGAHERTZ BLANK AND 684.00 MEGAHERTZ BLANK AND 921.00 MEGAHERTZ BLANK AND 1.30 GIGAHERTZ BLANK |
| III DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELS | 60.0 MINIMUM BLANK AND 1.0 MAXIMUM BLANK AND 1.0 MAXIMUM BLANK AND 55.0 MINIMUM BLANK |
| III OUTPUT TERMINAL MANUFACTURER CODE | 05869 |
| III OUTPUT TERMINAL IDENTIFICATION | SMA-RECEPTACLE |
| III UNPACKAGED UNIT WEIGHT | 0.050 POUNDS |
| III OPERATING TEMP RANGE | -0.0 TO 90.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5915-01-157-9797
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
