5930-00-088-4675 - TOGGLE SWITCH, MS166562, MS16656-2, SPST

Product Details | TOGGLE SWITCH

5930-00-088-4675 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS166562, MS16656-2, SPST, 013007200L1, 013-00720-0L1, 720142, 720-142, 720142SAN724, 81574434PC10, 815-74434PC10, 5930-00-088-4675, 00-088-4675, 5930000884675, 000884675

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-088-4675	00184 ( SWITCH, TOGGLE )

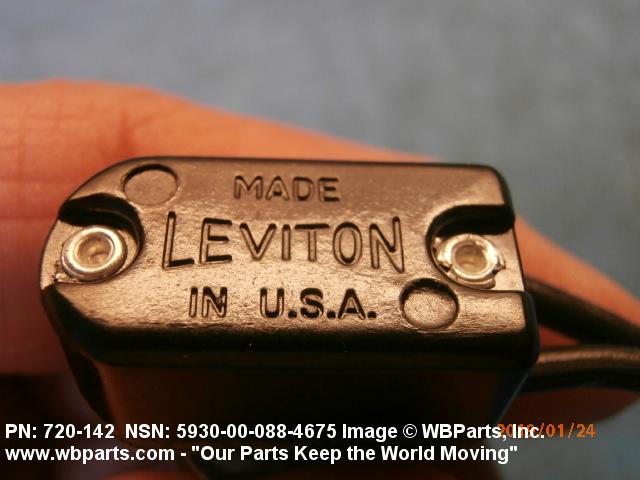

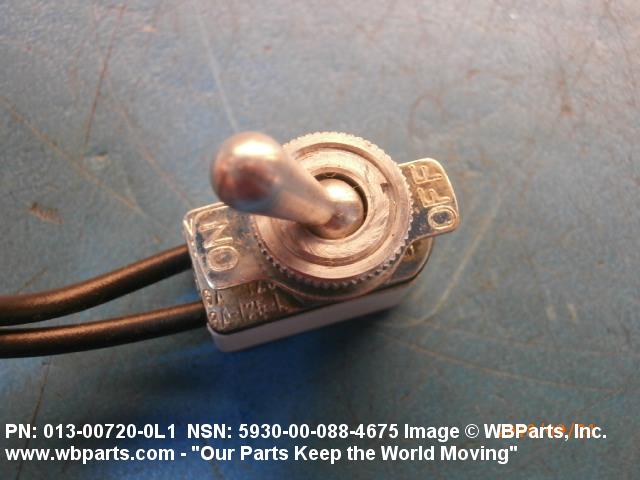

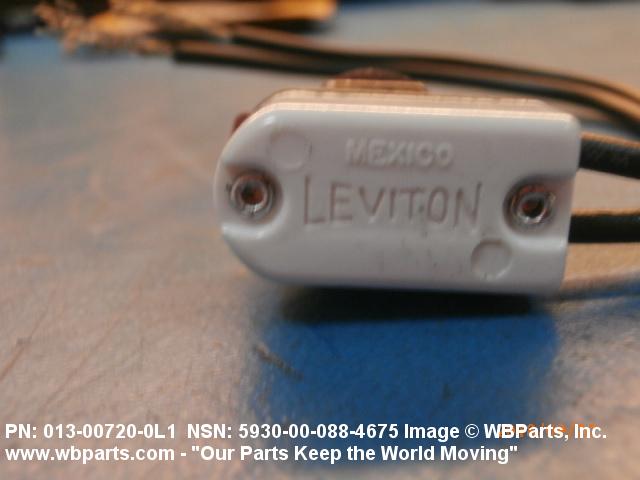

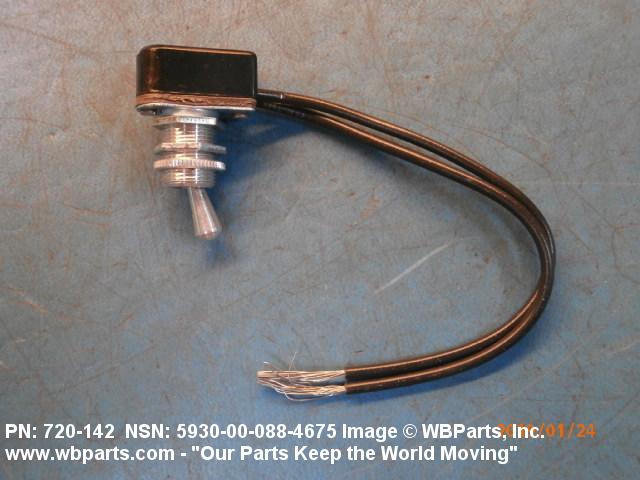

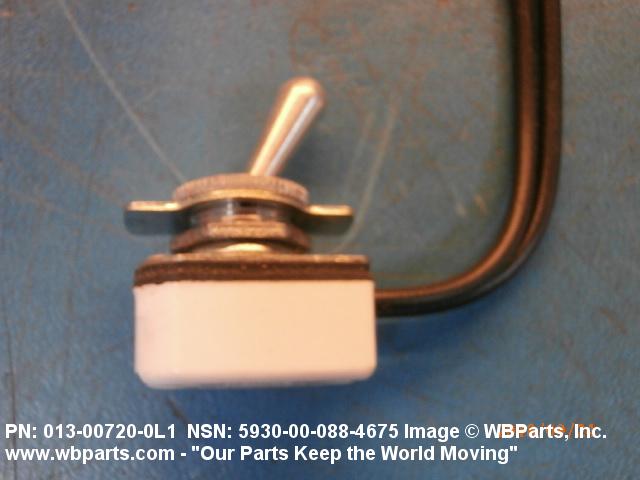

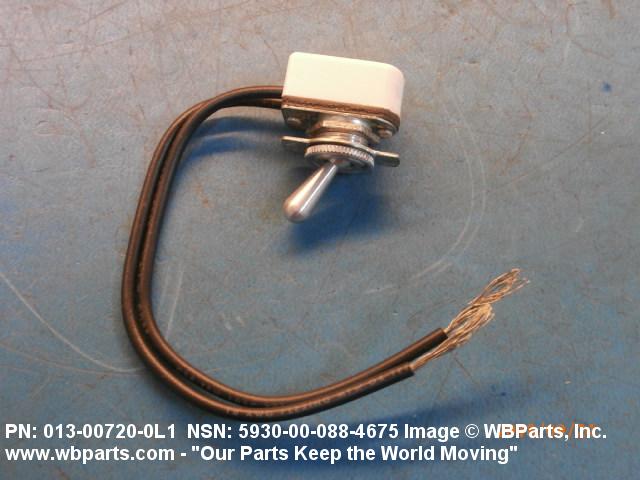

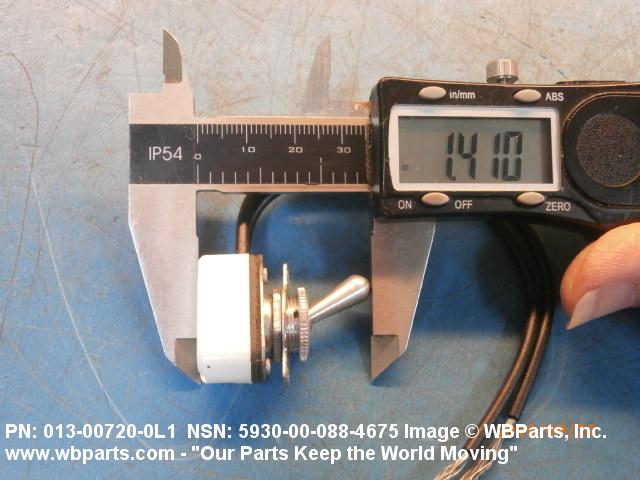

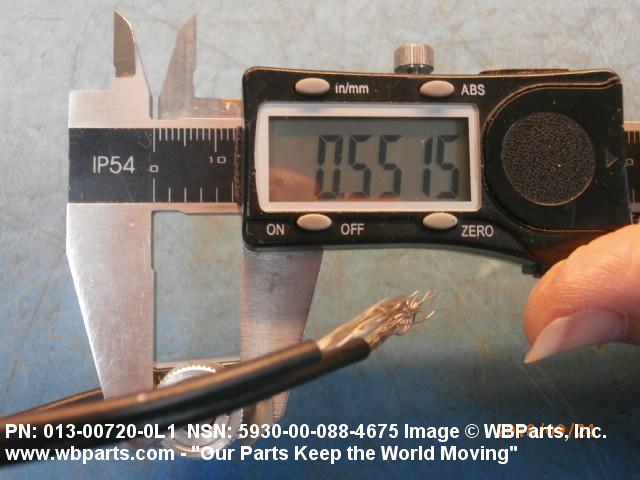

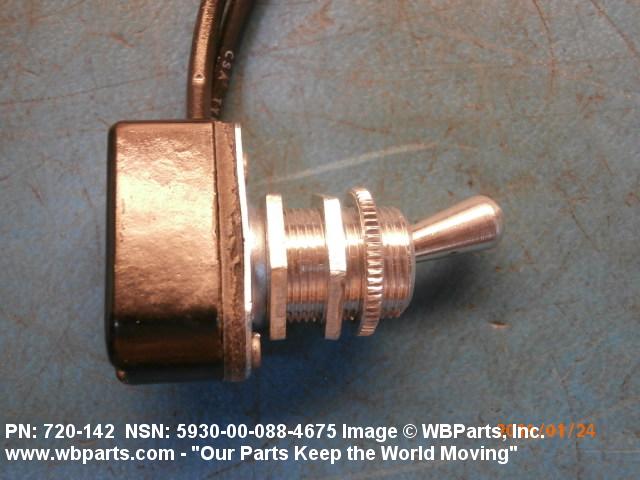

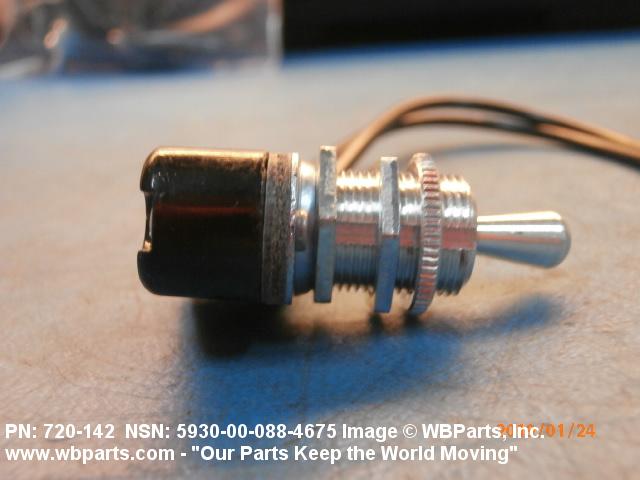

Drawings & Photos | NSN 5930-00-088-4675

Part Number	Request Date	QTY	Origin
5930-00-088-4675	2023-03-09	878	DIBBS
5930-00-088-4675	2022-10-13	89	DIBBS
MS166562	2022-10-11	1	United States
5930-00-088-4675	2022-06-27	229	DIBBS
5930-00-088-4675	2022-06-16	229	DIBBS
5930-00-088-4675	2022-04-01	87	DIBBS
5930-00-088-4675	2022-03-20	87	DIBBS
5930-00-088-4675	2021-12-16	23	DIBBS
5930-00-088-4675	2021-11-18	27	DIBBS
5930-00-088-4675	2021-10-17	23	DIBBS
5930-00-088-4675	2021-10-07	71	DIBBS
5930-00-088-4675	2021-08-12	87	DIBBS
5930-00-088-4675	2021-08-04	1	US
5930-00-088-4675	2021-07-01	278	DIBBS
5930-00-088-4675	2021-06-01	375	DIBBS
5930-00-088-4675	2021-05-17	375	DIBBS
5930-00-088-4675	2020-05-31	421	DIBBS
5930-00-088-4675	2019-07-04	659	DIBBS
MS166562	2019-03-06	2	United States
5930-00-088-4675	2018-09-10	5	United States
5930-00-088-4675	2018-07-10	6	United States
5930-00-088-4675	2017-11-29	1	United States
MS166562	2017-11-27	1	United States
5930-00-088-4675	2017-11-16	1	MANUAL
MS16656-2	2017-11-16	1	United States
5930-00-088-4675	2016-12-06	906	DIBBS
5930-00-088-4675	2014-12-11	712	DIBBS
5930-00-088-4675	2014-11-30	712	DIBBS
5930-00-088-4675	2014-01-14	457	DIBBS
5930-00-088-4675	2013-08-06	401	DIBBS
5930-00-088-4675	2013-02-01	468	DIBBS
5930-00-088-4675	2013-01-17	0	DIBBS
5930-00-088-4675	2012-07-31	0	DIBBS
5930-00-088-4675	2011-10-26	687	DIBBS
5930-00-088-4675	2011-06-13	388	DIBBS
5930-00-088-4675	2010-09-12	10	US
5930-00-088-4675	2010-09-11	10	US

Cross Reference | NSN 5930-00-088-4675

Part Number	Cage Code	Manufacturer
013-00720-0L1	75582	LEVITON MANUFACTURING CO., INC. DBA LEVITON
720-142	75582	LEVITON MANUFACTURING CO., INC. DBA LEVITON
720-142(SAN724)	75582	LEVITON MANUFACTURING CO., INC. DBA LEVITON
815-74434PC10	53711	NAVAL SEA SYSTEMS COMMAND
MS16656-2	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
MS16656-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SPST	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-00-088-4675

Compare

Related Products | NSN 5930-00-088-4675

5930-00-088-5215, 5930-00-088-5302, 5930-00-088-5468, 5930-00-088-5520, 5930-00-088-5522

Technical Data | NSN 5930-00-088-4675

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	3.000 AMPERES RESISTIVE AC
BODY STYLE	4P BUSHING MOUNT
BUSHING LENGTH	0.500 INCHES NOMINAL

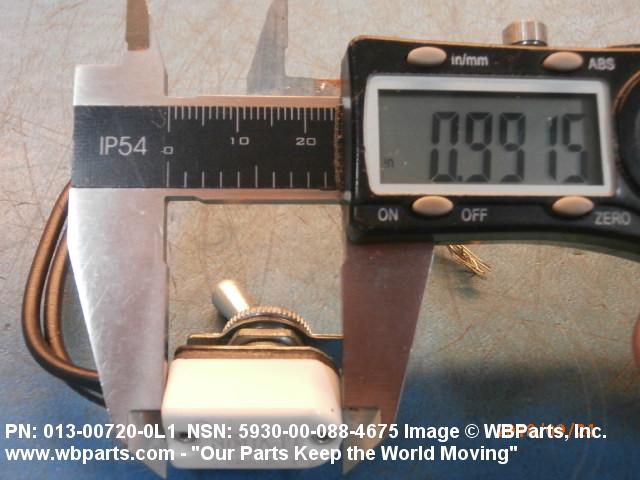

BODY LENGTH	0.875 INCHES MINIMUM AND 1.000 INCHES MAXIMUM

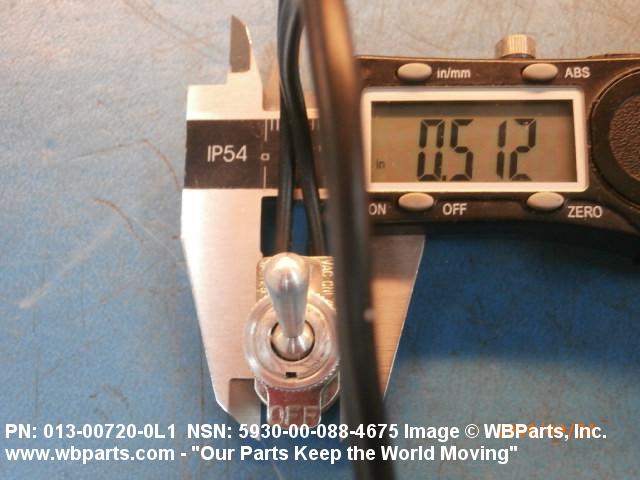

BODY WIDTH	0.500 INCHES MAXIMUM
BODY HEIGHT	0.500 INCHES NOMINAL
OVERALL LENGTH	0.875 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
OVERALL WIDTH	0.500 INCHES MAXIMUM
OVERALL HEIGHT	1.875 INCHES NOMINAL
ACTUATOR STYLE	25 ROUND
ACTUATOR HEIGHT	0.875 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	2 WIRE LEAD
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	WATERTIGHT
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
SPECIAL FEATURES	ON AND OFF INDICATOR PLATE
SPECIFICATION/STANDARD DATA	96906-MS16656 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 5930-00-088-4675

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-088-4675

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
